Part # 104031 - 09.04.07
screw
location
screw
location

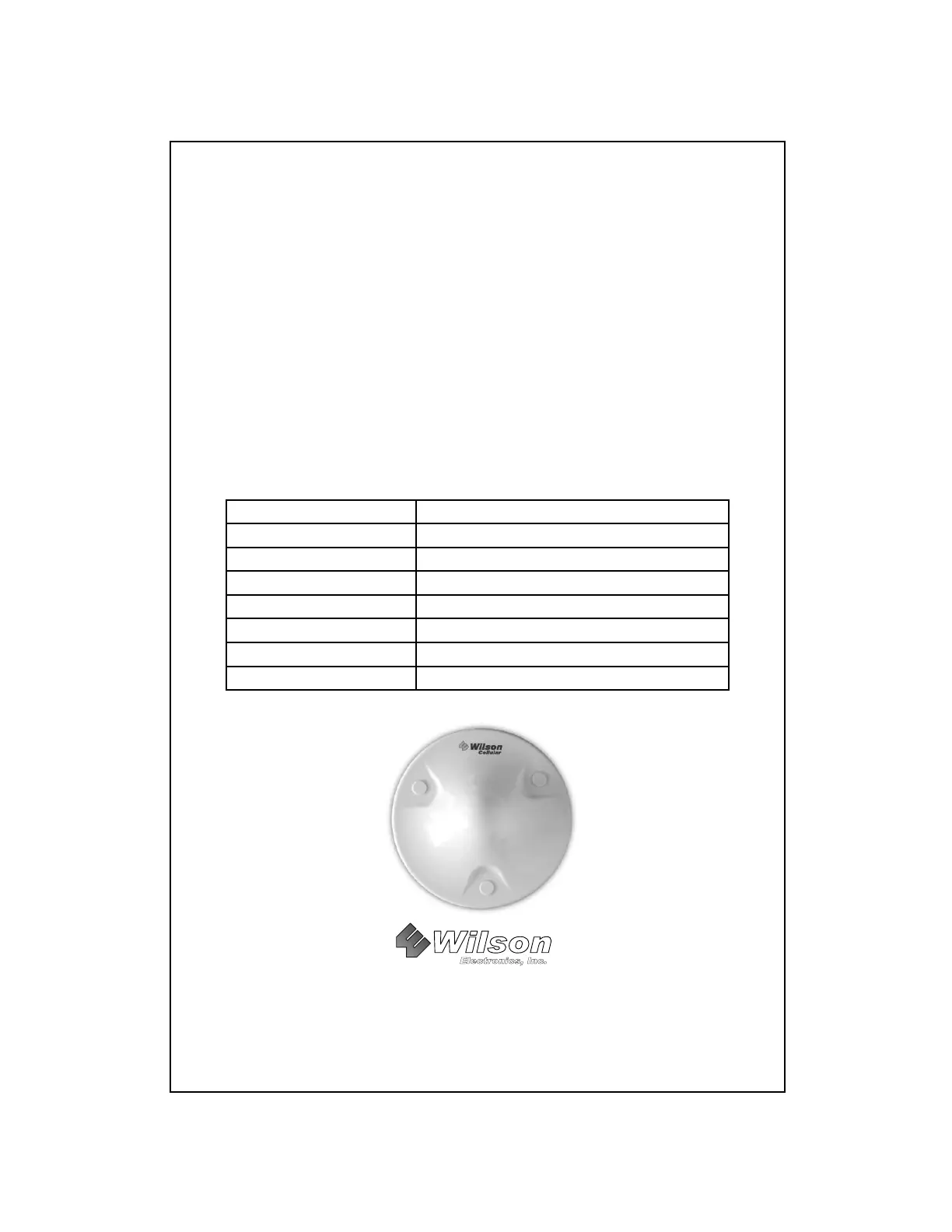

Part # 301121
Dual-Band Dome Antenna
Installation Instructions and Template
Select a location on the ceiling that you can access from above to run the
antenna cable. Verify that your chosen location allows for the necessary
separation between the dome antenna and the outside antenna (see
amplifi er installation instructions for antenna separation requirements).

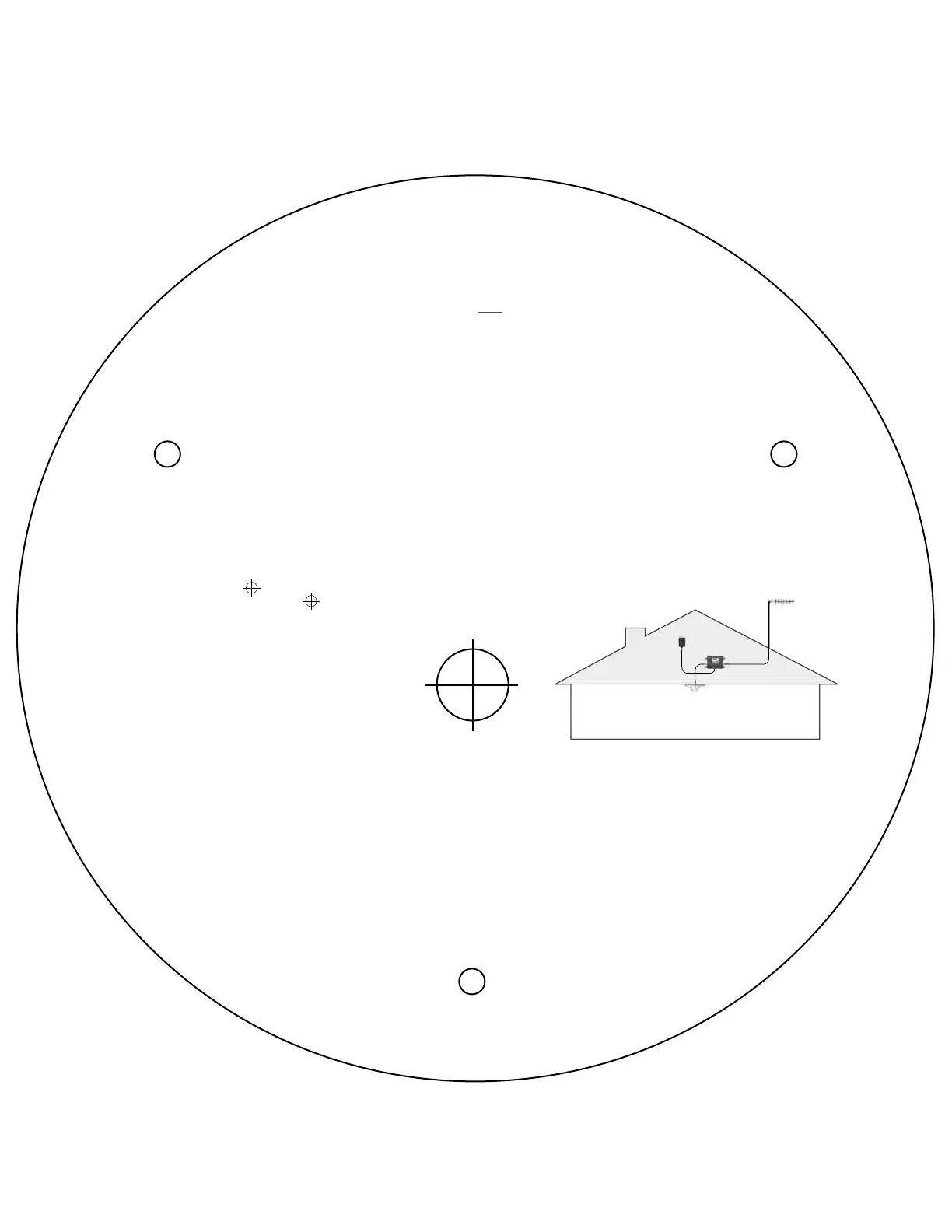

Tape this template in the selected antenna location. NOTE: ensure that the
cable connector location (marked by ) is NOT below a ceiling stud. Drill
a 5/8-inch hole in the template at the spot marked . Feed the cable from
above through the hole.
Included are two sets of mounting hardware: A) 3 bolts with nuts and
washers, B) 3 self-starting screws, and 3 mounting plugs.
A) If using the bolts, drill a 1/8” hole through each of the small
circles marked “screw location.” Remove template from the
ceiling, attach the dome antenna to the amplifier cable, insert the
bolts through the drilled holes, and tighten against the ceiling with
the enclosed nuts and washers. Snap the plugs into place on the
mounting holes.
B) If using the self-starting screws, mark the screw locations, remove the
template, and attach the amplifier cable to the dome antenna. Place the
antenna flush against the ceiling and screw in the self-starting screws
until snug. Be careful not to over-tighten. Snap the plugs into place
on the mounting holes.
If you have any questions about the installation procedure,
please contact our Technical Support Department toll free at
866-294-1660 or email tech@wilsonelectronics.com.
screw
location
The Dual-Band Dome Antenna is designed for horizontal
installation on a ceiling. It is not designed for a vertical or
slanted surface, such as a wall.
Ceiling Installation
AC/DC
Power Supply
Dome Antenna
Amplifi er
Outside Antenna
