Side 1/2

Support and Warranty

PRYME Radio Products warrants this product against defects in materials or

workmanship for a period of one year from the date of retail purchase. PRYME will

repair or replace a defective unit, at our option, without charge for parts or labor.

The limited warranty is extended only to the original purchaser and is valid only

to consumers in the United States and Canada. It does not cover damage or

failure caused by or attributable to Acts of God, abuse, misuse, improper or

abnormal usage, faulty installation, improper maintenance, lightning, or other

incidences of excessive voltage, or any tampering or repairs by other than a

PRYME authorized repair facility. It does not cover replacement of consumable

parts, transportation costs, or damage in transit.

Repair or replacement under the terms of this warranty does not extend the terms

of this warranty. This warranty can only be modiﬁed by an oﬃcer of PRYME Radio

Products, and then only in writing. Should this product prove defective in

workmanship or material, the consumer’s sole remedies shall be such repair or

replacement as provided by the terms of this warranty. Under no circumstances

shall PRYME Radio Products be liable for any loss or damage, direct, consequen-

tial, or incidental, arising out of the use of or inability to use this product. Some

states do not allow limitations on how long an implied warranty lasts or the

exclusions or limitations of incidental or consequential damages, so the above

limitations or exclusions may not apply to you. This warranty gives you speciﬁc

legal rights. You may also have other rights, which may vary, from state to state.

For support or warranty service on your PRYME product, contact us at

1-800-666-2654 or visit us on the web at www.PRYME.com.

PRYME® and PRYMEBLU® are trademarks owned by PRYME Radio Products. All

other product or service names are the property of their respective owners.

PRYME LINK ADAPTER CABLE USER’S GUIDE

PRYME® and PRYME BLU® are trademarks owned by PRYME Radio Products,

Brea CA. All other product or service names are the property of their respective owners.

Made in Taiwan

version 1.00 MAY 2021

PRYME RADIO PRODUCTS

911 Mariner St., Brea, CA 92821

TOLL FREE: 800.666.2654

PH: 714.257.0300

FAX: 714.257.0600

WWW.PRYME.COM

This cable adapter allow

create a PoC (PTT-Over-

to Two-Way Radio gate

using only an android c

running the Zello app a

two-way radio.

PRIOR TO OPERATION

The LINK cable uses VOX (Voice Operated Transmit) on both the radio and phone sides

of the link. Prior to using the cable, you should ensure that the two-way radio that will

be used in Gateway operation is programmed for VOX (Voice Operated Transmit)

operation.

For best results, you should program the radio so that any keypad beeps or other

audible notiﬁcations are disabled. Similarly, it is recommended that audible notiﬁca-

tions for most apps on the phone that will be used in the gateway should also be

disabled. Any audio notiﬁcations that are not disabled could be transmitted over the

radio and/or PoC channels during LINK operation.

HOW TO USE THE LINK CABLE

To use the LINK cable, do the following:

1. Turn oﬀ the two-way radio that will be used in gateway operation and connect the

cable to the radio’s accessory port.

2. Plug the other end of the cable into the phone that will be used for gateway

operation.

3. Launch the Zello app. Go to Options > Push To Talk Buttons and make sure the VOX

button option is enabled as “shown.”

4. In Zello, navigate to the contact or channel that you wish make use for gateway

operation. Make sure the that the “VOX” wave icon is highlighted in blue (enabled). If

it is not, then tap on it to enable VOX operation.

5. Power on the two-way radio and select the channel or talk group that you wish to

use for gateway operation.

6. Enable VOX operation using the manufacturer’s instructions for doing so (normally

by pressing a pre-programmed button).

The gateway is now ready for operation. Communications received by the two-way

radio will be retransmitted onto the PoC channel, and vice-versa. However, you may

still need to adjust the volume on the radio and/or the volume setting on the phone

and receive ampliﬁer setting in Zello to set the audio levels for best sound and

performance. Note that you also may need to adjust the VOX Sensitivity and/or VOX

Delay settings in the two-way radio using the manufacturer’s instructions.

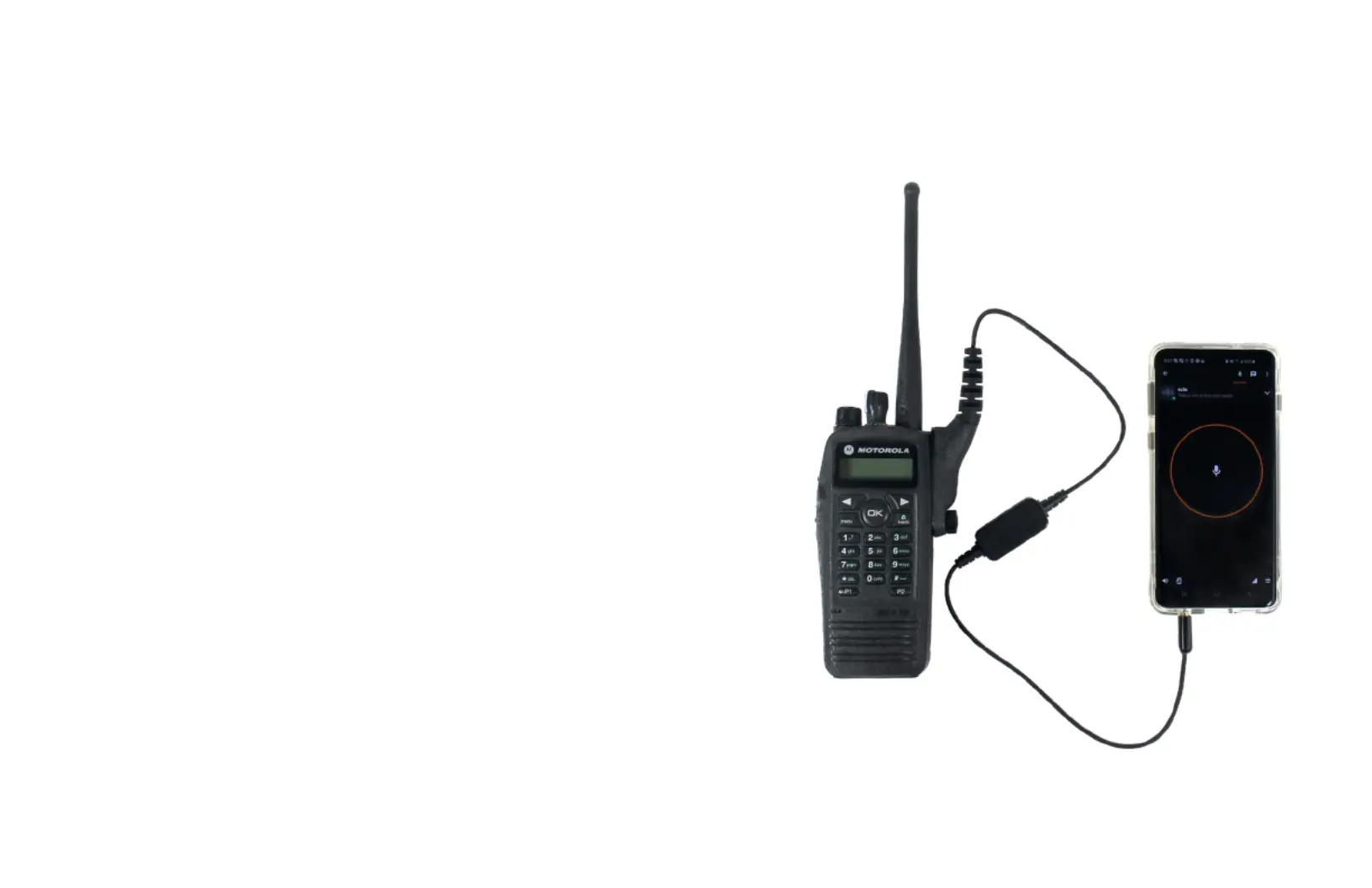

CONNECTION DIAGRAM

This diagram shows how to connect your mobile device

to the radio using the LINK Adapter

TWO-WAY RADIO

Your portable two-way radio

RADIO ADAPTER

LINK ADAPTER
