Side 1/3

Pyle Home PVC2

Wall Mount Impedance Matching

Vertical Sliding Volume Control

User Manual

www.pyleaudio.com

Thank you for purchasing the Pyle Home PVC2! The PVC2 is a great way to

control the volume of your home speaker system using an already-existing

wall-mounted junction box in your home. This manual contains installation

instructions and a wiring diagram for your convenience. Your product

includes a one year limited warranty from the time of purchase.

Caution: This volume control is limited to a maximum of 50 watts RMS /

100 watts maximum per channel.

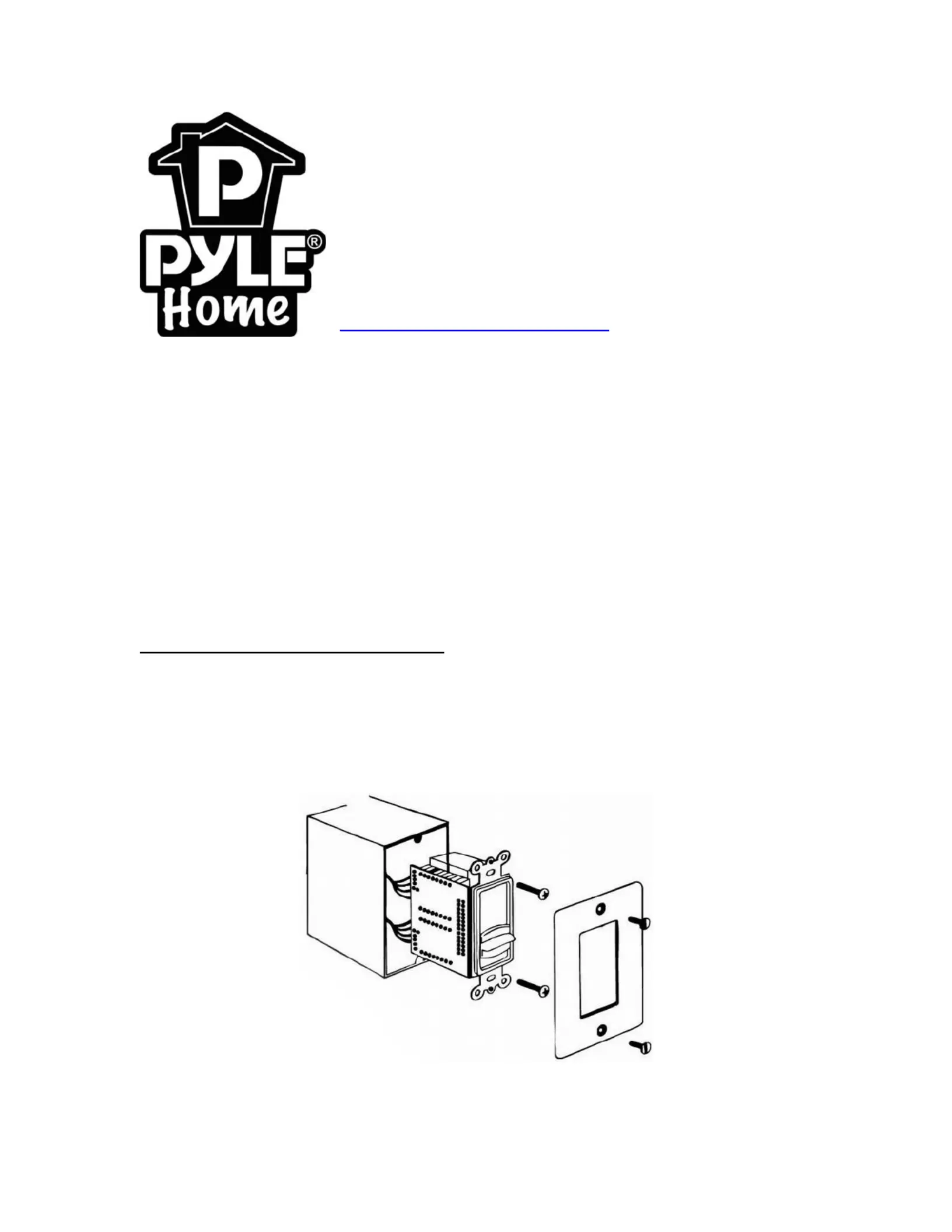

Mounting The Volume Control

The volume control is designed to be mounted in a standard electrical wall

box. Select a location that is within reach of the speaker wires and easy to

reach for using the volume control. Warning: You must mount the volume

control in a standard electrical box -- do not mount it directly on a wall.

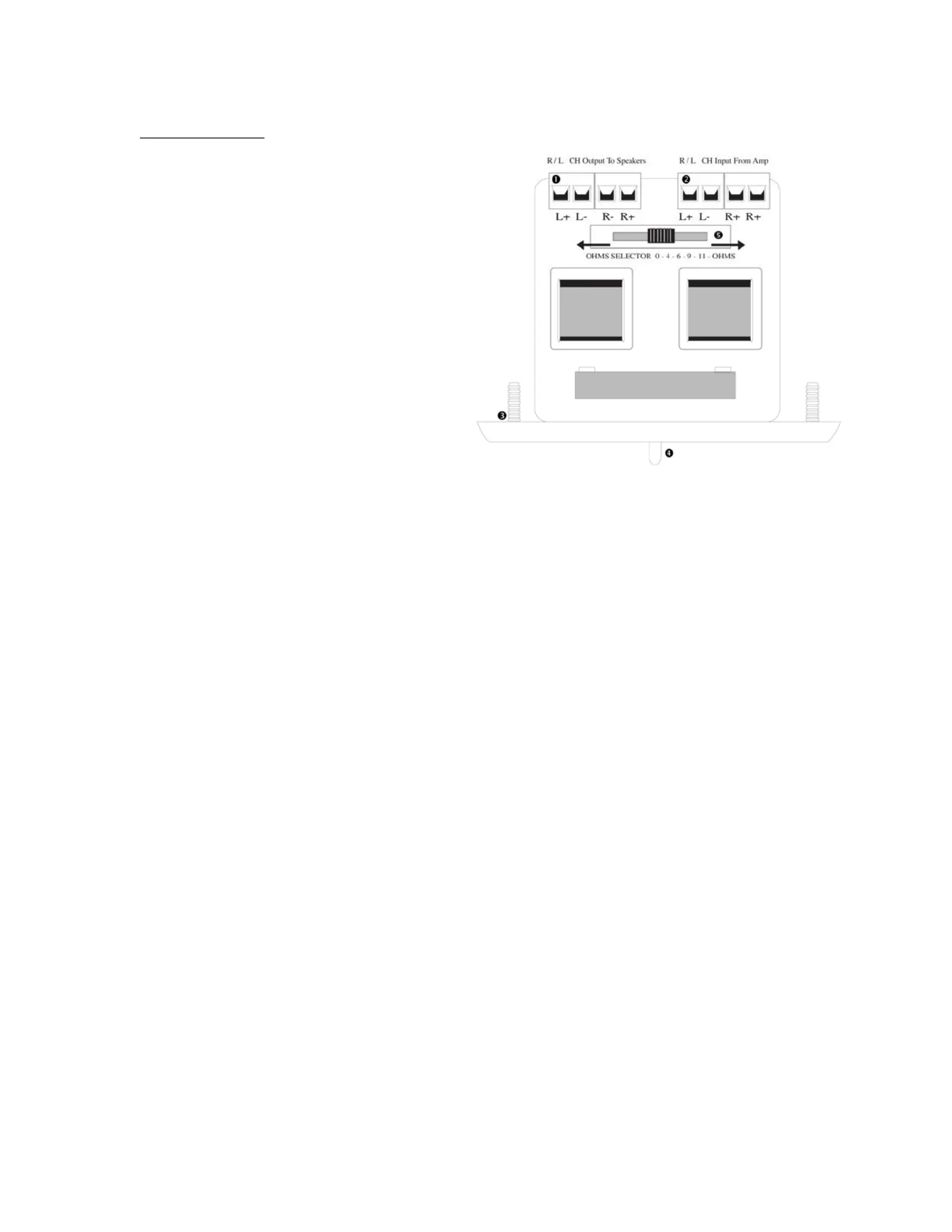

Connections

1.) Run 4-Conductor speaker cable

from the amplifier (positive and

negative for both the left and right

channel) to the volume control -

marked  and . Similarly, run 2-

conductor speaker cable from each

of the first pair of speakers to the

volume control. Label the cables for

future reference.

2.) Measure the depth of the

volume control to make sure your

Volume Control will fit in the j-box.

3.) Connect the speaker cable to the volume control:

a. Strip ¼” of insulation from the end of each cable

b. Tightly twist the wires in each cable until there are no frayed ends.

c. Insert the 4-conductor speaker cable from the amplifier into the input

terminals.

d. Insert the two 2-conductor speaker cables from the first pair of

speakers into the output terminals.

4.) Connect additional speakers in parallel.

5.) Make sure that all connections between your amplifier and the volume

control, and between the volume control () and each speaker, are in

“phase”, that is (+) to (+) and (-) to (-).

6.) Adjust impedance using the Ohm Selector () (note: if you do not know

what this is, leave in the default position.)

6.) Turn the volume knob to the “off” position (all the way down.)

7.) Screw J-box into place

8.) Put on faceplate and screw in place using the screws ().

Produkt Specifikationer

Mærke:	Pyle
Kategori:	Ikke kategoriseret
Model:	PVC2
Type:	Slide volume control
Produktfarve:	Hvid
Impedens:	8 ohm (Ω)
Effekthåndtering:	100 W
Dæmpningstrin:	12
