Side 1/4

TD-001504-00-B

AD-S802T and AD-S162T

Quick Start Guide

Installation

AD-S802T and AD-S162T passive column loudspeaker systems require ampliﬁed audio signals. A pass-through on each loudspeaker permits connection to multiple

loudspeakers.

The pluggable "Eurostyle" connectors allow the installer to pre-wire the audio system on site before the loudspeakers are installed.

TD-001504-00-B

*TD-001504-00*

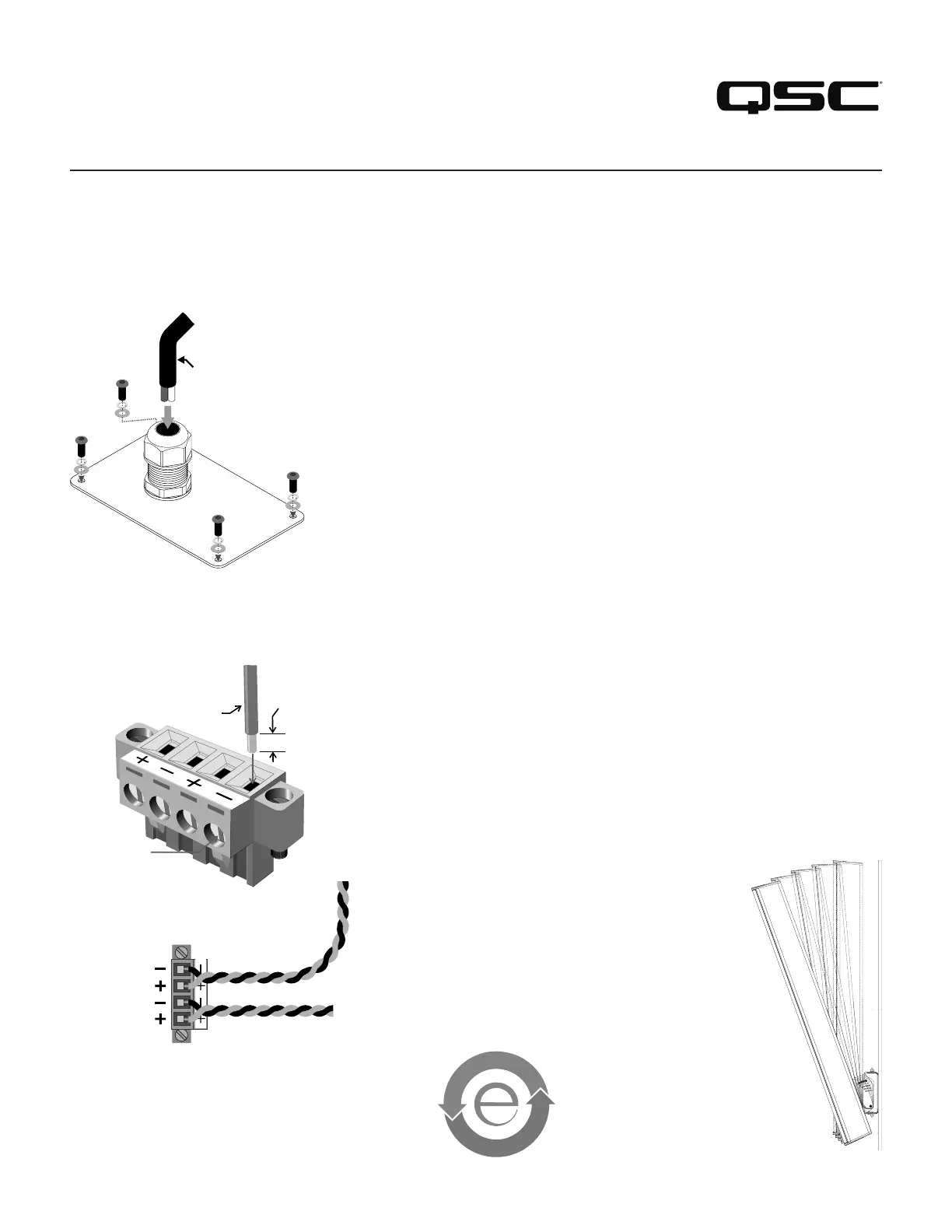

The loudspeaker comes with a weather cover for the input cup to protect the input connections and switches

from precipitation and other weather hazards (Figure 1). Use the weather cover for all outdoor installations or any

applications where the loudspeaker may be exposed to moisture. To ensure a good seal in the cable gland, use

outdoor-rated cable with a round jacket up to 0.37 in or 9.4 mm in diameter.

To use the weather cover:

1. Loosen the nut on the cable gland.

2. Pass the cable all the way through the nut and the rest of the gland.

3. Attach the input connector to the wires (see

Input Connector

, below).

4. Once the loudspeaker enclosure is installed, plug the input connector into the loudspeaker's input cup. Secure

the connector to the loudspeaker using the two captive retaining screws, one on each end.

5. Make sure that the transformer tap selection switch is set properly. On the AD-S162T loudspeaker, also make

sure that the vertical dispersion angle switch is set as desired.

6. Place the cover onto the loudspeaker's input cup and attach it using the four screws, lock washers, and ﬂat

washers provided.

7. Dress the cable so there is no undue strain on it. Tighten the gland nut until the grommet inside the gland has

made a tight seal onto the cable jacket.

Input Connector

AD-S802T and AD-S162T Weather Cover

Diameter

up to

0.37 in

9.4 mm

— Figure 1 –

Strip wire

¼ in

6.3 mm

Up to

10 GAW

6 mm²



Turn screw fully

counterclockwise.



Insert wire fully.



Turn screw clockwise

to clamp wire tightly.

— Figure 2 –

INPUT

THRU To other

loudspeaker(s),

if necessary

— Figure 3 –

The pluggable "Eurostyle" input connector (Figure 2) has four terminals to facilitate connection on a distributed

line. It also allows the installer to pre-wire the venue before the loudspeakers themselves are installed. The

connector accommodates wire up to 10 AWG or 6 mm2. Be sure of proper and consistent polarity at each connector

(Figure 3). If one or more loudspeakers is out of polarity with others, the acoustic performance will suffer. Always

secure the connector to the loudspeaker using the retaining screws at both ends.

Mounting

Tilt/Swivel Bracket

The bracket provided with the loudspeaker allows 0, 5,

10, 15, and 20 degrees of downward tilt (Figure 4), and

up to ±51 degrees of horizontal panning (Figure 5).

These angles may be constrained by the loudspeaker

enclosure and adjacent walls or other structural elements.

For mounting that requires no panning left or right, the

bracket kit includes a zero-pan locking screw to keep the

loudspeaker securely in place.

— Figure 4 –

TD-001504-00-B

The AD-S802T has three attachment locations for the bracket and the AD-S162T has

seven. Figures 6 and 7 show their center points, including distances from the bottom

edge of the enclosure. Four M6 × 20 screws with ﬂat washers are included for

attaching the bracket to the rear panel of the enclosure.

An M6 eyebolt is included with the loudspeaker for attaching a safety tether, as

may be required by building codes in your jurisdiction. Both models have three M6

threaded mounting holes along the centerline of the rear panel for attaching the

eyebolt.

The tables below describe the pan range for different bracket positions and tilt angles.

AD-S802T Maximum Pan Range

Bracket

Position 0° tilt 5° tilt 10° tilt 15° tilt 20° tilt

Tilt bracket

removed

1 ±47° ±51° ±51° ±43° ±33° ±51°

2 ±47° ±51° ±51° ±51° ±51° ±51°

3 ±47° ±36° N/A N/A N/A N/A

AD-S162T Maximum Pan Range

Bracket

Position 0° tilt 5° tilt 10° tilt 15° tilt 20° tilt

Tilt bracket

removed

1 ±47° ±49° ±28° 0° N/A ±51°

2 ±47° ±51° ±51° ±51° ±51° ±51°

3 ±47° ±8° N/A N/A N/A ±51°

4 ±47° 0° N/A N/A N/A ±51°

5 ±47° N/A N/A N/A N/A ±51°

6 ±47° N/A N/A N/A N/A ±51°

7 ±47° N/A N/A N/A N/A ±51°

— Figure 5 –

110.6 mm

4.35 in

322.6 mm

12.70 in

742.6 mm

29.24 in

813.6 mm

32.03 in

884.6 mm

34.83 in

955.6 mm

37.62 in

1026.6 mm

40.42 in

Eyebolt

position

Position

— Figure 6 –

109.6 mm

4.31 in

180.6 mm

7.11 in

497.6 mm

19.59 in

Eyebolt

position

Position

— Figure 7 –

Attaching the wall piece

Attach the wall piece to the wall or other mounting surface. Use the template in

Figure 8. Consult a structural engineer for guidance in selecting mounting locations

and appropriate fasteners.

Attaching the loudspeaker bracket pieces to allow tilting

1. Select the appropriate attachment location for the bracket on the enclosure

rear panel. Note that because of the wall or mounting surface, in most cases

the lowest attachment location offers the widest range of tilt options, while the

highest offers few, if any, tilt options.

2. Use all four M6×20 screws and their washers to secure the bracket to the

enclosure. Note that the bracket has six mounting holes; some attachment

locations use the long-spaced holes and some use the shorter ones.

NOTE: For convenience reasons we recommend conﬁguring the tilt angle (Figure 9)

before the loudspeaker and bracket are attached to the wall piece. However, you can

adjust the tilt later, even after the loudspeaker has been installed.

3. Continue to Attaching the loudspeaker to the wall piece.
