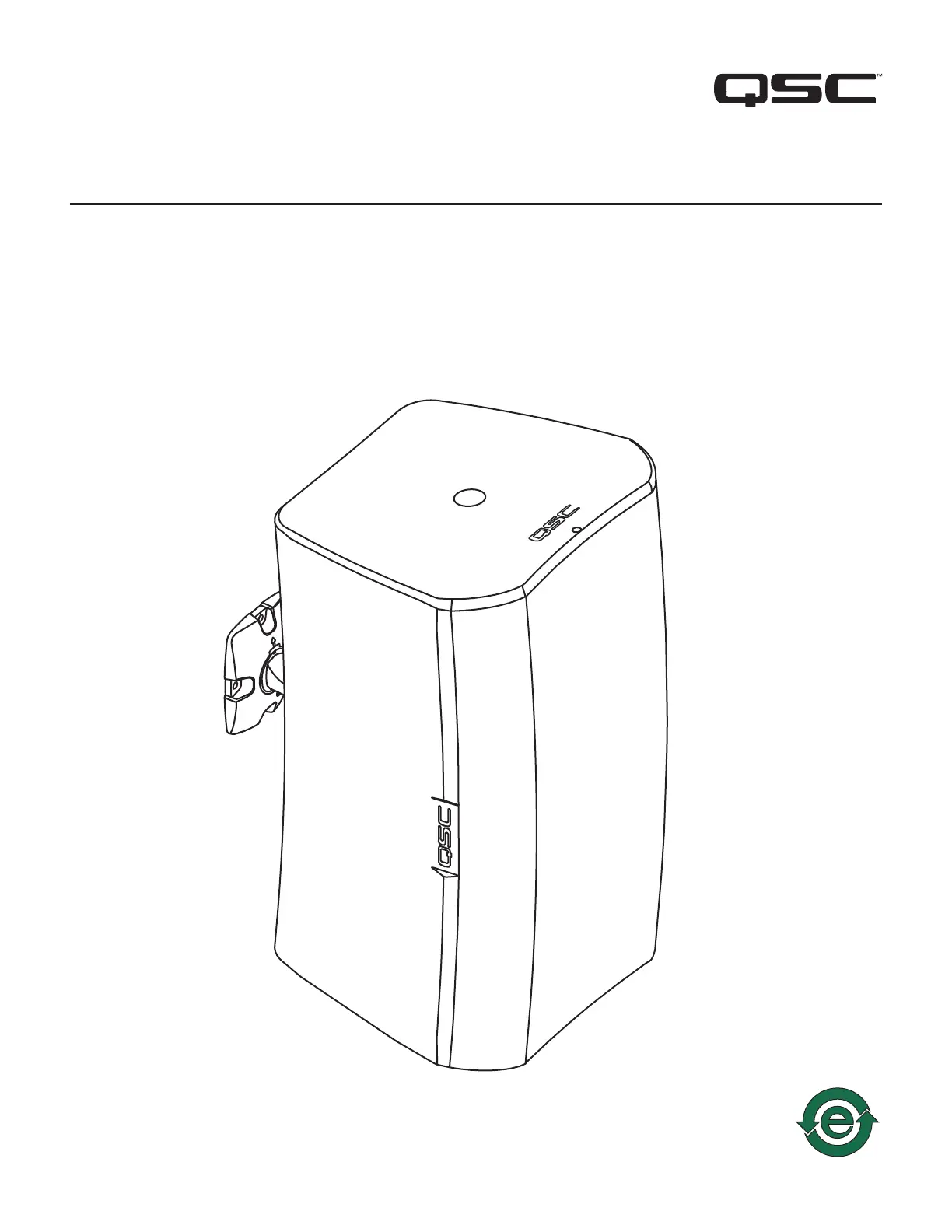

AcousticDesign™ Series
User Guide
AD-S6T – 6" two-way , foreground/background loudspeaker with 70/100V transformer
AD-S8T – 8" two-way, foreground/background loudspeaker with 70/100V transformer
AD-S10T – 10" two-way, foreground/background loudspeaker with 70/100V transformer
AD-S12 – 12" two-way, foreground/background loudspeaker
AD-S112sw – 12" direct-radiating subwoofer
TD-000329-00-C
*TD-000329-00*
2
EN
TD-000329-00-C
EXPLANATION OF SYMBOLS
The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death.
The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in
damage to the equipment that may not be covered under the warranty.
The term “IMPORTANT!” indicates instructions or information that are vital to the successful completion of the procedure.
The term "NOTE" is used to indicate additional useful information.
NOTE:
The intent of the lightning fl ash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated
"dangerous" voltage within the product's enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to humans.
NOTE:
The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and
operating and maintenance instructions in this manual.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!:
TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
WARNING!:
While it is possible for one person to lift a loudspeaker, it is important to use proper lifting techniques. Suggested
reading: OSHA Technical Manual on Back Disorders and Injuries
(http://www.osha.gov/dts/osta/otm/otm_vii/otm_vii_1.html#app_vii:1_2).
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Clean only with a dry cloth.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.
• Only use attachments/accessories specifi ed by the manufacturer.
• Refer all servicing to qualifi ed service personnel.
• Adhere to all applicable, local codes.
• Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.
Introduction
AcousticDesign series is a line of premium surface-mount loudspeakers intended for permanent installation applications. Housed in rugged ABS
molded enclosures, each loudspeaker (except the AD-S12 and AD-S112sw) features a 70/100V transformer for use with distributed-audio lines. The
unique X-Mount™ Bracket and Euro-style connector, supplied with each AcousticDesign loudspeaker, are designed for maximum fl exibility and a quick
install. Featuring a knurled ball-mount and discrete angle deployment marks, installers can set loudspeaker deployment angles quickly and securely.
The Euro-style connector allows pre-wiring of the system and when combined with the quick “snap-on” deployment of the loudspeaker to the mount,
installation is completed in a fraction of the time required versus competitive models.
Unpacking
Package Contents
1. Quick-Start Guide
2. AcousticDesign Loudspeaker
3. Euro-style Connector, 4-pin
4. Terminal Weather Protection Cover
5. Phillips Screws (4) M4 (Terminal Weather Protection Cover)
6. X-Mount™ Bracket (Yoke Mount for AD-S112sw)
