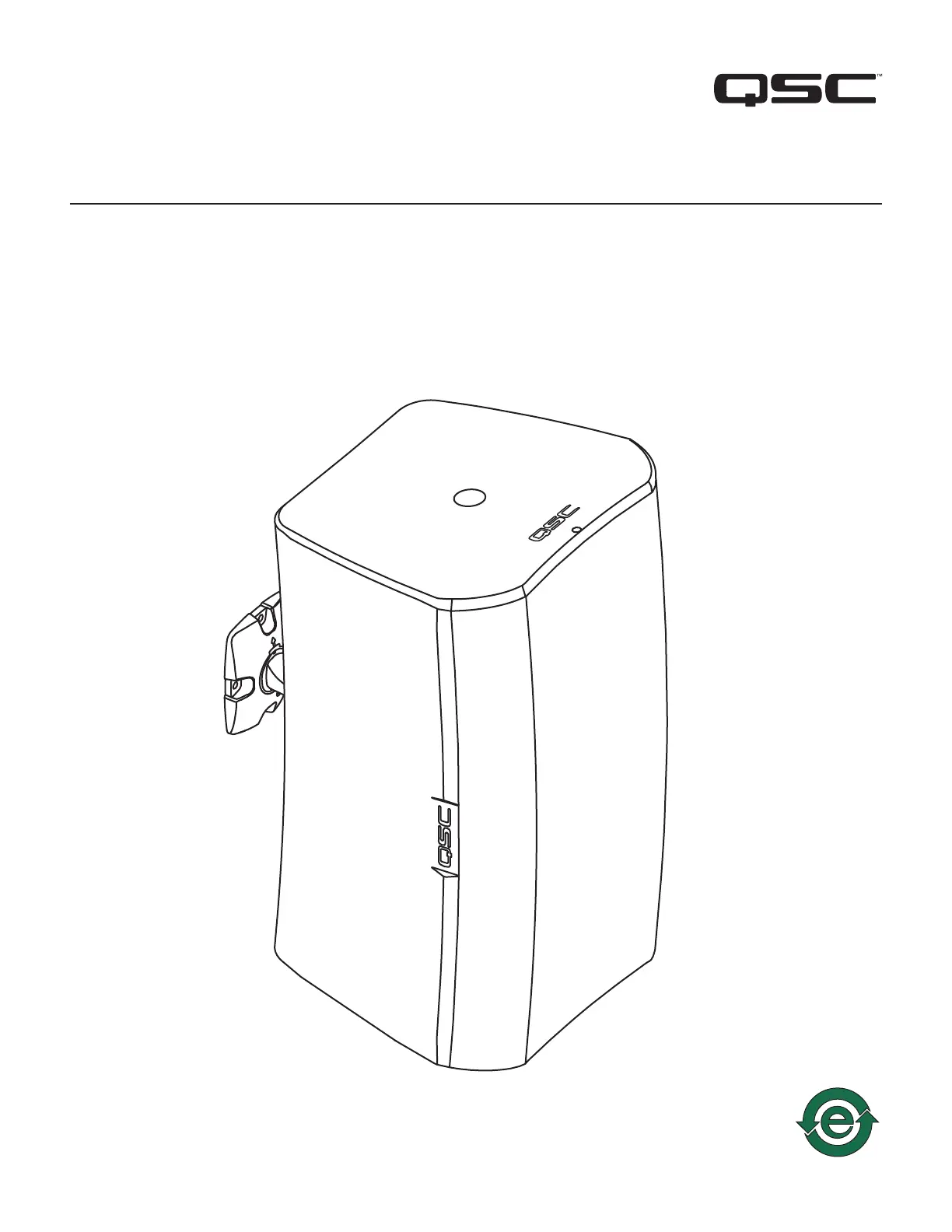

AcousticDesign™ Series
Quick Start Guide
Set the Transformer Tap Switch
NOTE:
The AD-S12 does not have a
transformer setting
AD-S10T
AD-S6T, AD-S8T
Install the X-Mount™ Bracket
WARNING!:
Install the system in accordance
with local building codes and regulations. Use
a licensed contractor or professional engineer.
QSC Audio Products is not responsible for
damages resulting from the negligent
installation of any bracket or loudspeaker.
Refer to Figure 4
1. Mount to a surface capable of supporting the weight of
the loudspeaker.
— Figure 1 —
4mm
100 Volt 70 Volt
8 8 Ω Ω
N/A 100W
100W 50W
50W 25W
25W 12.5W
— Table 1 —
— Figure 2 —
100 Volt 70 Volt
8 8 Ω Ω
N/A 60W
60W 30W
30W 15W
15W 7.5W
— Table 2 —
— Figure 3 —
— Figure 4 —
TD-000330-00-C
*TD-000330-00*
2
TD-000330-00-C
Adjust the Angle of the Braclet
NOTE:
This step may be done now or after mounting the loudspeaker.
Mount the Loudspeaker on the X-Mount™ Bracket
— Figure 5 —
TOP
~
~ +/-70º
SIDE
-15° +30°
FRONT
+/-40º
5 mm
Not available
on AD-S6T
~
~ +/-60º (AD-S6T)
— Figure 6 —
Security Tab
1
2
Safety Ring
