Side 1/20

1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA

Main Number (714) 754-6175 or toll free (USA only) (800) 854-4079

Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834

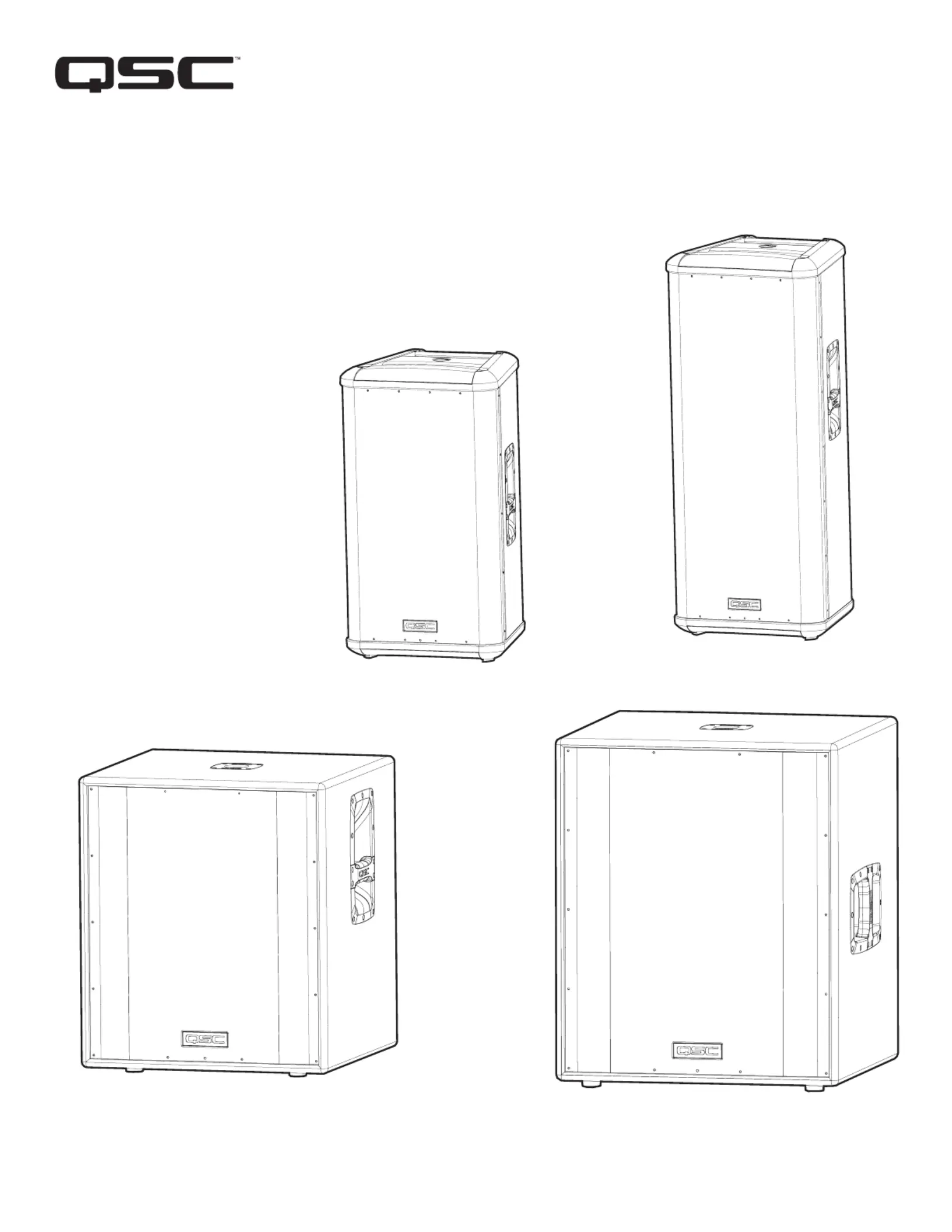

HPR Series Powered Loudspeaker Products

User Manual

HPR153F 15-inch three-way

HPR152F 15-inch two-way

HPR151W 15-inch subwoofer

HPR181W 18-inch subwoofer

*TD-000212-01*

TD-000212-01 rev.D

Important Safety Precautions & Explanation of Symbols

Install in accordance with QSC Audio Product's instructions and under the supervision of a licensed Professional Engineer.

WARNING!

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER.

NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the

presence of uninsulated “dangerous” voltage within the product's enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to humans.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in this manual.

1- Read these instructions.

2- Keep these instructions.

3- Heed all warnings.

4- Follow all instructions.

5- WARNING: To prevent fire or electric shock, do not expose this equipment to rain or moisture. Do not use this apparatus near water.

6- Clean only with a dry cloth.

7- Allow a minimum of 6” (152mm) clearance at cabinet back for convection cooling. Keep anything that might restrict airflow away from the rear of

the enclosure (i.e draperie contains an internal power as, fabric, etc...). Do not block any ventilation openings. This product mplifier that produces heat.

8- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9- Do not defeat the safety purpose of the grounding-type plug. The grounding plug has two blades and a grounding prong. The third prong is provided

for your safety. If the provided plug does not fit yo the replacement of the obsolete outlur outlet, consult an electrician for et. Do not cut off the grounding

prong or use an adapter that breaks the grounding circuit. This apparatus must be properly grounded for your safety.

10- Protect the power cord from being walked on or pinched, particularly plugs, convenience receptacles, and the point where they exit from the ap-

paratus.

11- This product is not equipped with an all-pole mains switch. To fully disconnect from the AC mains, the AC plug must be removed from the AC outlet

or the appliance coupler (IEC block) must be removed from the amplifier module. Ensure either the AC line cord plug or the appliance coupler are ac-

cessible in case of emergency disconnect requirement.

12- Use only attachments/accessories specied by QSC Audio Products, Inc.

13- Use only with hardware, brackets, stands, and components sold with the apparatus or by QSC Audio Products, Inc.

14- Unplug the apparatus during lightning storms or when unused for long periods of time.

15- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply

cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

16- Before placing or installing any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for

damage. Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of the installation, placement or array.

Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the load-

ing conditions of the installation and any possible short-term, unexpected overloading. Never exceed the rating of the hardware or equipment.

17- HPR loudspeakers provide no provision for flying or suspension. QSC strongly discourages the use of HPR-series loudspeakers in suspended or

flying applications. Consult a licensed, Professional Engineer regarding physical equipment installation. All local, state and national regulations re-

garding the safety and operation of equipment are understood and adhered to.

18-HPR152F WARNING! Do not use a loudspeaker support pole longer than 26” (660mm) when supported by QSC’s HPR151W or HPR181W subwoofer.

19- Do not use any HPR product oriented horizontally. Horizontal orientation can cause overheating and thermal limiting. The cooling fins on the am-

plifier module must be vertically oriented in order to efficiently dissipate the heat generated by the amplifier.

20- The appliance shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
