Quoizel Ahoy QF5224AP Manual
Læs nedenfor 📖 manual på dansk for Quoizel Ahoy QF5224AP (3 sider) i kategorien Lettelse. Denne guide var nyttig for 20 personer og blev bedømt med 4.3 stjerner i gennemsnit af 10.5 brugere
Side 1/3
1of3
2019 QuoizelInc.
visit us on-line at www.quoizel.com
ReleasedDate:2019-10-08
For Styles QF5224WS and QF5224AP
Installation Guide
Light SourceTools Required
Warnings and Cautions
Turn off the electricity at the circuit breaker
before installation. Consult a licensed
electrician if in doubt about installation.
Turn off power to the fixture and allow the
bulbs to cool before replacing.
Crossbar Assembly
x 1
A

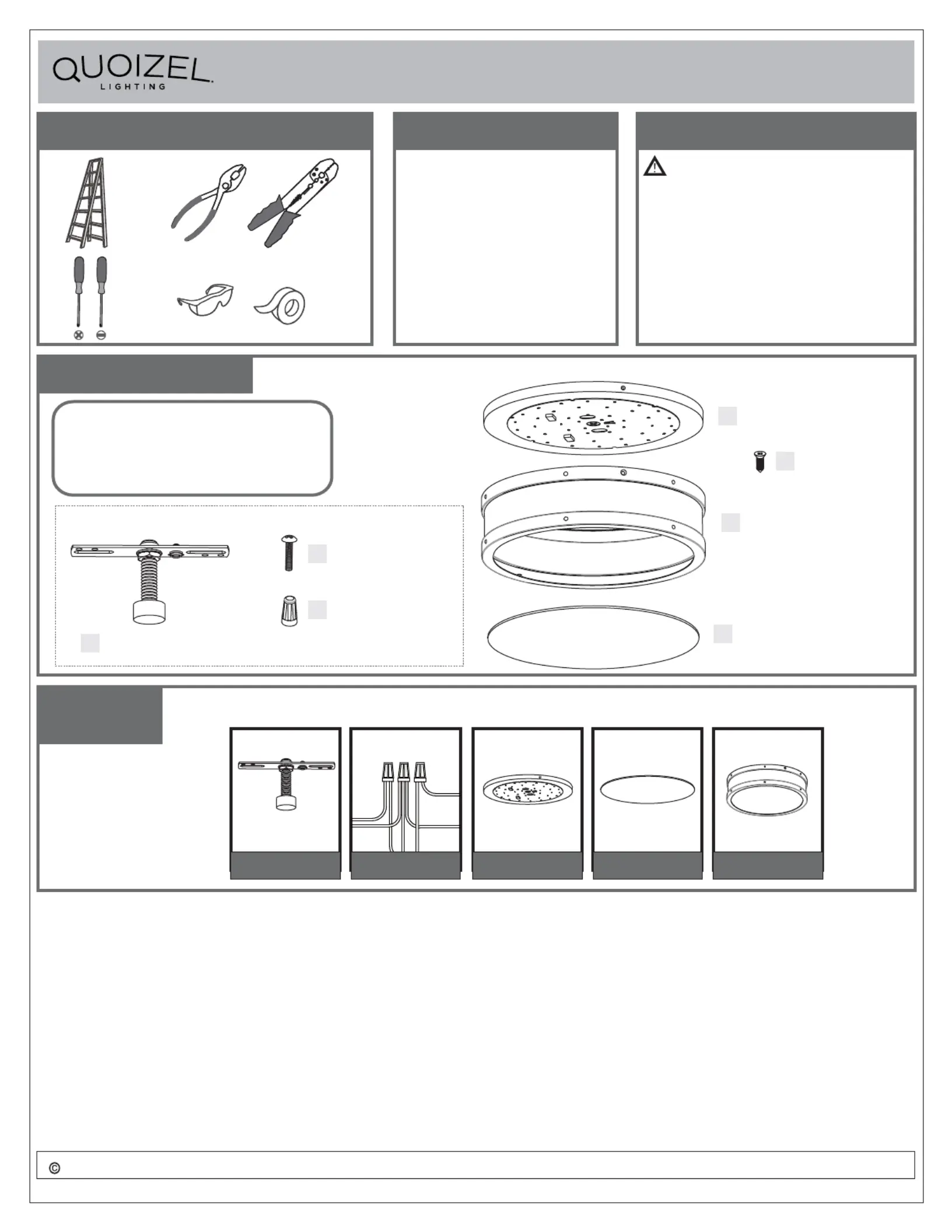

Package Contents
PARTS BAG
Ceiling Canopy
x 1
Crossbar
Assembly Ceiling Canopy
Table of
Contents
STEP 1 STEP 3
Preparation: Identify and inspect all parts
before beginning the installation.
Missing or damaged parts? Contact your
original place of purchase.
Wiring
STEP 2
D
Outlet Box Screw
x 2
B
Wire Connector
x 3
C
Cage
x 1
F
Diffuser
x 1
G
STEP 4
Diffuser
STEP 5
Cage
25W
LED
Screw
x 3
E
2of3
2019 QuoizelInc.
visit us on-line at www.quoizel.com
ReleasedDate:2019-10-08
STEP 1 1 2 3

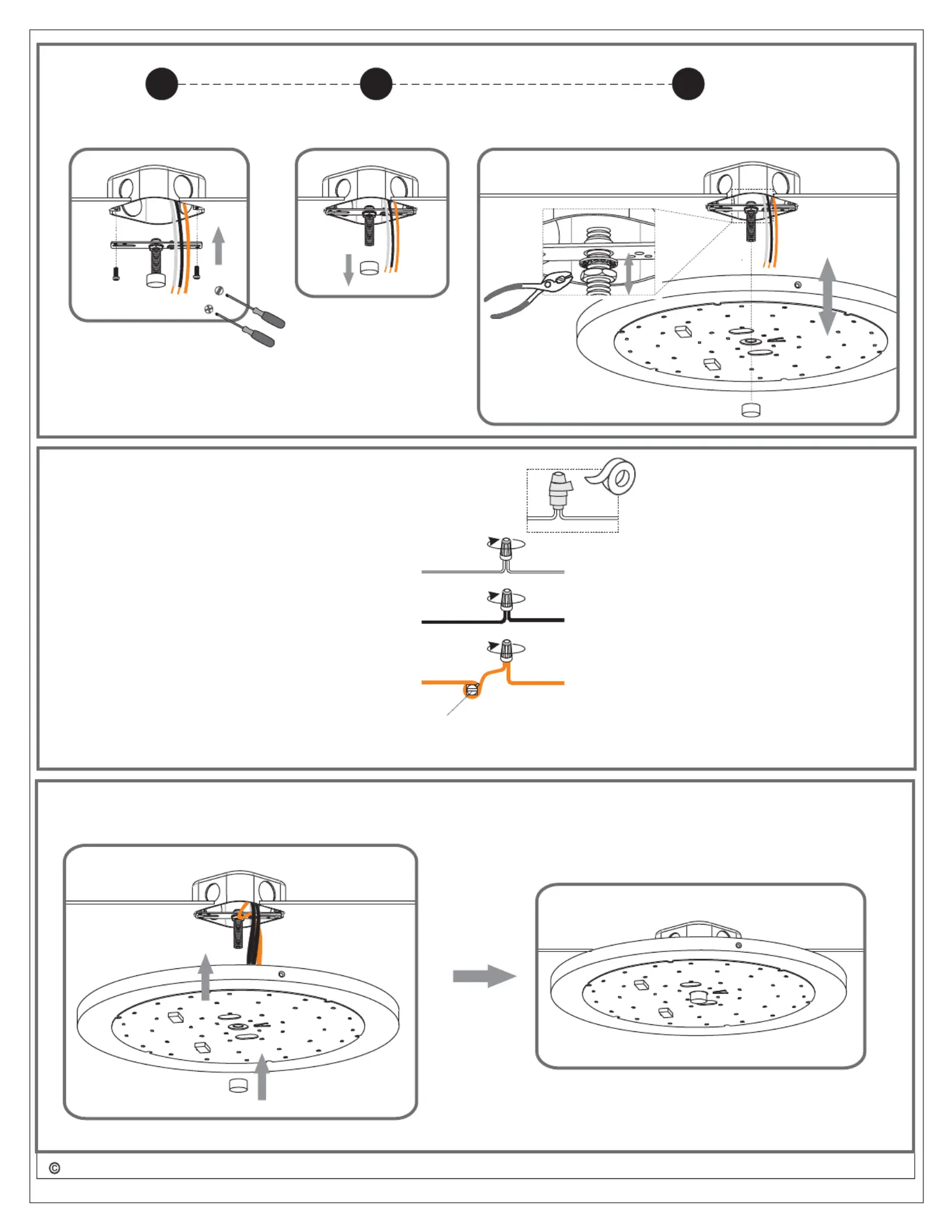

Step 1
Install crossbar assembly
Step 2 - 3
Test fitting ceiling canopy to nipple
STEP 2
*Green Ground Screw on
crossbar optional
White wire (neutral)
from outlet box White wire
from fixture
Black wire
from fixture
Ground wire
from Fixture
Black or Red wire (hot)
from outlet box
Bare or Green ground wire
from outlet box
STEP 3
