Side 1/2

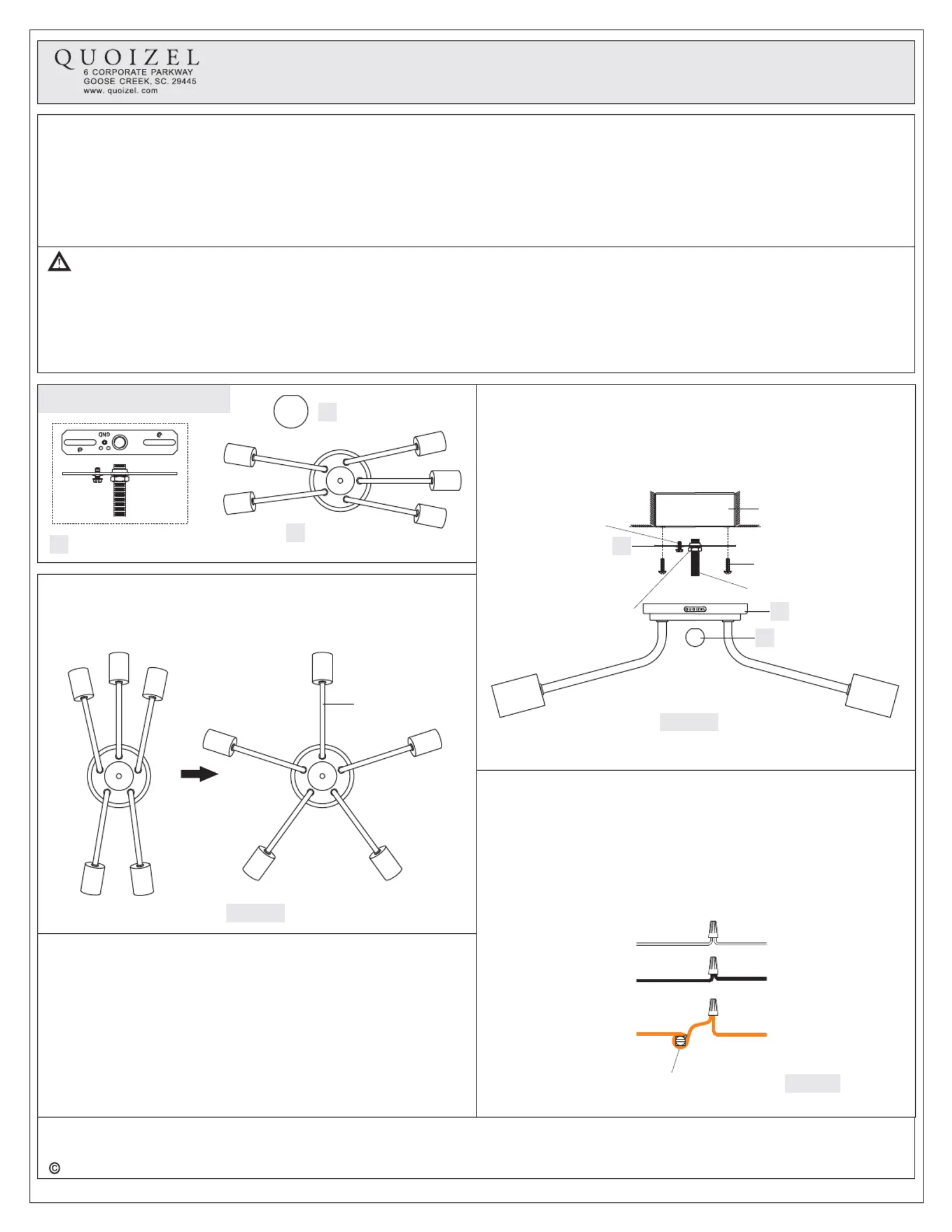

1of2

Assembly Instruction Sheet #IS-LTT1628EK

For Style LTT1628EK

Please go to for product cleaning tips. Go to the selection.

(5) A19 Medium Base Bulbs 100W Maximum, Medium Base Vintage Bulbs are recommended, bulbs not included.

www.quoizel.com Care + Maintenance

Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.

Light Source:

Estimated Assembly Time:

Preparation:

20-30 minutes

Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are

present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement

parts.

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.

2018 QuoizelInc. ReleasedDate:2018-03-02

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

Package Contents B

Mounting Ball

x 1

Crossbar Assembly

x 1

Fixture Body

x 1

STEP 1 Unfold Support Arms-

A. Refer to the illustration, unfold support arms to proper locations.

Support Arm

STEP 2 -Install the Crossbar Assembly to Outlet Box and Adjust

the length of the Nipple

A. Attach the Crossbar Assembly (A) to the Outlet Box with the head of

the Green Ground Screw facing you. Secure it with Outlet Box

Screws (not included), tighten until snug

B. Adjust the hex nut and lock washer underside of the crossbar to the

middle of the nipple.

C. Place the Fixture Body (C) over the nipple against the ceiling to

determine the correct position of the nipple. Thread the Mounting

Ball (B) onto the nipple. Adjust the nipple to allow the Fixture Body

Figure 1

Outlet Box Screw

(not included)

Hex Nut and

Lock Washer

Outlet Box

Green

Ground

Screw

Figure 2

Nipple

(Step 2 Continued)

Ball (B).

D. Remove the Mounting Ball (B) and the Fixture Body (C). Tighten

the lock washer and the hex nut against the crossbar to secure in

place.

STEP 3 - Wire Connections

A. Wrap bare or green ground wire around green ground screw on the

crossbar, no less than 2 inches from the end of the wire. Tighten the

green ground screw.

B. Use standard wire connectors (not included) to make all wire

connections. Twist connectors until wires are tightly joined together.

Wrap each connection with approved electrical tape and carefully

stuff all the connected wires into the Outlet Box.

Figure 3

Green Ground Screw

on the Crossbar

White wire

from outlet box White wire

from fixture

Black wire from

outlet box (or Red)

Black wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from Fixture

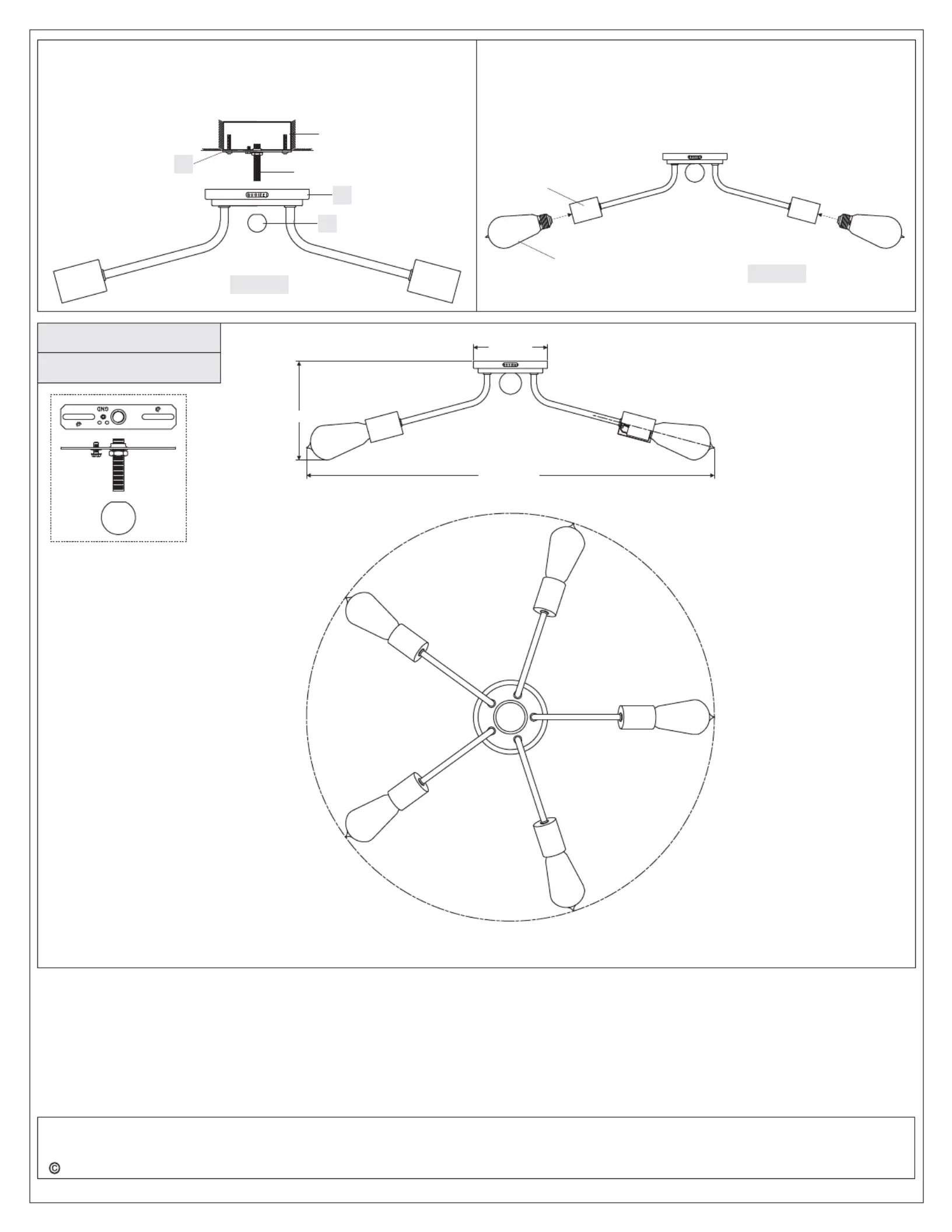

2of2

STEP 4 Install Fixture Body-

A. Position the Fixture Body (C) over the nipple and secure with the

Mounting Ball (B). Hand tighten until snug.

Outlet Box

ANipple

Figure 4

STEP 5 Install Bulbs-

A. Insert Bulbs onto sockets and screw snugly into place.

Your fixture is now assembled and ready to use. Enjoy!

Socket

Figure 5

LTT1628EK

FINISH: EARTH BLACK

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"

5” Dia.

27.5” Dia.

6.75”

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

2018 QuoizelInc. ReleasedDate:2018-03-02

Vintage Bulb

(recommended

but not included)
