Quoizel Tupelo TUP1614MBK Manual
Læs nedenfor 📖 manual på dansk for Quoizel Tupelo TUP1614MBK (2 sider) i kategorien Lettelse. Denne guide var nyttig for 7 personer og blev bedømt med 4.0 stjerner i gennemsnit af 4 brugere
Side 1/2
1of2
2019 QuoizelInc.
visit us on-line at www.quoizel.com
For Style TUP1614MBK and TUP2814MBK
Installation Guide
Crossbar Assembly
x 1
A
Package Contents
PARTS BAG
Ceiling
Canopy
x 1
D
6”L Rod
x 2
E
12”L Rod
x 2
H
F
Crossbar Assembly Downrod Wiring Bulb
Table of
Contents
STEP 1 STEP 2 STEP 3 STEP 5
STEP 1
For angled ceilings,
Swivel opening towards wall.
90 Degree Swive
1 2 3
Step 1
Install crossbar assembly
Step 2 - 3
Test fitting ceiling canopy to
mounting screws
Ceiling Canopy
STEP 4
Preparation: Identify and inspect all parts
before beginning the installation.
Missing or damaged parts? Contact your
original place of purchase.
Tools Required
Warnings and Cautions
Turn off the electricity at the circuit breaker
before installation. Consult a licensed
electrician if in doubt about installation.
Turn off power to the fixture and allow the
bulbs to cool before replacing.
Fixture Height
Adjustable12.75” to 50.75”
Light Source
BULB BASE TYPE
Candelabra (E12)
BULB SHAPE
TYPE B
60W
MAX
4 BULBS REQUIRED
BULBS NOT INCLUDED
Outlet Box Screw
x 2
B
Wire Connector
x 3
C
Fixture Body
x 1
G
Swivel
x 1
ReleasedDate:2019-09-19
2of2
2019 QuoizelInc.
visit us on-line at www.quoizel.com

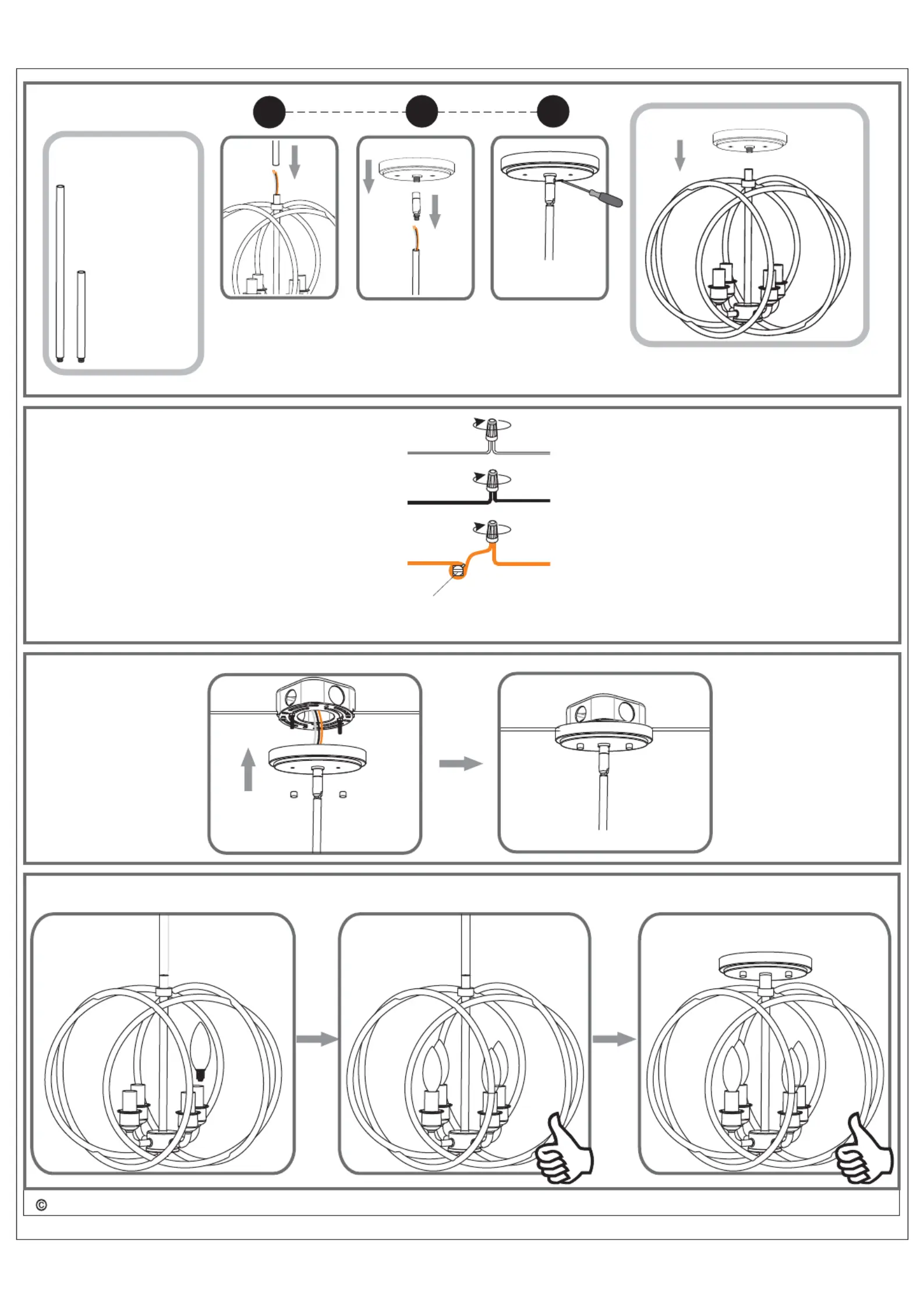

STEP 2
Optional Rods
8’ ceiling:
9’ ceiling:
(1) 6”L + (1) 12”L
rods
(1) 6”L + (2) 12”L
rods
STEP 5
1 2
STEP 4
STEP 3
*Green Ground Screw on
crossbar optional
White wire (neutral)
from outlet box White wire
from fixture
Black wire
from fixture
Ground wire
from Fixture
Black or Red wire (hot)
from outlet box
Bare or Green ground wire
from outlet box
OPTION 1 OPTION 2
OPTION 2OPTION 1
3
