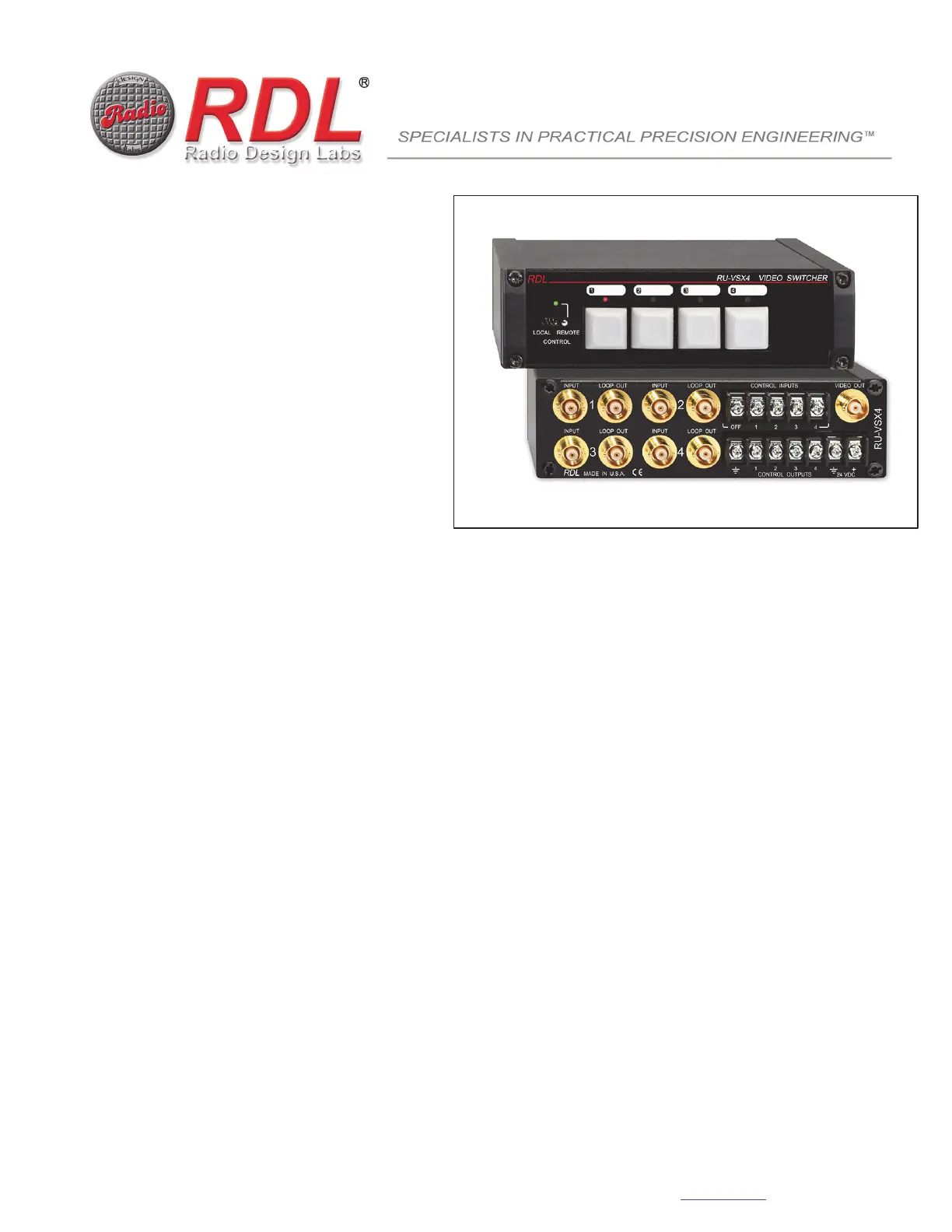

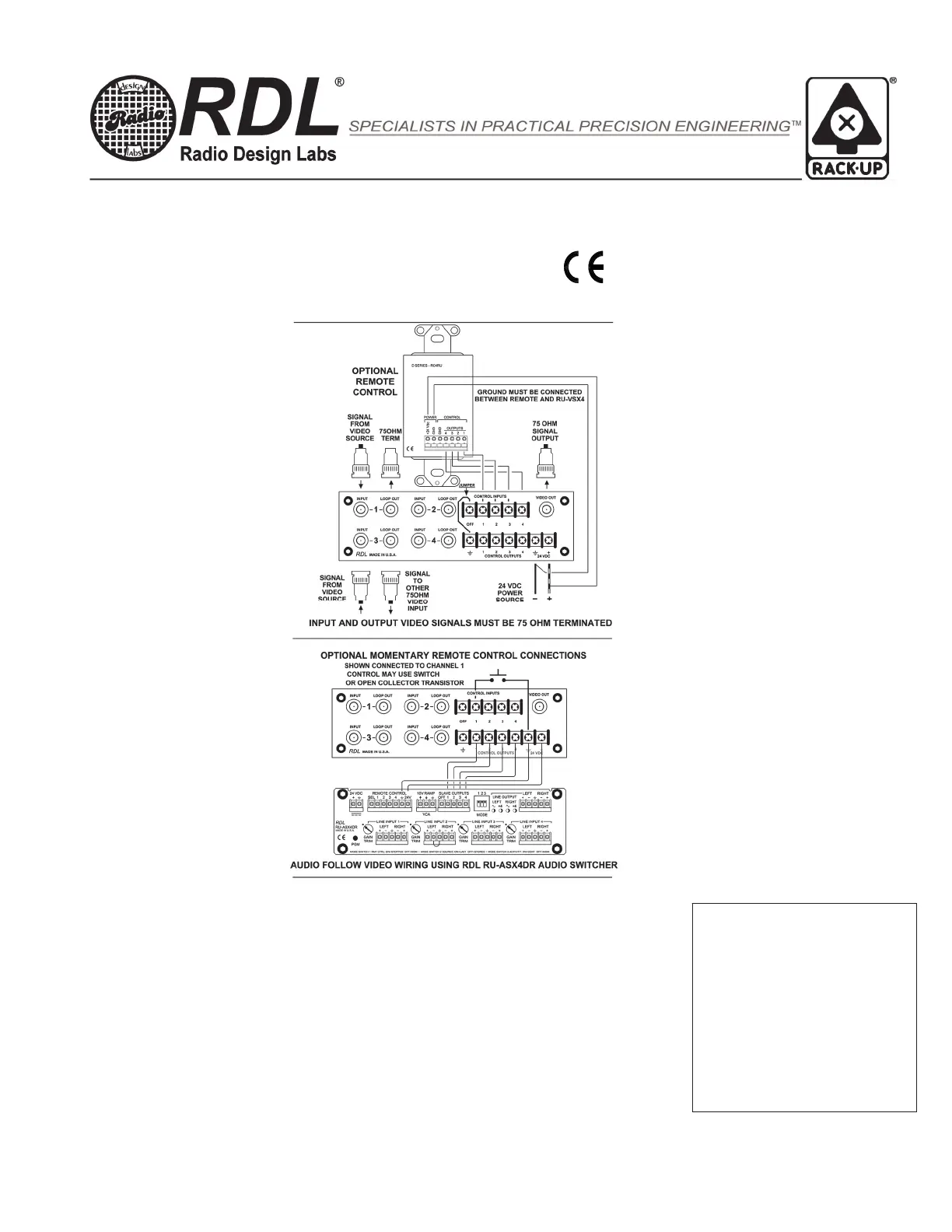

RACK-UP

SERIES

Model RU-VSX4

4-Input Video Switcher

 Loop-Through Output from each Input

 Vertical Interval Switching

 Local or Remote Control

 10 MHz Bandwidth, NTSC or PAL

 Open-Collector Outputs

 All Solid-State Switching

The RU-VSX4is part of the group of RDL RACK-UP products. The compact design permits high-density installations, with three products mounted

in a single rack unit. The RU-VSX4 may be used alone, or mounted using a wide variety of RACK-UP series options.

APPLICATION: The RU-VSX4 is the ideal choice in most applications where four video signals need to

be switched to a single output. The RU-VSX4 has two rear-panel jacks for each of the four video bridging

input stages. One jack is for the input signal; the other is a loop-through output of the source signal. If

75- termination of the input signal is required, the terminator (provided) is plugged onto the LOOP OUT

jack. The output video signal is 75  back-terminated to provide unity gain into a 75  terminated input.

The front panel features 4 high-reliability, keyboard-style pushbuttons with LED indicators corresponding

to each video input. The LED indicators show which video source is active. If the button for an active

source is pushed, all video sources are turned off until the next source selection.

A front panel LOCAL/REMOTE toggle switch activates either the front-panel buttons or a rear-panel

connected remote control. In the REMOTE mode, the inputs are selected by an external momentary

switch or open-collector closure to ground. Five remote input terminals are provided; one for each video

source, and one to shut off all video inputs. Installing a jumper from the CTRL OFF terminal to ground

permits the RU-VSX4 to be controlled by equipment providing a continuous closure only when a source is

to be switched on. In this mode, the RU-VSX4 may be controlled by an RDL D SERIES-RC4RU

wall-mount 4-button remote control, or OEM equipment. When a video source is selected, the RU-VSX4

provides an open-collector 50 mA output to control other equipment or modules.

When a video source is requested, either from the front panel or by remote, the RU-VSX4 waits until the

next vertical interval to switch to the requested video source. If no video is present then the switch occurs

instantly. This feature avoids the screen roll typically associated with unsynced video switchers.

Wherever a video switcher is needed to provide wide-band video source selection, local or remote control,

reliability, compactness and unsurpassed versatility, the RU-VSX4 is the ideal choice.

RDL  659 6

St.  Prescott, AZ., USA 86301  (928) 443-9391  FAX (928) 443-9392  www.rdlnet.com

RACK-UP

SERIES

Model RU-VSX4

4-Input Video Switcher

TYPICAL PERFORMANCE

Input Impedance: 5 k Bridging 75  Line

Gain: Unity, 75  terminated Input; 75  terminated Output

Load Impedance: 75 

Outputs (5): 4 Loop Out from Input Signals; 1 Amplified OUTPUT

Operating Signal Level: 0.5 to 1 V p-p

Frequency Response: 10 Hz to 10 MHz (+/- 0.35 dB)

Noise: < -70 dB below 1 V p-p

Crosstalk: < -55 dB

Off Attenuation: > 65 dB

Differential Gain: 0.1%

Differential Phase: 0.3 degree

Connector Type: BNC, gold plated

External Control Inputs: Electronic or mechanical closure to ground, 1 mA

External Control Outputs (4): 50 mA, Open-collector to Ground

Power Requirement: 24 Vdc @ 110 mA, Ground-referenced

Installation/Operation

Declaration of Conformity available from rdlnet.com.

Sole EMC specifications provided on product package.

Specifications are subject to change without notice.

891-3060M

Radio Design Labs Technical Support Centers

U.S.A. (800) 933-1780, (928) 778-3554; Fax: (928) 778-3506

Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287

NOTE: This equipment has been tested and found to

comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rule. These limits are designed to

provide reasonable protection against harmful interference

in a residential installation. The equipment generates,

uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception,

which can be determined by turning the equipment off an

on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna

 Increase the separation between the equipment

and receiver

 Connect the equipment into an outlet on a circuit

different from that which the receiver is

connected.

 Consult the dealer or an experienced radio/TV

technician for hel
