Instruction Manual Book

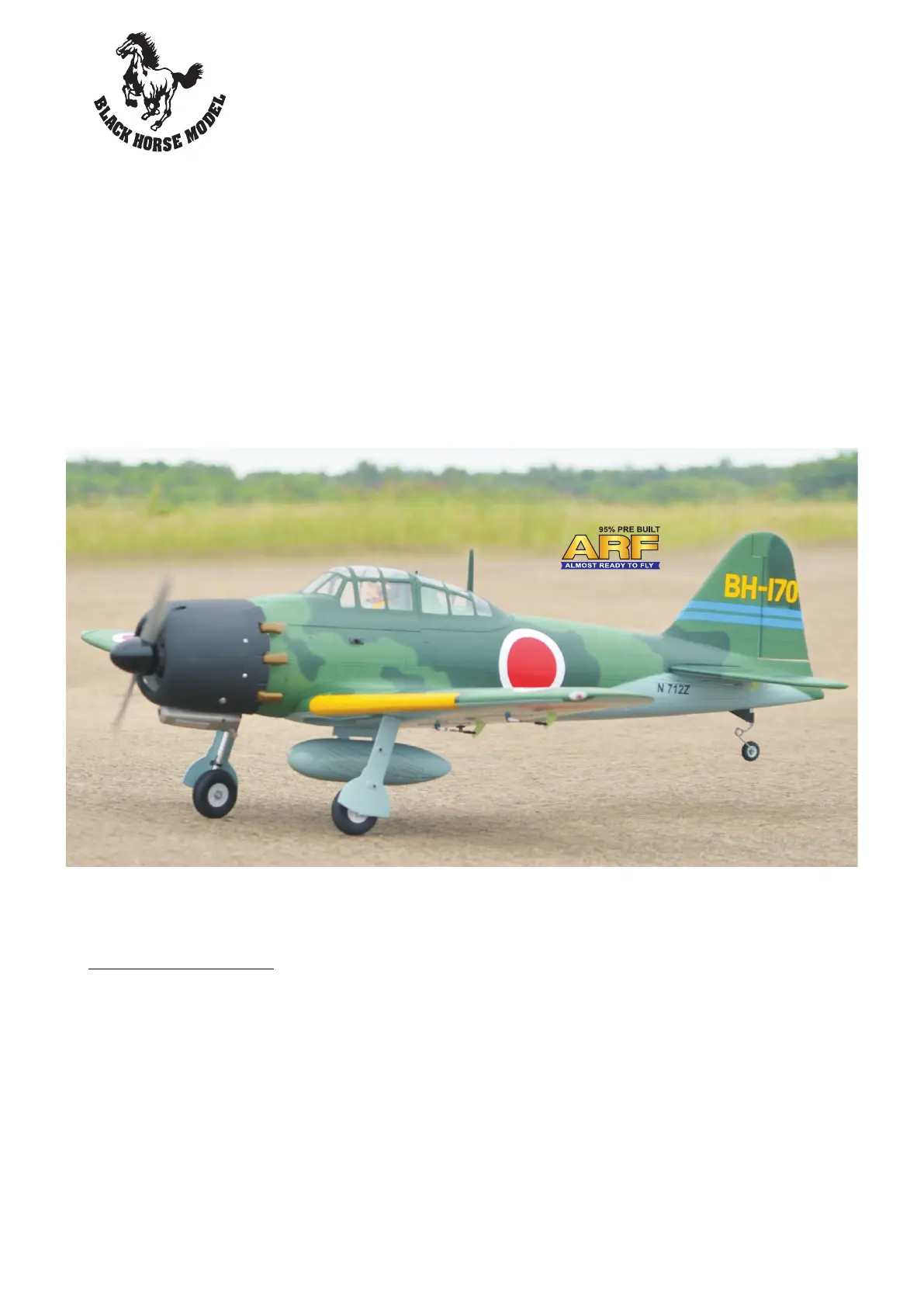

A6M ZERO
Item code: BH171.
Made in Vietnam.
OPTION ELECTRIC RETRACT GEAR (NOT INCLUDING).
ONLY INCLUDING OLEO STRUTS.
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
SPECIFICATION:
- Wingspan: 1,720 mm (67.72 in).
- Length: 1,375 mm (54.13 in).
- Weight: 4.4 - 4.6 kg (9.68 - 10.12lbs).
2
- Wing area: 46.5 dm .
2
- Wing loading: 94.62 g/dm .
- Servo mount: 42mm x 21mm.
- Wing type: Naca Airfoil.
- Spinner: 70mm.
- Gear type: Electric retract gear,
size: (92.2 x 51 x 30.6)mm (not included).
Oleo struts (included).
Parts listing required (not included):
- Radio: 06 channels.
- Servo: 07 servos.
- Engine: 75 - 95 2 strokes; 15 cc gas.
- Motor: Brushless outrunner 1200-2200W, 650KV.
- Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
- Motor: RIMFIRE.60.
- Lipo cell: 6 cells 4,000-5,000mAh.
- Receiver battery: 6V/ 800-1200 mAh.
- ESC: 80A.
95% ALMOST READY TO FLY
Glow and EP
4Installing the Engine . . . . . . . . . . . . . . . . . . 18
4Installing the throttle . . . . . . . . . . . . . . . . . . 21
4Mounting the cowl. . . . . . . . . . . . . . . . . . . . . 22
4Installing horizontal stabilizer . . . . . . . . . . . . 24
4Installation the tail gear. . . . . . . . . . . . . . . . . 27
4Installing the rudder . . . . . . . . . . . . . . . . . . . 28
4Installing the switch, receiver and battery. . . 30
4Installing cockpit fuselage. . . . . . . . . . . . . . . 31
4Installing the wing to the fuselage . . . . . . . . 33
4Installing the spinner, propeller. . . . . . . . . . . 34
4Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4Lateral balance . . . . . . . . . . . . . . . . . . . . . . . 36
4Control throws . . . . . . . . . . . . . . . . . . . . . . . 36
4Pre-flight check. . . . . . . . . . . . . . . . . . . . . . . 36
4For your radio installation basic connection for
airplane and adjustment of servos. . . . . . . . . . . 37
4Main gear dimensional detail.. . . . . . . . . . . . 38
4Symbols used throughout this instruction
manual, comprise: . . . . . . . . . . . . . . . . . . . . . . . . 2
4Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4Disclaimer. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4Suggestion . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4Safety precaution . . . . . . . . . . . . . . . . . . . . . . 3
4Parts listing (not included). . . . . . . . . . . . . . . . 4
4Tools & supplies needed. . . . . . . . . . . . . . . . . 4
4ing plastic light. . . . . . . . . . . . . . . . . . . . . . . 6
4Installing the ailerons and flaps. . . . . . . . . . . . 6
4Installing the ailerons and flaps servos. . . . . . 7
4Installing the control horns and linkages . . . . 8
4Installing the wheel well . . . . . . . . . . . . . . . . 10
4Installing main gear. . . . . . . . . . . . . . . . . . . . 11
4Installing the fuselage servos . . . . . . . . . . . . 15
4Installing the engine mount. . . . . . . . . . . . . . 16
4Installing the electric motor (EP version) . . . 16
W
INSTRUCTION MANUAL A6M ZERO Item code: BH171
TABLE OF CONTENTS
Academy of Model Aeronautics: If you are not already a member of the AMA, please join! The AMA is the
governing body of model aviation and membership provides liability insurance coverage, protects modelers’
rights and interests and is required to fly at most R/C sites.
Academy of Model Aeronautics
5151 East Memorial Drive Muncie IN 47302-9252
Tele. (800) 435-9262
Fax. (765) 741-0057
Or via the Internet at: http://www.modelaircraft.org
SINCE 1939
2
Cut off excess.
B
Apply epoxy glue.
Apply threadlocker
(screw cement).
C.A
Apply instant glue
(C.A glue, super glue).
Cut off shaded portion
carefully.
Assemble left and right
sides the same way.
Must be purchased
separately!
Ensure smooth, non-binding
movement when assembling.
Warning!
Set all scerws securely. If they come off during
flight you will lose control of your aircraft!
Pay close attention here.
Drill holes using the stated.
(in this case 1.5mm ).
1
.5mm
Take particular care here.
The number of times
the same way Assembly
(in this case twice).
2
Symbols used throughout this instruction manual, comprise:
