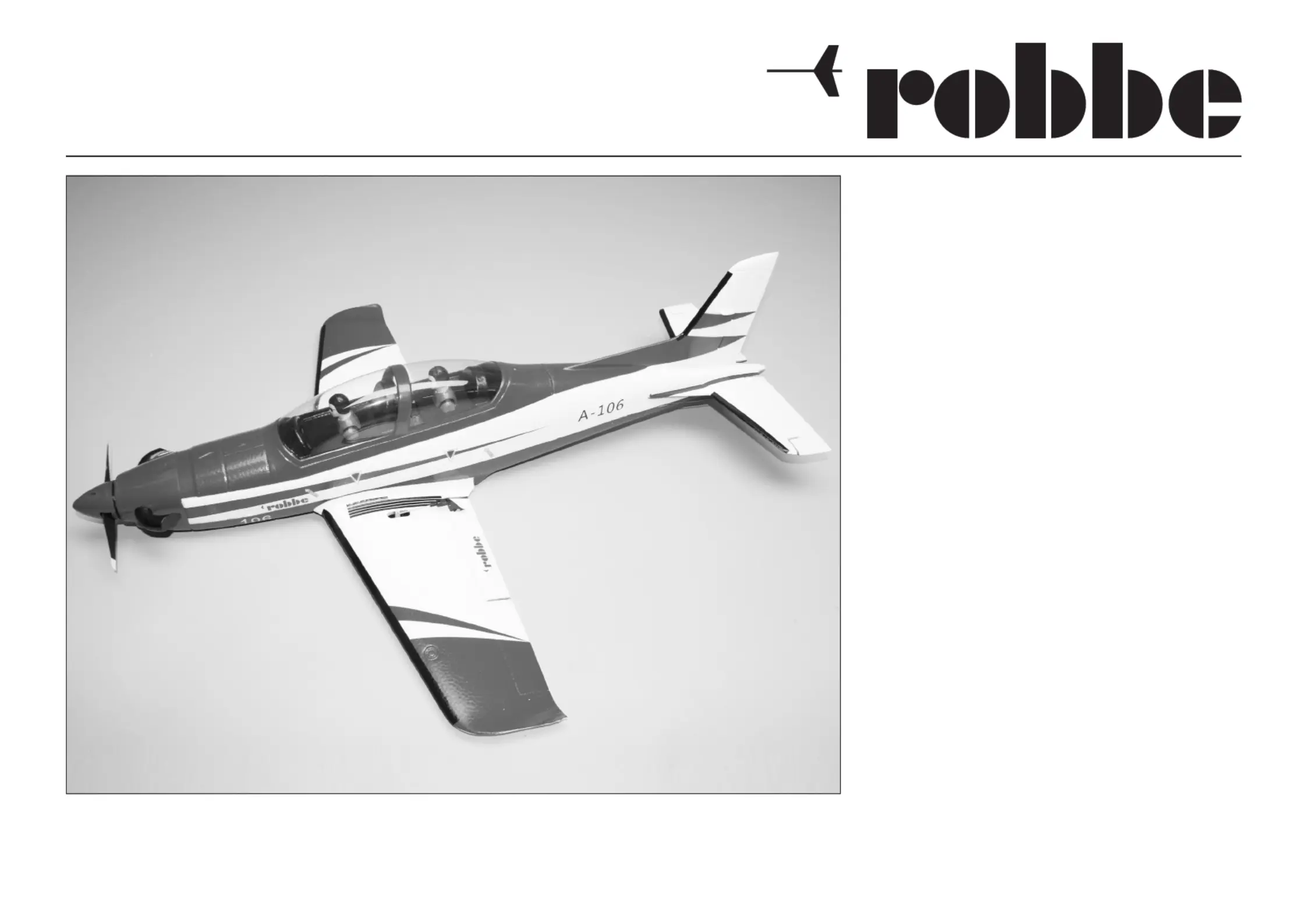

Side 1/17

Building and Operating Instructions

Notice de montage et de mise en œuvre

Istruzioni di montaggio e d’uso

Pilatus PC21

Nano-Racer

No. 2599

Building and Operating Instructions - Pilatus PC21 Nano-Racer No. 2599

Dear customer,

Congratulations on your choice of a factory-assembled

model aircraft from the robbe Modellsport range. Many

thanks for placing your trust in us.

The model can be ready for the air when you have completed

just a few simple procedures. Please read right through

these instructions and the separate information sheets

before attempting to assemble and fly the model, as this will

make it much easier to complete the tasks required.

Please study the illustrations and the brief instructions to

obtain a clear understanding of the individual stages of

construction. All parts must be trial-fitted “dry” (without glue)

before you reach for the glue. Assign the individual compon-

ents to the various stages of assembly.

The servos are already installed, and connected to the con-

trol surfaces.

The model

Semi-scale model of a fast aerobatic trainer.

The PC 21 is a member of the Nano-Racer series, and con-

sists of a painted, one-piece, moulded foam fuselage and

wing, reinforced with a carbon fibre spar. The model boasts

outstanding flying qualities, and is perfectly 'at home' at high

speed and flying aerobatics. With its robust but lightweight

construction the model is fully capable of exploiting its advan-

tages at both ends of the speed spectrum. The set includes

a powerful brushless motor with speed controller and three

servos, all factory-installed.

We constantly strive to update our products to reflect the

latest developments. You can find details of technical

improvements, updates and revised documentation on

the Internet by calling up the appropriate product

description at our website: www.robbe.com.

Specification:

Total surface area approx.: 9 dm

All-up weight approx.: 390 g

Wing loading approx.: 45.5 g/dm

Length approx.: 711 mm

Wingspan approx.: 622 mm

Scale: 1:14.6

RC functions:

Elevator, aileron, throttle, rudder (optional)

Notes regarding the radio control system:

For this model you require a radio control system with at least

four channels.

The receiving system is powered by the speed controller’s

integral BEC system.

Set contents:

• Set of painted EPO foam components, with decals applied

(fuselage / wing, fin, tailplane, fuselage hatch incl. cockpit)

• Painted plastic cowl

• Factory-fitted brushless motor and speed controller

• 5.5 x 4.5" propeller, spinner and driver

• 3 x servos installed

• Multi-lingual assembly instructions

Essential accessories:

Description Order No.

Adhesive: Robbe Speed Type 2 5063

Optional accessories:

Rudder upgrade kit for Nano-Racer 2600

Please see the robbe main catalogue for details of tools and

accessories.

Servo leads with differing colour codes are used in the model:

Signal: white / orange

Positive wire: red / red

Negative wire: black / brown

Please bear this in mind when connecting or extending the leads.

Before you check the model's working systems, set the con-

trol surfaces to neutral from the transmitter (transmitter sticks

and trims central).

When you wish to ﬂy the model always move the throttle stick

to the “motor stopped” position before switching the trans-

mitter on. Only then connect the battery. To switch off, ﬁrst

disconnect the ﬂight pack from the speed controller, and only

then switch the transmitter off. When installing or setting up

the receiving system components, including the speed cont-

roller and motor, be sure to read and observe the instructions

supplied with them. You should also read right through the

instructions and safety information supplied with the battery

pack and charger before using these items for the ﬁrst time.

Preparing the glued joints:

Use 240-grit abrasive paper to sand the paint from all joint

surfaces before applying the glue.

All directions, such as “right-hand”, are as seen from the

tail of the model, looking forward.

Replacement parts:

Order No. Description

25990001 Pilatus PC21 Nano-Racer cowl

25990002 Pilatus PC21 Nano-Racer linkage set

25990003 Pilatus PC21 Nano-Racer spinner

25990004 Pilatus PC21 Nano-Racer motor mount set

25990005 Pilatus PC21 Nano-Racer canopy

25990006 Pilatus PC21 Nano-Racer decals
