Side 1/2

Placement

• Do not expose the product to direct sunlight,

place it near devices that radiate heat, leave it

inside an enclosed vehicle, or otherwise subject

it to temperature extremes. Excessive heat can

deform or discolor the product.

• Do not allow rubber, vinyl, or similar materials

to remain on this product for long periods of

time. Such objects can discolor or otherwise

harmfully a ect the  nish.

• Depending on the material and temperature of

the surface on which you place the product, its

rubber feet may discolor or mar the surface.

As a precautionary measure, we recommend

the use of a drum mat.

• Do not put anything that contains water on

this product. Also, avoid the use of insecticides,

perfumes, alcohol, nail polish, spray cans, etc.,

near the product. Swiftly wipe away any liquid

that spills on the product using a dry, soft cloth.

Maintenance

• For everyday cleaning wipe the product with

a soft, dry cloth or one that has been slightly

dampened with water. To remove stubborn

dirt, use a cloth impregnated with a mild, non-

abrasive detergent. Afterwards, be sure to wipe

the product thoroughly with a soft, dry cloth.

• Never use benzine, thinners, alcohol or

solvents of any kind, to avoid the possibility of

discoloration and/or deformation.

WARNING

Do not disassemble or modify by yourself

Do not open or perform any internal

modi cations on the product. (The

only exception would be where this

manual provides speci c instructions

which should be followed in order to put in place

user-installable options.)

Do not repair or replace parts by yourself

Do not attempt to repair the product,

or replace parts within it (except

when this manual provides speci c

instructions directing you to do so).

Refer all servicing to your retailer, the nearest

Roland Service Center, or an authorized Roland

distributor, as listed on the “Information.”

Do not use or store in the following types of locations

• Subject to temperature extremes

(e.g., direct sunlight in an enclosed

vehicle, near a heating duct, on top of

heat-generating equipment); or are

• Damp (e.g., baths, washrooms, on

wet  oors); or are

• Exposed to steam or smoke; or are

• Subject to salt exposure; or are

• Humid; or are

• Exposed to rain; or are

• Dusty or sandy; or are

• Subject to high levels of vibration and

shakiness.

Do not place in an unstable location

Make sure you always have the product

placed so it is level and sure to remain

stable. Never place it on stands that

could wobble, or on inclined surfaces.

WARNING

Adults must provide supervision in places where

children are present

When using the product in locations

where children are present, be careful

so no mishandling of the product can

take place. An adult should always be

on hand to provide supervision and guidance.

Do not drop or subject to strong impact

Protect the product from strong

impact.

(Do not drop it!)

CAUTION

Avoid climbing on top of the product, or placing heavy

objects on it

Never climb on top of, nor place heavy

objects on the product.

Take care not to get  ngers pinched by moving parts

Take care not to pinch your  ngers

or other parts of your body when

operating the moving parts of the

pedal or drum throne. If small children

use this equipment, make sure they have adult

supervision and guidance.

Keep small items out of the reach of children

Keep removable parts (screws, nuts,

memory lock) out of the reach of small

children to prevent them from being

swallowed accidentally.

1. Open the tripod

Loosen wing bolt “B” and open the tripod all the way to the stopper.

When the tripod is fully open,  rmly fasten wing bolt “B,” which you

loosened earlier.

Wing bolt “B”

2. Attach the seat

Loosen wing bolt “A,” raise the upper

pipe to the desired height, and

provisionally tighten wing bolt “A,” so

that the upper pipe does not drop.

Next, use the drum key to loosen

the square-head bolt of the memory

lock, and lower the memory lock to

the position shown in the illustration

below.

Attach the seat, and tighten the T-bolt

to fasten it securely.

3. Adjust the height of the seat

Loosen wing bolt “A” and adjust the throne to the desired height.

When you’ve adjusted the height as desired, securely tighten wing bolt

“A.” Next, align the memory lock to the position shown in the illustration

below, and securely tighten the square-head bolt of the memory lock

to fasten it.

* Using the memory lock will prevent the seat from descending

during performance.

Square-head

bolt of the

memory lock

Wing bolt

“A”

Drumsticks

Use the drumsticks to play the V-Drums.

Upper pipe

Wing bolt “A”

Square-head bolt of

the memory lock

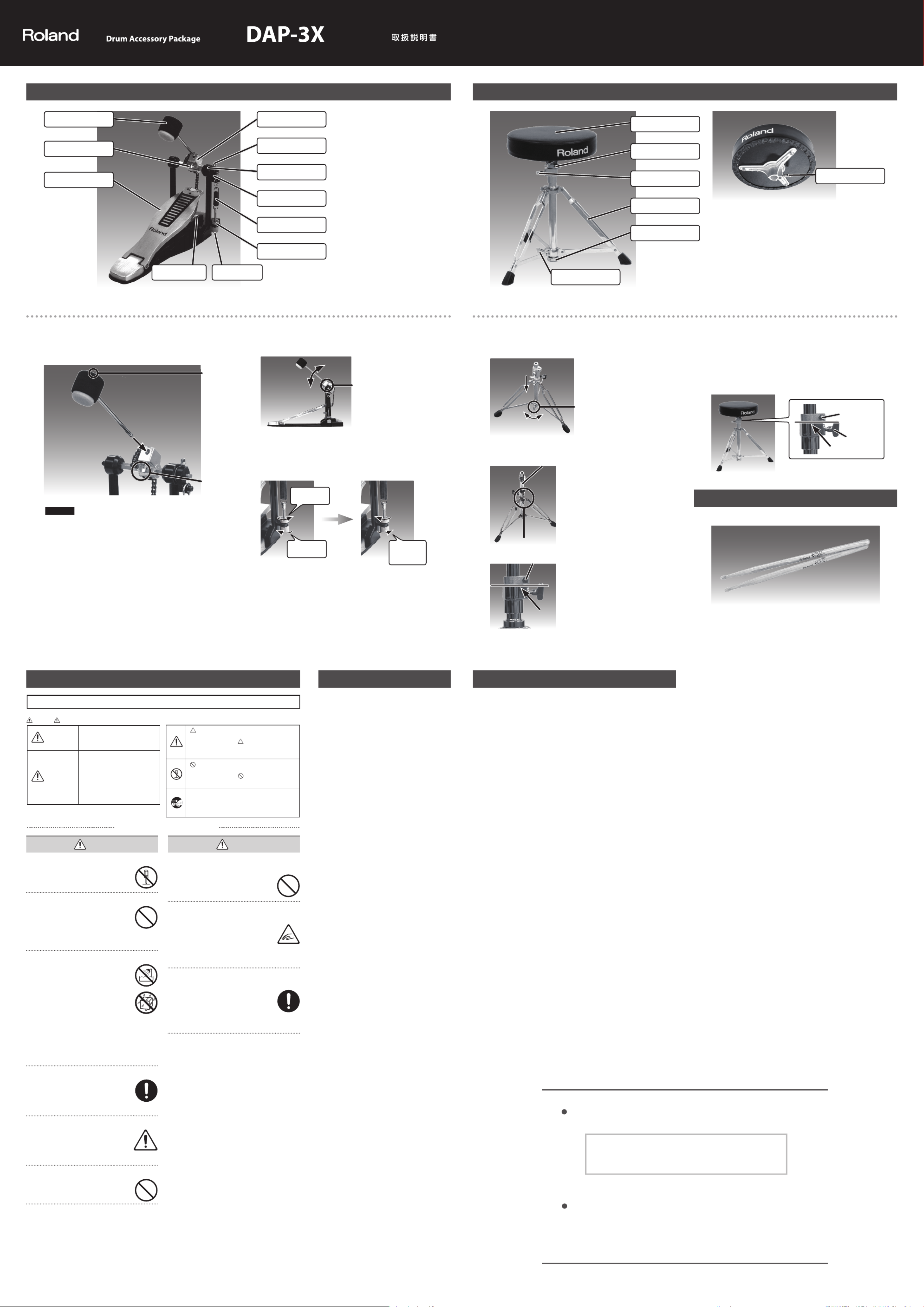

Kick Pedal

Beater

Square-Head bolt “A”

Foot board

Beater holder

Square-Head bolt “B”

Angle adjuster

Roller

Spring

Lock nut

Adjusting nutHoop clamp

Assembling the Kick Pedal

Before using this product, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES”.

These sections provide important information concerning the proper operation of the product. Additionally, in order to feel assured that you have gained a good grasp of

every feature provided by your new product, Owner’s manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

1. Attach the beater

Use the drum key to loosen square-head bolt “A.” Next, insert the beater

into the beater holder with the prastic beater facing the head, as shown

in the illustration below. Then, secure it by tightening square-head bolt

“A,” which you loosened earlier.

Square-Head

bolt “A”

Plastic beater

NOTE

The mesh head can wear down a felt beater. We recommend using a

plastic beater.

2. Attach to the V-Drums kick pad

Insert the kick pad’s pedal attachment plate into the hoop clamp of the

kick pedal, and fasten it.

* For details, refer to the owner’s manual of the V-Drums kick pad.

3. Adjust the angle of the beater

Loosen square-head bolt “B” and adjust the beater to the desired angle.

When you’ve set the angle,  rmly tighten square-head bolt “B” to secure

it.

Square-Head

bolt “B”

4. Adjust the spring

Loosen the adjusting nut to adjust the tension of the spring.

Once you’ve got the tension adjusted to your liking,  rmly secure the lock

nut against the adjusting nut.

Loosen

Adjust Secure the lock nut

against the adjusting nut

* Take care not to pinch your

 ngers during assembly.

* There is a risk of injury if the kick

pedal is used barefoot. Please

wear suitable footwear.

Drum Throne

Seat

Memory lock

Wing bolt “A”

Tripod

Stopper

Wing bolt “B”

T-bolt

Assembling the Drum Throne

Main Speci cations

Roland DAP-3X: Drum Accessory Package

Weight

2.2 kg (4 lbs 14 oz)

Beater

Plastic/felt

Seat

Diameter: 305 mm (12-1/16 inches)

Height

490–670 mm (19-5/16–26-7/16 inches)

Weight

4.3 kg (9 lbs 8 oz)

Length

406 mm (16 inches)

Material

Ash

* In the interest of product improvement, the

speci cations and/or appearance of this

product are subject to change without prior

notice.

Roland and V-Drums are either registered trademarks or trademarks of Roland Corporation in the United States and/or other countries.

* Take care not to pinch your  ngers

during assembly.

* Use the memory lock correctly, so

the seat doesn’t descend while you’re

performing.

* Never tilt the throne while seated on

it, and try to avoid unnatural postures

while using the throne; doing so may

cause malfunction or deformation.

IMPORTANT NOTES

WARNING

This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.

For C.A. US (Proposition 65)

Used for instructions intended to alert the

user to the risk of injury or material

damage should the unit be used

improperly.

* Material damage refers to damage or

other adverse effects caused with

respect to the home and all its

furnishings, as well to domestic animals

or pets.

Used for instructions intended to alert the

user to the risk of death or severe injury

should the unit be used improperly.

The symbol alerts the user to things that must be

carried out. The specific thing that must be done is

indicated by the design contained within the circle. In the

case of the symbol at left, it means that the power-cord

plug must be unplugged from the outlet.

The symbol alerts the user to important instructions or

warnings.The specific meaning of the symbol is

determined by the design contained within the triangle. In

the case of the symbol at left, it is used for general

cautions, warnings, or alerts to danger.

The symbol alerts the user to items that must never be

carried out (are forbidden). The specific thing that must

not be done is indicated by the design contained within

the circle. In the case of the symbol at left, it means that

the unit must never be disassembled.

About WARNING and CAUTION Notices About the Symbols

ALWAYS OBSERVE THE FOLLOWING

USING THE UNIT SAFELY

* 5 1 0 0 0 2 5 6 5 3 - 0 3 *
