Side 1/2

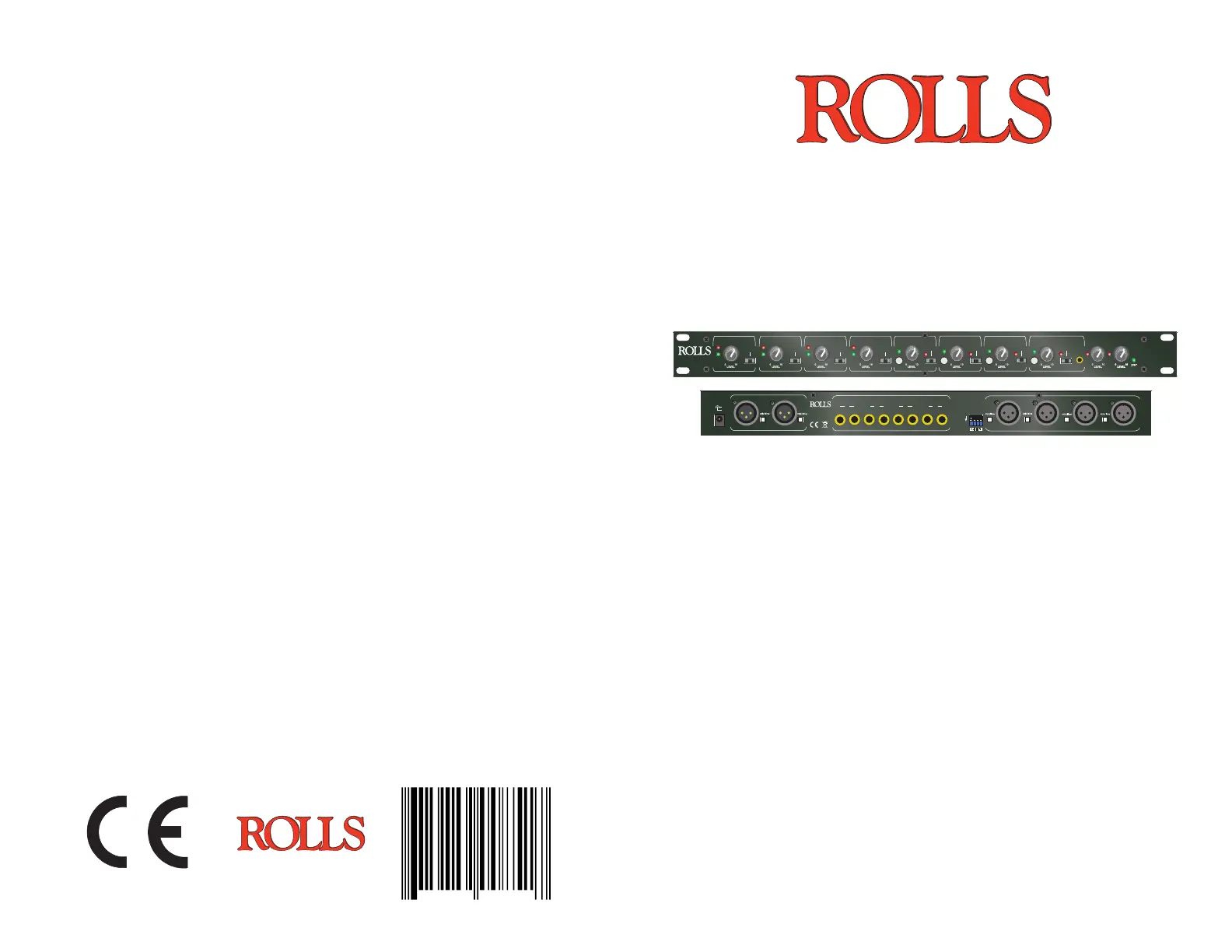

RM85
2 ZONE
Mic/Line Mixer
Quick Start Guide
Salt Lake City, Utah
1/18
FEATURES
- Four XLR balanced inputs with +48 V phantom power
- Four stereo Source inputs, including a front panel 3.5mm input
- Master Output Level control for each channel
- Low noise, ecient operation
- All in a single rack space
MODEL RM85
www.rolls.com
www.rolls.com
MADE IN USA AB AB AB AB
8 7 6 5
LINE INPUTS
4
MIC/LINE
MIXER
RM85
ON
12
3
4
MIC / LINE INPUTS
OUTPUTS
B A
PHANTOM
MADE IN USA
15 VDC
+
-
STEREOSTEREOSTEREOSTEREO
OL
OL
1 2
OL OL OL OL
3 4 5 6 7 8 A B
SIG SIG SIG SIG
OL
OUTPUTS
A B
ASSIGN
A+B
A B
ASSIGN
A+B
A B
ASSIGN
A+B
A B
ASSIGN
A+B
A
B
ASSIGN
A+B OL
A
B
ASSIGN
A+B OL
A
B
ASSIGN
A+B OL
A
B
ASSIGN
A+B
ROLLS PS27s
STEREO
INPUT
LINE
75889 00851
6 7
SPECIFICATIONS
Input Impedance: Mic: 600 Ohms XLR balanced
Line: 22K Ohms RCA
Max Input Level: Mic: -14 dBV Mic level
Line: +24 dBV
Total input Connectors: 4: XLR, 4: Stereo 1/4", 1: 3.5mm
Phantom Power: +48 VDC
RCA Output Level: +17 dBV max (impedance 1K Ohm)
Max Gain: Mic: 70 dB
Source: 30 dB
Noise Floor: - 80 dB, THD: <.025%,
S/N Ratio: 96 dB
Voltage Gain: 32 dB
Nominal Supply Voltage: 15 VDC
Bandwidth: 20Hz - 25 kHz
Size: 19” x 1.75” x 4” (48.3 x 4.5 x 10 cm)
Weight: 7 lbs. (2.3 kg)
Power supply: Rolls PS27s power supply 15 VDC 500 mA TIP NEGATIVE.
The RM85 is a 8 channel two zone mixer. Channels 1-4 will accommo-
date XLR microphone or XLR line level inputs. Channels 5-8 are 1/4"
inputs. All 8 channels can be sent to the two XLR outputs in three con-
gurations; A, B or both A+B. The separate A and B outputs are XLR and
either can be selected to be Line or Microphone level output. Channel
8 also has a stereo 3.5mm (1/8") input on the front of the RM85.
INSPECTION / WARRANTY
1. Unpack and inspect the RM85 box and package.
If obvious physical damage is noticed, contact the carrier immediately to make a
damage claim. We suggest saving the shipping carton and packing materials for safely
transporting the unit in the future.
2. Please visit our web site at www.rolls.com and click on the Register Your Warranty
Here button, or complete the Warranty Registration Card and return it to the factory.
NOTE: THIS MANUAL ASSUMES THE USER HAS A WORKING KNOWLEDGE OF AUDIO ELECTRONICS, BALANCED AND UNBALANCED
CONNECTIONS, AND PROPER SIGNAL LEVEL SETTING.
www.rolls.com
MIC/LINE
MIXER
RM85
MADE IN USA
STEREOSTEREOSTEREOSTEREO
OLOL
1 2
OL OL OL OL
34 5 6 7 8 A B
SIG SIG SIG SIG
OL
OUTPUTS
A B
ASSIGN
A+B
A B
ASSIGN
A+B
A B
ASSIGN
A+B
A B
ASSIGN
A+B
A
B
ASSIGN
A+B OL
A
B
ASSIGN
A+B OL
A
B
ASSIGN
A+B OL
A
B
ASSIGN
A+B STEREO
INPUT
LINE
MODEL RM85
www.rolls.com
MADE IN USA AB AB AB AB
8 7 65
LINE INPUTS
4
ON
1
2
3
4
MIC / LINE INPUTS
OUTPUTS
B A
PHANTOM
15 VDC
+
-
ROLLS PS27s
DIP SWITCH SET-
TINGS
- PHANTOM POWER: If
a microphone requires
phantom power, move the
Mic channel’s correspond-
ing PHANTOM POWER DIP
switch to the down posi-
tion. This applies +48 volts
phantom power to the
indicated microphone.
Channel 1-4 inputs
XLR balanced inputs. Mic or
Line level can be selected for
each input separately by the
corresponding switch next to
the XLR jack.
Channel 1-5 inputs
1/4" mono (tip, sleeve) for the A
and B inputs. If you have only a
single mono input plug it into
either the A or B jack and set the
"STEREO" button so that it is in
the outward position on the front
panel. This will sum the signal to
mono, and send it to both A, B or
both A+B as selected on the front
pannel ASSIGN switch.
XLR A and B
outputs
Balanced XLR output
selectable to be line or
mic level by the cor-
responding switch to
each channel.
DC power jack
For connection to the supplied
Rolls PS27s power supply 15 VDC
500 mA TIP NEGATIVE.
Output LEVEL
Independently adjusts
the output sent to A or B
outputs.
Channel 1-4
LEVEL adjusts the level of the channel. The
ASSIGN selector switch will send the chan-
nel signal out to A, B or both A+B.
Channel 5-8
LEVEL adjusts the level of the channel. The AS-
SIGN selector switch will send the channel signal
out to A, B or both A+B. The STEREO switch is
for selecting the desired input conguration as
described below. If the stereo switch is "in" the
A and B inputs and outputs are independent of
each other. If the stereo switch is "out" the A and
B inputs are summed to mono.
