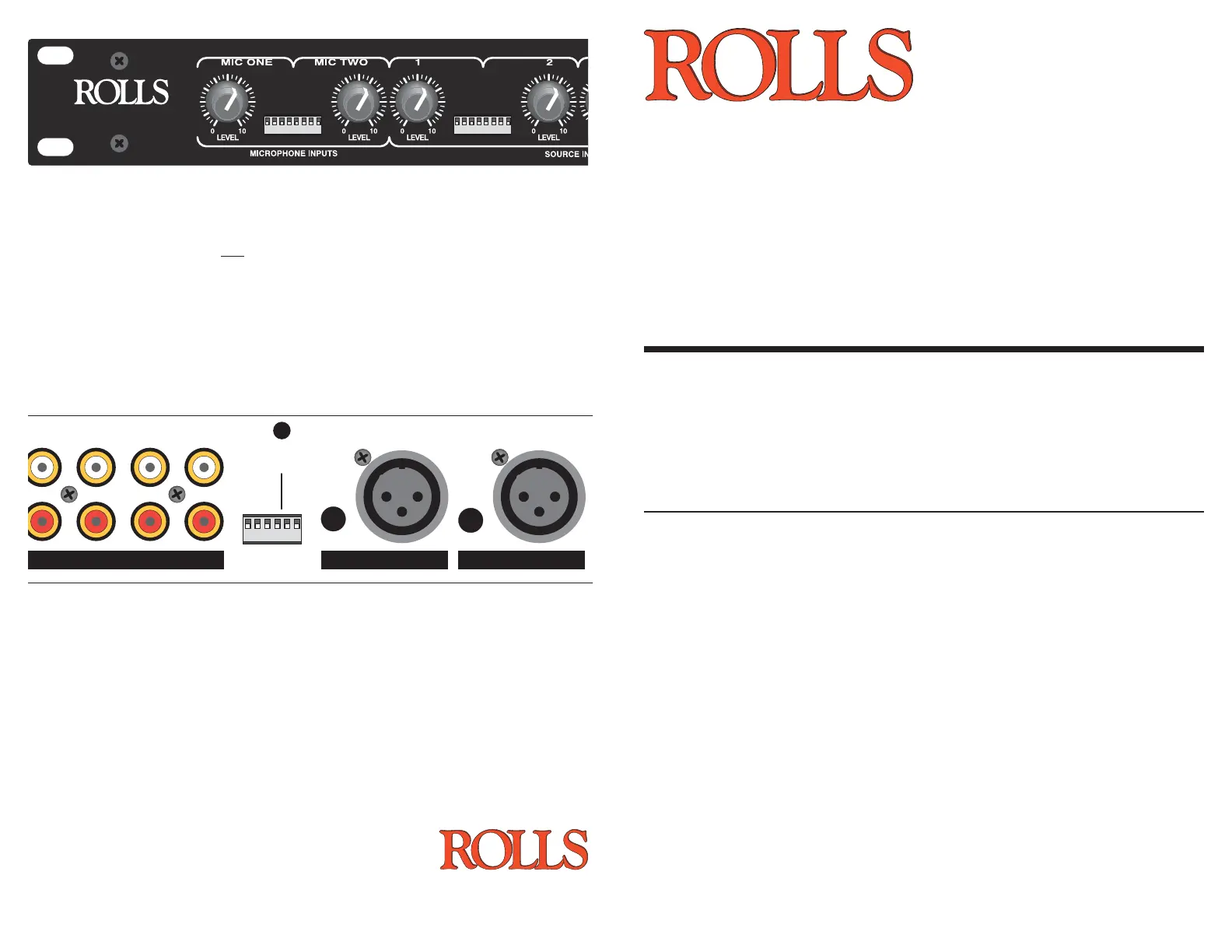

Side 1/2

RM64

FOUR ZONE MIXER

ROLLS CORPORATION

SALT LAKE CITY, UTAH

06-10

Setup Guide

FEATURES:

• Two Microphone and Four RCA Source Inputs

• Four XLR Balanced Zone Outputs

• 12 VDC Phantom Power available for each Mic Input

• Remote Volume control jacks for each Zone Output

• Switchable Ducking for the Mic Inputs

SPECIFICATIONS

Input Impedance: 10K Ohms balanced

50K Ohms unbalanced RCA

Output Impedance: 50 Ohms Balanced XLR

Max Input Level: Mic: +10 dB

Source: +22 dB

Phantom Power: +12 Volts DC, 5mA max.

Input Connectors: XLR and RCA

Outputs: 4 ea. XLR

Max Gain: 60 dB mic

30 dB line

S/N Ratio: >75 dB

THD < .3%

IMD (SMPTE) < .3%

CMRR 90 dB

Frequency Response: 20Hz to 20kHz +/- 0 dB

Power 120 VAC 50-60 Hz, 15 W

Weight: 7 lbs (3KG)

Size: 19” x 1.75” x 6.5”

(48cm x 4.5cm x 17cm)

SETTING THE REAR PANEL DIP SWITCHES

Zone Duck Assign

Switches 1 - 4 engage the Ducking function to the indicated zone.

First - in order for the ducking to operate properly in the assigned zone, the microphones

and sources must be assigned to that zone.

Select which zone you wish to have the ducking function by moving that Zone Duck As-

sign switch to the DOWN position. BOTH Mic 1 and Mic 2, if assigned to the selected zone

and have the Zone Duck Assign switch down, will duck the sources assigned to that zone.

For example; shown above - Mic 1 is selected on the front panel to Zones 1 - 4, and Mic 2

is selected only to Zone 1. Shown below, Zone 4 has no ducking assigned, while Zones 1

- 3 have ducking assigned. Therefore, Mic 1 and Mic 2 will duck whatever Source material

is present at Zone 1, Mic 1 will additionally duck material at Zones 2 and 3, but not Zone

4. Mic 2, since it is not selected to Zones 2 - 4, it will have no e ect on those zones.

1 2 3 4 5 6

SOURCE INPUTS MIC TWO MIC ONE

4321

INPUT

TRIM TRIM

ZONE

DUCK

ASSIGN

4 3 2 1

PHANTOM

POWER

2 1

Phantom Power

Switch 5 applies Phantom Power to Mic 2, Switch 6 applies Phantom Power to Mic 1. The

Phantom Power is on when the switch is DOWN.

ZONE

SELECT

1 2 3 4 1 2 3 4

ZONE

SELECT

1 2 3 4 1 2 3 4

www.rolls.com

1 2 3 4 5 6 7 81 2 3 4 5 6 7 8

CONNECTION INFORMATION

Referring to the diagram above, connect microphones to the MIC INPUTs and apply

phantom power where needed by moving the corresponding Phantom Power switch to the

DOWN position. Connect sources such as cassette players, CD players, AM/FM tuners,

etc. to the RCA Source Inputs. Note which input each device is connected to as that input

corresponds to its front panel Level control. Connect the XLR outputs to their respec-

tive zone ampli ers and speakers. The balanced signals are con gured pin 2 hot, pin 3

neutral, and pin 1 ground. For ground lifting, it will be necessary to remove the connection

to pin 1.

REMOTE VOLUME INFORMATION

For Remote Volume operation, a Tip-Ring-Sleeve plug will need to

be wired to a 10 - 100 K Ohm potentiometer (NEITHER INCLUD-

ED) as shown here.

Sleeve

Ring

Tip

10K to 100K Ohm

Linear taper potentiometer

Thank your for your purchase of the Rolls RM64 Four Zone Mixer. The RM64 combines two paging

microphones with up to four line level source inputs. Each input is switch selected to output to any

combination of four zone outputs. The outputs are all balanced XLR connectors, and a 1/4” Remote

Volume jack provides each zone with the means for external volume control. The Microphone inputs

feature automatic ducking for easy paging.

The RM64 is the ideal solution for banquet rooms, o ces, restaurant/night clubs, etc.

NOTE: This unit is intended for professional installation. Certain assumptions have been made that

the installer has the required knowledge to properly install, setup and operate the RM64.

INSPECTION/WARRANTY

1. Unpack and inspect the RM64 box and package.

If obvious physical damage is noticed, contact the carrier immediately to make a damage

claim. We suggest saving the shipping carton and packing materials for safely transporting

the unit in the future.

2. Please visit our website at www.rolls.com for Warranty Information and Registration.

FRONT PANEL

pwr

ZONE

SELECT

1 2 3 4 1 2 3 4

ZONE

SELECT

1 2 3 4 1 2 3 4

ZONE

SELECT

1 2 3 4 1 2 3 4

FOUR

ZONE

MIXER

RM64

ZONE OUTPUTS

CH 4

INPUT

www.rolls.com

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 81 2 3 4 5 6 7 8

MIC INPUTS 1, 2: These LEVEL controls adjust the volume of the indicated

Microphone channel.

SOURCE INPUTS 1 - 4: These LEVEL controls adjust the volume of the indi-

cated Source channel.

ZONE SELECT: DIP switches for assigning the indicated Mic or Source channel

to the Zone Outputs. The four switches closest to the channel LEVEL control as-

sign that channel to the zones.

ZONE OUTPUTS: These LEVEL controls adjust the output volume of the indi-

cated ZONE.

CH 4 INPUT: 3.5mm (1/8” stereo) line level input for channel 4.

pwr LED: When lit, indicates the RM64 is on.

Power switch: Turns the RM64 on and o .

REAR PANEL

1 2 3 4 5 6

WARNING:

DO NO T EXPO SE THIS EQUIPM ENT

TO RAIN OR M OISTURE

NO USER SERVICABLE PARTS INSIDE.

MODEL RM 64

SERIAL NUMBER

RISQUE DE CHOC - NE PAS ENLEVER

REMOTE

VOLUME REMOTE

VOLUME

OUTPUT

ZONE FOUR ZONE THREE ZONE TWO ZONE ONE SOURCE INPUTS MIC TWO MIC ONE

4321

INPUT

2INPUT

TRIM TRIM

ZONE

DUCK

ASSIGN

4 3 2 1

PHANTOM

POWER

2 1

120 VAC 50/60 Hz 15 VA

www.rolls.com

ZONE OUTPUTS 1 - 4: Line level (+4 dB ref.) balanced male XLR jacks for con-

nection to the zone ampli ers.

REMOTE VOLUME: These four 1/4” TRS jacks connect to a remote volume

potentiometer.

SOURCE INPUTS 1 - 4: RCA input jacks for connection to CD Players, Tuners

etc.

ZONE DUCK ASSIGN/PHANTOM POWER SWITCHES: This set of DIP switch-

es, from left to right;the  rst four assign which zone will have the source signal(s)

ducked by the Microphone Inputs, the last two apply phantom power to the indi-

cated microphone channel.

MIC INPUT 1 - 2: Balanced female XLR jacks for connection to dynamic or con-

denser type microphones.

TRIM 1 - 2: Adjusts the input sensitivity for the indicated Mic Input.

FROM AM/FM TUNER

FROM CD PLAYER

FROM DVD PLAYER

To Zone One

power ampliﬁer

and speakers

To Zone One

Remote Volume

control

To Zone Two

power ampliﬁer

and speakers

To Zone Two

Remote Volume

control

To Zone Three

power ampliﬁer

and s

eakers

To Zone Three

Remote Volume

control

To Zone Three

power ampliﬁer

and speakers

To Zone Three

Remote Volume

control

WARNING:

DO NOT EXPOSE THIS EQ UIPM ENT

TO RA IN OR MO ISTURE

NO USER SERVICABLE PARTS INSIDE.

MODEL RM64

SERIAL NUMBER

RISQUE DE CHOC - NE PAS ENLEVER

120 VAC 50/60 Hz 15 VA

www.rolls.com

ZONE

SELECT

1 2 3 4 1 2 3 4

ZONE

SELECT

1 2 3 4 1 2 3 4

www.rolls.com

1 2 3 4 5 6 7 81 2 3 4 5 6 7 8

SETTING THE FRONT PANEL DIP SWITCHES

Each input is assigned to a Zone via the four DIP switches nearest that Input

Level control. The zone is assigned when the switch is in the DOWN position.

For example, the switch settings above send Mic 1 to all four Zones; 1, 2, 3,

and 4. Mic 2 is sent to Zone 1 only. Source 1 is sent to Zone 1, and Source 2 is

sent to Zones 2, 3, and 4.
