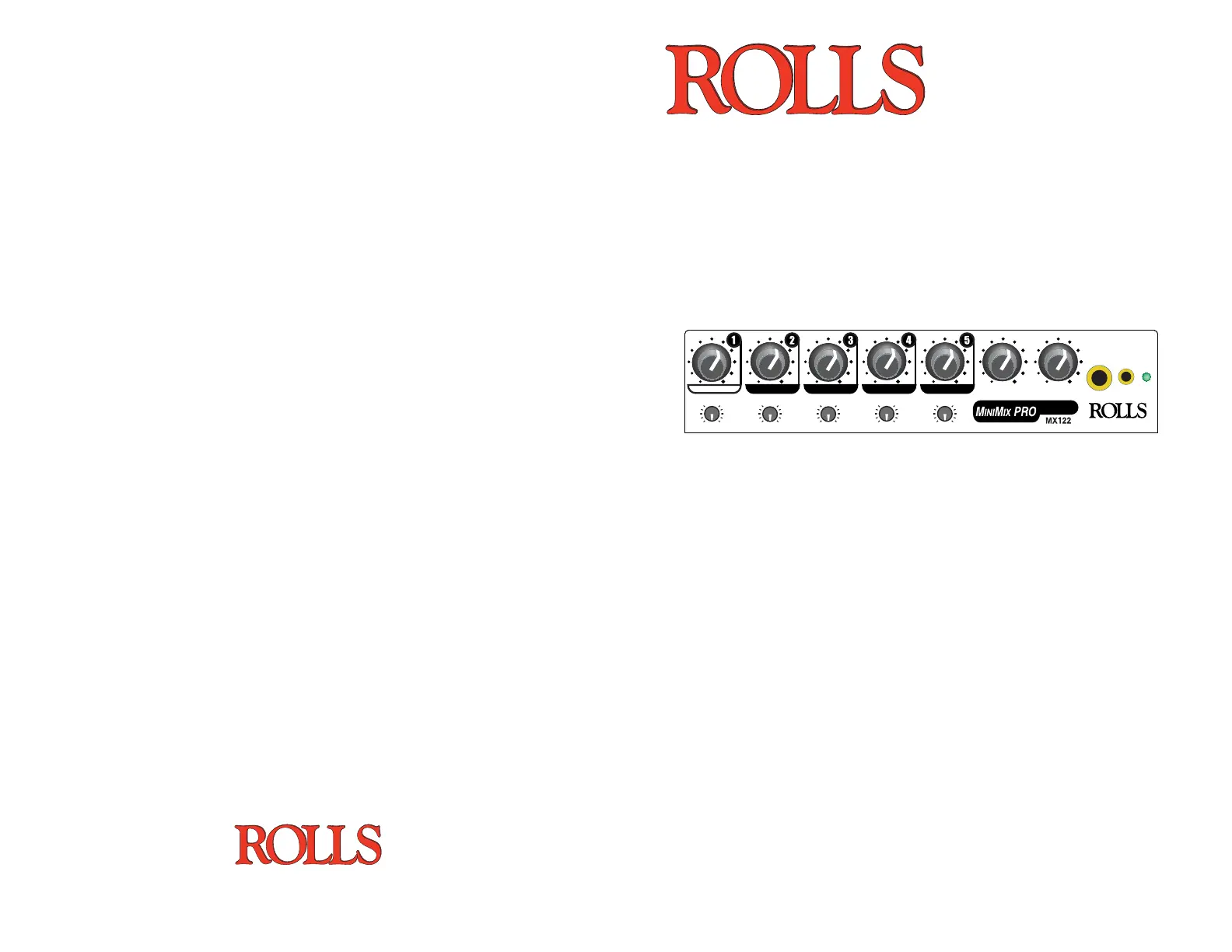

MX122

MiniMix Pro Mixer

Quick Start Guide

ROLLS CORPORATION

SALT LAKE CITY, UTAH

8/19

SPECIFICATIONS

Input Impedance: Line: 10 K Ohms unbal.

Mic: 10 K Ohms bal.

Phantom Power Voltage: +15 VDC

Output Impedance: 50 Ohms bal

Max Input Level: +24 dBV line, -8 dBV microphone

Phase Shift: < 10 deg. 20 Hz - 20 kHz

Connectors: 8: 1/4” TS Inputs, 1: XLR Mic Input

3: 1/4” TRS, 1: 1/8” (3.5mm) Outputs

Max Gain: 26 dB Line

26 dB Aux

80 dB Mic

Mic CMRR: 95 dB

S/N Ratio: >90 dB

THD: < .004%

IMD (SMPTE): < .004%

Self Noise: < - 82 dB

Power: 9-15 VDC

Size: 8.4” x 1.7” x 5”

(21.3 x 4.3 x 13 cm)

Weight: 2.5 lbs (1.14 kg)

R L

PAN

R L

BAL

R L

BAL

R L

BAL

R L

BAL

MASTER

LEVEL

PHONE/AUX

LEVEL

PHONE/AUX

OUTPUTS

pwr

LEVEL LEVEL LEVEL LEVELMIC LEVEL

FEATURES

• 1 XLR balanced Mic Input with rear panel Trim control

• +15VDC Phantom Power

• 4 individual 1/4” Stereo Inputs

• Balanced 1/4” TRS Outputs

• Balance control on each channel (Pan on the Mic channel)

• Headphone / Auxiliary Outputs

• External Power Supply included for low noise operation

Thank your for your purchase of the Rolls MX122 MiniMix Pro

Mixer. The MX122 is a line-level mixer featuring a single mic input

and four channels of stereo inputs.

Channel One

Mic Level: Adjusts the signal level of CH 1 XLR mic input.

Pan: Adjusts the relative level of the microphone signal to the Right

and Left Outputs.

Note: Channels Two through Five are identical.

Channel Two - Five Section

Level: Adjusts the overall signal level of the channel.

Bal: Adjusts the relative level of the channel signal to the Right and

Left outputs.

Master Level: Controls the overall output level of the MX122.

Phone/Aux Level: Adjusts the output level of the Phone/Aux Outputs.

Phone/Aux Outputs: 1/4” and 1/8” (3.5mm) TRS stereo jacks for moni-

toring the master right and left signals, also may be used as an alter-

native stereo output for connecting to another stereo amplier.

PWR: Indicates that the MX122 is connected to an AC outlet and is on.

15 VDC: Connects to the included Rolls PS27s 15 VDC power supply.

Master Outputs Right and Left: 1/4” TRS balanced main output jacks.

For connection to an amplier, recording device or signal processor.

Mic Input Channel 1: Balanced XLR jack for connection to a condenser

or dynamic microphone.

Phantom Power: Switch for applying +15V phantom power to the Mic

XLR Input jack.

Channel Inputs

Note: Channels Two through Five are identical.

Right / Left: 1/4” TS unbalanced jacks for connection to the right and

left outputs of a stereo instrument. If a mono signal is being sent, use

the Right input, for a Tip-Ring-Sleeve stereo signal, use the Left input.

Mic Trim: Adjusts the initial gain of the Mic preamp circuitry.

R L

PAN

R L

BAL

R L

BAL

R L

BAL

R L

BAL

MASTER

LEVEL

PHONE/AUX

LEVEL

PHONE/AUX

OUTPUTS

pwr

LEVEL LEVEL LEVEL LEVEL

MIC LEVEL

MODEL MX122

MADE IN

USA

15 VDC

OUTPUT phantom power

MONOSTER

RIGHTLEFT

MONOSTER

RIGHTLEFT

MONOSTER

RIGHTLEFT

MONOSTER

RIGHTLEFT

MIC

TRIM

MIC

RIGHTLEFT
