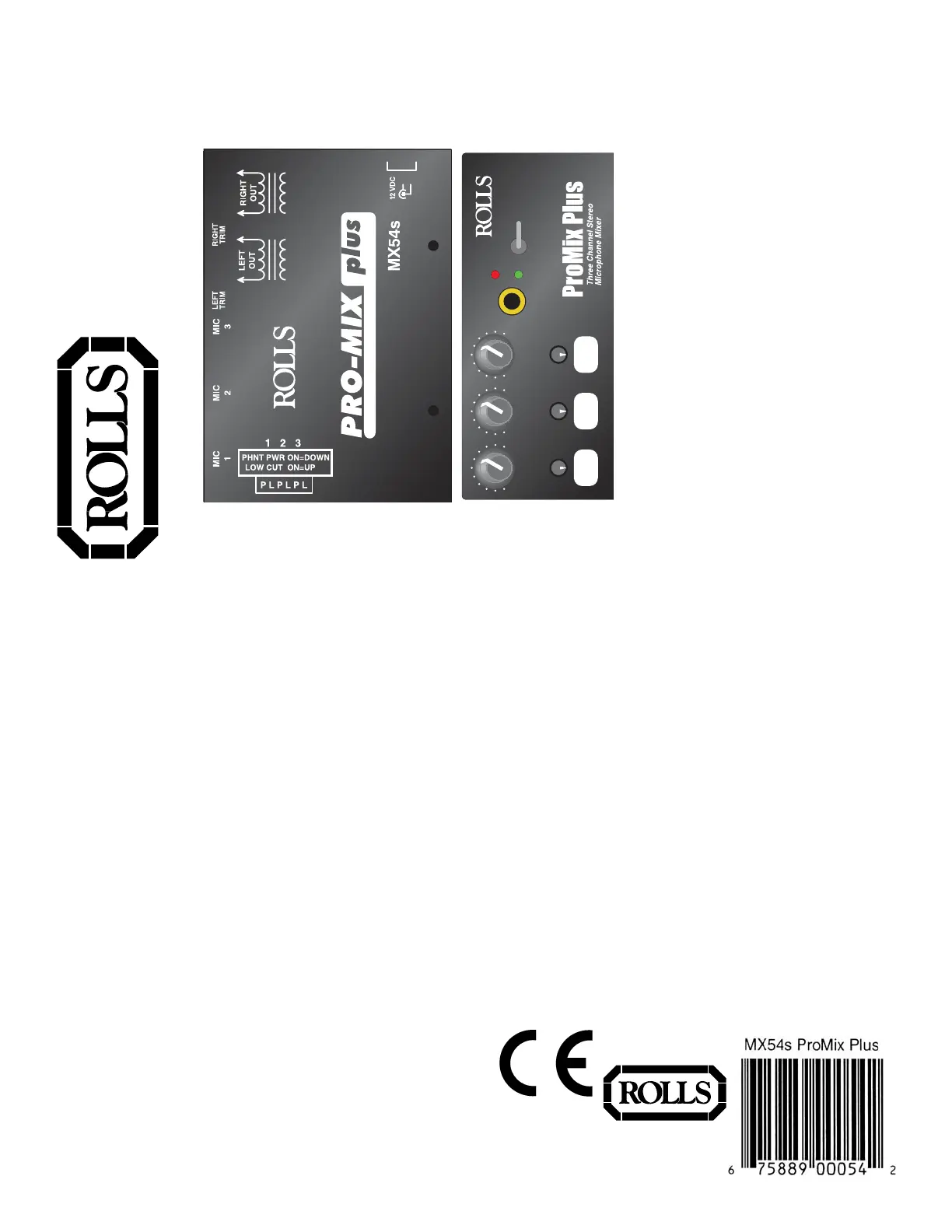

Owners Manual

Rolls Corporation

Salt Lake City, UT

10/00

LIMITED WARRANTY

This product is warranted to the original consumer purchaser to

be free from defects in materials and workmanship under normal installa-

tion, use and service for a period of one (1) year from the date of purchase

as shown on the purchaser’s receipt.

The obligation of Rolls Corporation under this warranty shall be

limited to repair or replacement (at our option), during the warranty period

of any part which proves defective in material or workmanship under

normal installation, use and service, provided the product is returned to

Rolls Corporation, TRANSPORTATION CHARGES PREPAID.

Products returned to us or to an authorized Service Center must be

accompanied by a copy of the purchase receipt. In the absence of such

purchase receipt, the warranty period shall be one (1) year from the date

of manufacture.

This warranty shall be invalid if the product is damaged as a

result of defacement, misuse, abuse, neglect, accident, destruction or

alteration of the serial number, improper electrical voltages or currents,

repair, alteration or maintenance by any person or party other than our

own service facility or an authorized Service Center, or any use violative of

instructions furnished by us.

This one-year warranty is in lieu of all expressed warranties,

obligations or liabilities. ANY IMPLIED WARRANTIES, OBLIGA-

TIONS, OR LIABILITIES, INCLUDING BUT NOT LIMITED TO

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN

DURATION TO THE ONE YEAR DURATION OF THIS WRITTEN

LIMITED WARRANTY. Some states do not allow limitations on how

long an implied warranty lasts, so the above limitation may not apply to

you.

IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF

THIS OR ANY OTHER WARRANTY, EXPRESSED OR IMPLIED,

WHATSOEVER. Some states do not allow the exclusion or limitation of

special, incidental or consequential damages so the above limitation or

exclusion may not apply to you. This warranty gives you specific legal

rights, and you may also have other rights which vary from state to state.

MX54s

ProMix Plus

3-Channel Stereo Mic Mixer

MX54 ProMix Plus

• Mixes three microphones to stereo XLR

outputs

•

Output level controls for mic or line-level output

• Transformer isolated outputs

• Phantom Power and Low-Cut switches for

each Mic input

• Battery and AC powered

The MX54s is a very useful microphone mixer. It's

perfect for sub-mixing microphones in an installa-

tion or recording application. The Phantom Power

and Low-Cut switches add to the versitility and

usefullness of the MX54.

SPECIFICATIONS

Input Impedance: 600 Ohms

Output Impedance: XLR 600 Ohms

THD + Noise: .02%

S/N Ratio: 84 dB

Frequency Response: 25 Hz - 16 kHz (+0 / -3 dB)

Max Output Level: + 14 dB

Max Input Level: -14 dB

Max Gain: +60 dB

Low Cut: -3 dB @ 100 Hz

Current Draw: 20 mA

Phantom Power: +18 VDC

Connectors: 3 Female XLR, 2 Male XLR, 1 1/4" TRS,

DC Power Jack

Size: 5.3" x 3.7" x 2"

Weight: 1 lbs.

BATTERIES

MADE IN USA

PAN

LEVEL

R L

0 10

CHANNEL

PAN

LEVEL

R L

0 10

CHANNEL

PAN

LEVEL

R L

0 10

CHANNEL

PHONES

AUX

clip

pwr

MADE IN USA

POWER

OFF - ON

MX54s

9V x 2

INTRODUCTION

Thank you for your purchase of the MX54s ProMix Plus. This unit is

designed and manufactured to mix three microphones together and send

their combined signals out stereo transformer-balanced XLR outputs. The

individually switchable phantom power and low-cut switches provide he

final touches which make the MX54s a valuable tool for any sound

reinforcement, musical, recording, or install application.

INSPECTION

1. Unpack and Inspect the MX54s package

Your MX54s was carefully packed at the factory in a protective carton.

Nonetheless, be sure to examine the unit and the carton for any signs of

damage that may have occurred during shipping. If obvious physical

damage is noticed, contact the carrier immediately to make a damage

claim. We suggest saving the shipping carton and packing materials for

safely transporting the unit in the future.

2. Please complete the Warranty Registration Card and return it to the

factory.

DESCRIPTION

REAR PANEL

Mic Input: 1 - 3: XLR balanced inputs for connection to any standard

dynamic or condenser microphone.

Right and Left Outputs: Transformer balanced XLR output jacks for

connection to the next device in the signal chain such as a signal proces-

sor or amplifier.

Right and Left Trim controls: Screwdriver adjustable controls to vary the

level of each output. NOTE: These controls are set at mic level from the

factory. Turning them

counter-clockwise

increases the output level. These

controls do not effect the Aux/Headphone Output.

FRONT PANEL

Mic Level 1 - 3: These controls adjust the level of the corresponding Mic

channel. The level varies from -infinity (off) to +60 dB of gain (typical).

PAN 1 - 3: Adjusts the relative right/left level of each channel.

Phone/Aux: 1/4" TRS jack which may be connected to a pair of head-

phones for personal monitoring, or to an unbalanced input of a signal

processor or amplifier.

Power LED: Indicates the MX54s is on.

Clip LED: Indicates that clipping is about to occur or occurring in the

MX54s circuitry. This LED begins to light 3dB below actual circuit clipping.

Power Switch: Applies power to the MX54s.

Located on the right side of the unit is the +12 VDC power jack for connec-

tion to an optional +12 VDC (outside of the ring is positive) external power

supply. We recommend the Rolls PS27.

Locatd on the left side of the unit is the battery

compartment which houses two 9-Volt (alkaline

preferred) batteries.

Also on the left side are the Phantom Power and

Low-Cut switches.

As shown here, under each number is a P indicating

Phantom Power, and an L which indicates Low-Cut.

When the P switch is DOWN, the phantom power is ON, when it is UP, the

phantom power is OFF.When the L switch is UP, the low-cut is ON, when it

is DOWN, the low-cut is OFF.

SCHEMATIC

Document Number:

MX54S.SCH

Rev:

Sheet 1 of 1

Title: MX54S PROMIX 3 CH MIXER

Size:

FXa

C H 1

C H 2

CH3

+VB

C L I P

J 6

J 4

R 7

10K

C 2 0

47U

1 2

X L R M P C

C 1 8

47U

R 2 3

100K

C 1 6

2 5 P F

R 2

4 . 9 9 K 1 %

1 12

S W 1 A

S W D I P - 6

R 1

4 . 9 9 K 1 %

C 1 1 U F 3 5 V N P

R 3 3 3 2 1 %

1 2

J 1

X L R F P C

C 2 1 U F 3 5 V N P

2 11

S W 1 B

S W D I P - 6

P 1

P 100K

C 5

. 1

R 4 3 3 2 1 %

R 2 2 1 K

R 5

2 0 K 1 %

C 3

470P F

R 6

2 0 K 1 %

C 4

470P F

R 9

4 . 9 9 K 1 %

3 10

S W 1 C

S W D I P - 6

R 8

4 . 9 9 K 1 %

C 6 1 U F 3 5 V N P

R 10 332 1%

1 2

J 2

X L R F P C

C 7 1 U F 3 5 V N P

4 9

S W 1 D

S W D I P - 6

P 2

P 100K

C 1 0

. 1

R 11 332 1%

R 1 2

2 0 K 1 %

C 8

470P F

R 1 3

2 0 K 1 %

C 9

470P F

R 1 6

4 . 9 9 K 1 %

5 8

S W 1 E

S W D I P - 6

R 1 5

4 . 9 9 K 1 %

C 1 1 1 U F 3 5 V N P

R 17 332 1%

1 2

J 3

X L R F P C

C 1 2 1 U F 3 5 V N P

6 7

S W 1 F

S W D I P - 6

P 3

P 100K

C 1 5

. 1

R 18 332 1%

R 3 0

2 0 K 1 %

C 1 3

470P F

R 2 0

2 0 K 1 %

C 1 4

470P F

S W 2

S P S T

B T 2

B A T 9 V

B T 1

B A T 9 V

R 2 8

22K

D 1

1N 4001

Q 1

2N 3904

D 3

L D R G

CR1

1N 4148

CR2

1N 4148

CR3

1N 4148

D 2

L D R G

R 2 7

3 . 3 K

R 2 5

33K

R 2 6

10K

R 2 9

18K

R 2 4

2 K

CR41N 4148

U 1 B

4560

U 2 A

4560

U 2 B

4560

U 3 A

4556

E 2

W I R E

E 1

W I R E

T 1

R 1 9

1 0

C 1 7

1 K U F

T P 1

T P 1 0 K V

+VB

1 2

J 7

C 1 9

47U

R 4 0

100K

R 4 1

1 K

CR5

1N 4148

U 3 B

4556

T 2

T P 2

T P 1 0 K V

C 2 1

2 5 P F

P 4

P 100K

P 5

P 100K

P 6

P 100K

4560

E 3

W I R E

ROLLS CORPORATION

5968 South 350 West

Salt Lake City,UT 84107

J A P D C

I N 9 - 1 5 V D C

X L R M P C

O u t p u t L e v e l T r i m

OUT

X F M R A U D I O

L I N E / H D P H O N E

P H O N E 1 / 4

O u t p u t L e v e l T r i m

J 5

OUT

X F M R A U D I O

R 3 8

10K

+VB

R 3 9

10K

R 3 7

10K

R 1 4

1 0 K R 3 6

10K

+VB

R 3 5

10K

R 3 4

10K

R 2 1

10K

R 3 3

10K

+VB

R 3 1

10K

R 3 2

10K

U 1 A

+VB

Date: 5-Oct-2000

PHNT PWR ON=DOWN

LOW CUT ON=UP

1 2 3

P L P L P L
