Side 1/4
RM424
4 Zone Mixer
Quick Start Guide
ROLLS CORPORATION
SALT LAKE CITY, UTAH
01/13
ROLLS CORPORATION
5968 South 350 West
Salt Lake City, UT 84107
Phone (801) 263-9053
FAX (801) 263-9068
www.rolls.com
NOTE: THIS MANUAL ASSUMES THE USER HAS A WORKING KNOWLEDGE OF
AUDIO ELECTRONICS, BALANCED AND UNBALANCED CONNECTIONS, AND
PROPER SIGNAL LEVEL SETTINGS. FOR PROPER SETUP AND USE CONTACT
YOUR DEALER.
1/8”
OFF =UP
ON=DO WN
www.rolls.com
+-
VDC
RM424
4 Zone Mixer
ZONE 1 ZONE 2
TALK OVER Z ONE ASSIG NMENT
PHANTOM POWER
ZONE
1 2
ZONE
1 2
ZONE
1 2
ZONE
1 2
MIC/LINE MIC/LINE
INPUT L EVEL MIC
LINE
PS27s
ZONE 3 ZONE 4
HEADPHO NE
3 4 3 4 3 4 3 4
MONITOR
CHANNEL 4CHANNEL 3
SERIAL NUMB ER
REMOTE VOLUME OUTPUT 3 OUTPUT 2 OUTPUT 1
OUTPUT 4
ZONE FOUR ZONE THREE ZONE TWO ZONE ONE
34
MONIT OR MO NITO R MON ITO R MONIT OR
MIC/CHANNEL 2
MIC 1 MIC/CHANNEL 2 MASTER VOLUME
123 4
MIC 1
+15
WIPER
COMM. +15
WIPER
CH.4 CH.3
REMOTE VOLUME
+15
WIPER
COMM. +15
WIPER
CH.2 CH.1
IN
OPERATION AND SET UP
REMOTE VOLUME
+15
WIPER
COMM. +15
WIPER
CH.2 CH.1
REMOTE VOLUME
+15
WIPER
COMM. +15
WIPER
CH.4 CH.3
The remote volume section on the rear panel of the RM424 allows the installer to place remote vol-
ume controls in any or all of the zones connected to the RM424. Wiring information is silk screened
above each remote volume connector.
Q: Does the remote volume wire carry audio signal?
A: No, the remote volume wire only carries a DC control voltage that varies according to the position
of the remote volume pot (10-100K Ohm linear potentiometer recommended) . Use of the remote
volume feature will not introduce any noise or cause any signal loss.
Q: What is the maximum length that I can run a remote volume wire?
A: Wire size can aect the maximum length. You can run up to 200 feet reliably, and with high quality
wire up to 1000 feet.

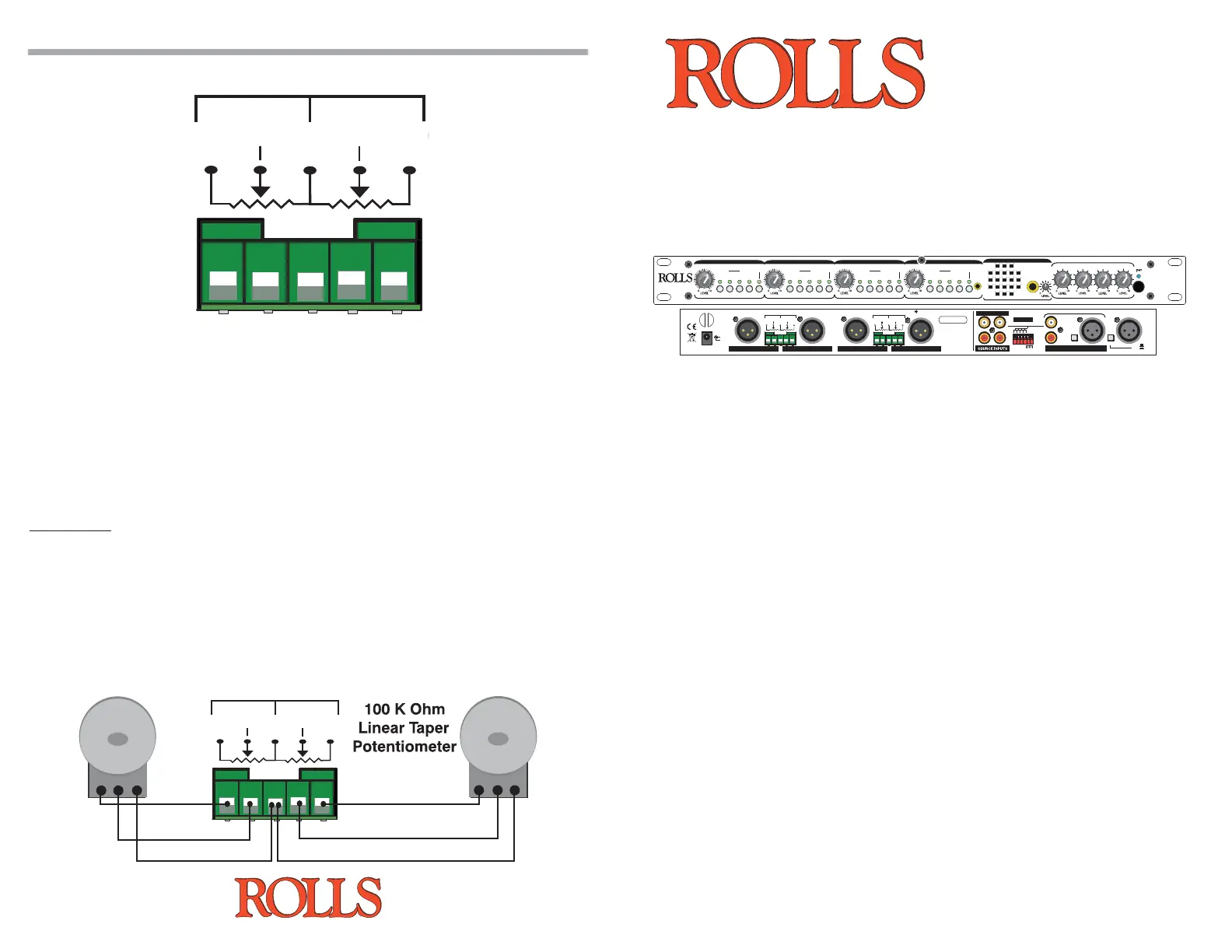

Below is a diagram of how to connect the pots to the remote volume Phoenix connectors.
REMOTE PAD: 5 pin Phoenix connector for connection to a remote potentiometer for remote volume
control. A 100K Ohm audio taper potentiometer is recommended (others will work).
+15: Connection to potentiometer.
WIPER: Connection to potentiometers wiper (middle pin).
COMM: Common Ground for connection to pots.
As a note: If the potentiometer pad is working opposite of what you intended just reverse the wires
going to that potentiometer.
SPECIFICATIONS
Input Impedance: 10K Ohms balanced Line
600 Ohms balanced Mic
10K Ohms unbalanced RCA
Output Impedance: 50 Ohms balanced XLR
Max Input Level: Mic: -30 dB
Source: +22 dB
Phantom Power: +48 Volts DC
Input Connectors: XLR and RCA
Outputs: 4 ea. XLR
Max Gain: 60 dB mic
30 dB line
S/N Ratio: >75 dB
THD: < .3%
IMD (SMPTE): < .3%
CMRR: 60 dB
Frequency Response: 20Hz to 20kHz +/- 0 dB
Power Adapter: 15VDC
Weight: 7 lbs (3KG)
Size: 19” x 1.75” x 6.5”
(48cm x 4.5cm x 17cm)
INTRODUCTION
INSPECTION
1. Unpack and inspect the RM424 box and package.
If obvious physical damage is noticed, contact the carrier immediately to make a damage claim. We suggest
saving the shipping carton and packing materials for safely transporting the unit in the future.
2. Please visit our web site at www.rolls.com and click on the Register Your Warranty Here button.
Page 6Page 1
OPERATION AND SET UP CONT.
MIC/LINE MIC/LINE
INPUT LEVEL MIC
LINE
MIC/CHANNEL 2
MIC 1
The XLR input for MIC 1 can be confi gured to be Microphone level or line level. Follow the silk
screening of the unit for proper use of the mic/line switch.
MIC/CHANNEL 2 is a single input channel that can be XLR input (mic or line as described above) or
an RCA input. The RCA input is always line level, the MIC/LINE switch does not eect the RCA input.
Q: When I plug a mic into the RM424 I can barely hear it?
A: The MIC/LINE switch is set to LINE level and you are using a MIC, set the switch to MIC. Make
sure other volumes of the unit are set properly.
Q: Can I use the XLR and RCA input of CH 2 at the same time?
A: Yes, but you will have no way of attenuating the volume of each source separately.
34
Channel 3 and 4 inputs are line level RCA’s.
Q: I only have a single mono RCA to connect to the source inputs do I need to get a “Y” type adapter?
A: No, the RM424 will accept a mono or stereo signal into the RCA inputs, and will convert all signals
to mono. No “Y” adapter is needed.
ZONE 1 ZONE 2 ZONE 3 ZONE 4
MASTER VOLUME
HEADPHONE
MONITOR
The MASTER VOLUME controls on the front of the RM424 function just as the name implies.
NOTE: with channel volumes, master volumes and possibly remote volumes there are plenty of op-
portunities to get distortion on the outputs. It is best to set all volumes at half (white pointer facing up).
Then make adjustments from there as needed.
Q: When using a remote volume does the MASTER VOLUME control still work?
A: Yes, when using a remote volume both the remote volume and master volumes are active. We
suggest if you are using a remote volume to set the master volume to 10 (all the way up) to give the
remote volume access to the full volume potential of the RM424.
The MONITOR section of the RM424 is designed to be able to monitor a signal before it is sent to a
zone.
EX: If you are going to send audio from a music player connected to input 3 to zone 4 output, but you
want to be sure the sound is correct you can preview (monitor) it before sending it to zone 4 output.
By selecting MONITOR on the input 3 section of the front panel, you can either listen to the signal
from the speaker on the front panel or plug in headphones to MONITOR the signal before you select
input 3 to be sent out to zone 4 output. This can be done in any combination of channels etc. The Vol-
ume level for the monitor is for either the headphones or the speaker. When headphones are plugged
in to the headphone monitor jack the speaker is disabled allowing you to monitor quietly.
Q: The monitor works with source signals but seems to be low with mic’s?
A: The unit is working fi ne, the problem is that the small speaker on the front of the RM424 is sending
out a signal to monitor the mic, but the mic is lower in volume than the line level signals. We recom-
mend using the headphone output to monitor sensitive information.
