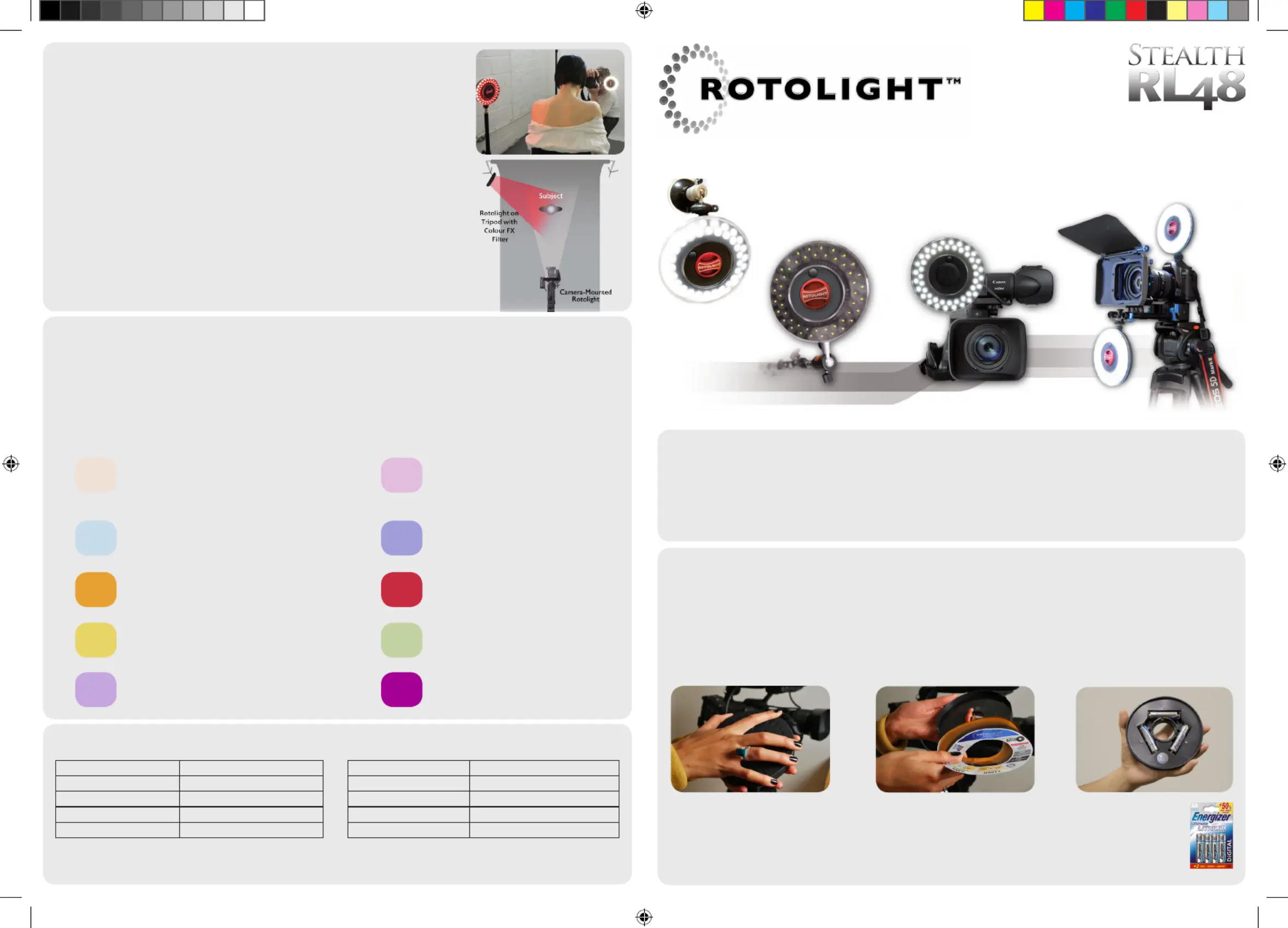

Add-On Colour FX Filter Kit Guide

Specications:

A warm cosmetic highlight or front

light, complimentary for most light

skin tones and key lighting.

A ‘Cool’ light blue wash, ideal for

sidell or backlight

Good for afternoon sunlight and can-

dlelight. Also great for side lighting.

Looks like natural strong sunlight

eect. Good for sidell / toplight

Good ‘pink’ sidell or Great backlight

A warm cosmetic highlight or front

light, complimentary for dark skin

tones and key lighting

A smoky warm blue. dramatic

sidell for skin , hair, or hardware

Good for theatre and television ef-

fect lighting as well as cycloramas.

A good light green backll for

creating mystery and suspense.

Excellent backlighting and side

lighting. Great on hair or skin.

184 - Cosmetic Peach

063 - Pale Blue

020 - Medium Amber

765 - LEE / Sunlight Yellow

052 - Light Lavender

791 - Moroccan Frost

712 - Bedford Blue

182 - Light Red

730 - Liberty Green

128 - Bright Pink

Thank you for buying the world’s most portable, professional, colour calibrated LED HD lighting kit. In

order to take full advantage of the Rotolight RL48-B ‘Stealth Edition’ features and ensure maximum per-

fomance and longevity please read this manual carefully before using this kit. A full user guide is avail-

able at www.rotolight.com.

Thank you for choosing a Rotolight kit.

QUICK START GUIDE

Opening the Rotolight RL48-B

1) To open the Rotolight, remove the lter holder, then hold the Rotolight in your left hand face down.

Hold the back of the Rotolight with your right hand, then rotate the back, counter clockwise one

eighth of a turn to open the body of the light.

2) When the Rotolight is open you can change the batteries (3 x AA), read the calibration chart, and ac-

cess the lters stored in the back of the light.

Rotolight ‘Add-on Colour FX Filter Kit’ features 10 of the most popular LEE Lighting colour lter gels,

comprising eight Colour FX lters for sidelight, backlight, kicker or top light and two cosmetic lters for

skin tone enhancement.

The Rotolight Add-On Colour FX Filter gels have been created by some of the World’s leading lighting

designers working in Stage, Screen, Cinema and Television to capture specic moods or colour eects,

and the result is a superb collection designed to compliment most common lighting conditions.

Hot Light Equivalent: 80W

Colour Temperature: 6300K, 5600K, 4300K, 3200K

ND/Dif Filters: 298, 209, 216

Beam Angle: 140 Degrees

Mounting: Mic Foam, hotshoe or 1/4”-20

Model: Rotolight RL48-B

Size: 130OD/38ID(mm)

Weight: 6oz/170grams

Power: 3 x AA Batteries

Battery Life: 4 Hours (Li-Ion)

Batteries :

Use 3 x Energizer Lithium L91 AA batteries for best performance and 4 hours continuous use, or standard al-

kaline AA batteries for 3 hours use. If you intend to use rechargeable batteries, use Lithium Hydride models

for superior performance. Normal rechargeable batteries are not recommended as they have a lower voltage

output so Rotolight will be less bright.

Lighting Diagram and Suggestions

Good lighting is the key to great images. Use multiple Rotolights to quickly

create the perfect lighting solution for your location or studio needs.

The Rotolight RL48-B LED Ring Light gives you the possibility of having

a front-facing, camera mounted ‘keylight’ on your subject, and, then us-

ing a second Rotolight with perhaps a creative Colour FX lter, mounted

on a spare tripod as a kicker/backlight/sidelight or toplight. This is called

‘2-point lighting’ and will considerably improve the dramatic impact, sepa-

ration and presence for your subject.

The sample image on the right was lit with the Rotolight Interview Kit using

a 216 Diuser on the Keylight (set to 5600K) and a second (tripod mounted)

Rotolight was used with a 712 Bedford Blue lter as a side ll.

(See diagram for suggested light positions)

Rotolight

is a trademark (001740705-0001) of Rotolight Inc. Rotolight RL48 / RL48-A / RL48-B (001740705) and Rotolight Stand

quickstart_guide.indd 1 11/08/2011 18:19

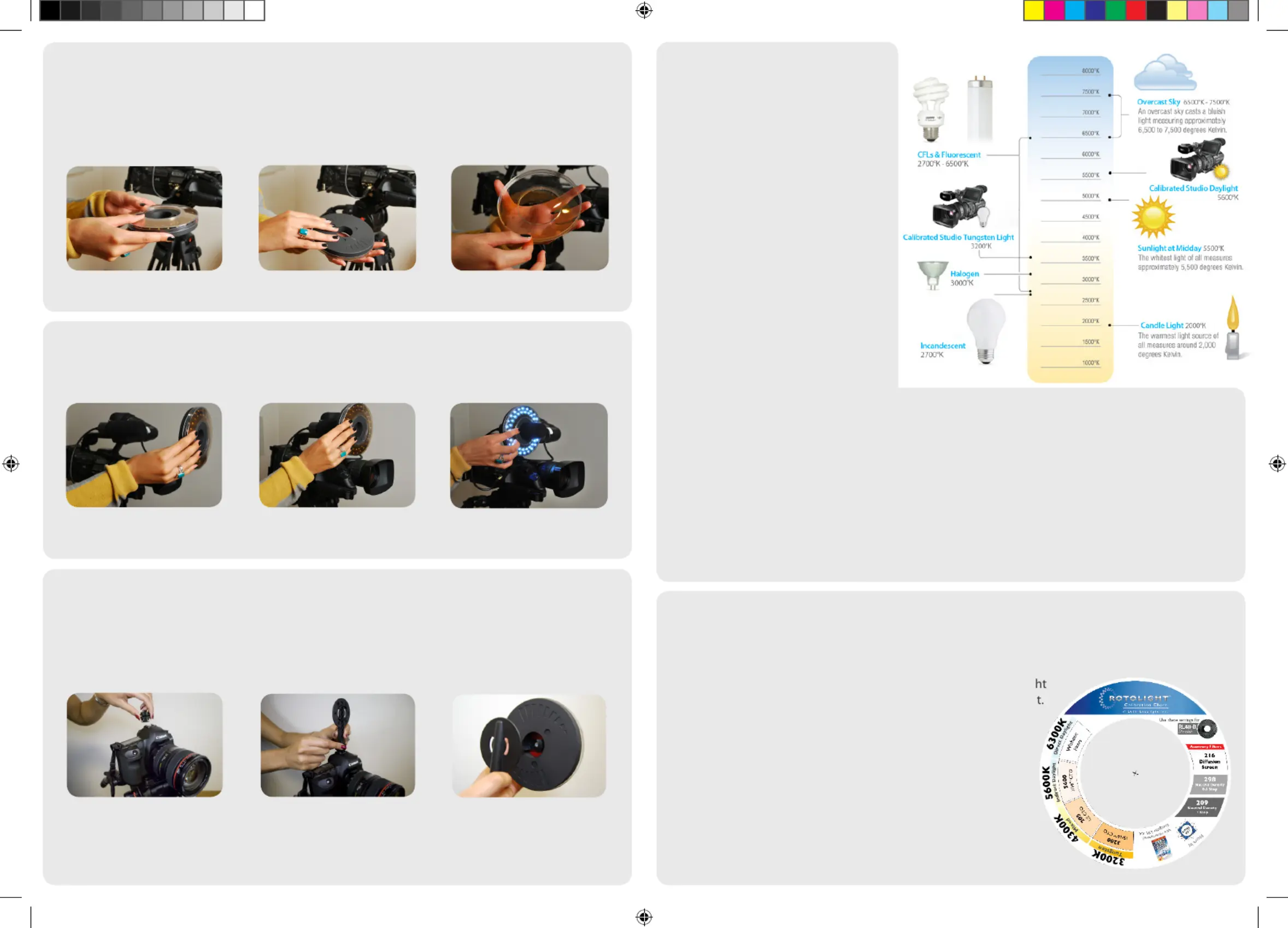

How to mount Rotolight on your Shotgun Mic

How to mount Rotolight using the Rotolight Stand

Align the centre hole of your Rotolight over the foam windshield of your Camcorder Microphone and

carefully slide the Rotolight over the foam windshield.

Fit the accessory shoe to 1/4” thread adapter to the accessory or ‘hot’ shoe on your camera. Tighten the

lower thread of the shoe adapter down onto the shoe. Attach the support arm to the shoe adapter and

secure it facing forward by tightening the upper thread tensioner of the accessory shoe. Put the Red Boss

assembly through the centrehole of the RL48-B and clip the legs into the holes of the support arm.

To remove Rotolight, pinch the back of the microphone foam windshield with your left hand and with

your right hand carefully slide the Rotolight o the mic to the front.

To release, gently squeeze the legs together at the rear of the support arm whilst holding the Rotolight

and Logo boss assembly (take care not to let the Logo Boss pop out of the front hole).

Rotolight Stand can also mount onto tripods, suction mounts, 360° Swivels, Lighting Stands, etc.

Colour temperature is a standard meth-

od of describing colours for use in a

range of situations and with dierent

equipment.

Colour temperatures are normally ex-

pressed in units called ‘degrees’ Kelvin

(K). This scale is used to describe a visi-

ble light colour , and was based on heat-

ing a black object up until it glowed at

a precise colour, hence ‘degrees’ Kelvin.

Modern digital photographic and video

cameras can adjust the ‘white balance’of

their image capture system mimicking

the way that the Human eye perceives

colour. This process allows the camera

to accurately capture the colours as the

eye sees them.

Filters, Colour Temperature

and ‘White Balance’

Most common lighting conditions produce light in the temperature range from around 2,000K to 8,000K.

In practical terms this usually means selecting lights, gels and lters which are most appropriate to the

prevailing light or to create a particular colour eect.

For example, a camera operator will select a “3200K lter” to use for an interior shot when the prevail-

ing ambient light is from tungsten bulbs. Ideally you want all the elements in your image illuminated at

roughly the same colour temperature, otherwise dierent parts of the picture may have a blue or orange

tint.

The human eye can detect a colour dierence of 50 Kelvin, so you’ll be pleased to know that Rotolight is

‘Studio Accurate’ (i.e. to within +/- 50 kelvin of its calibrated colour temperatures)

Using the Colour Correction and Calibration lters

Rotolight RL48-B ships with 6 special ringlight calibration lters (by LEE Lighting) which are stored inside

the Rotolight and t into the Filter Holder. These are used for colour correction, dimming and diusion,

which allow you to accurately match Rotolight to the ambient light colour

temperature. Please refer to the Calibration Chart inside the Rotolig

RL48-B for more information on which lters to use for desired eec

Included Colour Correction, Dimming and Diusion

Filters :

5600 - 1/16th CTO (Indirect Daylight)

3200 - 15/16ths CTO (Tungsten)

Lee 205 - 1/2 CTO

Lee 216 - Diusion Filter

Lee 209 - Neutral Density (Reduces light 1 stop)

Lee 298 - Neutral Density (Reduces light 1/2 stop)

To t the lter holder, simply hold it in your left hand with the open side facing upwards and push the

Rotolight (face down) into the centre of the lter holder. To remove it, place your thumb in the middle of

the front face of the Rotolight (near the ON switch) and use your other ngers to lift the outer edge of the

lterholder away from the face of the Rotolight.

To turn the unit on, simply press the switch in the front of the Rotolight RL48-B.

Using the lter holder

quickstart_guide.indd 2 11/08/2011 18:19
