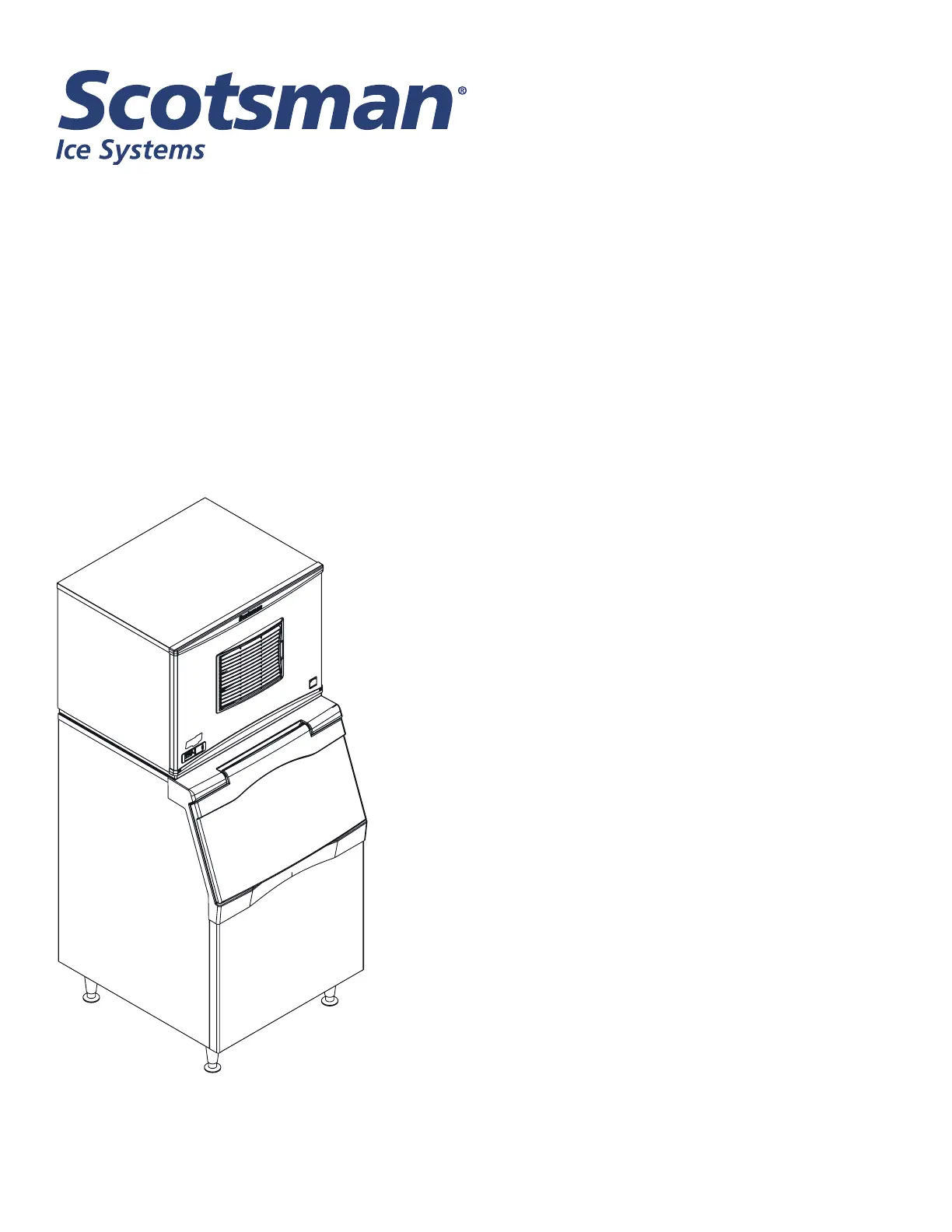

Installation and User’s Manual for

Modular Cuber

Prodigy Plus E Series Models C0322, C0522,

C0722, C0330, C0530, C0630, C0830 and C1030

C0322 through C1030 E Series

Air and Water Cooled User Manual

July 2018

Page 1

Introduction

The design of this modular cuber is the result of years

of experience and testing. Standard features include

front accessible indicator lights and on-off switches

that provide the user with fast access to critical

information and easy operational control.

Keep this manual for future reference.

This installation and user manual is divided into

three main sections: Installation, which provides

the trade person with the information needed to

set up and install this product; Use and Operation,

which provides the user with the information to use

the product; and Maintenance, which provides the

user with the information needed keep it operating

efciently.

Note any Caution or Warning symbols when they

appear on the product or in this manual. They indicate

potential hazards.

Contents

Installation: Product Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Model Number Description Page 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Description & Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4

C0322 and C0522 Cabinet Layout Page 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C0722 Cabinet Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

C0330, C0530, C0630 Cabinet Layout Page 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C0830 and C1030 Cabinet Layout Page 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Water Page 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Panel Removal Page 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Plumbing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12

Final Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13

Initial Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15

Use and Operation Page 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Control Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17

Cleaning, Sanitation and Maintenance Page 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Air cooled condenser lter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20

What to do before calling for service Page 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
