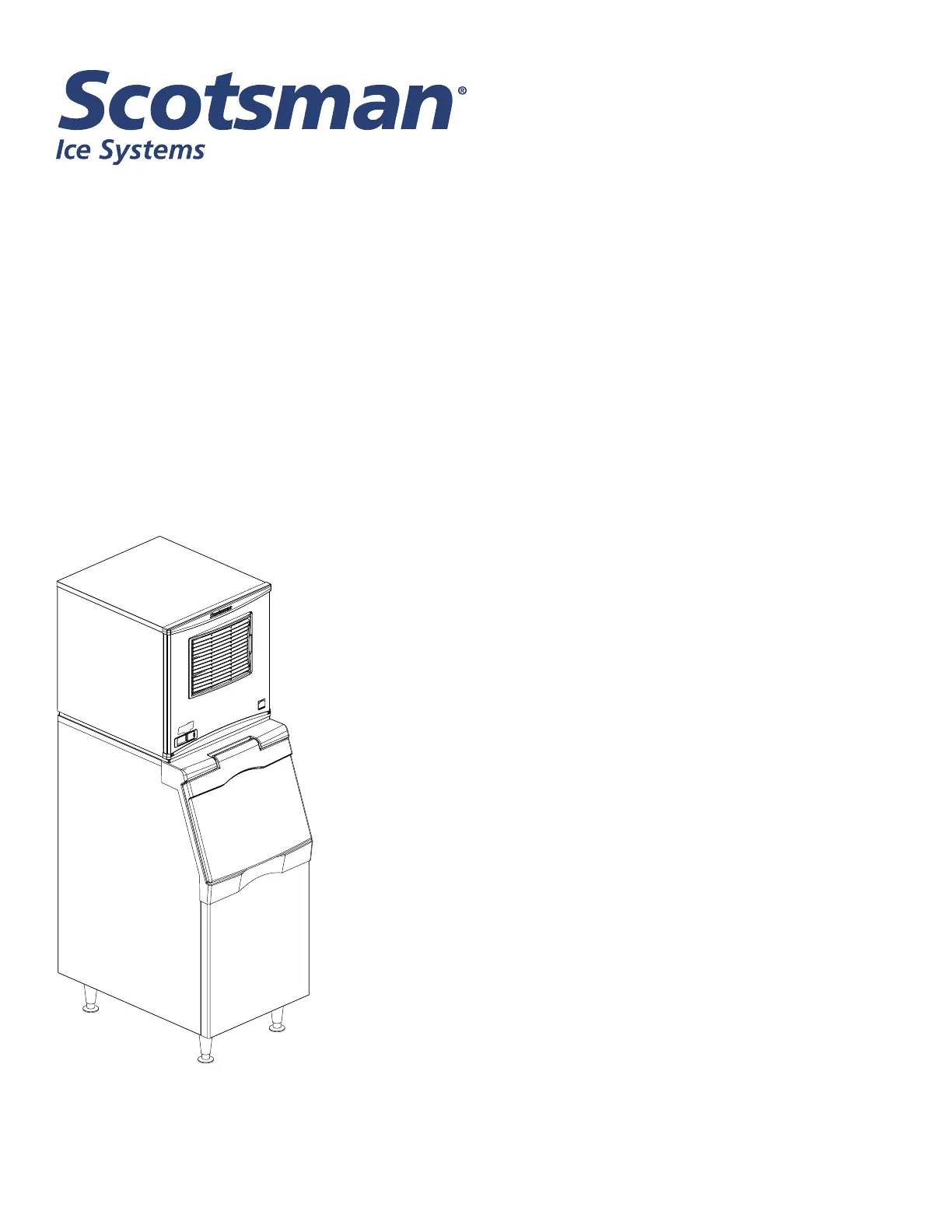

Installation and User’s Manual for

Modular Flaked and Nugget Ice Machines

Prodigy Plus D Series Models

F0522, F0822, F1222, F1522, N0422, N0622,

N0922 and N1322

Air Cooled, Water Cooled and Remote Air Cooled

N0422, F0522, N0622, F0822, N0922, F1222, N1322, F1522

D Series Air, Water or Remote User Manual

December 2014

Page 1

Introduction

This ice machine is the result of years of experience

with aked and nugget ice machines. The latest in

electronics has been coupled with the time tested

Scotsman aked ice system to provide reliable ice

making and the features needed by customers. The

features include easily accessible air lters, simple

conductivity water level sensing, evaporator clearing

at shut down, photo-eye sensing bin control and the

ability to add options.

Contents

Installation: 2 .....................................................................

Location: 3 .......................................................................

N0422, F0522, N0622, F0822 Cabinet Layout 4 ..........................................

N0922, F1222, N1322, F1522 Cabinet Layout 5 ..........................................

Unpacking & Install Prep ........................................................... 6

Water - Air or Water Cooled ......................................................... 7

Electrical - All Models 8 .............................................................

Refrigeration - Remote Condenser Models ............................................. 9

Remote Condenser Location - Limits 10 .................................................

For The Installer: Remote Condenser ................................................. 11

Precharged Line Routing - Remote Only 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Coupling Instructions - Remote Only .................................................. 13

Water - Remote Models ............................................................ 14

Final Check List .................................................................. 15

Initial Start Up and Maintenance ..................................................... 16

Maintenance: Scale Removal and Sanitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Maintenance: Check Top Bearing 18 ....................................................

Bearing Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Maintenance: Sensors ............................................................. 20

Options 21 ........................................................................
