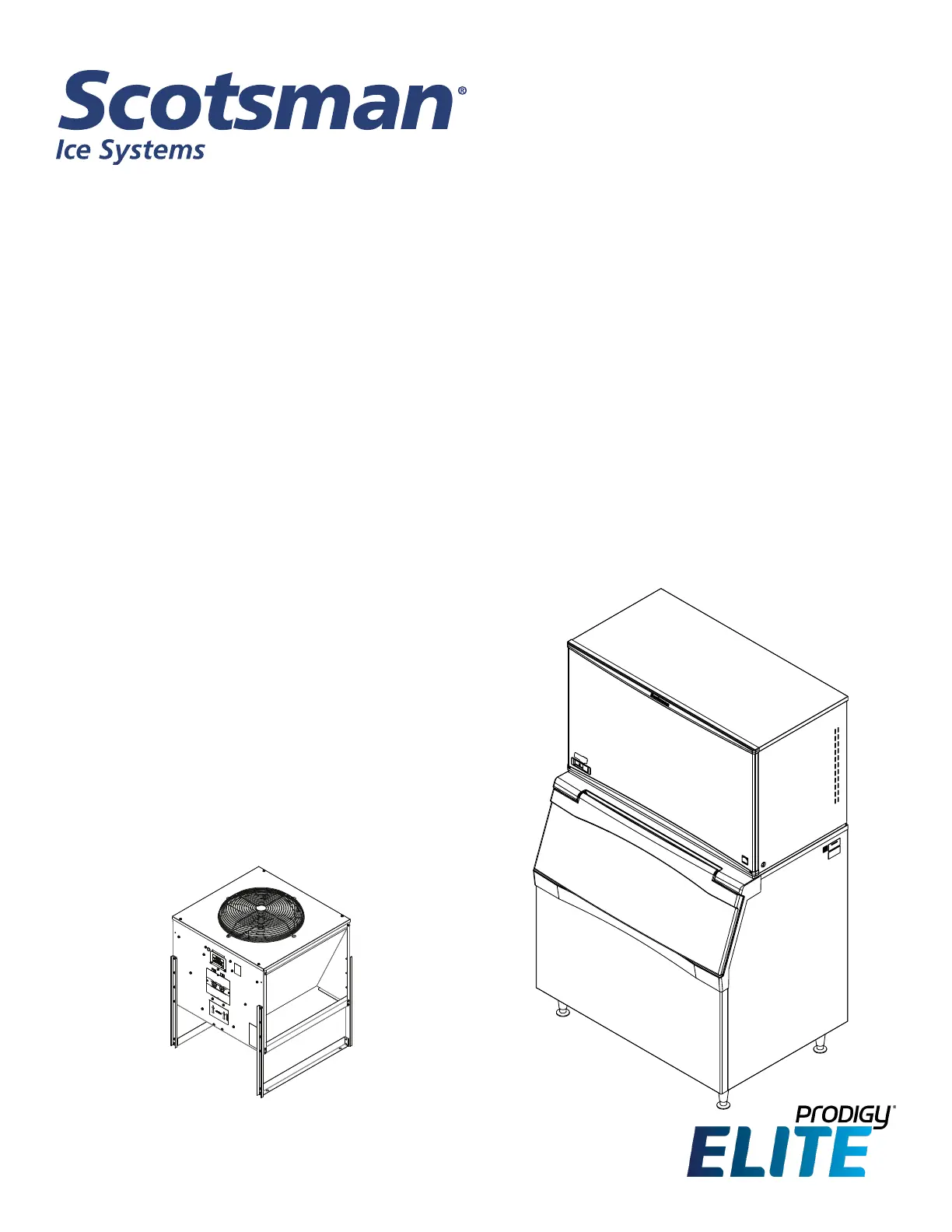

Installation and User’s Manual for

Remote Condenser Modular Cube

Prodigy ® A ELITE Series Models

MC1448, MC1848, MC2148

Remote Cooled User Manual

June 2022

Page 1

Introduction

The design of this modular remote cuber is the result

of years of experience with remote ice machine

refrigeration systems. Standard features of this

product include front accessible on-o󰀨 switches,

always-visible indicator lights, mechanical assist ice

harvest for extra e󰀩ciency, automatically adjusting

water purge and a control system that optimizes

system operation.

In addition, the Scotsman ICELINQ app allows users ®

to connect to the machine via Bluetooth® to monitor,

control, and maintain the ice machine.

This installation and user manual is divided into

three sections: Installation, Use and Operation and

Maintenance.

The Installation section provides the trade person with

the information needed to properly install and start

up this ice system. The Use and Operation section

provides the user with the information needed to use

the machine. The Maintenance section contains the

instructions and schedules for the sanitation and

cleaning of the machine.

Contents

Installation: Product Specications ................................................... Page 2

Model Number Description Page 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Description and Electrical Requirements Page 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Condenser and Machine Layouts Page 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Water Page 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Panel Removal Page 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Remote Condenser Location Page 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For The Installer: Remote Condenser Page 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Line Set Routing and Brazing Page 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Plumbing Requirements Page 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical Page 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Final Check List: Page 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Start Up Page 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15

Use and Operation Page 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Control Switches Page 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
