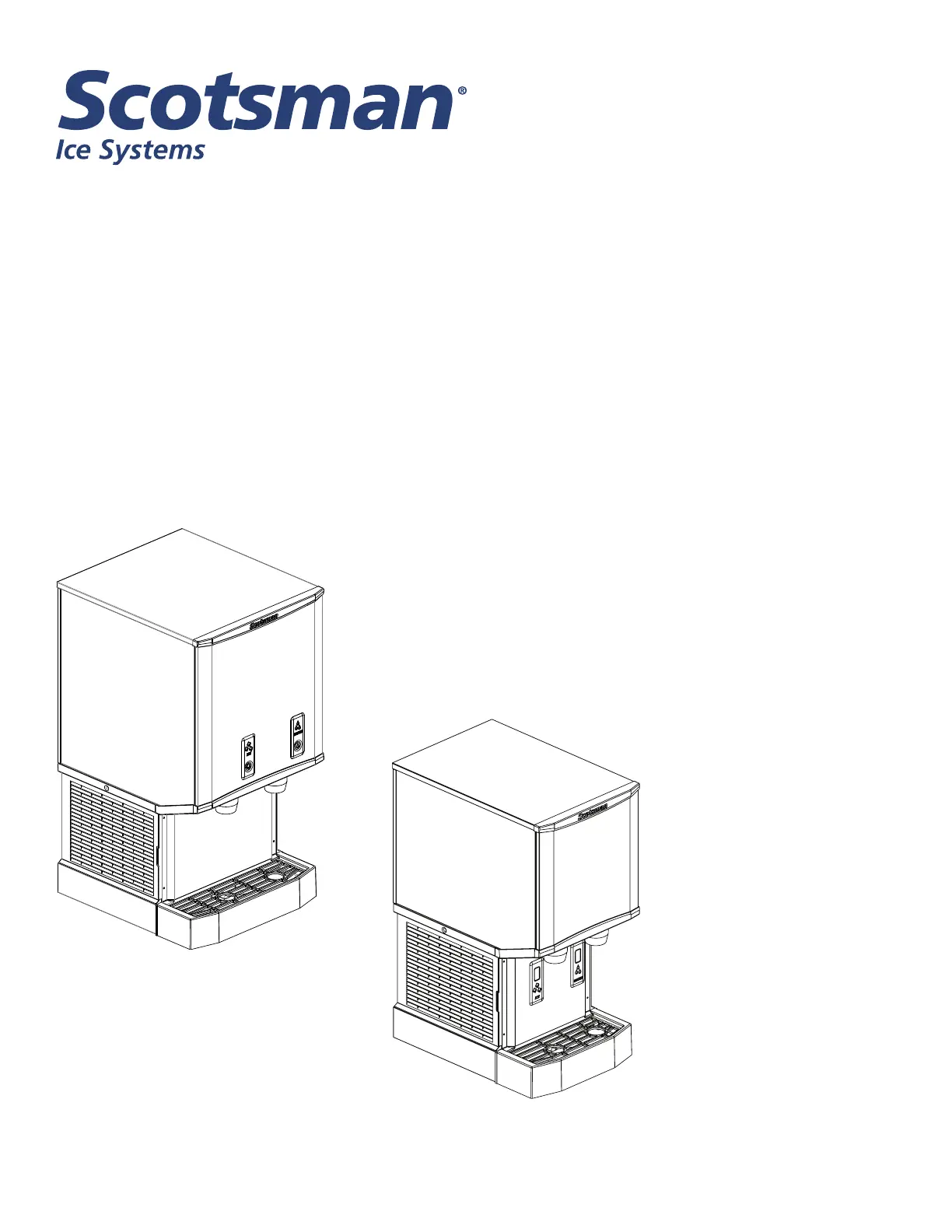

Installation and User’s Manual for

Meridian Ice Maker-Dispensers

models

HID312, HID525 and HID540

Installation and User’s Manual

July 2018

Page 1

Introduction

The ice maker-dispensers covered in this manual

were designed by to be the nest on the market. Their

design is a result of Scotsman’s long experience in ice

maker-dispensers.

This manual includes the information needed to

install, start up and operate the machine. Because

there are three models covered, be sure that any

instructions apply to your unit.

HID312 is 16 inches wide and air cooled only.

HID525 is 21 inches wide and 34.9 inches tall. it is

available as an air cooled model or as a water cooled

model.

HID540 is also 21 inches wide, but it is 40.9 inches

tall. it is also available either air or water cooled.

Observe any caution or warning notices. They are

important and provide notice of potential hazards.

Keep this manual for future reference.

If additional technical information is needed, go to

Scotsman’s website, www.scotsman-ice.com to

download a service manual.

Note: This is a commercial product. If service is

needed on a unit in a residence, use a commercial

service company. Locate one at the website above.

Contents

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3

HID312 Cabinet Drawing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4

HID525 Cabinet Drawing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

HID540 Cabinet Drawing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

Counter Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8

Machine Stands / Legs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

Component Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11

Initial Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12

Operation: Ice and Water Vending . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13

Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14

Maintenance and Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15

Air lter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16

Maintenance and Cleaning - Dispensing Bin Components . . . . . . . . . . . . . . . . . . . . Page 17

Ice level controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18

Ice Making and Ice Dispensing System Cleaning Instructions. . . . . . . . . . . . . . . . . . . Page 19

Other Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

Basic Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

Controller Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 23
