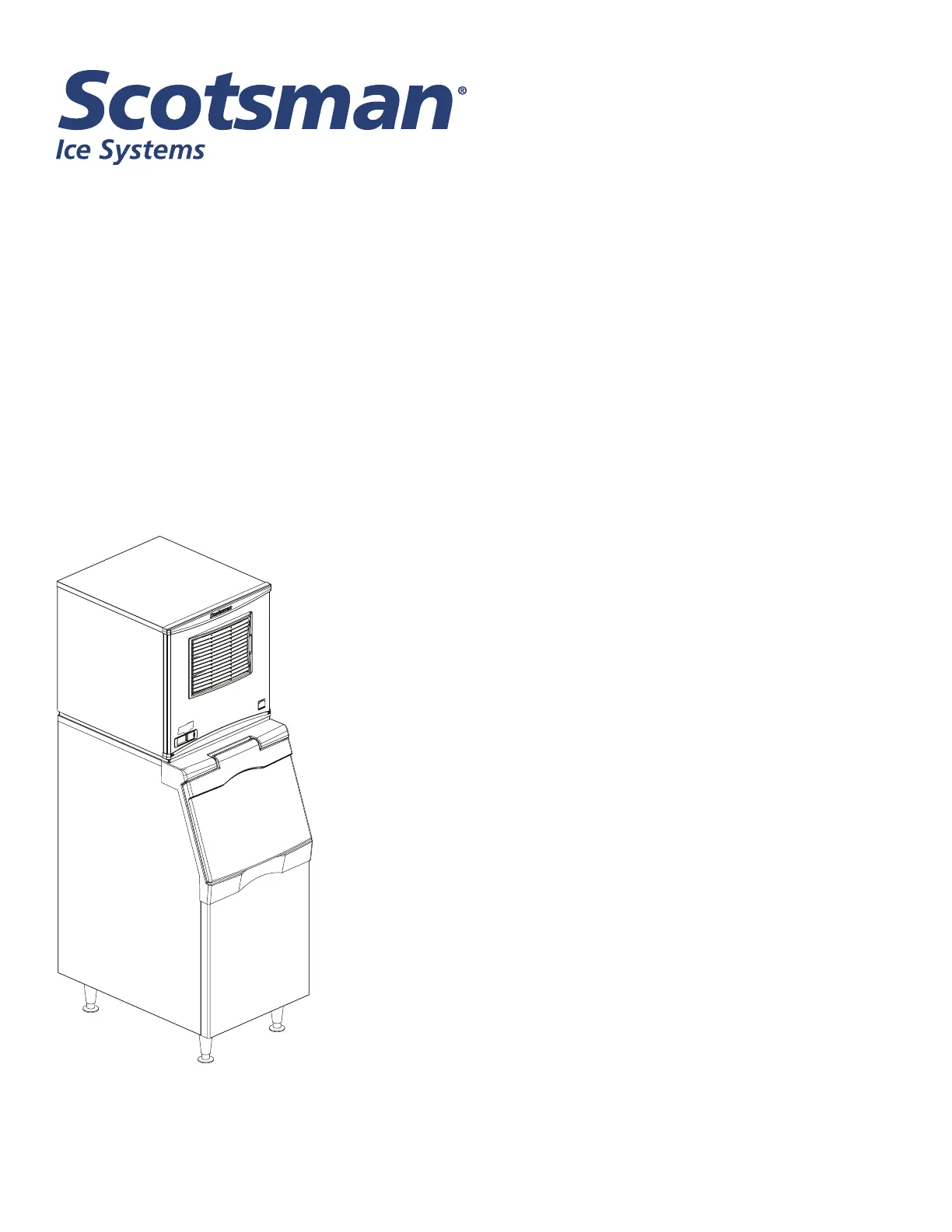

Installation and User’s Manual for

Modular Flake and Nugget Ice Machines

Prodigy Plus A Series Models

NH0422, NS0422, FS0522, NH0622, NS0622, FS0822,

NH0922, NS0922, FS1222, NH1322, NS1322, FS1522

Air Cooled, Water Cooled, and Remote Air Cooled with xed reservoir

NH0422, NS0422, FS0522, NH0622, NS0622, FS0822, NH0922, NS0922, FS1222, NH1322, NS1322, FS1522

A Series Air, Water, or Remote User Manual

October 2019

Page 1

Introduction

This ice machine is the result of years of experience

with aked and nugget ice machines. The latest in

electronics has been coupled with the time tested

Scotsman aked ice system to provide reliable ice

making and the features needed by customers. The

features include easily accessible air lters, simple

conductivity water level sensing, evaporator clearing

at shut down, photo-eye sensing bin control and the

ability to add options.

Contents

Installation: 2 .....................................................................

Location: 3 .......................................................................

NH0422, NS0422, FS0522, NH0622, NS0622, F0822 Cabinet Layout 4 .......................

NH0922, NS0922, FS1222, NH1322, NS1322, FS1522 Cabinet Layout 5 ......................

Unpacking & Install Prep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Water - Air or Water Cooled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Electrical - All Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Electrical - All Models Continued . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Refrigeration - Remote Condenser Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Remote Condenser Location - Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

For The Installer: Remote Condenser ................................................. 12

Line Set Routing and Brazing (applies to remote units only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Line Set Routing and Brazing 14 .......................................................

Water - Remote Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Final Check List .................................................................. 16

Initial Start Up and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Maintenance: Scale Removal and Sanitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Maintenance: Sensors ............................................................. 19

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
