Serial ATA 4-Channel RAID

Installation Guide

04-0370E

Introduction

The Serial ATA 4-Channel RAID is an ultra high-speed

four channel Serial ATA controller for use in Pentium

class computers. It achieves burst data transfer rates up

to 150MB/s (1.5Gb/s) and supports various brands of

hard disk drives with capacities greater that 137GB.

Features and Benefits

• Compliant with Serial ATA Specification, revision

1.0

• Compliant with PCI Specification, revision 2.2

• Provides four independent channels to support up

to four Serial ATA drives

• Co-exists with on-board Ultra ATA controller

• Supports 32-bit wide PCI bus at 66MHz

• Supports RAID 0 (striping), RAID 1 (mirroring) and

RAID 10 (mirroring+striping) RAID Arrays and

Single and JBOD modes

• Lower pin count and voltage requirement, plus

better cabling over traditional Parallel ATA make

Serial ATA the controller of the future

System Requirements

• Pentium

or equivalent computer with one available

PCI slot

• Windows

8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/

64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server

2003 & 2008 (32-/64-bit) / 2000

Package Contents

• Serial ATA 4-Channel RAID

• 4 Serial ATA data cables (1M)

• 2 Dual Connector Serial ATA power cables

• 2 "Y" split power cables

• Driver CD

• Installation guide

Layout

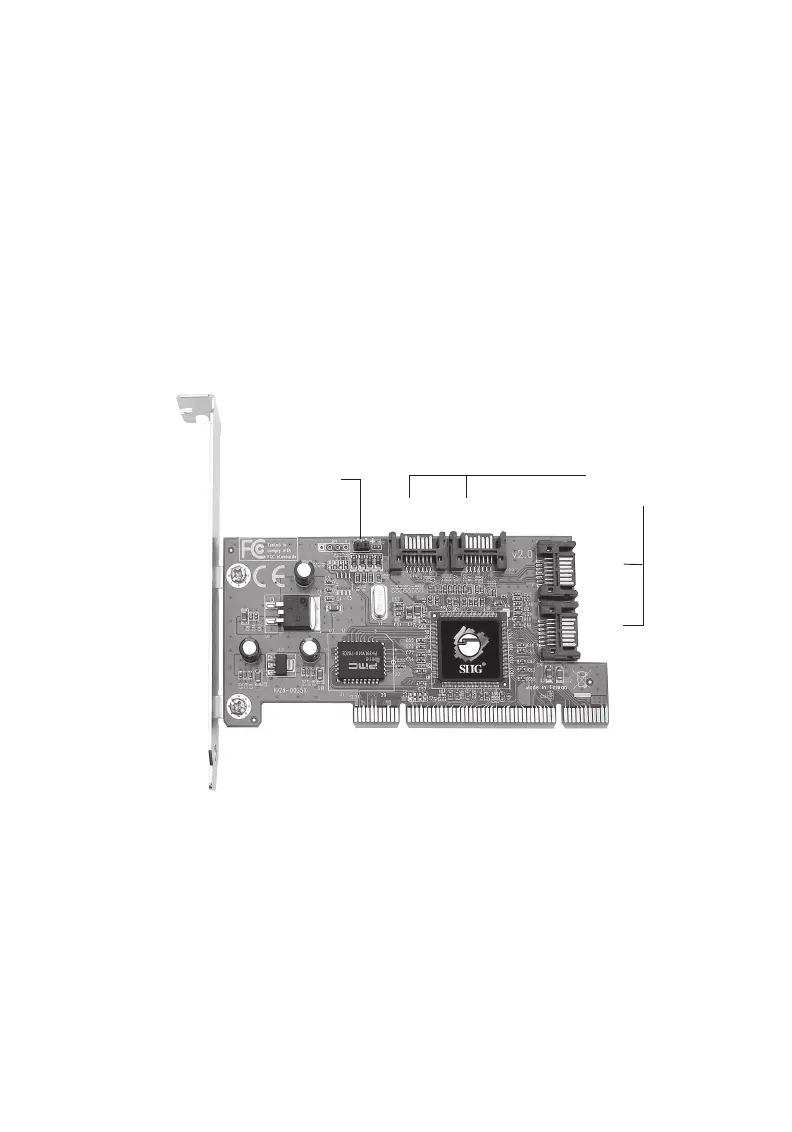

Figure 1. Serial ATA 4-Channel RAID layout

Serial ATA

Connectors

CN3

CN2

CN1

Hard Disk

LED Pins

CN4

Produkt Specifikationer

Mærke:	SIIG
Kategori:	Controller
Model:	SC-SA4R12-S2
Produktfarve:	Grå
Forbindelsesteknologi:	Ledningsført
Mac kompabilitet:	Ingen
Kompatible operativsystemer:	Windows 7/Vista/XP/Server 2008/2000
Værtsgrænseflade:	PCI
Antal serielle porte:	4
Dataoverførselshastighed:	150 Mbit/s
RAID-niveauer:	0, 1,10
