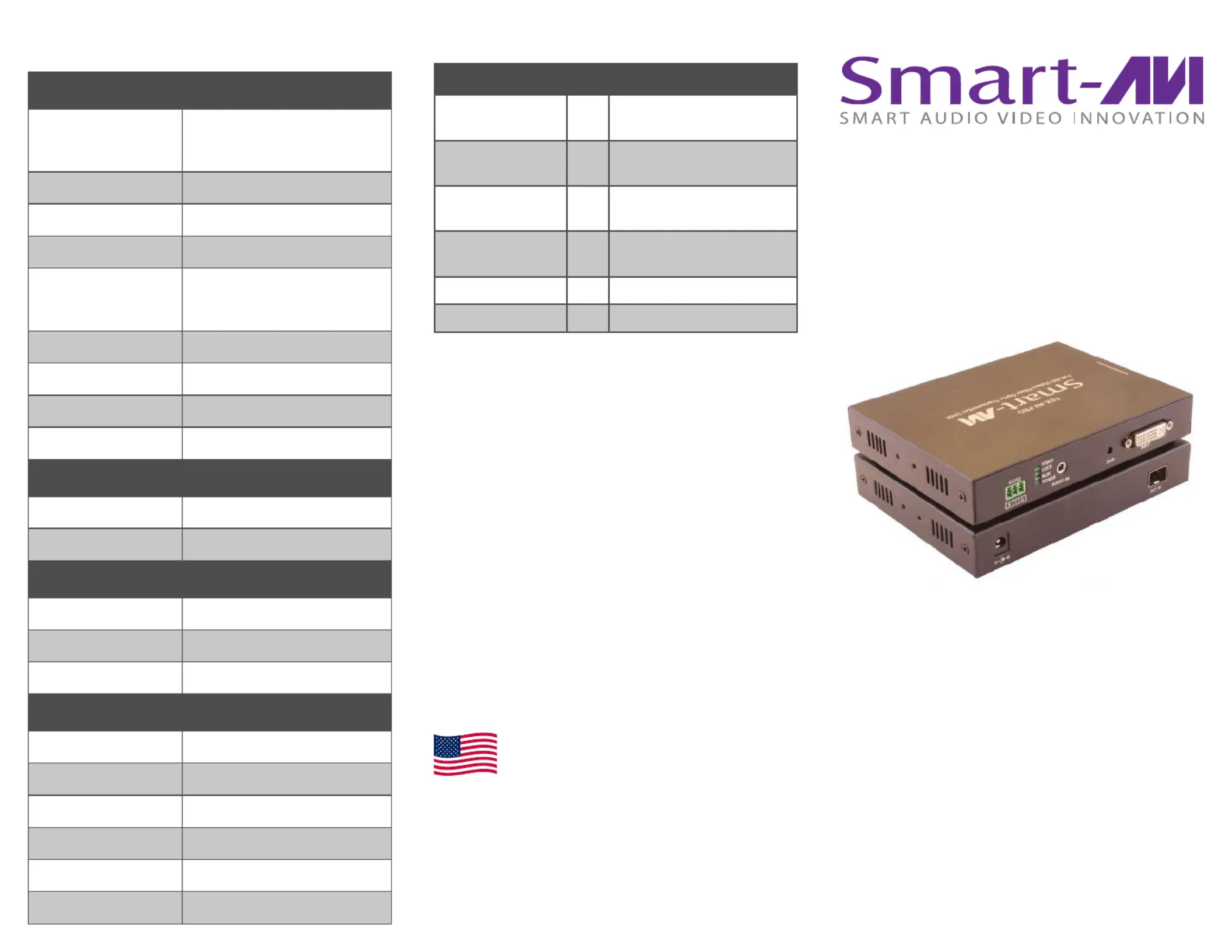

FDX-AVPRO
Quick
Quick
Quick
QuickQuick Star
Star
Star
Star Start Guide
t Guide
t Guide
t Guidet Guide
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
|
|
|
||
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Designed and Manufactured in the USA
PART NO. QTY DESCRIPTION
FDX-AVPRO- 1 TX
Transmitter
FDX-AVPRO- 1 RX
Receiver
FDX-AVPRO-
TRANSCEIVER- TX
2
Fiber Optic Transceiver
Transmitter (Blue handle)
FDX-AVPRO-
TRANSCEIVER- RX
2
Fiber Optic Transceiver
Receiver (Yellow handle)
PS12VDC1A 2 Power Adapter
1 Quick Start Guide
WHAT’S IN THE BOX
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20161130
Extends HD audio-video
signals up to 10km via a
single fiber optic cable
HD DVI-D Fiber Optic Extender
TECHNICAL SPECIFICATIONS
VIDEO
Format
DVI-D Single Link, Stereo Audio
(3.5 mm)
Maximum Pixel Clock 165 MHz
Impedance 100Ω
Max Data Rate 6.75 Gbps
Resolution
Up to 1080p (1920 x1080 @
60Hz)
Fiber Interface LC Connector
Fiber Type Single-mode fiber
Wavelength Single-mode 1310nm
Transmission Distance 10km
AUDIO
Interface 3.5mm earphone seat
Signal Type Stereo
RS- 232
Signal Direction Unidirectional
Max Baud Rate 115200bps (Self-adaptive)
Data Bits 8
OTHER
Power Adapter 12VDC1A
Weight (TX+RX) 1.8 lbs.
Dimensions (Each) 1.125” H x 6” W x 4.75”D
Approvals UL, CE, ROHS Compliant
Operating Temp 32 to 131°F (-5 to 70 °C)
Operating Humidity 5 to 90% (no condensation)
INTRODUCTION
Ideal for long-range HD signal transmission and real-
time AV extension, the FDX-AVPRO is the premiere
fiber optic extender solution in our catalogue. Built
with speed, quality, and security in mind, the FDX-
AVPRO sends HD DVI-D video and stereo audio
signals across distances as vast as 10km without
interference or risk of interception.
The FDX-AVPRO features excellent video resolutions
up to 1080p (1920x1080 @ 60Hz), stereo audio
support, and extends RS-232 signals. Send HD video
content across vast distances with complete security;
fiber optic extension is prized in government and the
private sector for its speed, safety, and efficiency.
Fiber optic connections are virtually impenetrable, so
malicious signal tapping is never an issue. Powerful
and easy-to-use, the FDX-AVPRO keeps long-distance
transmission secure.
FEATURES
Top Signal Quality at Maximum Extension (10km)
Superior Image Quality at all Resolutions
Video Resolutions up to 1080p (1920x1080 @
60Hz)
Supports DVI- D
RS-232 Signal Extension
Plug-and-play ready
Secure design and casing
APPLICATIONS
Corporate presentations
Educational presentations
Call centers
Industrial (remote/long-range communication)
Information terminals/kiosks
Transportation installations (airports, train
stations, bus hubs, etc...)
Exceptional remote AV transmission
Medical supervision (from long-distance)
Remote recording (for audio and video content)
Entertainment/sport venue AV

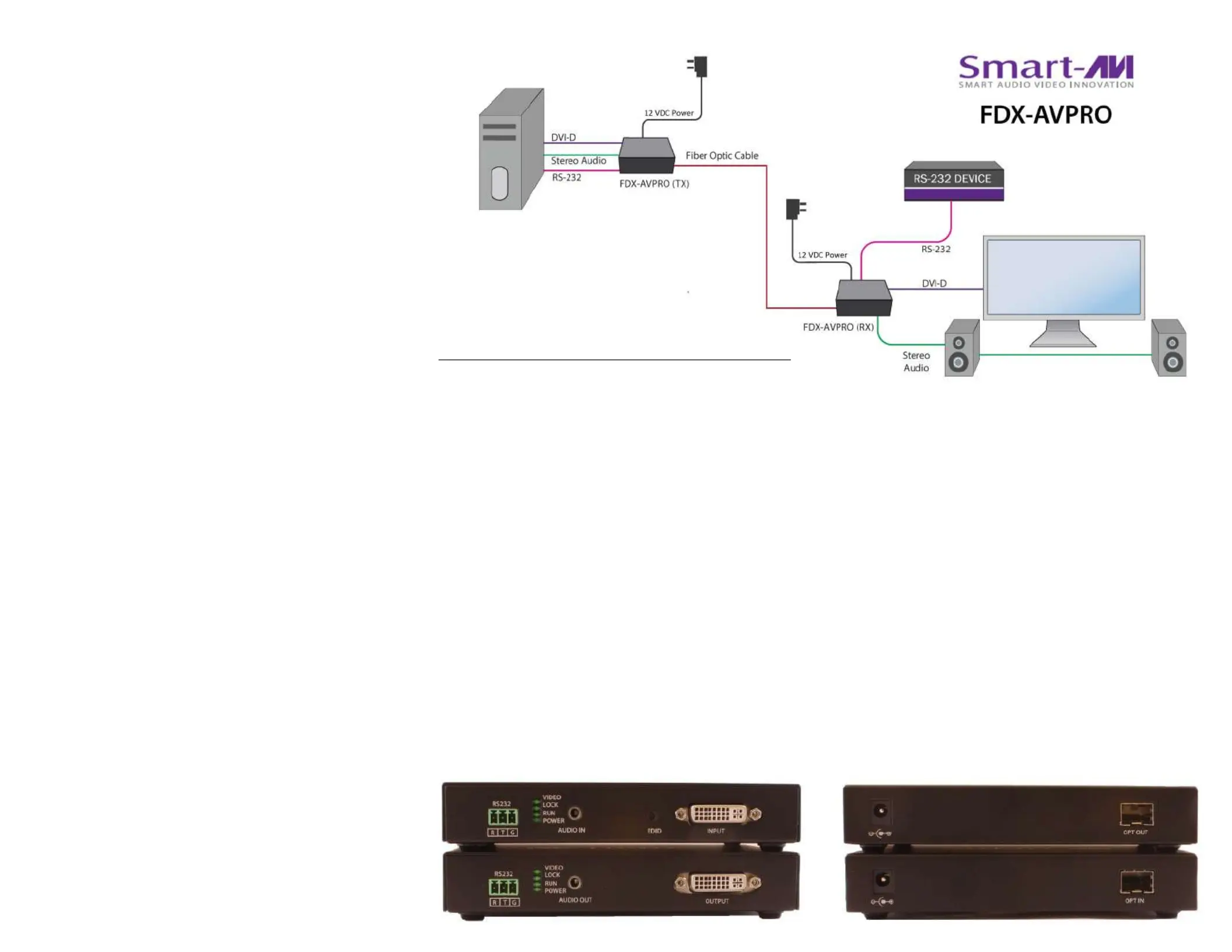

INSTALLATION DIAGRAM
CONNECTING THE FDX-AVPRO
NOTE: Comp
NOTE: Comp
NOTE: Comp
NOTE: CompNOTE: Complete the
lete the
lete the
lete thelete the learning
learning
learning
learning learning EDID se
EDID se
EDID se
EDID se EDID section below f
ction below f
ction below f
ction below fction below first.
irst.
irst.
irst. irst.
Learning the
Learning the
Learning the
Learning theLearning the EDID sett
EDID sett
EDID sett
EDID sett EDID settings
ings
ings
ings ings from the DVI-D mon
from the DVI-D mon
from the DVI-D mon
from the DVI-D monfrom the DVI-D monitor.
itor.
itor.
itor. itor.
1. Nothing should be connected to the FDX-AVPRO-TX.
2. Insert the transceiver with the blue handle into the FDX-AVPRO-TX. Do not connect a fiber optic cable yet.
3. Connect the DVI-D monitor to the FDX-AVPRO-TX and power on the DVI-D monitor.
4. Connect the supplied power adapter and power on the FDX-AVPRO-TX. The Video LED on the front should be
no
no
no
nonot
t
t
t t
illuminated.
5. Press and hold the EDID button on the front of the FDX-AVPRO-TX until the Video LED begins to blink. This may
This may
This may
This may This may
take up to
take up to
take up to
take up totake up to 30 seconds
30 seconds
30 seconds
30 seconds 30 seconds.
.
.
. . When the Video LED begins to blink, release the EDID button. If the video LED doesn’t
start to blink, make sure the DVI-D monitor is on, cycle power to the FDX-AVPRO-TX and repeat step 5.
6. Disconnect the power adapter and the DVI-D monitor from the FDX-AVPRO-TX.
Completing
Completing
Completing
CompletingCompleting the Instal
the Instal
the Instal
the Instal the Installation.
lation.
lation.
lation. lation.
1. Connect the DVI-D monitor to the FDX-AVPRO-RX.
2. Connect a DVI-D source to the FDX-AVPRO-TX.
3. Insert the transceiver with the yellow handle into the FDX-AVPRO-RX.
4. Connect a fiber optic cable to the FDX-AVPRO-TX and connect the other end of the cable to the FDX-AVPRO-RX.
5. Optionally connect a stereo audio source to the FDX-AVPRO-TX.
6. Optionally connect speakers to the FDX-AVPRO-RX.
7. Optionally connect a computer via RS-232 cable to the FDX-AVPRO-TX.
8. Optionally connect an RS-232 cable from an RS-232 device to the FDX-AVPRO-RX.
9. Power on all signal sources and the DVI-D monitor.
10. Connect the supplied power adapters and power on the FDX-AVPRO-TX and the FDX-AVPRO-RX.
