RK8-HDX-POE

Consolidate up to eight HDMI extenders

in one powered rack unit

to transmit HD signals using Cat5e/6

8-Port HDMI, IR and Power Extender

Rack Over Cat5e/6

WWW.SMARTAVI.COM

VIDEO

Format HDMI 1.3 (HDCP Compliant)

Resolutions 800x600, 1024x768, 1280x1024, 1366x768,

1920x1200, 480i, 720p, 1080i, 1080p,

4K x 2K @30Hz @24bit

Transmission

Distance

70 meters

Color Depth Deep Color 36/30/24 Bit at 1080p and 3D

Audio Format Up to PCM 8 channel, Dolby Digital TrueHD,

and DTS-HD Master Audio

IR Range 38kHz, 56kHz

Video Bandwith 10.2Gbps

Input Video Signal 1.2 Volts P-P

Input DDC Signal 5 Volts (TTL)

I/O CONNECTOR (Transmitter)

Input 8 x (HDMI-A) 19PIN Socket;

8 x 3.5mm Jack for IR Receiver

Output 8 x RJ45 Jack

I/O CONNECTOR (Receiver)

Input 1 x RJ45 Jack;

1 x 3.5mm Jack for IR Receiver;

5 x 2.5mm

Output 1 x 3.5mm Jack for IR Emitter;

1 x HDMI-A 19PIN Socket

MECHANICAL - Transmitter

Dimensions 17”H x 6”W x 1.7”D

Weight 3.26 lbs

Power 110/220V

ENVIRONMENTAL

Operating Temp. +0 to +40° C (+32° to 104° F)

Humidity 10% to 85% (Non-condensing)

Storage Temp. -20° to +60°C (-4° to +140° F)

SAFETY

Certicate FCC, CE, RoHS

Power Adapter UL, CE, FCC, RoHS

ORDER INFO

Part No. Description

RK8-HDX-POE-S 8-Port HDBaseT HDMI and IR Rack Mountable

Extender Transmitters over a Single Cat5e/6

Cable. Includes: [RK8- HDX-POE and CCPWR06]

HDX-POE-RX-S HDMI and IR Receiver over a Single CAT5e/6

Cable. Includes: [HDX-POE-RX

and PS12VD2A-WLLMNT]

Technical Specications

Quick Start Guide

Designed and Manufactured in the USA

Tel: 800.AVI.2131 • 818.503.6200

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

PART NO. QTY DESCRIPTION

RK8-HDX-POE-S 1

8-Port HDBaseT HDMI and IR Rack

Mountable Extender Transmitters.

HDX-POE-RX-S 1 HDMI and IR Receiver.

Power Supply 2 PS12V2A-WLLMNT

1 Quick Start Guide

What’s in the Box?

Notice

The information contained in this document is subject

to change without notice. SmartAVI makes no

warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained herein

or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

20191024

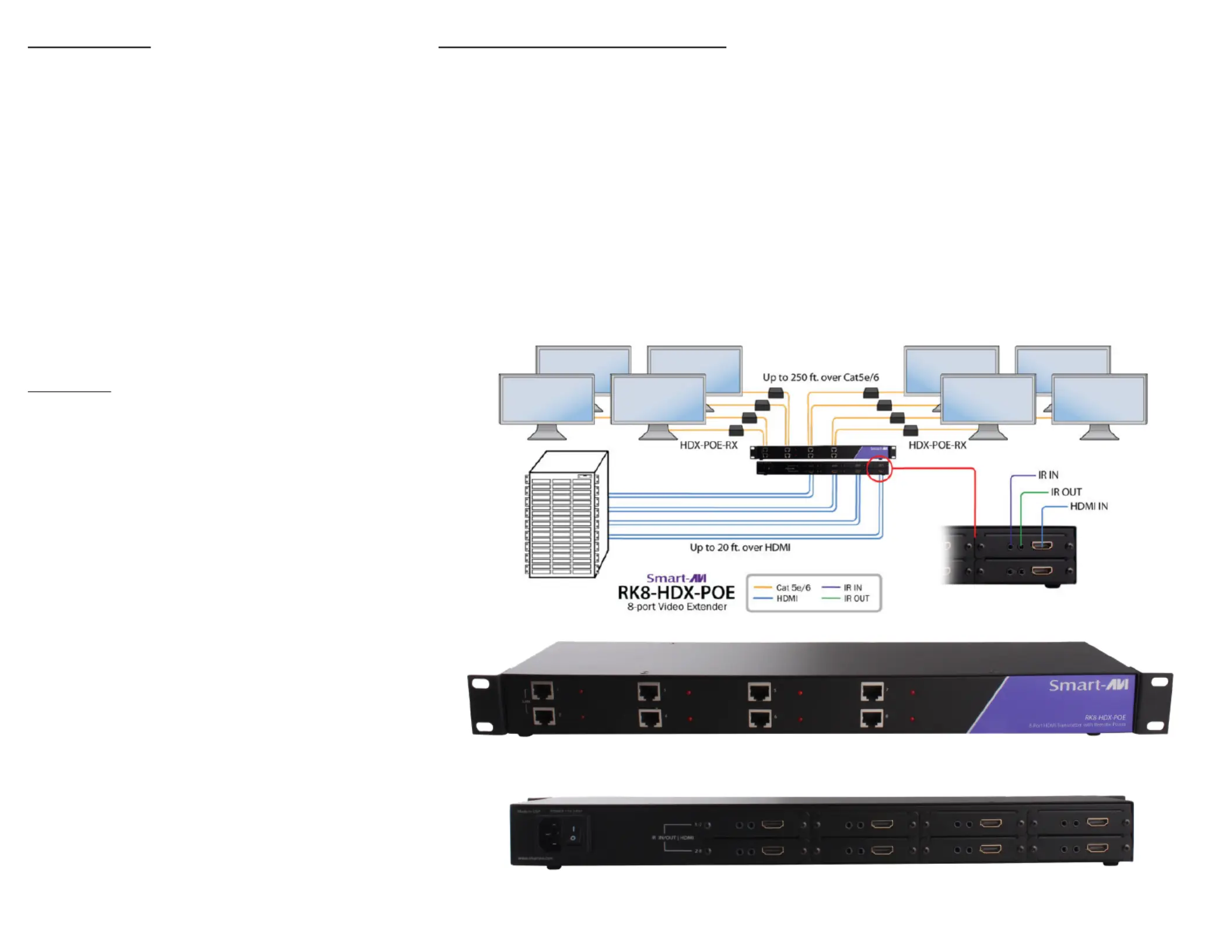

Introduction

The RK8-HDX-POE is the perfect solution for

extending HDMI signals to a remote location up to

250 feet away. It is the ideal way to consolidate up to

eight workstation computers into one location. It is

fully compatible with MAC, PC and LINUX HDMI

standards. Up to eight displays can be extended

easily from a rack without the mess or expense of

multiple extenders. Rather than buy multiple

extenders for rack components, and having to nd

power strips or numerous power outlets for the

adapters, the SmartAVI rack series of extenders

allows for up to eight inputs and eight outputs with

only one power supply.

RK8-HDX-POE Front

RK8-HDX-POE Back

Features

• Extends HDMI, IR, and Power Output over Cat5e/6

• Extends IR Control Signals for Remote Control

• Full HD support: 1080p @60Hz @48 bit/pixels,

1080p @ 120Hz @24 bit/pixels, 3D 1080p 60Hz and

4K x 2K@ 30Hz @24bit

• Data Signals up to 3.4Gbps

• HDMI 1.4 and HDCP Compliance

• Power receiver from transmitter

• Transmits Dolby TrueHD, DTS-HD MA Audio Signals

• Transmits 1080p Resolution Video up to 250 ft.

• Rack mountable

• Up to 8 units on single rack

Connecting the RK8-HDX-POE

1. Power o the HDMI source and display.

2. Connect an HDMI cable from the HDMI source to the HDMI IN port of the HDX-POE transmitter.

3. Connect an IR emitter (optional) to the IR OUT port on the transmitter.

4. Connect the HDX-POE transmitter to the HDX-POE receiver using a CAT5e/6 cable (up to 150ft).

5. Connect an IR receiver (optional) to the IR IN port on the receiver.

6. Connect an HDMI cable from the HDMI OUT port on the HDX-POE receiver to the HDMI display

7. Connect the power on the HDX-POE transmitter plugging in their power adapters (12VDC2A)

or provide 12VDC input from the rear DC input port.

NOTE: If the RX side has connected DC adapter, TX can get the DC power over the CAT5e/CAT6 cable,

so leave DC input port empty. Only 1 power supply is required for both units. (In certain cases, if the receiver

has too much drop o power, we recommend to connect a 12V DC power supply to each receiver

8. Power on the HDMI source, displays and speakers. The RX will read the EDID from the monitor, and then pass the

data into the TX automatically.

INTALLATION NOTE: Do not stack receiver units. Stacking inhibits heat distribution.
