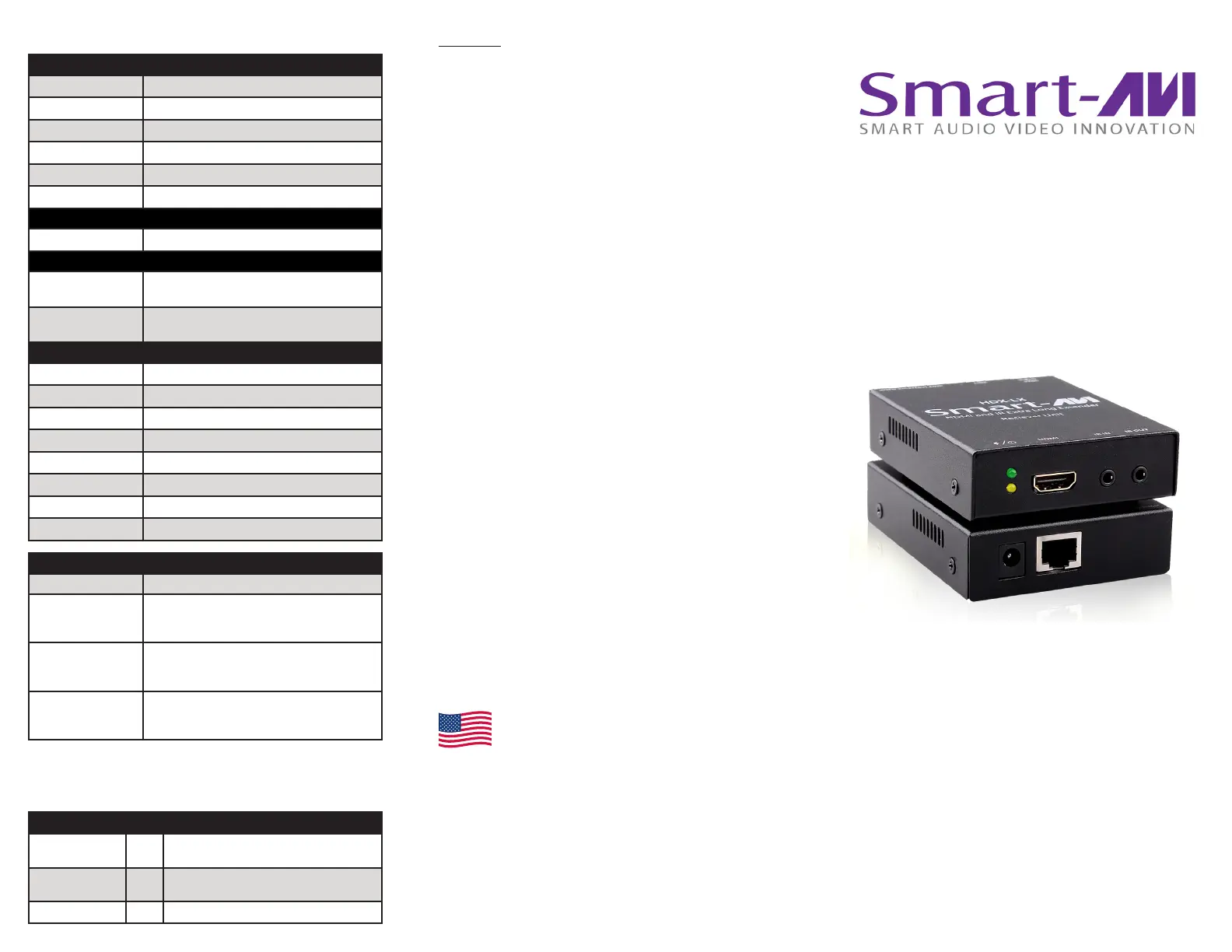

Side 1/2

HDX-LX

Boost 4K HDMI Video & infrared signals

up to 250 feet with CAT5e/6.

4K HDMI/IR Extender over CAT5e/6

WWW.SMARTAVI.COM

VIDEO

HDMI version HDMI 1.3a

Color Depth Deep Color 36/30/24 Bit @ 1080p & 3D

HDMI resolution Up to 4K (3840x2160 @ 30Hz)

Bandwidth 10.2 Gbps

Input Video Signal 1.2 Volts P-P

Input DDC Signal 5 Volts (TTL)

AUDIO

Format HDMI Digital Audio

Input (1) 2.5mm DC jack;

(1) 3.5mm IR jack

Output (1) RJ45 jack;

(1) 3.5mm IR jack

OTHER

Power Adapter External 5VDC2A

Dimensions 0.9”W X 2.9”D X 3.7”H

Weight 0.26 lbs

Working Temperature 32 to 104°F (0 to 40°C )

Working Humidity Up to 85% (no condensation)

Storage Temperature -4 to 149 °F (-20 to 65 °C )

Storage Humidity Up to 90% (no condensation)

Certicate FCC, CE, RoHS

ORDER INFO

Part No. Description

HDX-LXS HDMI, IR, CAT5/5e/6 Extender,

Includes: [HDX-LXTX, HDX-LXRX,

2 x (PS5VD2A-WLLMNT)]

HDX-LX-TXS HDMI & IR Extender Transmitter

Over a Single CAT5 UTP Cable.

Includes: (HDX-LX-TX and PS5VD2A-WLLMNT)

HDX-LX-RXS HDMI & IR Extender Receiver

Over a Single CAT5 UTP Cable.

Includes: (HDX-LX-RX and PS5VD2A-WLLMNT)

Technical Specications

Quick Start Guide

Designed and Manufactured in the USA

Tel: 800.AVI.2131 • 818.503.6200

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

PART NO. QTY DESCRIPTION

HDX-LX-RXS

HDMI & IR Extender Receiver

Over a Single CAT5 UTP Cable.

HDX-LX-TXS

HDMI & IR Extender Transmitter

Over a Single CAT5 UTP Cable.

Power Supply 2

PS5VD2A-WLLMNT

What’s in the Box?

Notice

The information contained in this document is subject

to change without notice. SmartAVI makes no

warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained herein

or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

20191022

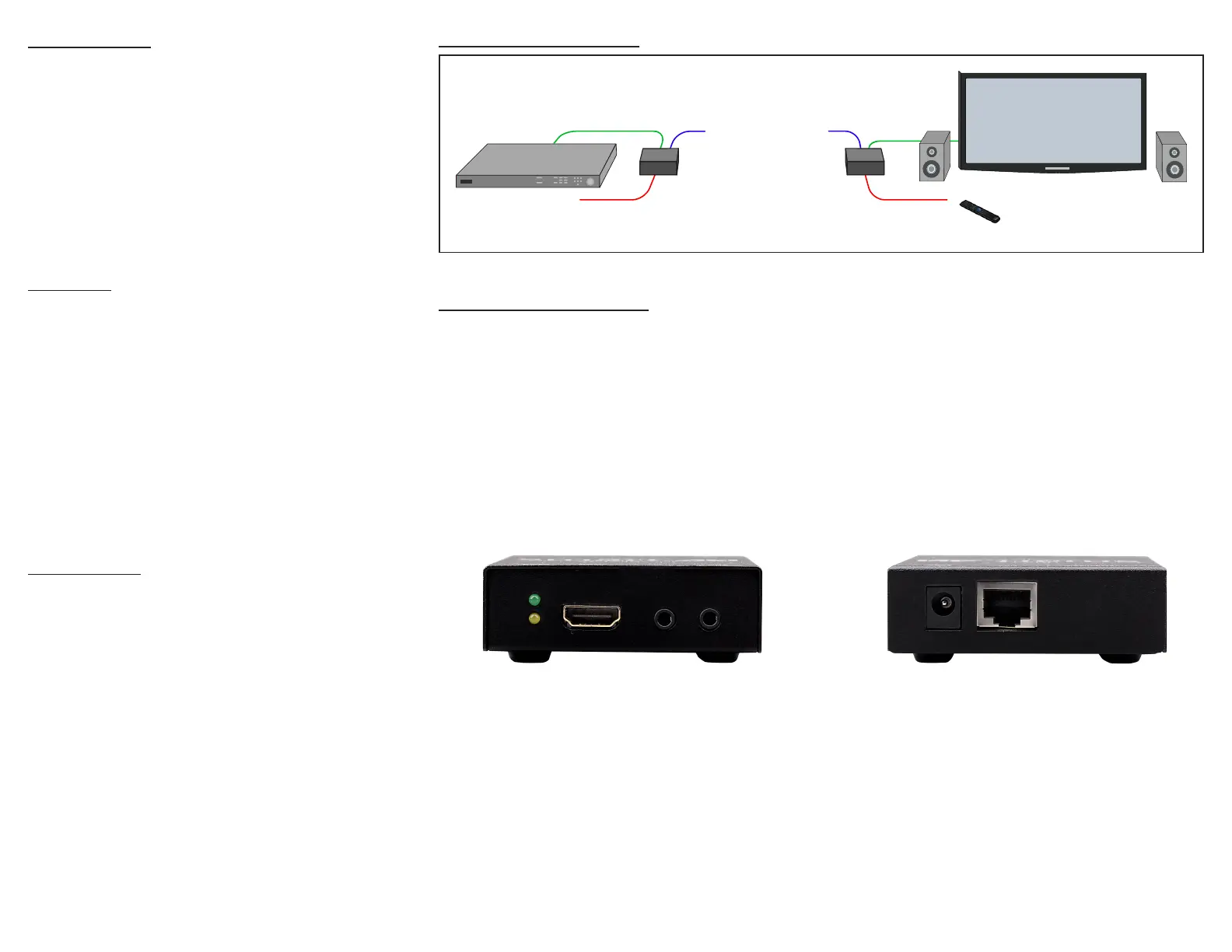

HDTV and Speakers

250 ft. of connectivity

IR Receiver

IR Emitter

HDX-LX (TX)

HDX-LX (RX)

HDMI Source

Introduction

The HDX-LX is an HDMI and infrared signal extender

that uses Cat5e/6 cables and HDBaseT Technology to

send video up to 250 ft. from an HDMI source.

The HDX-LX can extend Ultra-HD resolution video up to

4K resolution (3840x2160 @ 30Hz) with no degradation

of quality, making it the ideal extender for video

systems where highly detailed HDMI signals are

essential.

HDX-LX Front HDX-LX Back

Features

• Extends HDMI HD video & digital audio signals

• Supports resolutions up to 4K (3840x2160 @ 30Hz)

• Extends Infrared Control Signals

• HDCP 1.3 and HDCP compliant

• Uses HDBaseT Technology

• Extension up to 250 feet from HDMI/IR source

with Cat5e/6 cables

• Supports bi-directional IR communication

• Data signals up to 3.4Gbps

• Plug-and-play

Application

• Restaurants/Bars

• Home Entertainment Systems

• Wall Displays

• Digital Media Displays

• Airport Displays

• Dealer Room Displays

• Control Room Video Systems

• Audio/Visual Presentation Systems

• Shopping Centers

• Security

• Point-of-Sale

• Hotels/Resorts

Application Diagram

Hardware Installation

1. Power o the HDMI source device and displays

2. Connect an HDMI cable from the HDMI source to the input port on the HDX-LX.

3. Connect HDMI displays to the HDMI outputs on the HDX-LX.

4. Connect the power supply to the HDX-LX.

5. Power on the HDMI device and the displays.

Produkt Specifikationer

Mærke:	Smart-AVI
Kategori:	Audio/video konverter
Model:	HDX-LXS
Type:	AV sender & modtager
Bredde:	73.6 mm
Dybde:	94 mm
Højde:	23 mm
Vægt:	120 g
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	10 - 85 %
Driftstemperatur (T-T):	0 - 40 °C
Maksimal opløsning:	1920 x 1200 pixel
Forbindelsesteknologi:	Ledningsført
Certificering:	FCC, UL, CE, FCC
Bæredygtighedscertifikater:	RoHS
Indgangsstrøm:	2 A
Driftsspænding:	5 V
