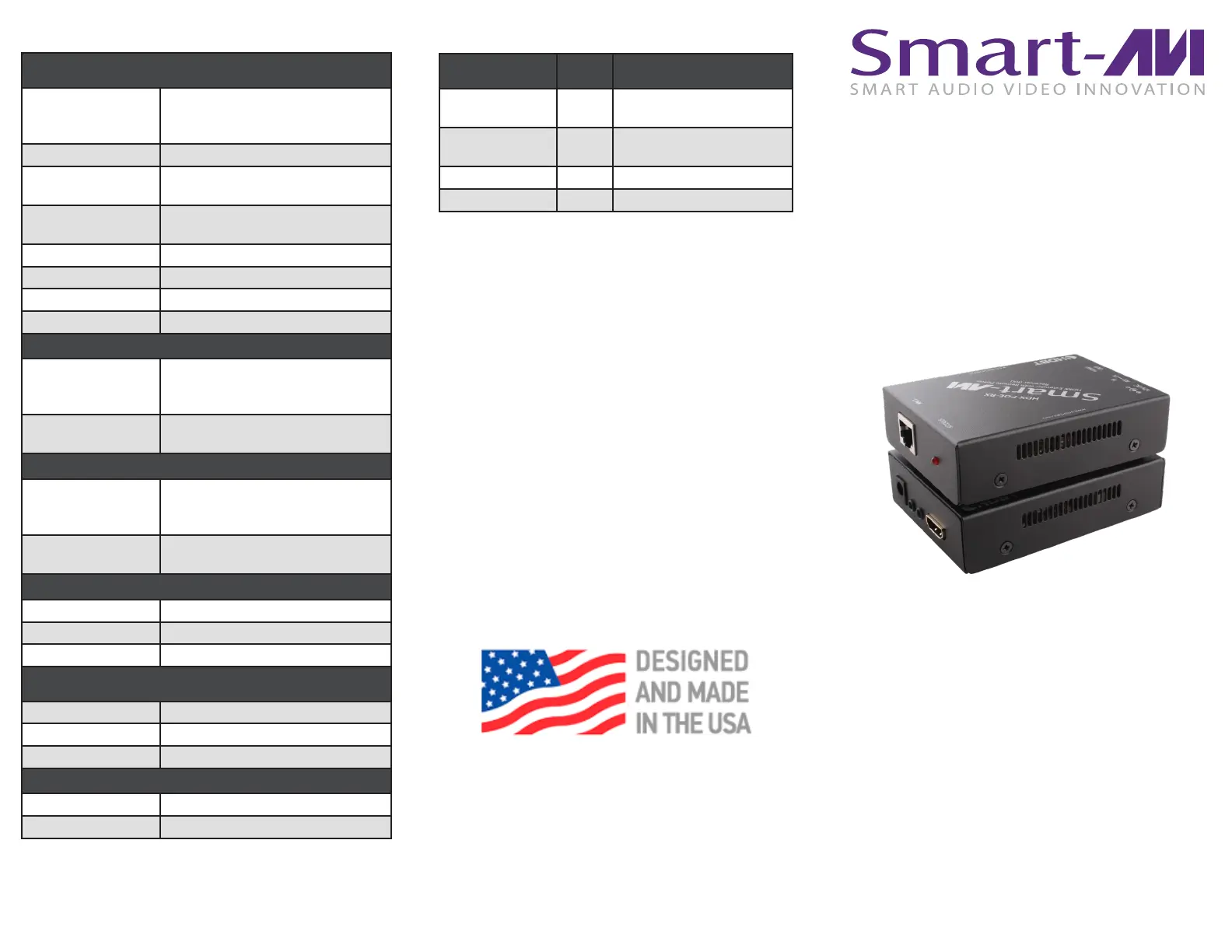

Side 1/2
HDMI, IR and Power Extender
Over Single CAT5/5e/6 Cable
WATCH AND CONTROL
HDTV 1080P VIDEO
UP TO 250FT FROM
THE SOURCE VIA CAT5/5E/6
USING POE TECHNOLOGY
Quick Start Guide
VIDEO
Resolution
800X600, 1024X768 , 1280X1024,
1366X768, 1920X1200, 480i,
720p, 1080i, 1080p and 3D
Transmission 70 meters
Color Depth Deep Color 36/30/24 Bit at 1080p
and 3D
Audio Format Up to PCM 8 channel, Dolby Digital
TrueHD, and DTS-HD Master Audio
IR Range 38kHz, 56kHz
Video Bandwidth 10.2Gbps
Input Video Signal 1.2 Volts P-P
Input DDC Signal 5 Volts(TTL)
I/O CONNECTOR (TX)
Input
1 x HDMI-A 19PIN Socket
5 x 2.5mm
1 x 3.5mm Jack for IR Receiver
Output 1 x RJ45 Jack
1 x 3.5mm Jack for IR Emitter
I/O CONNECTOR (RX)
Input
1 x RJ45 Jack
1 x 3.5mm Jack for IR Receiver
5 x 2.5mm
Output 1 x 3.5mm Jack for IR Emitter
1 x HDMI-A 19PIN Socket
MECHANICAL
Dimensions 0.9” H x 2.9” W x 3.7” D
Weight 0.26 lb
Power External 12V2.5A
ENVIRONMENTAL
Operating Temp. 32-104°F (0-40 °C)
Storage Temp. -4-140°F (-20-60 °C)
Humidity Up to 85% (non-condensing)
SAFETY
Certicate FCC, CE, RoHS
Power Adapter UL, CE, FCC, RoHS
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
HDX-POE
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
HDX-POE-TX 1 HDMI, IR, CAT5/5e/6
Transmitter
HDX-POE-RX 1 HDMI, IR, CAT5/5e/6
Receiver
Power Supply 2 PS5VDC2A
Quick Start Guide 1
OVEVIEW
Are you extending your HD signal reach and nding that the
best potential new locations don’t have the proper power
available? You may not have to scale down your plans if you
consider using an HDX-POE system from SmartAVI.
HDX-POE injects power into cat5/cat5e/cat6 cable that
transports both HDMI and IR and picks it off at the load.
FEATURES
• Supports POE: Can be powered by TX or RX
• Extends HDMI,IR and Power Output over one
Cat5/5e/6 Cable
• Extends IR Control Signals for Remote Control
• Full HD support: 1080p@60Hz@48 bit/pixels,
1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and
4K x 2K@30Hz@24bit
• Data Signals up to 3.4Gbps
• HDMI 1.4 and HDCP Compliance
• Uses Bi-Direconal IR Communicaon
• Transmits High-Quality Dolby TrueHD, DTS-HD MA
Audio Signals
• Transmits 1080p Resoluon Video up to 250
1. Power off the HDMI source and display.
2. Connect an HDMI cable from the HDMI source to the HDMI IN port of the HDX-POE transmitter.
3. Connect an IR emitter (optional) to the IR OUT port on the transmitter.
4. Connect the HDX-POE transmitter to the HDX-POE receiver using a CAT5e/6 cable (up to 150 ft).
5. Connect an IR receiver (optional) to the IR IN port on the receiver.
6. Connect an HDMI cable from the HDMI OUT port on the HDX-POE receiver to the HDMI Display.
7. Connect the power on the HDX-POE transmitter plugging in their power adapters (12VDC2A) or provide 12VDC input from
the rear DC input port.
NOTE: If the RX side has connected DC adapter, TX can get the DC power over the CAT5e/CAT6 cable, so leave DC input
port empty. Only 1 power supply is required for both units.
8. Power on the HDMI source, displays and speakers. The RX will read the EDID from the monitor, and then pass the data
into the TX automatically.
HARDWARE INSTALLATION
HDX-POE-TX HDX-POE-RX
HDMI IN
HDMI OUT
AUDIO IN
AUDIO OUT
IR
CAT5/6
HDX-POE-TX
250 ft
HDX-POE-RX
