Side 1/4

INSTRUCTIONS

V I S U A L P E R F O R M A N C E

R O U N D S P E A K E R S

Introduction

Thank you for purchasing the Sonance Visual Performance VP38R Speakers.

When properly installed your new speakers will give you years of

entertainment pleasure.

Box Contents

Visual Performance in-ceiling speaker box contains:

(1) Visual Performance speaker

(1) Paintable grille

(1) Mounting cutout template

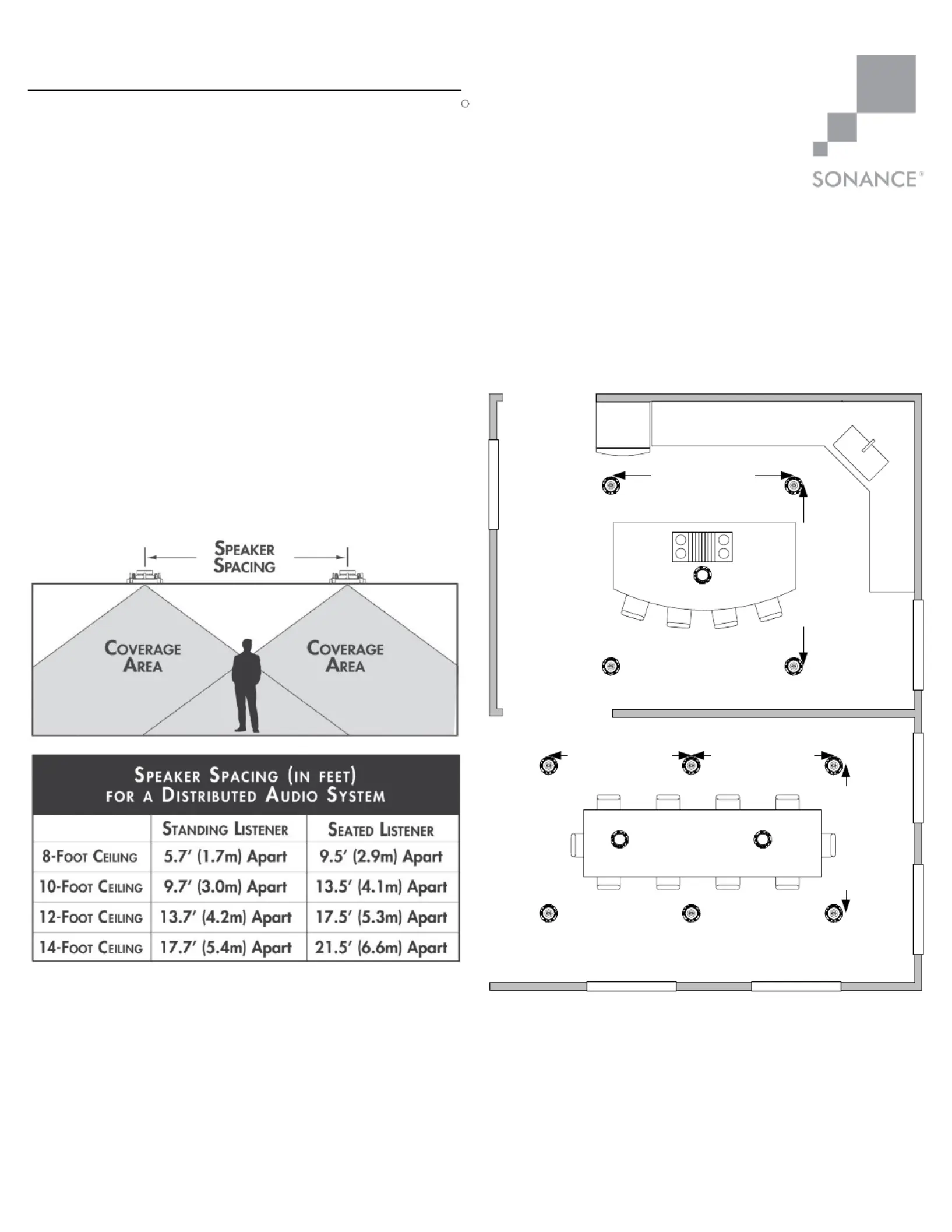

Speaker Placement - Spacing

The VP38R speakers have very wide dispersion due to the small diameter of

the woofer and tweeter used in the speaker.

This wide dispersion allows the speakers to be placed from 6'-10' (1.8-3.0

meters) apart center to center in a typical 8'-9' (2.5-2.7 meter) height ceiling.

As the ceiling height increases it is possible to separate the speakers farther

following the chart below.

6-10 Feet (1.8-3m)

Speaker Placement - Examples

Kitchen

KitchenKitchen

The kitchen floorplan below illustrates an ideal installation of a four

VP38R satellite and one BPS6 subwoofer system.

In this floorplan we have placed the satellites in the high traffic areas and

the subwoofer over the island.

Dining Room

Dining RoomDining Room

In the floorplan above we have shown a typical dining room with six

VP38R satellites and two BPS6 subwoofers.

Please note the location of the subwoofers at the center of the array of

VP38R speakers. Keeping the subwoofers in close proximity to the

satellites will allow a seamless transition from satellite to subwoofer.

Note the alternating left and right speakers for maximum sound field

creation.

Left Right

LeftRight

Left Right Left

Right Left Right

6-10 Feet (1.8-3m)

6-10 Feet (1.8-3m) 6-10 Feet (1.8-3m)

SubSub

Sub

When placed as shown in the examples below the VP38R speaker will

provide even coverage over a large area.

Speaker Placement Sound field–

To maximize the sound field created by the VP38R system we suggest

connecting the speakers using an alternating left / right pattern as shown

in the floorplan to the right.

Using this connection method is very important in rooms without a

defined listening position or where multiple people will listen at the same

time.

With the speakers connected this way no matter where you are in the

room you are more likely to hear a true stereo signal.

1. Determine the location for the speaker (see Speaker Placement on

page 1).

2. Perform an obstruction survey using a stud finder to be certain that

there are no studs, conduit, pipes, heating, ducts, pocket doors or

air returns in the ceiling cavity that will interfere with the speaker. If

you are unsure about obstructions, drill a small hole in the center of

the outline and insert a coat hanger wire into the hole to feel

around for possible obstructions.

3. Cut the mounting hole using a 4" (102mm) hole saw, and run the

speaker wires from the mounting hole to the amplifier location.

NOTE: CONSULT LOCAL BUILDING CODES BEFORE RUNNING

SPEAKER WIRES THROUGH CEILINGS.

Before Installation

4. The high pass filter switch is located on the back of the speaker. The

setting for this switch should be determined before you start

installing the VP38R speaker.

High Pass Filter Switch

5. The default position is ON. In the

ON position the high pass

filter will limit the quantity of

low bass sent to the VP38R

speaker. The high pass filter

is necessary to allow a smooth

transition from the VP38R to the

BPS6 subwoofer.

6. If the VP38R will be used without

a subwoofer the high pass filter

switch should be set in the OFF

position.

7. If the VP38R will be used with a

Sonance DSP series amplifier the

high pass filter switch should be

set in the OFF position. The high

pass filter will be applied in the

DSP preset.

Sonance Visual Performance Speakers feature integral two piece Roto-

Lock mounting system for quick mounting directly into existing ceilings.

8. The Roto-Lock system can accommodate a ceiling material thickness

of 1/4" (6mm) to 1-7/8 (48mm). ”

With the toggle foot cap removed the system can accommodate a

ceiling material thickness of 7/16" (12mm) to 2-1/8 (54mm).”

Two Piece Toggle Foot

VISUAL PERFORMANCE VP38R

9. When installing into double

drywall or other thicker ceiling

materials, you may need to

remove part of the two-piece

toggle feet. Unscrew the

toggle foot cap from the

toggle foot.

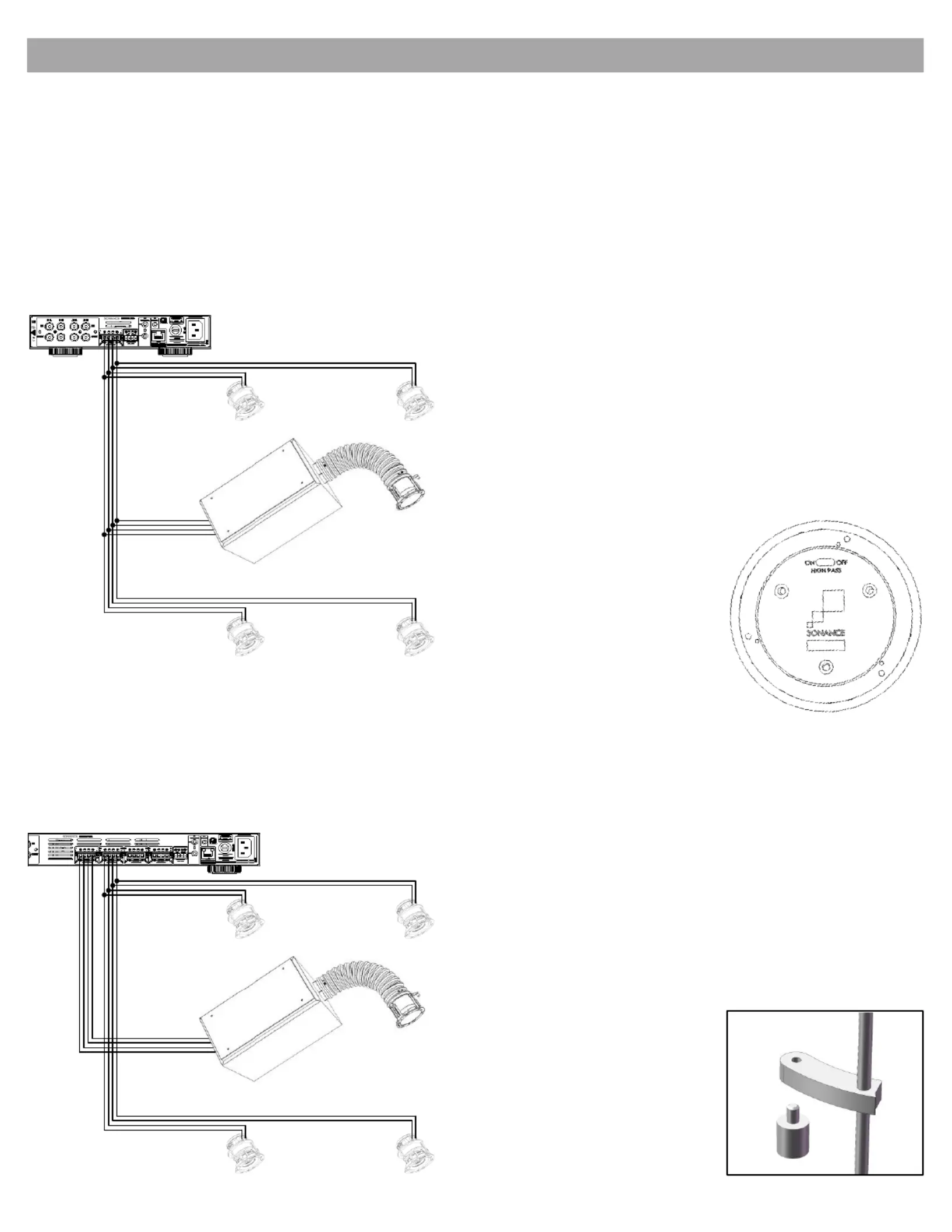

Wiring

In a system with four VP38R satellites and one BPS6 subwoofer all

speakers can be connected to a two channel amplifier.

This connection is possible using the high pass filter on the VP38R

satellite and the built in crossover in the BPS6 subwoofer.

Wiring Multi-Channel Amplifier–

The alternative connection method is to dedicate two amplifier channels

to the four VP38R satellites then connect the BPS6 subwoofer to a

dedicated pair of amplifier channels.

Using this connection method allows you to adjust the level of the

satellites and subwoofers independently.

Wiring 2 Channel Amplifier–

When wiring a DOS system (VP38R & BPS6) you have two options for

connecting the speakers to the amplifier.
