Introduction

Thank you for purchasing Sonance Visual Performance®

Series Medium rectangle speakers. When properly installed your

new speakers will give you years of entertainment pleasure.

Box Contents

Each Sonance Visual Performance Series Medium rectangle

speaker box contains (2) Visual Performance Series speakers,

(2) paint plugs (installed on the fronts of the speakers),

(2) paintable grilles and (1) mounting cut-out template.

Speaker Placement

Home Theater Speaker Placement

Left, Center & Right Speakers

• Place the left & right speakers on either side of the video

screen, 6 – 10 feet (1.8m – 3m) apart and 3 – 4 feet

(0.9m – 1.2m) from the floor.

• If possible, locate the center speaker at the same height as the

left & right channel speakers.

• If you must place the center speaker above or below a video

screen, place it no more than 2 feet (0.6m) above or below the

center of the left and right speakers. This will maintain consis-

tent tonality between all three front channel speakers.

• The main listening position should be 8 – 12 feet

(2.4m – 3.7m) away from the speakers.

Use

Figure 1

as a guide.

Surround Speakers (5.1-Channel System)

Locate the surround channel speakers on the side walls 2 – 6 feet

(0.6m – 1.8m) behind the listening position, 5 – 7 feet

(1.5m – 2.1m) from the floor. Use

Figure 2

as a guide.

Surround Speakers (7.1-Channel System)

• LEFT & R : Place the left and right IGHT SURROUND PEAKERSS

surround speakers directly to the sides of the listening position,

at least 5 feet from the floor.

• SURROUND PEAKERSBACK S : Place the surround back speakers in

the rear wall, 3 – 6 feet (0.9m – 1.8m) apart and 5 – 7 feet

(1.5m – 2.1m) from the floor.

Use

Figure 3

as a guide.

I N S T R U C T I O N M A N U A L

V I S U A L P E R F O R M A N C E ® S E R I E S

M E D I U M R E CTA NGL E S P E A K E R S

S W :AFETY ARNING

THESE SPEAKERS HAVE AST OUNTF M ®TABS T HAT PREVENT T HE

SPEAKER FROM FALLING OUT OF THE MOUNT ING HOLE DURING THE

INSTALLATION PROCESS.

T F MH E E DG E S O F T H E A S T O U NT TA B S A R E V E RY S H A R P.

US E CA U T I ON W HE N H A ND L I N G T H E S P E A K E R.

18"

(0.5m)

From Side

Wall

18"

(0.5m)

From Side

Wall

(0.6m)

max.

6' – 10'

(1.8m – 3m)

Apart

FIGURE 1: LEFT, C & RENTER IGHT HANNELC

H TOME HEATER PEAKER LACEMENTS P

5' – 7'

(1.5m – 2.1m)

2' – 6'

(0.6m – 1.8m)

F H T S SIGURE 2: 5.1-CHANNEL OME HEATER URROUND PEAKER

PLACEMENT

Right Surround

Speaker

Left Surround

Speaker

Left

Front

Speaker

Right

Front

Speaker

Video

Screen

Center

Speaker

Left

Surround Back

Speaker

Right

Surround Back

Speaker

F H T S PIGURE 3: 7.1-CHANNEL OME HEATER PEAKER LACEMENT

SONANCE VISUAL PERFORMANCE®MEDIUM RECTANGLE

Stereo (2-Channel) Placement

• Place the left and right speakers 6 – 10 feet (1.8m – 3m) apart,

with the main listening position as close to midway between

the speakers as possible.

• The speakers should be at least 2 feet (0.6m) away from the

side walls.

• The main listening position should be 4 – 10 feet (1.2m – 3m)

away from the speakers.

• In most cases pivoting the tweeter of each speaker directly

towards the main listening position will help maximize the

stereo soundstage.

Use the left and right speaker placement in

Figure 1

, on page 1,

as a guide.

Before Installation: Retrofit

1. Determine the location for the speaker (see

Speaker Placement

on page 1).

2. Perform an obstruction survey to be certain that there are no

studs, conduit, pipes, heating ducts, pocket doors or air returns

in the wall cavity that will interfere with the speaker.

3. Mounting space requirements:

Mounting space req uirements:

Mounting space req uirements:Mounting space req uirements: 615⁄16” (176mm) wide by

10¾” (273mm) high cut-out and at least 3½” (89mm) mount-

ing depth. Medium ThinLine rectangle speakers require at

least 2½” (64mm) mounting depth.

4. Position the included cut-out template where the speaker is to

be located and pencil an outline on the wall. If you are unsure

about obstructions, drill a small hole in the center of the

outline and insert a coat hanger wire into the hole to feel-

around for possible obstructions.

5. Cut the mounting hole using a keyhole or drywall saw, and

run the speaker wires from the mounting hole to the amplifier

location.

NOT E : CO NSU LT LOC AL B U IL DI NG C OD E S B E FOR E R U N NI NG

SP E AK E R W IR E S TH ROU G H W AL LS.

Before Installation: IR Plug

Sonance Visual Performance Series

Medium rectangle speakers have a

plug for installing an IR receiver into

the speaker’s front baffle (see

Figure

). In systems where the electronics

are placed in an inconvenient loca-

tion this allows remote controls to be

aimed at the front of the room instead

of at the electronics.

The IR plug is in the form of a bolt

and retaining nut. To remove the

plug, unscrew the nut (located behind

the baffle, see

Figure 5

) and remove

the bolt. The hole is designed to

receive a Sonance OptiLinQ®SMR1

or SMR1P Surface-Mount IR receiver.

Insert the IR receiver through the

front of the speaker baffle and use

the nut included with the receiver to

secure it to the baffle.

Installation

Sonance Visual Performance Series speakers feature exclusive

FastMount tabs and an integral Roto-Lock®mounting system for

quick mounting directly into existing walls.

WA R N I NG : T HE E D GE S O F T HE FA S T M OU N T TA B S

ARE VERY SHARP. USE CAUTION WHEN HANDLING

T HE S P E A K E R.

1. Remove the paint plug from the speaker.

2. Strip ¼” – ½” (6mm – 12mm) of insulation from each speak-

er lead. Twist the strands or tin the exposed wire with solder

to ensure that there are no stray strands. (Stray strands that

touch each other can cause a short-circuit that can damage

the amplifier.)

3. The speaker’s connector posts are spring-loaded. Push the top

of each connector post down to open the connector and insert

the exposed wires into the holes in the posts.

The speaker’s positive

post is labeled with a

red dot; the negative

post is labeled with a

black dot. Double-check

that you connected

amplifier “+” to speaker

“+” and amplifier “–” to

speaker “–”.

4. Make sure all the Roto-

Lock clamps are retract-

ed so that they are

tucked within the mount-

ing hole’s border. Insert

the speaker into the hole

in the wall (

Figure 6

The Roto-Lock system

can accommodate a

maximum wall material

thickness of 1¼”

(32mm).

The FastMount tabs will

prevent the speaker from

falling out of the mount-

ing hole, allowing you to

let go of the speaker to

pick-up tools or other

items (

Figure 7

N FOTE: THE ASTMOUNT TABS

ARE DESIGNE D F OR ONE -

TI M E U S E ON LY. IF THE

SPEAKE R IS R EM OVE D FR OM

TH E MO U NTI NG H OL E TH E

F MA S T O U N T TA B S W I L L

DISCON NE CT A ND REM AIN

IN SIDE THE WALL.

Roto-Lock Clamp

(retracted)

Roto-Lock Clamp

(retracted)

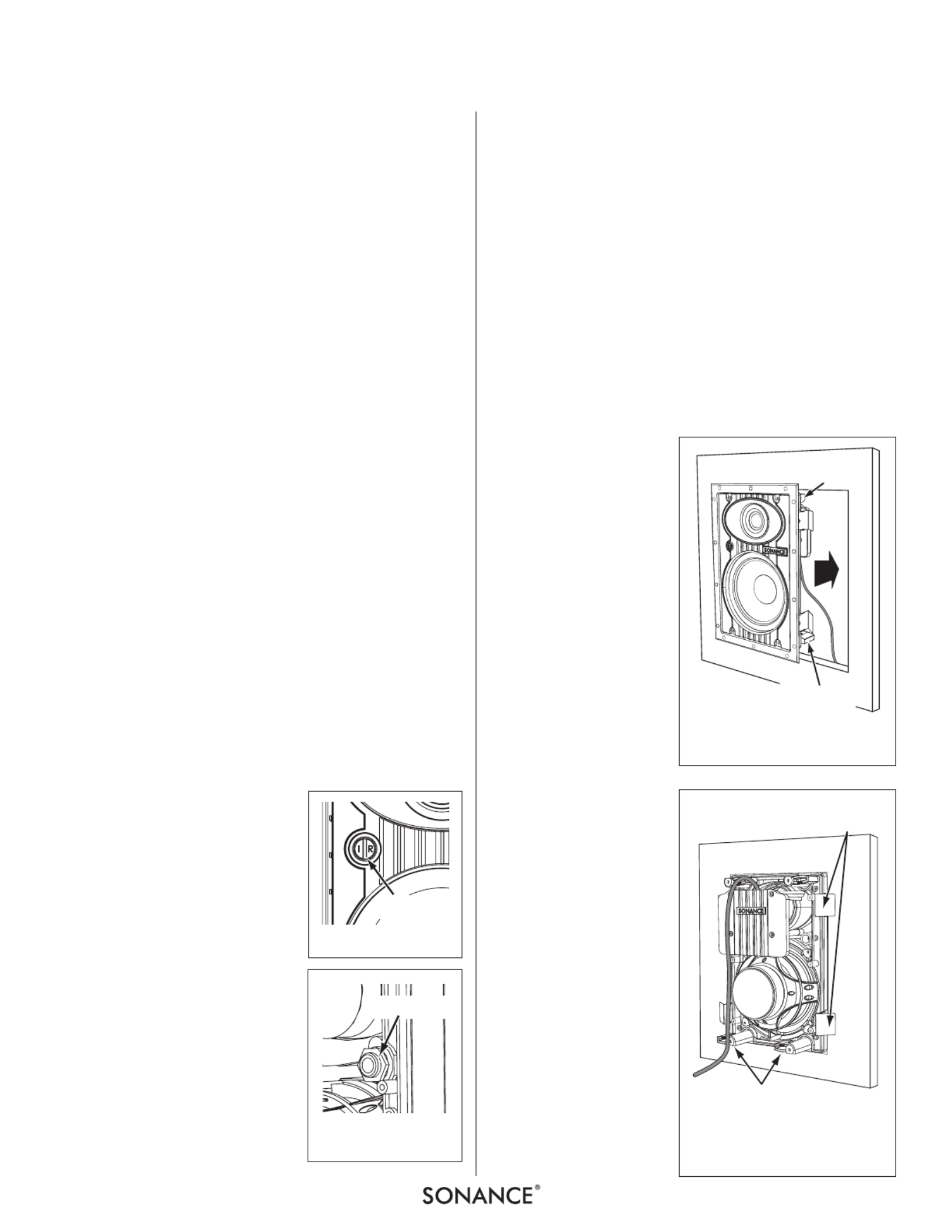

F SIGURE 6: INSERTING THE PEAKER

INTO THE OUNTING OLEM H

FastMount

Tabs

Roto-Lock Clamps

(retracted)

FIGURE 7: FAST OUNTM TABS AND

R -L COTO OCK LAMPS

FIGURE 4: IR PLUG

FIGURE 5: IR PLUG

RETAINING UTN

IR Plug

Retaining Nut
