page 1 / 5 sonel.com

Features

• Detection of wires and cables (live or not).

• Tracing underground cables.

• Tracing conductive water and heating pipelines.

• Flow and accurate locating the object.

• Phase detection mode.

• Operation in wide range of rated voltage, up to 500 V RMS.

• Five modes of wire tracer operation: voltage, current,

current-voltage, power and clamp.

• Additional accessories enable precise localization

- such as contact or non-contact probes and measure-

ment clamp.

Description

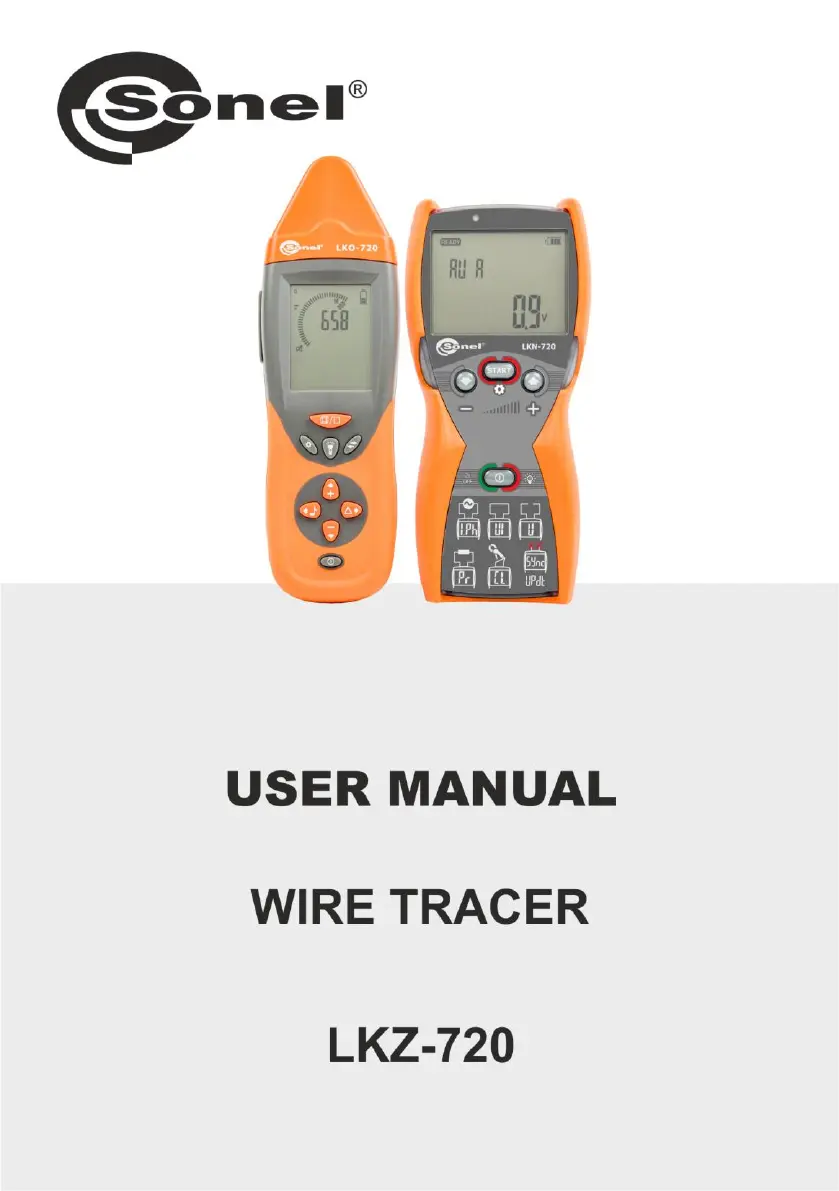

The Sonel LKZ-720 cable and wire locator is a device con-

sisting of the LKN-720 transmitter and the LKO-720 receiv-

er. This instrument is dedicated to nding cables and other

underground infrastructures. The LKZ-720 allows the loca-

tion of both metallic objects (cables) and non-conductive

objects (PVC pipes, concrete, etc.). The locator is mainly

dedicated to use in the energy and installation industry,

among others.

Locate wires and cables

Wire Tracer

LKZ-720 / LKZ-720 KIT

index: WMGBLKZ720 / WMGBLKZ720KIT

LKO-720

index: WMGBLKO720

LKN-720 / LKN-720 KIT

index: WMGBLKN720 / WMGBLKN720KIT

LKN-720

transmitter LKN-720 KIT

set of transmitters

LKO-720

receiver

LKZ-720

LKZ-720 KIT

LKN-720

LKO-720

page 2 / 5 sonel.com

Application

Detection and tracing cables in ceilings, walls and floors

In response to the needs of customers, the LKO-720 has a specially designed

3D antenna that raises the precision of the wire tracing. Determine direction of

wires in concrete up to 5 cm will not be a problem now.

Multi-transmitter operation

LKZ enables operation work with four transmitters at the same time. The

multi-transmitter operation of the system enables precise location of breaks

in an electric system and identify individual cores in the cable or cables in

atrench.

Locating power points and switches in buildings

Specially modulated and coded signal generated by the LKN-720 transmitter

allows to locate and identify sockets and switches in energized and de-ener-

gized circuits.

Identication of fuses on the distribution board

Thanks to the precise sensor in LKO-720 and additional contact and non-con-

tact probes, identify of breakers and fuses now will be easily and time-saving.

Possibility to tracing in no access conductors

LKO-720 with C-8 clamp used in the current mode or in other mode forcing cur-

rent flow, allows to uniquely identify wire or cable with no physical connection

to it.

Non-contact detection of live cables

LKO-720 allows to precisely detect energized wires in air and concrete without

additional probes.

Additional areas of use

• Detection of breaks in cables and wires.

• Locating short circuits between leads.

• Tracing shielded cables.

• Tracing cables in metal ducts.

• Tracing underground cables.

• Tracing conductive water and heating pipelines.

Special features

LKO-720

• Receiver operation with max. 4 transmitters at the same time to locate

interruptions or distinguish wires.

• Receiving status information from the LKN-720 transmitter.

• The function 3D - detecting the direction of current.

• A LED torch.

• Headphone socket.

• Software upgrade via USB.

• Screen backlight for work in dark.

LKN-720

• 4 codes of the transmitted signal.

• Transmission of information about the transmitter settings and battery

charge level.

• Measurement of voltage at the object to 500 V RMS.

• Three levels of amplication.

• Automatic or manual selection of operation modes.

• Screen backlight for work in dark.
