SERVICE MANUAL

Sony Corporation

Published by Sony EMCS (Malaysia) PG Tec

HCD-SH2000

MINI HI-FI COMPONENT SYSTEM

9-890-576-02

2011I08-1

2011.09

E Model

Ver. 1.1 2011.09

• HCD-SH2000 is the tuner, USB, CD

and ampliﬁ er section in FST-SH2000/LBT-SH2000.

• “WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.

• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and

Thomson.

• Windows Media is either a registered trademark or trademark of Microsoft Corporation in

the United States and/or other countries.

• This product contains technology subject to certain intellectual property rights of Microsoft.

Use or distribution of this technology outside of this product is prohibited without the ap-

propriate license(s) from Microsoft.

SPECIFICATIONS

Ampliﬁ er section

The following are measured at AC 120 V -

240 V, 50/60 Hz

Power output (rated):

High channel

300 W + 300 W (at 4

Ω, 1 kHz,

1% THD)

Low channel

300 W + 300 W (at 4 Ω, 100 Hz,

1% THD)

RMS output power (reference):

High channel

500 W + 500 W (per channel at

4 Ω, 1 kHz)

Low channel

500 W + 500 W (per channel at

4 Ω, 100 Hz)

Inputs

PC (AUDIO IN) L/R, TV (AUDIO IN) L/R,

DVD/SAT (AUDIO IN) L/R, GAME

(AUDIO IN) L/R

Voltage 2 V, impedance 47 kΩ

MIC

Sensitivity 1 mV, impedance 10 kΩ

A, B port: Type A

USB section

Supported bit rate

MP3 (MPEG 1 Audio Layer-3):

32 kbps – 320 kbps, VBR

WMA: 48 kbps – 192 kbps

AAC: 48 kbps – 320 kbps

Sampling frequencies

MP3 (MPEG 1 Audio Layer-3):

32 kHz/44.1 kHz/48 kHz

WMA: 44.1 kHz

AAC: 44.1 kHz

Transfer speed

Full-Speed

Supported USB device

Mass Storage Class

Maximum current

500 mA

Disc player section

System

Compact disc and digital audio system

Laser Diode Properties

Emission Duration: Continuous

Laser Output*: Less than 44.6 μW

* This output is the value measurement

at a distance of 200 mm from the

objective lens surface on the Optical

Pick-up Block with 7 mm aperture.

Frequency response

20 Hz – 20 kHz

Signal-to-noise ratio

More than 90 dB

Dynamic range

More than 88 dB

Tuner section

FM stereo, FM/AM superheterodyne tuner

Antenna:

FM lead antenna

AM loop antenna

FM tuner section

Tuning range

87.5 MHz – 108.0 MHz (50 kHz step)

AM tuner section

Tuning range

AR, E2, E51 and MX models:

530 kHz – 1,710 kHz (10 kHz step)

531 kHz – 1,710 kHz (9 kHz step)

MY model:

530 kHz – 1,610 kHz (10 kHz step)

531 kHz – 1,602 kHz (9 kHz step)

General

Power requirements

AC 120 V – 240 V, 50/60 Hz

Power consumption

320 W

Dimensions (w/h/d) (excl. speakers)

(Approx.)

510 mm × 235 mm × 420 mm

Mass (excl. speakers) (Approx.)

10.0 kg

Supplied accessories

Remote control (1)

R6 (Size AA) batteries (2)

FM lead/AM loop antenna (1)

Speaker foot (8)

Design and speciﬁ cations are subject to

change without notice.

• Abbreviation

E2 : 120V AC area in E model

E51 : Chilean and Peruvian models

EA : Saudi Arabia model

MX : Mexican model

MY : Malaysia model

SAF : South African model

Section

CD Mechanism

Type

CDM86B-DVBU101

Optical Pick-up

Name

KHM-313CAB/C2NP

HCD-SH2000

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE

WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN

THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS

WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS

MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

SAFETY CHECK-OUT

After correcting the original service problem, perform the following

safety check before releasing the set to the customer:

Check the antenna terminals, metal trim, “metallized” knobs,

screws, and all other exposed metal parts for AC leakage. Check

leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

from all exposed metal parts to any exposed metal part having a

return to chassis, must not exceed 0.5 mA (500 microamperes).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA

WT-540A. Follow the manufacturers’ instructions to use these

instruments.

2. A battery-operated AC milliammeter. The Data Precision 245

digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a

VOM or battery-operated AC voltmeter. The “limit” indication

is 0.75 V, so analog meters must have an accurate low-voltage

scale. The Simpson 250 and Sanwa SH-63Trd are examples

of a passive VOM that is suitable. Nearly all battery operated

digital multimeters that have a 2V AC range are suitable. (See

Fig. A)

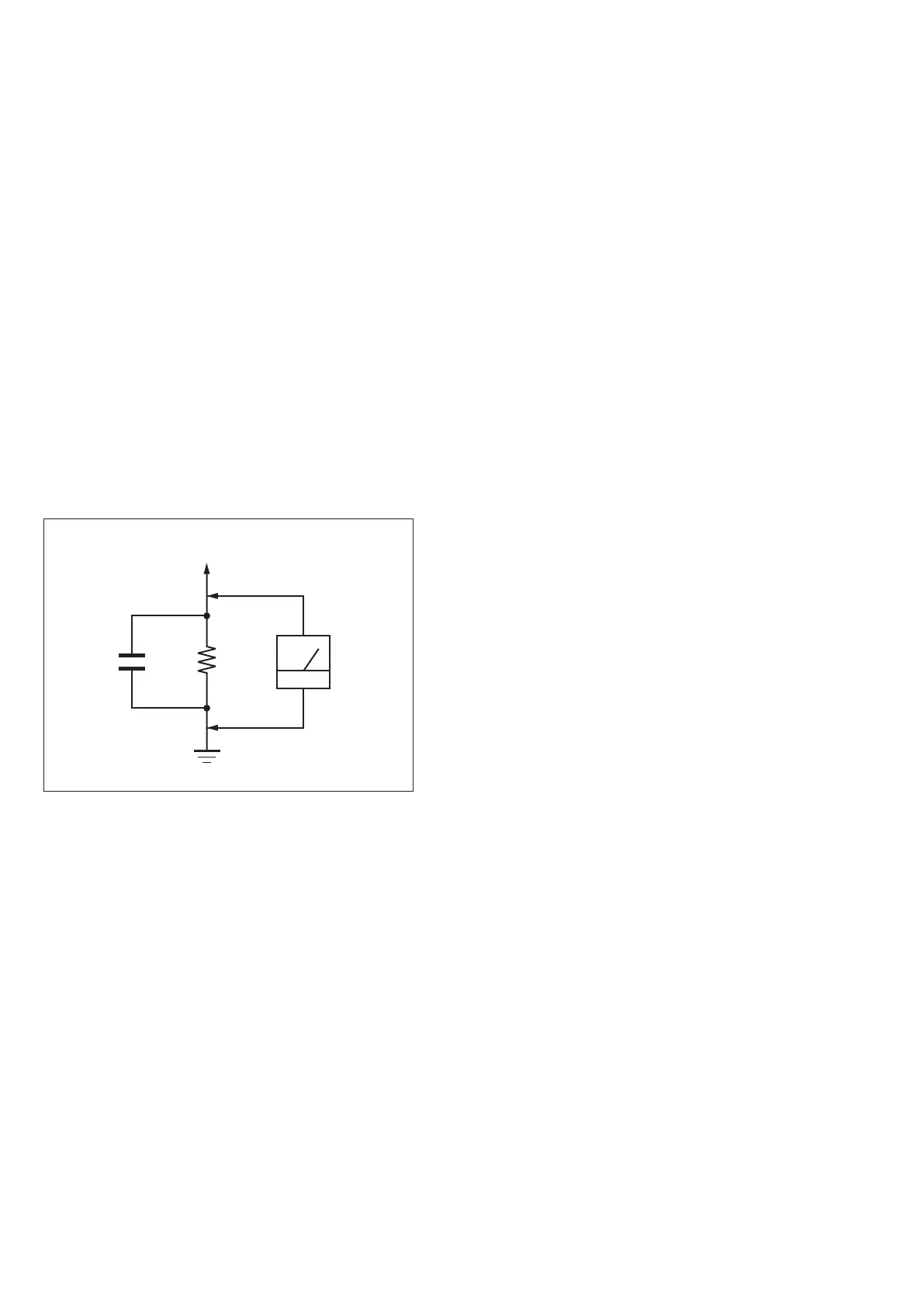

1.5 kΩ0.15 μF

voltmeter

(0.75 V)

To Exposed Metal

Parts on Set

Earth Ground

Fig. A. Using an AC voltmeter to check AC leakage.
