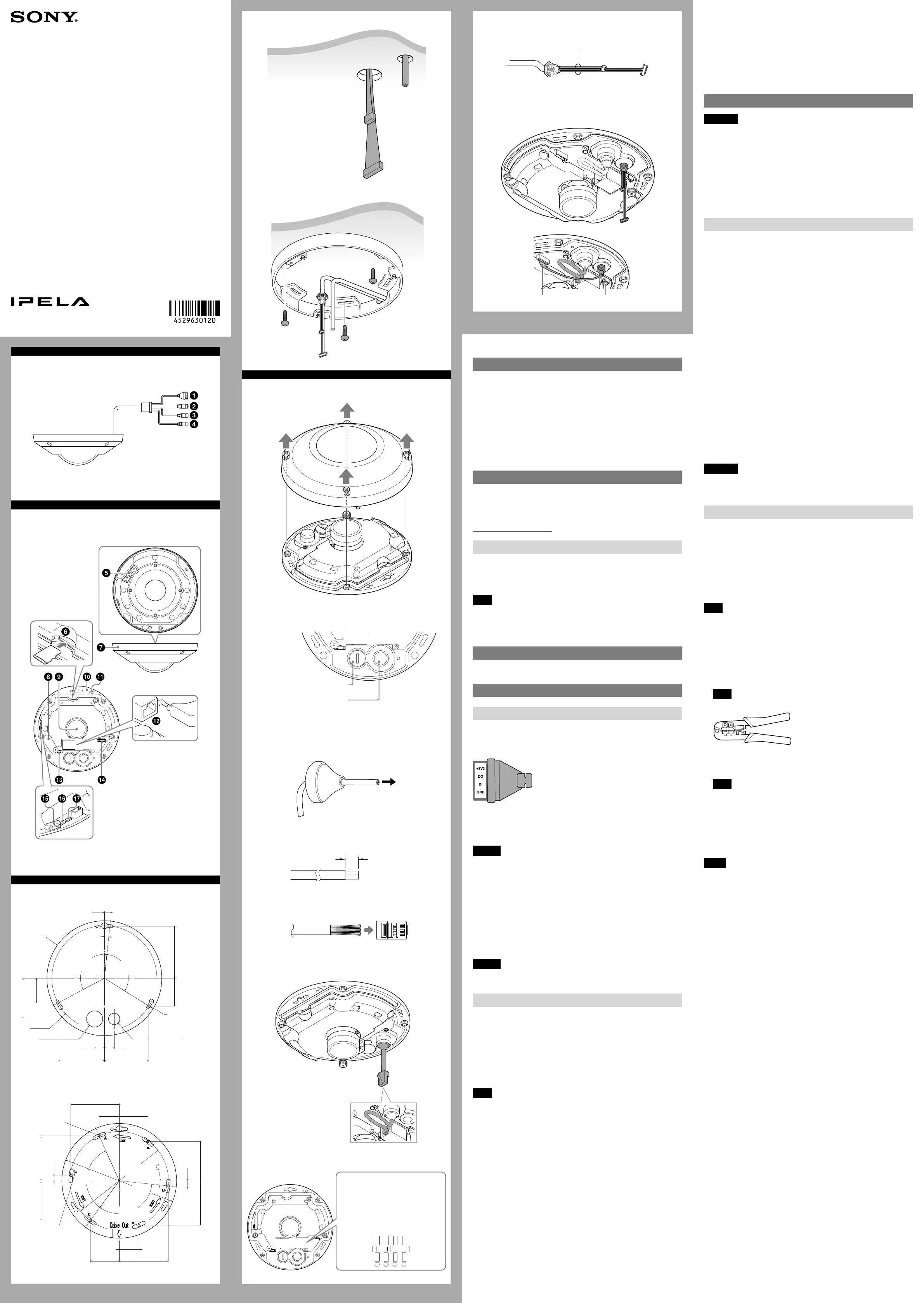

Alignment sticker for the camera base

Ø141.2 (5 /)

Ø129 (5 /)

124°

Hole for

the I/O

cable

116°

6°

6.74 (/)

Ø20

(/)

12 (/) 12 (/)

56.95 (2 /) 54.7 (2 /)

Ø14 (/)

30.28

(1 /)

50 (2)

34.18

(1 /)

64.15 (2 /)

3 x Screw hole

Hole for the

network

cable

Alignment sticker for the mounting plate

6.29 (/)

55.73 (2 /)

48.7 (1 /)

49.35 (2)

55 (2 /)

59.87 (2 /)

24.81

(1)

35.85 (1 /)

35.38

(1 /)

60.67 (2 /)

24.49

(/)

120°

Ø122

(4 /)

Ø142

(5 /)

A-a. B-b. C-c. pair

for Electric Box

3 x Screw hole

for wallmount

& ceilingmount

6.38 (/)

120°

About the Manuals

Installation Manual (this document)

This Installation Manual describes the names and functions of parts and controls

of the Network Camera, gives connection examples and explains how to set up

the camera. Be sure to read the Installation Manual before operating.

SNC easy IP setup Guide (stored in the CD-ROM)

User’s Guide/Application Guide (Web)

The User’s Guide describes how to set up the camera and how to control the

camera via a Web browser.

After installing and connecting the camera correctly, operate referring to the

User’s Guide.

Using the software

The supplied CD-ROM includes the setup program for assigning an IP address.

The information for how to set up an IP address is also included in the disc in PDF

format.

User’s Guide and Application Guide can be downloaded from the disc, or the

following URL:

http://www.sony.net/ipela/snc

Using the CD-ROM manual

The manual can be read on a computer with Adobe Reader installed.

You can download Adobe Reader free from the Adobe website.

1 Open the index.html file in the CD-ROM.

2 Select and click on the manual that you want to read.

Note

If you have lost or damaged the CD-ROM, you can purchase a new one from your

Sony dealer or Sony service counter.

Adobe and Acrobat Reader are trademarks of Adobe Systems Incorporated in the

United States and/or other countries.

Assigning the IP address

Assign the IP address using the setup program in the supplied CD-ROM.

For details on how to set up the IP address, see SNC easy IP Setup Guide.

Location and Function of Part

Side 

Cables are not connected when the unit comes from the factory.



I/O connectors

Equipped to a sensor input and alarm output.

Each connector is adapted to the following signal.

+ 3V3: For maintenance use only.

DO: Alarm output

DI: Sensor input

GND: Ground

For details on each function and required settings, see the User’s Guide.

For the wiring, see “Connecting the I/O connectors.”



Power input (Black)

Connect to a 12 V DC power supply system.

Caution

To connect a 12 V DC power supply system, use the following DC plug.

DC plug: PL03B: Straight, center positive,

outer diameter 5.5 mm, inner diameter 2.1 mm





I/O (input/output) cable

Audio

Used for the line output connector (green) and the microphone input connector

(pink).



Microphone input connector (minijack, monaural)

Connect a commercially available microphone.



Line output connector (minijack, monaural)

Connect a commercially available speaker system with a built-in amplifier.

Caution

Take care not to trap the cables between the camera and the ceiling or the wall. If

the cable is trapped, it may cause a fire or electric shock due to breaking.

Inside 



Built-in microphone contact

Align to the spring contact when attaching the dome case.



microSD card slot

This slot is used for optional microSD memory cards.

Image data in the camera can be recorded to a memory card by inserting it into

the slot.

When inserting, point the contact area at the camera base side, and be sure to

insert it completely.

This unit is only compatible with microSD and microSDHC memory cards.

Note

For inquiries regarding verified microSD memory cards, contact your authorized

Sony dealer.



Dome case



Spring contact

Align to the built-in microphone contact when attaching the dome case.



Lens



Camera base



Strap hole



LAN network port (RJ45)

Connect a network cable (UTP, category 5) to this port to communicate with a

network or PoE* system.

For details on connection, see the Instruction Manual of the power supply

equipment.

(*PoE stands for Power over Ethernet. It is pursuant to IEEE802.3af.)



Connector (J7)

Connect the I/O cable.



Connector (J8)

Connect the I/O cable.

When you do not use the mounting plate

When you use the mounting plate

Stopper for the hole of the I/O cable

Rubber stopper for the hole

of the network cable

Preparation for the network cable

Rubber seal plug

12 mm (/ inch)

When connecting or removing the

LAN cable be careful not to damage

the surrounding components.

Note

4-529-630-12(1)

Printed in China

Network Camera

SNC-HM662

Installation Manual

Before operating the unit, please read this manual thoroughly and

retain it for future reference.



Reset switch

When you press and release the reset switch, the camera restarts. When you

press and hold the reset switch, the camera is reset to the factory default

settings.



POWER indicator

When the power is supplied to the camera, this indicator lights up.



NETWORK indicator

The indicator lights up or flashes when the camera is connected to the network.

The indicator is off when the camera is not connected to the network.

Installation

WARNING

If you attach the camera in the height such as the wall or the ceiling, etc.,



entrust the installation to an experienced contractor or installer.

If you install the camera on the ceiling, ensure that the ceiling is strong



enough to withstand the weight of the camera plus the mounting plate and

then install the camera securely. If the ceiling is not strong enough, the camera

may fall and cause serious injury.

If you install the camera in a high place or ceiling, attach the optional rope to



prevent the camera from falling.

If you attach the camera to the ceiling, check periodically, at least once a year,



to ensure that the connection has not loosened. If conditions warrant, make

this periodic check more frequently.

Deciding the Installation Location of the Camera 

When you do not use the mounting plate

(When connecting cables from the bottom of the camera)

After deciding the direction in which the camera will shoot, make a hole (ø 14

mm (/ inches)) for the network cable and a hole (ø 20 mm (/ inches)) for the

I/O cable using the supplied Alignment sticker for the camera base, thread the

network cable and I/O cable, then decide the hole positions (three) for attaching

the camera base.

When you use the mounting plate

(When connecting cables from the side of the camera)

After deciding the direction in which the camera will shoot, decide the hole

positions (three) for attaching the mounting plate using the supplied Alignment

sticker for the mounting plate. Then thread the network cable and I/O cable

through the side of the mounting plate, and secure the mounting plate on the

ceiling/wall with three screws. Refer to “Mounting screws” for the screws to be

used.

Mounting screws

The required mounting screws differ depending on the installation location and

its material. (Mounting screws are not supplied.)

Steel wall or ceiling: Use M3 bolts and nuts. (Hexagon head bolt should not be

used.)

Wooden wall or ceiling: Use M3 tapping screws. The panel thickness must be

15 mm (/ inch) or more.

Concrete wall: Use anchors, bolts and plugs suitable for concrete walls. (Head

shape of M3 bolt: Pan head screw or hexagon head bolt should not be used.)

Junction box: Use screws to match the holes on the junction box. (Head shape

of screw: ø 7 mm (/ inch) Height 3 mm (/ inch) or less. (When you do not use

the mounting plate))

WARNING

The required mounting screws differ depending on the installation location and

its material. If you do not secure the camera with the appropriate mounting

screws, the camera may fall off.

Preparation for the Network Cable and I/O Cable 

Prepare the cables as required for your usage.

1 Remove the dome case from the camera base by loosening the four

screws with the supplied screwdriver.

2 Remove the rubber stopper for the hole of the network cable.

Remove the stopper for the hole of the I/O cable by using a flat tip

screwdriver.

Preparation for the network cable

Size of the network cable (unit: mm)



Recommended cable diameter: 24 AWG (0.51 mm (/ inches))

Note

Use the cable of 5 mm to 8 mm (/ inches to / inches) diameter for the

network cable. If you use another thickness of cable, waterproof performance

may be impaired.

Assembly procedure

1 Make a hole through the rubber seal plug, then thread the network

cable.

2 Peel a part of the sheath of the network cable.

3 Attach the connector to the network cable.

Note

For attaching the connector to the network cable, you need a crimper (RJ45).

4 Thread the cable through the bottom of the camera base, connect the

network cable to the LAN port (RJ45), then attach the rubber seal plug to

the camera base for waterproofing.

Note

When connecting or removing the LAN cable be careful not to damage the

surrounding components.

Preparation for the I/O cable

1 Attach the supplied rubber washer to the I/O cable.

2 Thread the I/O cable through the bottom of the camera base, then secure

the plastic base part.

3 Connect the I/O cable to the connector (J8) and connector (J7).

Notes

Secure with 0.5 N-m.



Do not pull on any cables forcefully, as a connection may become loose.



(continued on the reverse side)

Preparation for the I/O cable

Plastic base part

Rubber washer

2, 3

Connector (J8) Connector (J7)

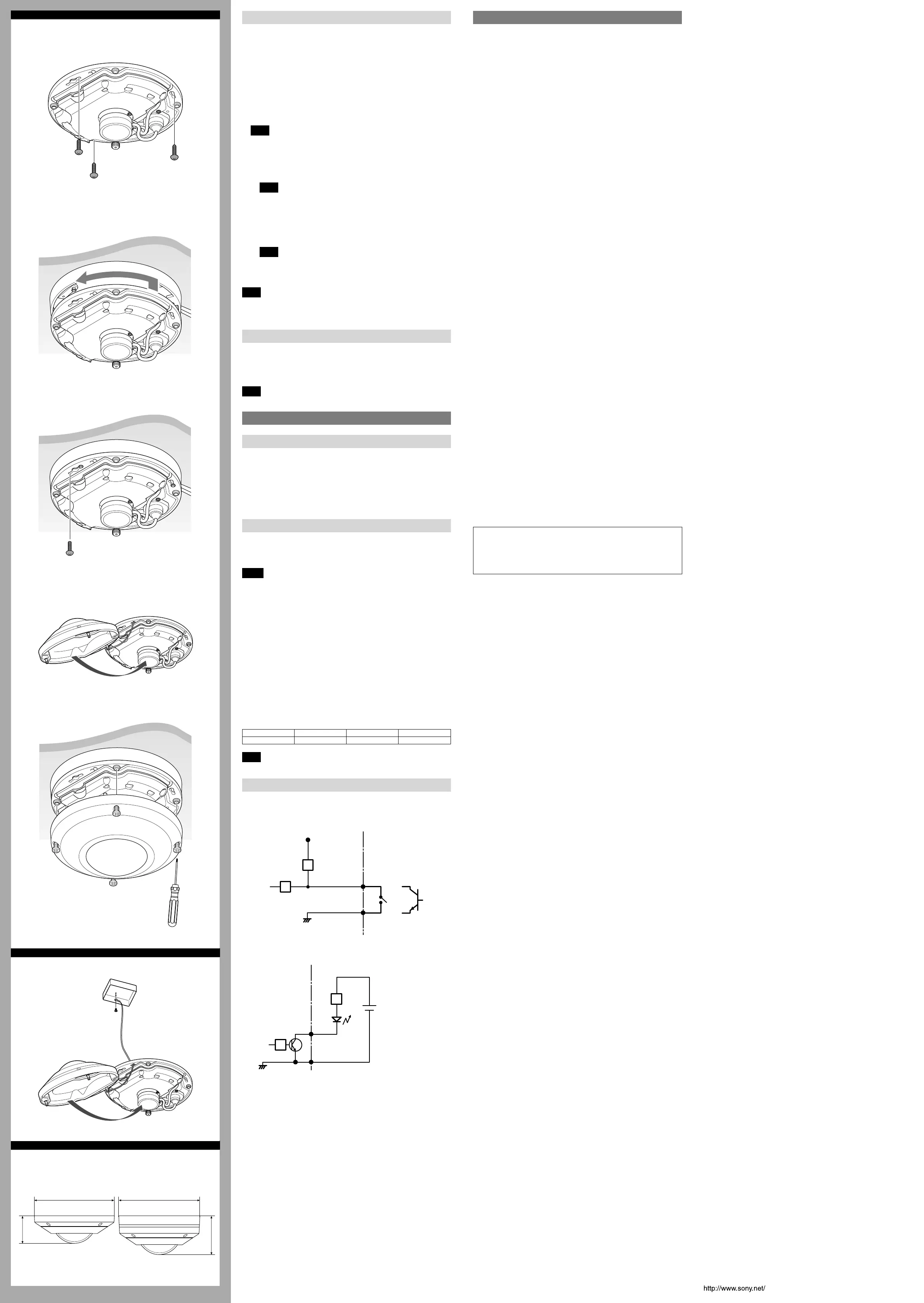

Installing the Camera 

Attach the camera base.

When you do not use the mounting plate

(When connecting cables from the bottom of the camera)

Secure the camera base on the ceiling/wall with the three screws. Refer to

“Mounting screws” for screws to be used.

When you use the mounting plate

(When connecting cables from the side of the camera)



Attach the camera base to the mounting plate, then turn the camera base

counterclockwise.



Tighten the camera mounting screws (supplied) with the supplied

screwdriver to secure the camera base to the mounting plate.

Note

Do not use other than the supplied screws. Otherwise, the camera unit may

not be secure and could fall.

2 Attach the dome case.



Replace the desiccant that is attached to the inside of the dome case, with

the supplied desiccant, using the supplied double-sided tape.

Note

When removing the desiccant from the Mylar sheet which is inside of the

dome cover, be careful not to deform the Mylar sheet.



Attach the dome case while the spring contact is aligned to the built-in

microphone contact.



Secure the dome case and camera base by tightening the four screws with

the supplied screwdriver.

Note

Be sure that all the screws are tightened correctly. Otherwise, waterproof

performance may be impaired.



Remove the protecting film from the dome cover.

Note

Do not install the camera to the place where the power cable, connecting cables,

or connectors are submerged. It may cause water to seep inside the camera, or

failure.

Attaching the fall prevention rope 

If you install the camera in a high place or ceiling, attach the optional fall

prevention rope to prevent the camera from falling.

Thread the rope through the strap hole of the camera as illustrated, then fix the

rope to the junction box, etc., on the ceiling/wall with a screw (not supplied).

For details of the fall prevention rope, contact your Sony dealer or sales agent.

Note

When attaching the rope, be sure not to short out the metal parts.

Connection

Connecting to the Network

Connect the LAN connector of the camera to a PoE* supported device (such as a

hub) using the network cable (straight, not supplied).

The electrical power is supplied through the network cable. For details, refer to

the instruction manuals of the PoE supported devices.

(* PoE: The acronym for Power over Ethernet. IEEE802.3af standard compliant

devices.)

It is also possible to connect the LAN port of the camera to a router or hub in the

network using a network cable (not supplied).

Connecting the Power Source

The camera can be powered in either of the following ways.

12 V DC



Power supply equipment pursuant to IEEE802.3af (PoE* system)



* PoE means Power over Ethernet.

Notes

Do not turn off the camera immediately after turning it on. Wait for at least five



minutes before turning off the camera.

Do not input 12 V DC power if power is supplied by a PoE system.



Connecting to the power supply equipment pursuant to IEEE802.3af

The power supply equipment pursuant to IEEE802.3af supplies the power

through the network cable. For details, refer to the Instruction Manual of the

equipment.

Connecting to 12 V DC source

Connect the power input terminal of the I/O cable (black) to a 12 V DC source.

Use a 12 V DC source isolated from 100 to 240 V AC. Usable voltage range is as



follows.

12 V DC: 10.8 V to 13.2 V

- In the USA, the product shall be powered by a UL Listed Class 2 Power

Supply Only.

- In Canada, the product shall be powered by a CSA certified Class 2 Power

Supply Only.

Use UL cable (VW-1 style 10368) for 12 V DC connection.



Recommended power cable

CABLE (AWG) #24 #22 #20

Max. length (m) 9 15 23

Note

Use the power supply equipment with surge protector.

Connecting the I/O Connectors

Wiring diagram for sensor input

Mechanical switch/open collector output device

Camera side

3.3 V

Mechanical switch

Open collector

output device

Outside

GND

Sensor input

Wiring diagram for alarm output

External power supply

(24 V DC max.)

Alarm Output

GND

Circuit example

GND

Camera side

Outside

When you do not use the mounting plate

When you use the mounting plate





Camera mounting screws (supplied)





Rope (not supplied)

Junction box, etc.

When you do not use the

mounting plate

When you use the mounting

plate

Unit: mm (inches)

Ø145.0 (5 /)

54.0 (2 /)

Ø147.0 (5 /)

70.0 (2 /)

Specifications

Compression

Video compression format JPEG/H.264

Audio compression format G.711/AAC

Maximum frame rate 1080p mode

30 fps

Fisheye mode (H.264)

10 fps

Fisheye mode (JPEG)

13 fps

Camera

Image device 1/2.5 type CMOS

Effective picture elements: Approx. 4,910,000

Minimum illumination F2.0/Auto gain control maximum rate MAX/50

IRE (IP)/10 fps (fisheye mode)

Color: 0.7 lx

Black & White: 0.3 lx

Lens

Focal length 0.98 mm to 1.12 mm

Maximum relative aperture F2.0

View angle Vertical: 182°

Horizontal: 182°

Minimum object distance 500 mm

Interface

LAN port (PoE) 10BASE-T/100BASE-TX, auto negotiation (RJ45)

I/O port Sensor input: × 1, make contact, break contact

Alarm output: × 1 (24 V DC, 0.5 A)

microSD memory card slot

Microphone input Minijack (monaural)

Plug-in-power supported (rated voltage: 2.5 V DC)

Recommended load impedance: 2.2 k

Line output Minijack (monaural), Maximum output level:

1 Vrms

Others

Power supply IEEE802.3af compliant (PoE system)

12 V DC ±10%

Power consumption 6.0 W max.

Operating temperature Start temperature: −20 °C to +50 °C (−4 °F to

+122 °F)

Working temperature: −30 °C to +50 °C (−22 °F

to +122 °F)

Storage temperature −25 °C to +60 °C (−13 °F to +140 °F)

Operating humidity 20% to 90%

Storage humidity 20% to 95%

Dimensions (diameter/height) 

145.0 mm × 54.0 mm (5 / inches × 2 / inches),

not including the mounting plate

Mass Approx. 640 g (1 lb 6.6 oz), not including the

cables and mounting plate

Supplied accessories CD-ROM (supplied programs) (1)

I/O cable (1)

Mounting plate (1)

Alignment sticker for the mounting plate (1)

Alignment sticker for the camera base (1)

Camera mounting screws (1)

Double-sided tape (1)

Rubber seal plug (1)

Rubber washer (1)

Safety Regulations, Installation Manual (1 set)

Screwdriver (1)

Desiccant (1)

Design and specifications are subject to change without notice.

Recommendation of Periodic Inspections

In case using this device over an extended period of time, please have it

inspected periodically for safe use.

It may appear flawless, but the components may have deteriorated over time,

which may cause a malfunction or accident.

For details, please consult the store of purchase or an authorized Sony dealer.

Produkt Specifikationer

Mærke:	Sony
Kategori:	Overvågningskamera
Model:	SNC-HM662
Type:	IP-sikkerhedskamera
Vægt:	640 g
Produktfarve:	Black, White
Formfaktor:	Kuppel
Opbevaringstemperatur (T-T):	-25 - 60 °C
Relativ luftfugtighed ved opbevaring (H-H):	20 - 95 %
Ethernet LAN-porte (RJ-45):	1
Ethernet LAN:	Ja
Understøttede videoformater:	H.264, M-JPEG
Driftstemperatur (T-T):	-30 - 50 °C
Maksimal opløsning:	2560 x 1920 pixel
Sikkerhedsalgoritmer:	HTTPS
Understøttede grafikopløsninger:	1280 x 720 (HD 720), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Forbindelsesteknologi:	Ledningsført
Kabelteknologi:	10/100Base-T(X)
Understøttede netværksprotokoller:	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSPoverTCP, RTSPoverHTTP, SMTP, IPv6, HTTPS, SNMP (v1, 2c, 3), SSL
Strømkilde type:	PoE
Monteringstype:	Loft
Diameter:	145 mm
Understøttet placering:	Indendørs & udendørs
Understøttede Windows-operativsystemer:	Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Pro, Windows 8 Pro x64, Windows Vista Ultimate, Windows XP Home, Windows XP Professional
Hvidbalance:	ATW, Manual
Sensortype:	CMOS
Samlet antal megapixels:	5 MP
Optisk zoom:	- x
Digital zoom:	12 x
Længde:	54 mm
Progressiv scanning:	Ja
Strøm over Ethernet (PoE):	Ja
Bredt dynamikområde (WDR):	Ja
Dag/nat funktion:	Ja
Minimumsbelysning:	0.3 Lux
Rotationsvinkel:	360 °
Optisk sensorstørrelse:	1/2.5 "
Billedhastighed:	13 fps
HTTPS -kryptering:	Ja
Brændviddeområde:	0.98 - 1.12 mm
Minimum processor:	Intel Corei7 2.8 GHz
Minimum RAM:	2048 MB
Objektivets synsvinkel, vandret:	182 °
