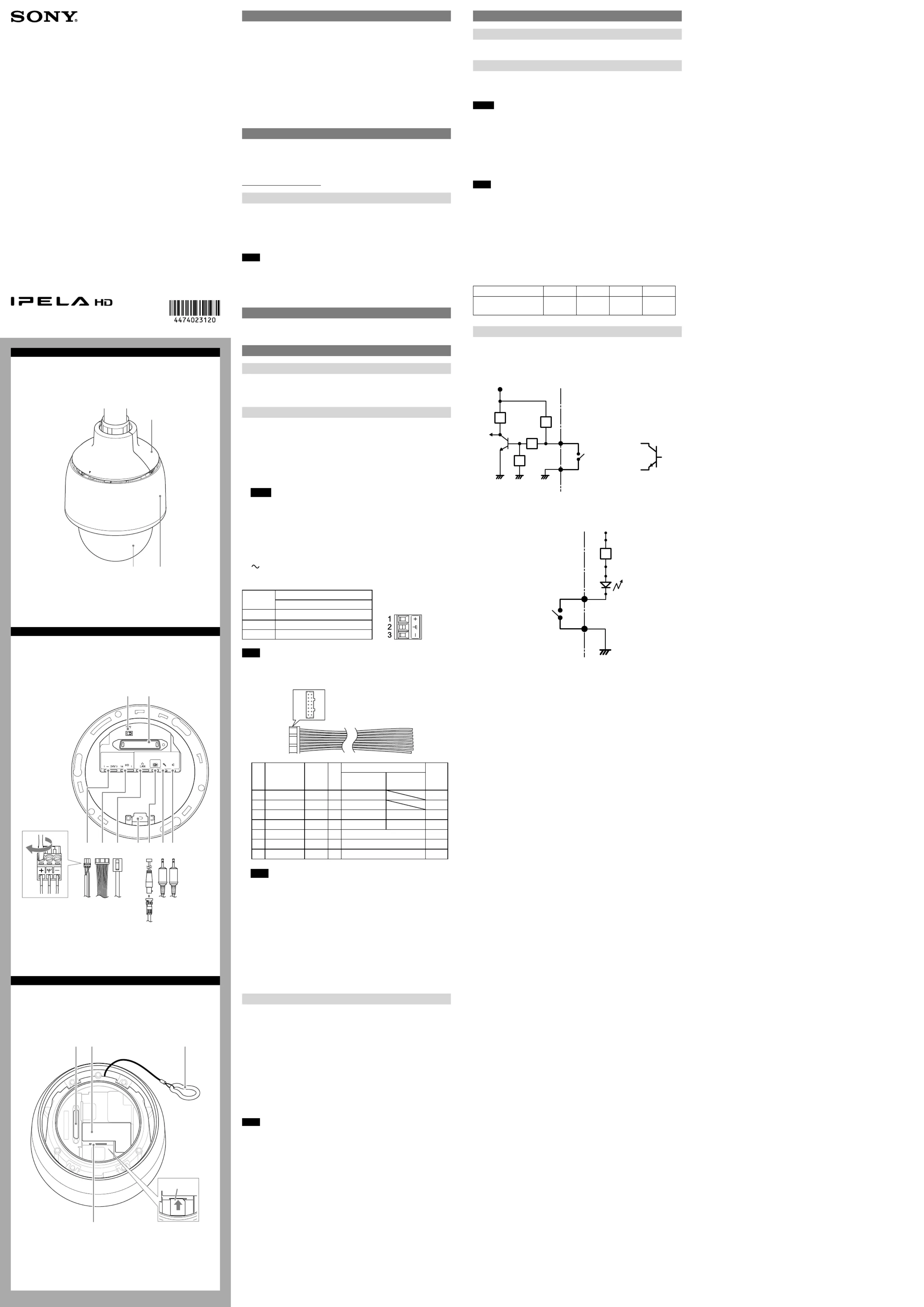

About the Manuals

Installation Manual (this document)

This Installation Manual describes the names and functions of parts and controls

of the Network Camera, gives connection examples and explains how to set up

the camera. Be sure to read the Installation Manual before operating.

SNC easy IP setup Guide (stored in the CD-ROM)

User’s Guide/Application Guide (Web)

The User’s Guide describes how to set up the camera and how to control the

camera via a Web browser.

After installing and connecting the camera correctly, operate referring to this

User’s Guide.

Using the software

The supplied CD-ROM includes the setup program for assigning an IP address.

The information for how to set up an IP address is also included in the disc in PDF

format.

User’s Guide and Application Guide can be downloaded from the disc, or the

following URL:

http://www.sony.net/ipela/snc

Using the CD-ROM manual

The manual can be read on a computer with Adobe Reader installed.

You can download Adobe Reader free from the Adobe website.

1 Open the index.html file in the CD-ROM.

2 Select and click on the manual that you want to read.

Note

If you have lost or damaged the CD-ROM, you can purchase a new one from your

Sony dealer or Sony service counter.

Adobe and Acrobat Reader are trademarks of Adobe Systems Incorporated in the

United States and/or other countries.

Assigning the IP address

Assign the IP address using the setup program in the supplied CD-ROM.

For details on how to set up the IP address, see SNC easy IP Setup Guide.

Location and Function of Part

Camera (Front) 

Top sunshade

 Dome cover

 Sunshade

Top Unit (Bottom) 

Reset switch

This switch returns the setting of the device to the factory default setting.

1. Move the INIT switch in the direction indicated by and connect with 

camera.

2. Turn on power and wait 1 minute. After the initialization is completed, the

camera starts.

3. Check that the camera has started and turn off the power to remove camera.

4. Move the INIT switch back to its original position.

Notes

Resetting the device removes all customized settings. It is recommended ˎ

that users save the settings as necessary. Instructions on how to save

settings are available in the User’s Guide.

The reset switch should always be returned to its original position. ˎ

Otherwise your device is reset to its factory default setting whenever it is

turned on.

 Camera connection terminal

Connect to the camera connection terminal of the camera.

 AC 24 V (power input) terminal

Use the supplied AC connector to connect to the 24 V AC power supply system.

Pin No.

Pin name

AC24V

1 AC24V+

2 Frame Ground

3 AC 24V-

Note

Be sure to connect the Frame Ground to the specified terminal.

 I/O (Input/Output) port

Provides four sensor inputs and two alarm outputs.

No.

Pin name

Color

RS422/

RS485(Full)

RS485

(Half)

13 Alarm Out 2-

Alarm Out 2+

GND

Yellow

Orange

Red

Brown

Black

Purple

Tx-/Rx-

Tx+/Rx+

Rx-

Rx+

Tx-

Tx+

Pin name Color

GND

Blue

Yellow

Orange

Red

Brown

Black

Alarm Out 1-

Alarm Out 1+

Sensor in 4

Sensor in 3

Sensor in 2

Sensor in 1

No.

Note

For details about functions and settings, see the user’s guide.

  LAN (network) port (RJ-45)

Connect to a 10BASE-T or 100BASE-TX network using a network cable (UTP,

category 5).

 Harness holder

Attach the supplied band mount.

  (video output) terminal

Outputs a composite video signal. Use the supplied monitor cable to connect to

the camera.

(microphone input) terminal (minijack, monaural)

Connect a commercially available microphone.

(line output) terminal (minijack, monaural)

Connect to a commercially available speaker with a built-in amplifier.

Camera (Top) 

Camera connection terminal

Connect to the camera connection terminal of the top unit.

Rating Label

This label shows the name of device and its electric rating.

 Built-in wire rope

The wire rope is used for fall-prevention.

 SD memory card slot

This slot is used for an optional SD memory card.

Images captured by the camera can be stored into an inserted memory card.

Be sure that the printed side of a memory card and the product specifications

label face in the same direction, and then insert the card firmly into the slot. ( )a

This unit only supports memory card formats compatible with the SD/SDHC

standards.

Note

For information about Sony-approved SD memory cards, contact your Sony

dealer.

Connection

Connecting to the Network

Connect the LAN port of the camera unit to a router or hub in the network using

the network cable (not supplied).

Connecting the Power Source

The following power sources can be used.

HPoE+ 4 line power-supply ˎ

24 V AC ˎ

Notes

Do not turn o the camera immediately after turning it on. Wait for at least ve ˎ

minutes before turning o the camera.

If power is supplied by an HPoE+ system, do not install the wiring for 24 V AC. ˎ

Perform grounding of the frame ground only.

HPoE+ 4 line power-supply

The power is supplied by using PD9501G of PowerDsine or a similar power supply

device via a network cable.

For details, refer the manual of the power supply device.

Note

If the power is supplied by HPoE+, the integrated heater is not available. Use the

camera in the activation temperature range of 0 °C to 50 °C (32 °F to 122 °F).

Connecting to a 24 V AC power source supply

Connect the 24 V AC power supply system to the power input terminal of the

camera. The AC power cable is not supplied.

Use a 24 V AC power source isolated commercial power supply. ˎ

The usable voltage range is as follows: ˎ

24 V AC: 21.6 to 26.4 V

Use a UL cable (VW-1 style 10368) for 24 V AC connection. ˎ

Recommended power cable

24 V AC

Cable(AWG) #22 #20 #18 #16

Maximum cable length

(m (feet))

5 (16.4) 8 (26.2) 15 (49.2) 21 (68.9)

Connecting the I/O Cable

Wiring diagram for sensor input

Mechanical switch/open collector output device

Camera inside

3.3 V

2.2 kohms

GND

Mechanical

switch

Open collector

output device

Outside

GNDGND

10 kohms

GND

Sensor Input 1, 2, 3, 4

Wiring diagram for alarm output

Camera inside

Alarm Output +

Magnet relay

24 V AC

24 V DC,

1 A or less

Alarm Output –

Outside

24 V DC

Circuit example

GND

(continued on the reverse side)

4-474-023- (1)12

Printed in China

Network Camera

SNC-WR632/WR602

Installation Manual

Before operating the unit, please read this manual thoroughly and

retain it for future reference.













 



 











Printed side

Band mount

Harness band

Cable

100 mm to 125 mm

(4 inches to 5 inches)

Keep parallel

9,10

Fall-

prevention

wire

Top unit

Camera

O-ring

Align the triangular

and square marks

Bolts (3)

Top unit

Camera

Top sunshades

13,14

Align the triangular marks

Screw

Top sunshade

324.1 (12 7/ )8

ø222 (8

/ )4

Unit: mm (inches)

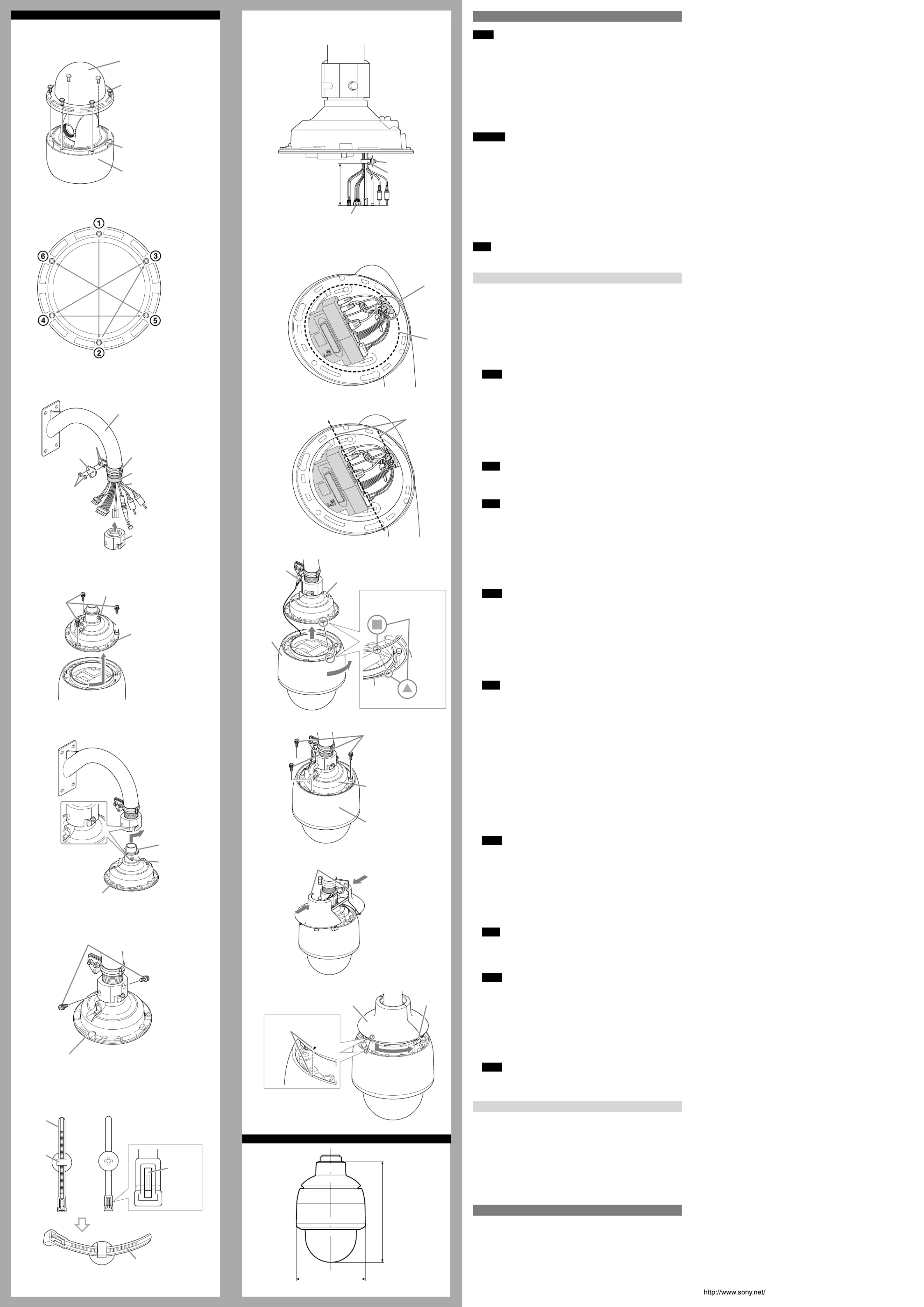

How to install the camera

O-ring

Dome cover

Screws (6)

Camera

2,3

Mounting arm

(not supplied)

Wire-fixing belt

Shield tape

(not supplied)

Cable

Coupling

Bolts

Wire

bracket

Nuts

Locking screws (2)

Top unit

Bolts (3)

Waterproof

seal

Locking

screws (2)

Top unit

Bolts (2)

Top unit

Harness

band

Always have the stopper side

face down and tie the cables.

Harness

mount

Release

button

Camera

Camera system SNC-WR632: Camera FHD (1080 60P)

SNC-WR602: Camera HD (720 60P)

Signal system NTSC/PAL switching system

Image device 1/2.8 type CMOS

Effective picture elements

SNC-WR632: Approx. 2,140,000

SNC-WR602: Approx. 1,370,000

Synchronizing Internal synchronization

Minimum illumination SNC-WR632: 1.4 lx (F1.6/AGC ON/50 IRE (IP))

SNC-WR602: 1.0 lx (F1.6/AGC ON/50 IRE (IP))

Horizontal resolution 480 TV (analog video output)

Video S/N 50 dB or more (AGC 0 dB)

Lens

Focal length SNC-WR632: f = 30.2 mm to 904.9 mm (35 mm

equivalent)

SNC-WR602: f = 33.0 mm to 990.0 mm (35 mm

equivalent)

Maximum relative aperture F1.6 (wide), F4.7 (tele)

Minimum object distance 300 mm

Mechanism

Pan 360°, endless rotation

Maximum speed: 700°/s

Tilt 220° (with auto invert function)

Maximum speed: 700°/s

Interface

Network port 10BASE-T/100BASE-TX, auto negotiation (RJ-45)

I/O port Sensor input: × 4, make contact

Alarm output: × 2, 24 V AC/DC, 1 A

(mechanical relay outputs electrically isolated

from the camera)

Video output VIDEO OUT: BNC, 1.0 Vp-p,

75 ohms, unbalanced, sync negative

SD card slot

Microphone input Minijack (monaural)

Plug-in-power supported (rated voltage: 2.5 V DC)

Recommended load impedance 2.2 kohms

* A selector menu allows switching between

microphone input and line input

Line input Minijack (monaural)

Recommended load impedance 10 kohms

Line output Minijack (monaural), Maximum output level:

1 Vrms

Serial communication RS485/RS422

Others

Power supply HPoE+ 4 line power-supply

24 V AC ± 10%, 50 Hz/60 Hz

Power consumption Max. 80 W

Operation temperature 24 V AC: –40 °C to +50 °C (–40 °F to +122 °F)

HPoE+: –5 °C to +50 °C (23 °F to +122 °F)

Activation temperature 24 V AC: –40 °C to +50 °C (–40 °F to +122 °F)

HPoE+: 0 °C to +50 °C (32 °F to +122 °F)

Storage temperature –20 °C to +60 °C (–4 °F to +140 °F)

Operating humidity 20% to 80%

Storage humidity 20% to 95%

Dimensions (Diameter/Height) 

ø222 mm × 324.1 mm (ø8

/ inches × 4

/ inches) (Not including the projecting parts)8

Mass Approx. 4.1 kg (9 lb 0.6 oz)

Supplied accessories Dome cover (1)

Top sunshade (1)

Coupling (1)

Wire-fixing belt (1)

Wire bracket (1)

Bolts (2)

Power supply connector 3-pin (1)

I/O harness 14-pin (1)

Monitor cable (1)

Harness band (1)

Band mount (1)

Installation manual (1 set)

CD-ROM (supplied programs) (1)

Optional accessories

Dome Cover Smoked YT-LDR632S

Design and specifications are subject to change without notice.

Installation

Notes

Do not allow water to come in contact with the power cable, connection ˎ

cables or connectors, as it may cause water leakage into this device, and

subsequent damage.

The mounting arm (not supplied) to which the device is attached should have ˎ

xing screws of NPT 1 1/2” specied by a Sony dealer. Using an unspecied

mounting arm may cause water leakage into this device, and subsequent

damage. Be sure to use the specied mounting arm.

The lens zoom and angle may result in a blurred or inclined image within the ˎ

range above the horizon of the lens position.

To prevent the dome cover from damage and stain, do not remove the ˎ

protecting sheet from the dome cover until the setting is completed.

WARNING

If installing the camera in high location, such as high wall, entrust the ˎ

installation to a professional contractor or service personnel.

The camera should be securely installed on a location strong enough to ˎ

support the weight of the camera and the mounting arm. Otherwise, the

camera and mounting arm may fall and cause serious injury.

For the fall-prevention of the camera, make sure to use the wire rope. ˎ

If the bolts are attached loosely or loosen, the camera and parts may fall. There ˎ

may also be a risk of water leakage. Make sure to tighten the bolts and screws

so that they will not loosen.

Check the camera is attached securely, the screws, etc. are not loosened ˎ

periodically, at the least once a year. Depending on the usage conditions,

periodic inspections should be conducted more frequently.

Note

Use the supplied screws to install the unit. Using other screws may cause damage

inside the unit.

How to Install 

Before installation

Referring to the installation manual of the mounting arm (not supplied), drill the

required holes for the mounting screws and the connection cable. Then install

the mount arm in advance. After that, wrap the screw part of the mounting arm

in a shield tape (not supplied).

How to install the camera

1 Attach the dome cover to the camera. (a)

Tighten the six screws in the specified order (1 to 6). (b)

Notes

Remove the drafting tape from the O-ring before attaching the dome ˎ

cover.

Be sure to properly place the O-ring in the groove rmly before attaching ˎ

the dome cover. If the O-ring is not properly and rmly placed, waterproof

performance may be compromised.

The six screws should be tightened to 1.2 N•m. ˎ

2 Attach the supplied wire-fixing belt and wire bracket to the mounting

arm (not supplied). Then secure the wire-fixing belt and wire bracket to

the mounting arm by tightening two nuts.

Note

The two bolts should be tightened to 5.2 N•m.

3 Screw the supplied coupling on the mounting arm.

Note

If the coupling is attached loosely or loosens, the camera may fall. Securely

put the coupling around the mounting arm so that it will not loosen.

4 Remove the three bolts from the top part of the camera, and turn the top

unit until it stops, then pull it upward to remove it from the camera.

Have a 5 mm (

/ inch) hex wrench ready to loosen the bolts.32

5 Attach the top unit to the mounting arm.

Place the locking screws fixed to the top unit in the groove of the

coupling and turn the top unit until it stops, in the direction of the arrow.

Notes

Remove the drafting tape from the waterproof seal before attaching the ˎ

mounting arm.

Be sure to verify that the locking screws are not loose. If the locking screws ˎ

are loose, the camera may fall. The locking screws should be tightened to

5.2 N•m.

Be sure to tighten the waterproof seal properly to the top unit before ˎ

attaching; otherwise, waterproof performance may be compromised.

6 Attach the two supplied bolts to the screw holes of the coupling and

tighten them.

Note

The two bolts should be tightened to 5.2 N•m.

7 Run the supplied harness band through the band-mounting hole (a), tie

the cables at 100 mm to 125 mm (4 inches to 5 inches) from the cable

head (b).

If the tied position is not appropriate, push the release button of the

harness band to loosen, and tie the cables again.

8 Secure the band mount to the harness holder (a), and connect the cables.

Push the cables into the top unit (b).

Be sure that all cable connection sides of the top unit are in parallel with

the harness holder. (c)

9 Hook the fall-prevention wire of the camera on the hole of the wire

bracket.

Align the triangular mark of the camera and square mark of the top unit

and push the camera into the top unit. Then turn the camera until it

stops, in the direction of the arrow.

Notes

Be sure to properly place the O-ring in the groove rmly before attaching ˎ

the camera. If the O-ring is not properly and rmly placed, waterproof

performance may be compromised.

Be sure that the camera connection terminal of the top unit is in parallel ˎ

with the harness holder before pushing the camera into the top unit.

To prevent the cables from getting caught, push the slack part of the ˎ

cables into the top unit before attaching the camera.

Attach the camera to the top unit using the three bolts which were

removed in step 4.

Note

The three bolts should be tightened to 5.2 N•m.

Separate the provided top sunshade and reattach the separated parts

above the camera to return the top sunshade to its original form.

Notes

Run the fall-prevention wire through the top sunshade. ˎ

Securely attach the top sunshade so that the snap hook will not get caught ˎ

in it.

Align the respective triangular marks of the camera and top sunshade

and push the top sunshade into the camera. Then turn the sunshade

until it stops, in the direction of the arrow.

Secure the camera and top sunshade using the screw on the top

sunshade.

Notes

Please make sure to attach the top sunshade. The top sunshade prevents ˎ

the device from overheating in direct sunlight.

The screw should be tightened to 1.2 N•m. ˎ

Removing the camera

1 Remove the one screw that secures the top sunshade to the camera in

Step 14 of “How to install the camera” to remove the top sunshade.

2 Remove the three bolts used in Step 11 of “How to install the camera.”

3 Turn the top unit to the position where the triangular mark of the

camera and the square mark of the top unit align, and pull the camera

out downwards.

4 Remove the fall-prevention wire of the camera from the hole of the wire

bracket.

Specifications

Network

Protocol TCP/IP, ARP, ICMP, HTTP, FTP (server/client), SMTP

(client), DHCP (client), DNS (client), NTP (client),

SNMP (MIB-2), RTP/RTCP

Compression

Video compression format JPEG/H.264

Audio compression format G.711/G.726 (40, 32, 24, 16 kbps)

Maximum frame rate SNC-WR632: JPEG/H.264: 60 fps (1920 × 1080)

SNC-WR602: JPEG/H.264: 60 fps (1280 × 720)

Produkt Specifikationer

Mærke:	Sony
Kategori:	Overvågningskamera
Model:	SNC-WR632
Kode for international beskyttelse (IP):	IP66
Type:	IP-sikkerhedskamera
Vekselstrømsindgangsspænding:	24 V
Vægt:	4100 g
Brugervejledning:	Ja
Produktfarve:	Hvid
Kompatible hukommelseskort:	SDHC
Wi-Fi:	Ingen
Formfaktor:	Kuppel
Understøttede videotilstande:	1080p
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Relativ luftfugtighed ved opbevaring (H-H):	20 - 95 %
Format til analogt signal:	NTSC, PAL
Ethernet LAN-porte (RJ-45):	1
Ethernet LAN:	Ja
Understøttede videoformater:	H.264, M-JPEG
Understøttede lydformater:	AAC
Driftstemperatur (T-T):	-40 - 50 °C
Maksimal opløsning:	1920 x 1080 pixel
Understøttede grafikopløsninger:	352 x 288,704 x 576,720 x 480,720 x 576,1024 x 576 (WSVGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),640 x 480 (VGA)
Forbindelsesteknologi:	Ledningsført
Kabelteknologi:	10/100Base-T(X)
Understøttede netværksprotokoller:	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL
Strømkilde type:	PoE
Monteringstype:	Væg
Diameter:	2220 mm
Indbygget kortlæser:	Ja
Understøttet placering:	Udendørs
Mikrofonindgang:	Ja
Understøttede Windows-operativsystemer:	Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Pro, Windows 8 Pro x64, Windows Vista Business, Windows Vista Ultimate, Windows XP Home, Windows XP Professional
Hvidbalance:	ATW, Fluorescent L, Lamp, Manual, Outdoor
Sensortype:	CMOS
Samlet antal megapixels:	2.38 MP
Optisk zoom:	30 x
Digital zoom:	12 x
Længde:	324.1 mm
Hældningsvinkelområde:	0 - 220 °
Strøm over Ethernet (PoE):	Ja
Bredt dynamikområde (WDR):	Ja
Dag/nat funktion:	Ja
Minimumsbelysning:	0.1 Lux
Panoreringsområde:	0 - 360 °
Optisk sensorstørrelse:	1/2.8 "
Zoom kapacitet:	360
Billedhastighed:	60 fps
Bevægelsessensor (video):	Ja
Brændviddeområde:	4.3 - 129 mm
Kameraets lukkerhastighed:	1/1 s - 1/10000 sek./side
Signal/støjforhold:	50 dB
PTZ-kontrol:	Ja
Hældningshastighed:	700 grader i sekundet
Panoreringshastighed:	700 grader i sekundet
Minimum processor:	Intel Corei7 2.8 GHz
Minimum RAM:	2048 MB
Aktiv manipulering af alarm:	Ja
Alarmindgang/-udgang:	Ja
