Side 1/4

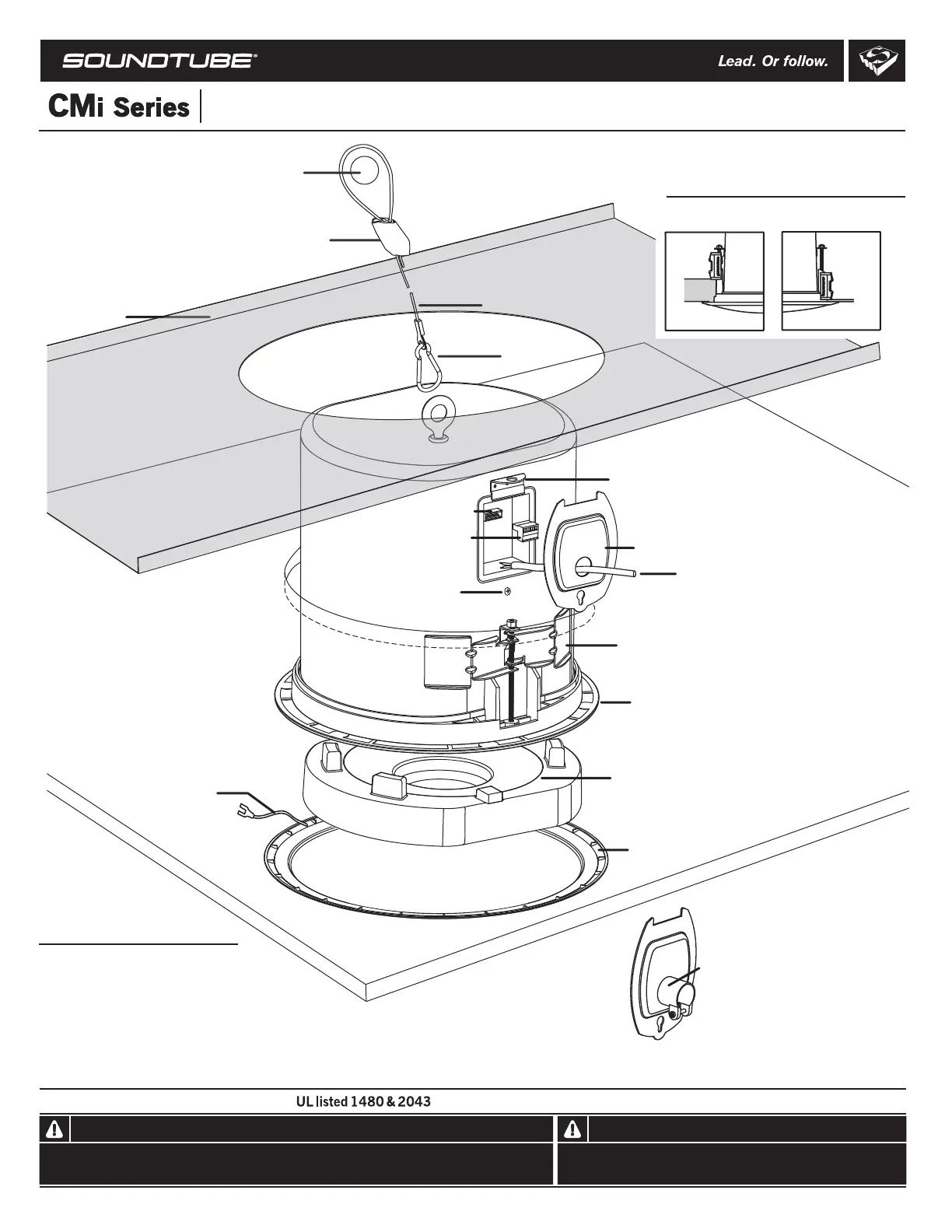

CMi Series

If not painting

If painting

Seismic restraint anchor tab

Euroblock connector

Conduit cover plate

Strain relief (not included)

may be used with conduit cover plate.

Tile bridge

Euroblock jack

Baffle

Grille and bezel

Styrofoam installation aid/paint mask

Speed Wing™ mounting arms

Cover plate clamping screw

Box contents

CM800d, CM890d, and CM1001d-

1 Speaker

1 Euroblock connector

1 Grille and bezel

1 Styrofoam installation aid/paint mask

1 Conduit cover plate

1 Tile bridge

1 Suspension cable

Install Instructions For:

CM800d, CM890d and CM1001d speakers

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

1.435.647.9555

| 800.647.TUBE |

www.soundtube.com

Signal wire

Min

6.4 mm (0.25 in)

Max

42.9 mm (1.69 in)

Ceiling thickness tolerances

Grille and bezel

seismic restraint

Suspension cable

Carabiner

SpeedClamp™

Secure anchor point

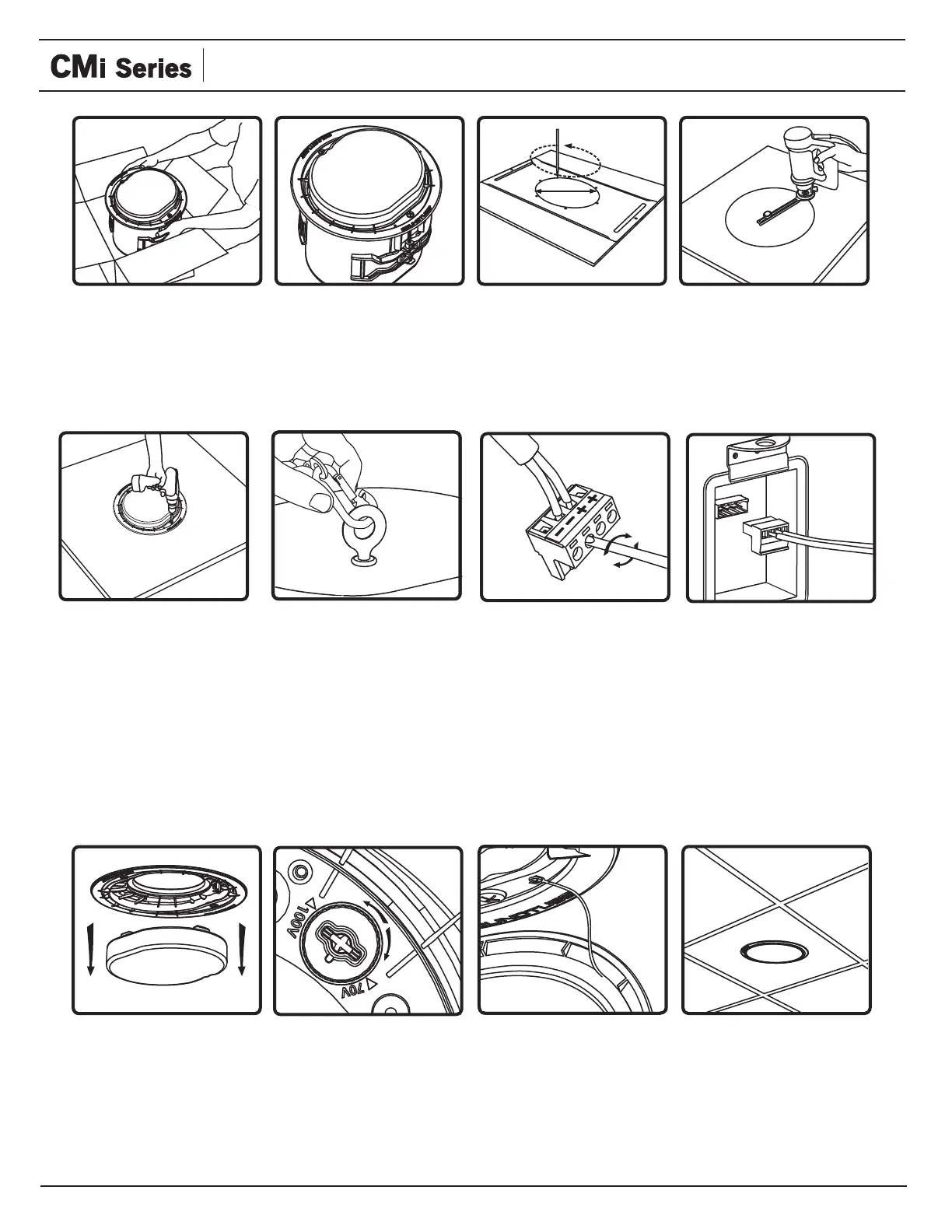

CMi Series

2. Keep Styrofoam

installation aid/paint

mask attached to speaker

until speaker installation

is complete.

If not painting

If painting

1. Unpack speaker & set

aside grille assembly.

3. Use included tile bridge

to mark cutout in tile.

4. Use Rotozip or other tool

to cut hole. Hole diameter

325.1 mm (12.80 in)

11. Select the tap position

by adjusting rotary switch

to desired high impedance

value or voice coil bypass

mode. Switch is preset to

maximum tap setting in

70.7 V mode.

12. Attach grille & bezel

seismic restraint to baffle

with provided screw .

5. Insert speaker into

mounting hole on ground

with installation aid in

place. Tighten both bolts

located on the baffle face to

actuate the mounting wings.

Firmly secure both sides –

do not over-tighten. Replace

assembled tile and speaker

into tile grid.

6. For added support attach

eyelet end of suspension cable

to the rear of speaker using

the carabiner. Attach the other

end of support cable to secure

structure using speedclamp. If

required, attach the seismic

restraint system to the

sheet-metal tab on the side

of speaker (seismic restraint

not included).

7. Thread signal wire through

conduit cover plate. Connect

signal wire to 4-pin Euroblock

plug. Tighten unused terminal

screws. Use inside positive

and negative inputs for either

voice coil or distributed

systems. For daisy chaining,

use outside positive and

negative terminals. Euroblock

must be plugged in for dasiy

chain to function.

8. Insert the Euroblock plug

into the Euroblock jack on

side panel of speaker and

replace conduit cover plate.

For UL-compliant installations

strain relief (not supplied)

may be inserted into hole

in conduit cover plate.

1.435.647.9555

| 800.647.TUBE |

www.soundtube.com

Droptile Ceiling Install Instructions For:

CM800d, CM801d, CM890d and CM1001d speakers

13. Attach grille – position the

grille over the baffle and allow

magnets to attract grille into

place. Be sure grille is properly

centered over baffle.

9. If you are not painting the

ceiling, remove & discard the

paint mask.

10. If you are painting the

ceiling after the speaker is

installed, leave the paint mask

in place until paint is dry.

Produkt Specifikationer

Mærke:	SoundTube
Kategori:	Højttaler
Model:	CM1001D-T
Vægt:	12300 g
Antal pr. pakke:	1 stk
Brugervejledning:	Ja
Produktfarve:	Black, Stainless steel
Pakkevægt:	12290 g
Pakkedybde:	431.8 mm
Pakkebredde:	444.5 mm
Pakkehøjde:	444.5 mm
Bluetooth:	Ingen
Udgangseffekt (RMS):	150 W
Husmateriale:	Acrylonitrilbutadienstyren
Pakketype:	Kasse
Anbefalet brug:	Universel
Frekvensområde:	55 - 118 Hz
Impedens:	4 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	- kanaler
Højttaler, placering:	I væggen/i loftet
Certificering:	CE, RoHS, UL1480A, UL2043
Bæredygtighedscertifikater:	CE, RoHS
Diskanthøjttaler:	Ja
Sensitivitet:	89 dB
Delefrekvens:	100000 Hz
Diskant diameter:	11.68 "
Bashøjttaler:	Ja
Forstærker:	Ingen
Woofer diameter (britisk mål):	10 "
