Do not spec or install speaker near support beam, ventilation duct or other

structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for optimum

audio performance, installer must follow all directions issued by SoundTube Entertainment.

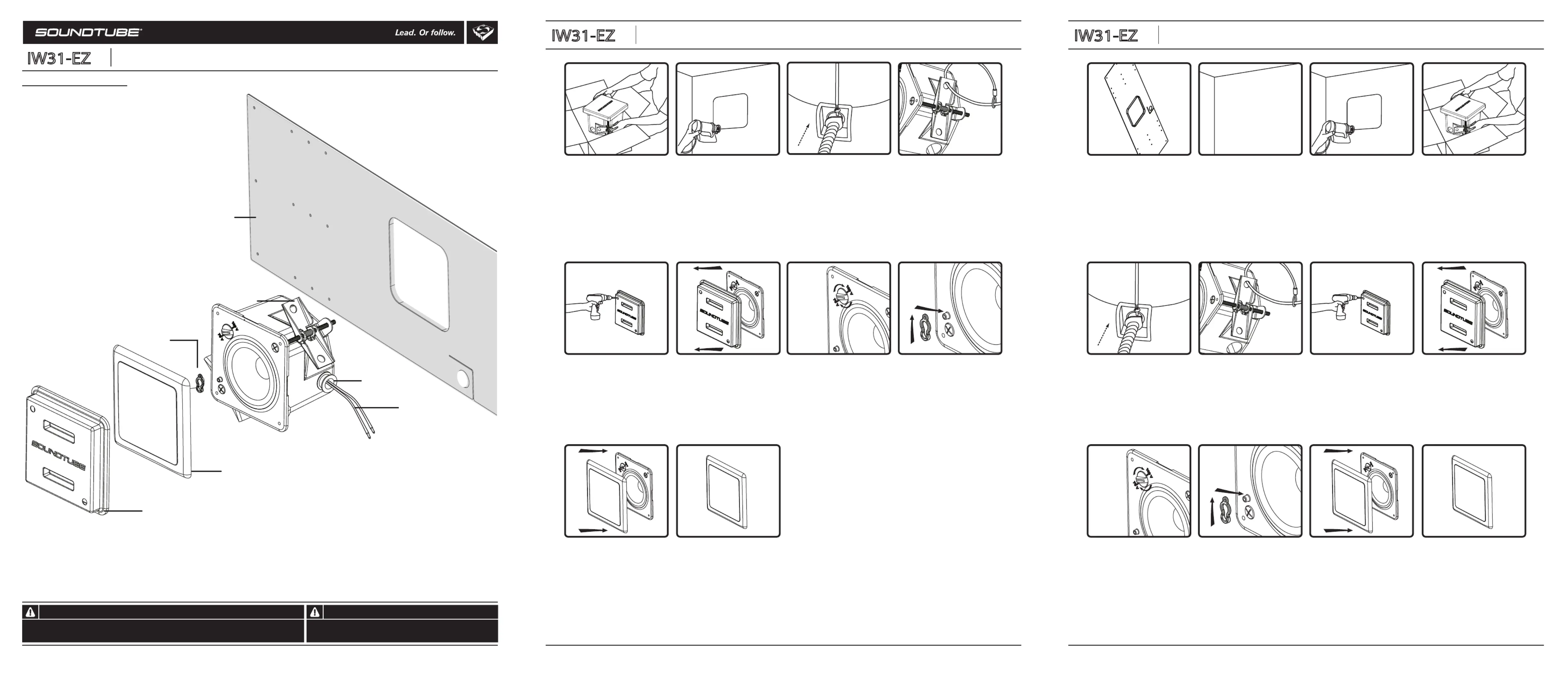

Grille

Installation aid/paint mask

SpeedWing™ mounting arms

Grille safety clip

Signal wires

Pre-construction bracket (sold separately)

1. Unpack speaker. Leave

paint mask in place until

after speaker is installed or

painting is complete.

4. Unpack speaker. Leave

paint mask in place until

after speaker is installed or

painting is complete.

5. Insert speaker in hole.

Tighten the two clamping

screws. DO NOT

OVERTIGHTEN .

6. If required, attach

seismic restraint system to

the hole in the metal

clamping arm, then to

reinforced structure (safety

cable not included).

2. Use provided cutout

template to mark hole. Use

RotoZip or other tool to cut

hole in wall. Hole size: 4.25

in. (108 mm) tall x 4.25 in.

(108 mm) wide.

4. If required, attach

seismic restraint system to

the hole in the metal

clamping arm, then to

reinforced structure (safety

cable not included).

6. Remove paint mask

unless painting is required.

In that case, follow steps

7-10 when painting is

complete.

10. 12. Done! Done!

8. Attach grille safety clip by

placing the large end of the

clip over snap-t post (1),

then sliding clip until small

end snaps into place around

post (2).

7. Adjust tap switch to

proper setting. Switch is

preset to the highest setting

in the 70.7-volt mode.

1. Nail or screw bracket to

studs.

5. Feed speaker wires

through conduit clamp and

connect with wire nuts. Push

wire nuts into backcan and

ax conduit clamp.

2. Finish installing wall. Use RotoZip or other tool 3.

to cut hole.

3. Feed speaker wires

through conduit clamp and

connect with wire nuts. Push

wire nuts into backcan and

ax conduit clamp.

8. Remove paint mask

unless painting is required.

In that case, follow steps

9-12 when painting is

complete.

9. Adjust tap switch to

proper setting. Switch is

preset to the highest setting

in the 70.7-volt mode.

7. Insert speaker in hole.

Tighten the two clamping

screws. DO NOT

OVERTIGHTEN .

10. Attach grille safety clip

by placing the large end of

the clip over snap-t post

(1), then sliding clip until

small end snaps into place

around post (2).

11. Align tabs on snap-t

grille with slots in bae,

gently press grille into place.

9. Align tabs on snap-t grille

with slots in bae, gently

press grille into place.

Box contents

1 Speaker

1 Grille

1 Paint mask

1 Cutout hole template

2 Wire nuts

1 UL-listed conduit clamp

IW31-EZ

Pre-Construction Bracket Instructions For:

IW31-EZ speaker

1.435.647.9555

| | 800.647.TUBE

www.soundtube.com

IW31-EZ

Installation Instructions For:

IW31-EZ speaker

1.435.647.9555

| | 800.647.TUBE

www.soundtube.com

Install Instructions For:

IW31-EZ speaker

IW31-EZ

Flexible conduit clamp
