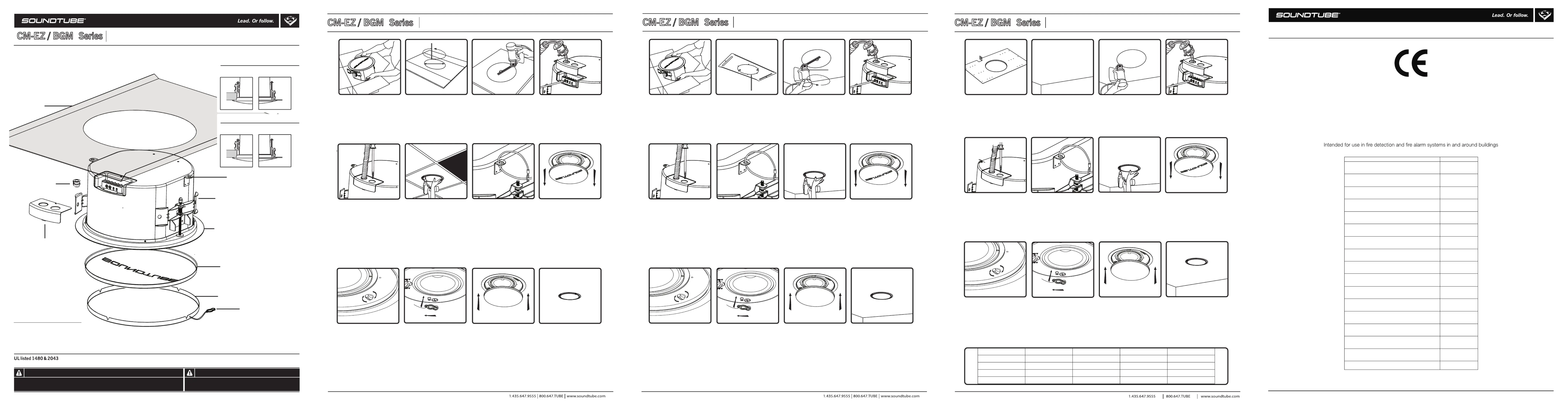

Side 1/1

Tile bridge

Baffle

Installation aid/paint mask

Grille

Grille safety restraint

Speed Wing™ mounting arms

Box contents

1 Speaker

1 Flexible conduit clamp

1 Cover plate

1 Grille

1 Installation aid/paint mask

1. Unpack speaker & set

aside grille assembly.

2. Use included tile bridge

to mark cutout in tile.

3. Use Rotozip or other tool

to cut hole.

9. Select the tap position by

adjusting rotary switch

to desired high impedance

value or voice coil direct

mode.

11. Done!10. Press grille into place.

6. Insert speaker into

mounting hole with

installation aid in place.

Screw down both bolts on

the bafe face to actuate

the mounting wings. Firmly

secure both bolts – do not

over-tighten.

7. If required, a sheet-metal

tab located on the rear

panel of the speaker serves

as a secondary point of

attachment (cable not

included).

8. Once all painting and

nish work is completed,

remove the paint mask.

Min

0.9 mm (0.035 in)

Max

40.9 mm (1.60 in)

Ceiling thickness tolerances

Min

.00 mm (.00 in)

Max

38.1 mm (1.50 in)

CM42-EZs Ceiling thickness tolerances

Hole Diameters

CM42-EZs-II

165.1 mm (6.50 in)

All other CMEZ, FS and BGM models

266.7 mm (10.50 in)

2. Use included tile bridge

to mark cutout in sheetrock.

3. Use Rotozip or other tool

to cut hole.

3. Use Rotozip or other tool

to cut hole.

11. Done!

Sheetrock Ceiling Install Instructions For:

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

Document Reference Number CMEZ0001

1.435.647.9555

| | 800.647.TUBE

www.soundtube.com

Flexible conduit clamp

Install Instructions For:

CM-EZ / BGM SeriesCM-EZ / BGM Series

1. Unpack speaker & set

aside grille assembly.

5. Tighten screw on terminal

plate, and push conduit

connector into knockout.

4. Run signal wires through

conduit connector, then through

cover plate. Connect to ceramic

terminal strip. Two + and two -

connectors are provided for

daisy chaining.

5. Tighten screw on terminal

plate, and push conduit

connector into knockout.

4. Run signal wires through

conduit connector, then through

cover plate. Connect to ceramic

terminal strip. Two + and two -

connectors are provided for

daisy chaining.

4. Run signal wires through

conduit connector, then through

cover plate. Connect to ceramic

terminal strip. Two + and two -

connectors are provided for

daisy chaining.

9. Select the tap position by

adjusting rotary switch

to desired high impedance

value or voice coil direct

mode.

10. Press grille into place.

8. Once all painting and nish

work is completed, remove

the paint mask.

10. Press grille into place.

7. Insert speaker into

mounting hole with

installation aid in place.

Screw down both bolts on

the bafe face to actuate

the mounting wings. Firmly

secure both bolts – do not

over-tighten.

5. Tighten screw on terminal

plate, and push conduit

connector into knockout.

Secondary attachment point

Cover plate

6. If required, a sheet-metal

tab located on the rear

panel of the speaker serves

as a secondary point of

attachment (cable not

included).

6. If required, a sheet-metal

tab located on the rear

panel of the speaker serves

as a secondary point of

attachment (cable not

included).

Hole Diameters

CM42-EZs-II

165.1 mm (6.50 in)

All other CMEZ, FS and BGM models

266.7 mm (10.50 in)

Hole Diameters

CM42-EZs-II

165.1 mm (6.50 in)

All other CMEZ, FS and BGM models

266.7 mm (10.50 in)

9. Attach grille safety clip by

placing the large end of the

clip over snap-t post (1),

then sliding clip until small

end snaps into place around

post (2).

9. Attach grille safety clip by

placing the large end of the

clip over snap-t post (1),

then sliding clip until small

end snaps into place around

post (2).

9. Attach grille safety clip by

placing the large end of the

clip over snap-t post (1),

then sliding clip until small

end snaps into place around

post (2).

CM-EZ / BGM SeriesCM-EZ / BGM Series

CM42-EZs-II-WH, CM42-EZs-II-BK, CM62-EZ-II-WH, CM62-EZ-II-BK, CM62-EZs-II-WH, CM62-EZs-II-BK, CM82-EZ-II-WH, CM82-EZ-II-BK,

CM82-EZs-II-WH, CM82-EZs-II-BK, CM82-EZ-FS-WH, CM82-EZ-FS-BK, CM82-EZs-FS-WH, CM82-EZs-FS-BK, CM89-EZ-WH, CM89-EZ-BK,

CM52-BGM-WH, CM52-BGM-BK, CM52s-BGM-WH, CM52s-BGM-BK, CM62-BGM-WH, CM62-BGM-BK, CM82-BGM-WH and CM82-BGM-BK

CM42-EZs-II-WH, CM42-EZs-II-BK, CM62-EZ-II-WH, CM62-EZ-II-BK, CM62-EZs-II-WH, CM62-EZs-II-BK, CM82-EZ-II-WH, CM82-EZ-II-BK,

CM82-EZs-II-WH, CM82-EZs-II-BK, CM82-EZ-FS-WH, CM82-EZ-FS-BK, CM82-EZs-FS-WH, CM82-EZs-FS-BK, CM89-EZ-WH, CM89-EZ-BK,

CM52-BGM-WH, CM52-BGM-BK, CM52s-BGM-WH, CM52s-BGM-BK, CM62-BGM-WH, CM62-BGM-BK, CM82-BGM-WH and CM82-BGM-BK

Pre-Construction Bracket Instructions For:

1. Nail or screw bracket to

joists. Secure conduit/signal

wire away from hole in

bracket.

2. Complete Finish work.

7. Insert speaker into

mounting hole with

installation aid in place.

Screw down both bolts on

the bafe face to actuate

the mounting wings. Firmly

secure both bolts – do not

over-tighten.

8. Once all painting and

nish work is completed,

remove the paint mask.

9. Select the tap position

by adjusting rotary switch

to desired high impedance

value or voice coil direct

mode.

11. Done!

Droptile Ceiling Install Instructions For:

CM-EZ / BGM SeriesCM-EZ / BGM Series

(CM82-EZ-FS and CM82-EZs-FS are UL1480 UUMW

listed, all other CMEZ and BGM speakers are UL1480 UEAY listed.)

EQ settings required for the EN54-24 specic installations

Model

EQ-1

BANDWIDTH

EQ-2

BANDWIDTH

CM62-BGM

-3dB @ 125Hz

.5 Octave

-3dB @ 175Hz

1.0 Octave

CM62- EZ-II

-6dB @ 200Hz

1.0 Octave

+2dB @ 4800Hz

0.7 Octave

CM62-EZs-II

-6dB @ 200Hz

1.0 Octave

+3dB @ 4800Hz

0.7 Octave

CM42- EZs-

-4dB @ 200Hz

1.0 Octave

CM42-EZs-II-WH, CM42-EZs-II-BK, CM62-EZ-II-WH, CM62-EZ-II-BK, CM62-EZs-II-WH, CM62-EZs-II-BK, CM82-EZ-II-WH, CM82-EZ-II-BK,

CM82-EZs-II-WH, CM82-EZs-II-BK, CM82-EZ-FS-WH, CM82-EZ-FS-BK, CM82-EZs-FS-WH, CM82-EZs-FS-BK, CM89-EZ-WH, CM89-EZ-BK,

CM52-BGM-WH, CM52-BGM-BK, CM52s-BGM-WH, CM52s-BGM-BK, CM62-BGM-WH, CM62-BGM-BK, CM82-BGM-WH and CM82-BGM-BK

CM42-EZs-II-WH, CM42-EZs-II-BK, CM62-EZ-II-WH, CM62-EZ-II-BK, CM62-EZs-II-WH, CM62-EZs-II-BK, CM82-EZ-II-WH, CM82-EZ-II-BK,

CM82-EZs-II-WH, CM82-EZs-II-BK, CM82-EZ-FS-WH, CM82-EZ-FS-BK, CM82-EZs-FS-WH, CM82-EZs-FS-BK, CM89-EZ-WH, CM89-EZ-BK,

CM52-BGM-WH, CM52-BGM-BK, CM52s-BGM-WH, CM52s-BGM-BK, CM62-BGM-WH, CM62-BGM-BK, CM82-BGM-WH and CM82-BGM-BK

EN54-24

0359

SoundTube Entertainment Inc

6430 North Business Park Loop Rd.

Park City, UT 84098

0359-CPR-00442

EN54-24:2008

CM62-BGM-WH, CM62-BGM-BK, CM62-EZs-II-WH, CM62-EZs-II-BK,

CM62-EZ-II-WH, CM62-EZ-II-BK, CM42-EZs-II-WH, CM42-EZs-II-BK

E ential c racteristics ss ha

Performan ce

S ttering (frequency range / sensitivity) ca

Passed

Nominal impedance Passed

Hor ontal and vertical dispersion angle p iz

Passed

Maximum sound pressur level e

Passed

dessaP )ytilibarud( ecnamrofrep esion lanimoN

Dry heat (operating)

Passed

Dry h t (endurance) ea

N/A

Cold (in operation) Passed

Damp heat cyc (operating) , lic

Passed

Damp heat steady stat (end ance) , e ur

Passed

Damp heat cyc (fatigue test) , lic

N/A

Sulfur dioxide (SO2) cor si (endurance) ro on

Passed

Shock (operating)

Passed

Impact (operati ) ng

Passed

Si soidal vibration (operating) nu

Passed

Vibration, sinusoidal (enduran ) ce

Passed

Enclosure testing

Passed

Document Issue Date: 12-4-14

Document Reference Number: CMEZ0039

Document Revision: 02-04-2015 Rev 2

Produkt Specifikationer

Mærke:	SoundTube
Kategori:	Højttaler
Model:	CM42-EZs-II
Vægt:	1800 g
Antal pr. pakke:	1 stk
Brugervejledning:	Ja
Produktfarve:	Black, Stainless steel
Pakkevægt:	2270 g
Pakkedybde:	228.6 mm
Pakkebredde:	228.6 mm
Pakkehøjde:	139.7 mm
Bluetooth:	Ingen
Udgangseffekt (RMS):	20 W
Husmateriale:	Acrylonitrile butadiene styrene (ABS), Steel
Pakketype:	Kasse
Anbefalet brug:	Universel
Frekvensområde:	125 - 22000 Hz
Impedens:	16 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	- kanaler
Højttaler, placering:	I væggen/i loftet
Certificering:	CE, EN54, RoHS, UL1480A, UL2043
Bæredygtighedscertifikater:	CE, RoHS
Diskanthøjttaler:	Ja
Sensitivitet:	87.5 dB
Delefrekvens:	5000 Hz
Diskant diameter:	0.75 "
Bashøjttaler:	Ja
Woofer diameter:	102 mm
Forstærker:	Ingen
Woofer diameter (britisk mål):	4 "
