Side 1/4

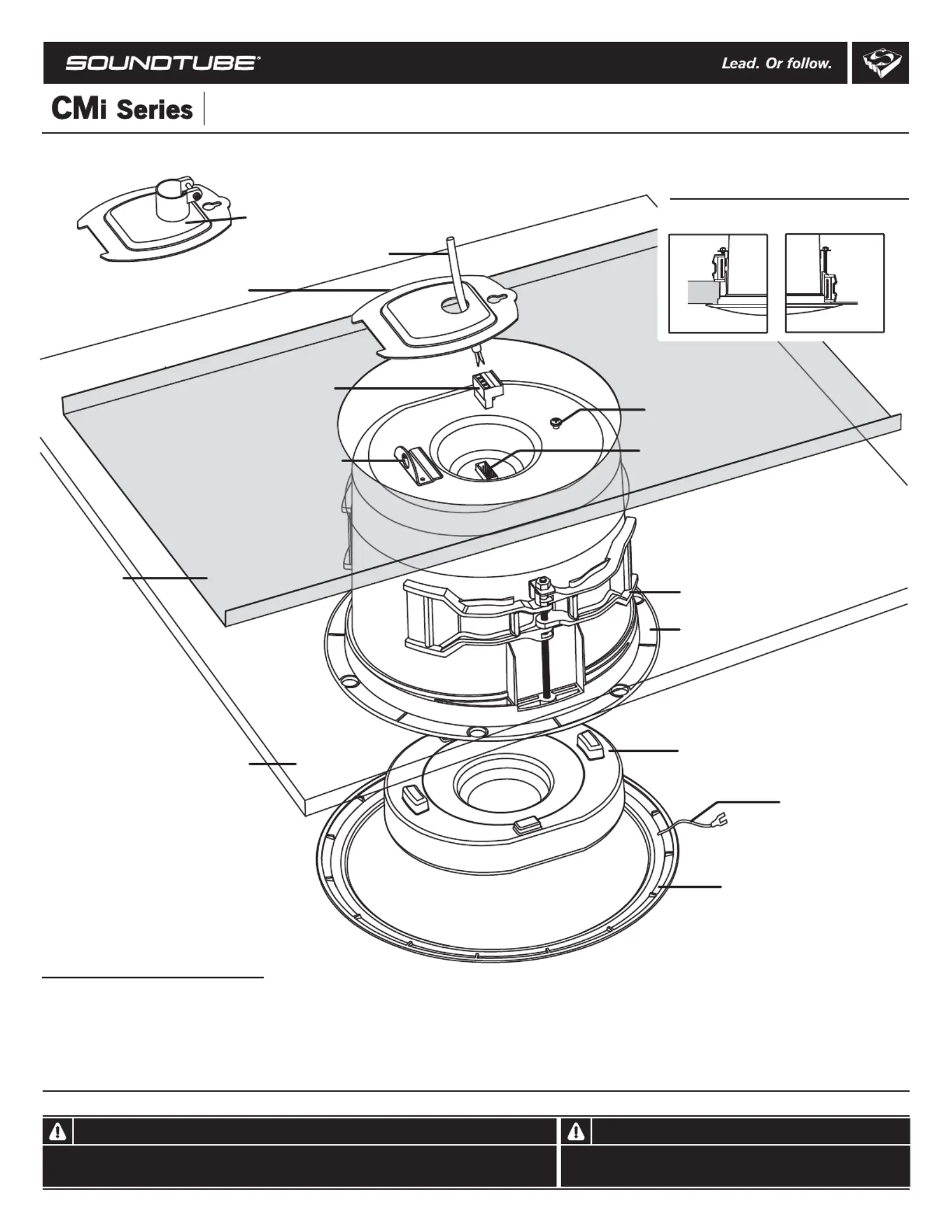

Ceiling tile

Grille and bezel

seismic restraint

Seismic restraint anchor tab

Euroblock connector

Cover plate

Strain relief (not included) may

be used with cover plate.

Tile bridge

Euroblock jack

Baffle

Styrofoam installation aid/paint mask

Speed Wing™ mounting arms

Cover plate clamping screw

Signal wire

Box contents

1 Speaker

1 Euroblock connector

1 Grille and bezel

1 Styrofoam installation aid/paint mask

1 Cover plate

1 Tile bridge

Install Instructions For:

CM400i, CM500i, CM590i, CM600i, CM690i, CM800i & CM890i speakers

Min

6.4 mm (0.25 in)

Max

42.9 mm (1.69 in)

Ceiling thickness tolerances

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

1.435.647.9555

| | 800.647.TUBE

www.soundtube.com

CM400i, CM500i, CM600i, CM690i, CM800i, CM890i – UL listed 1480 & 2043

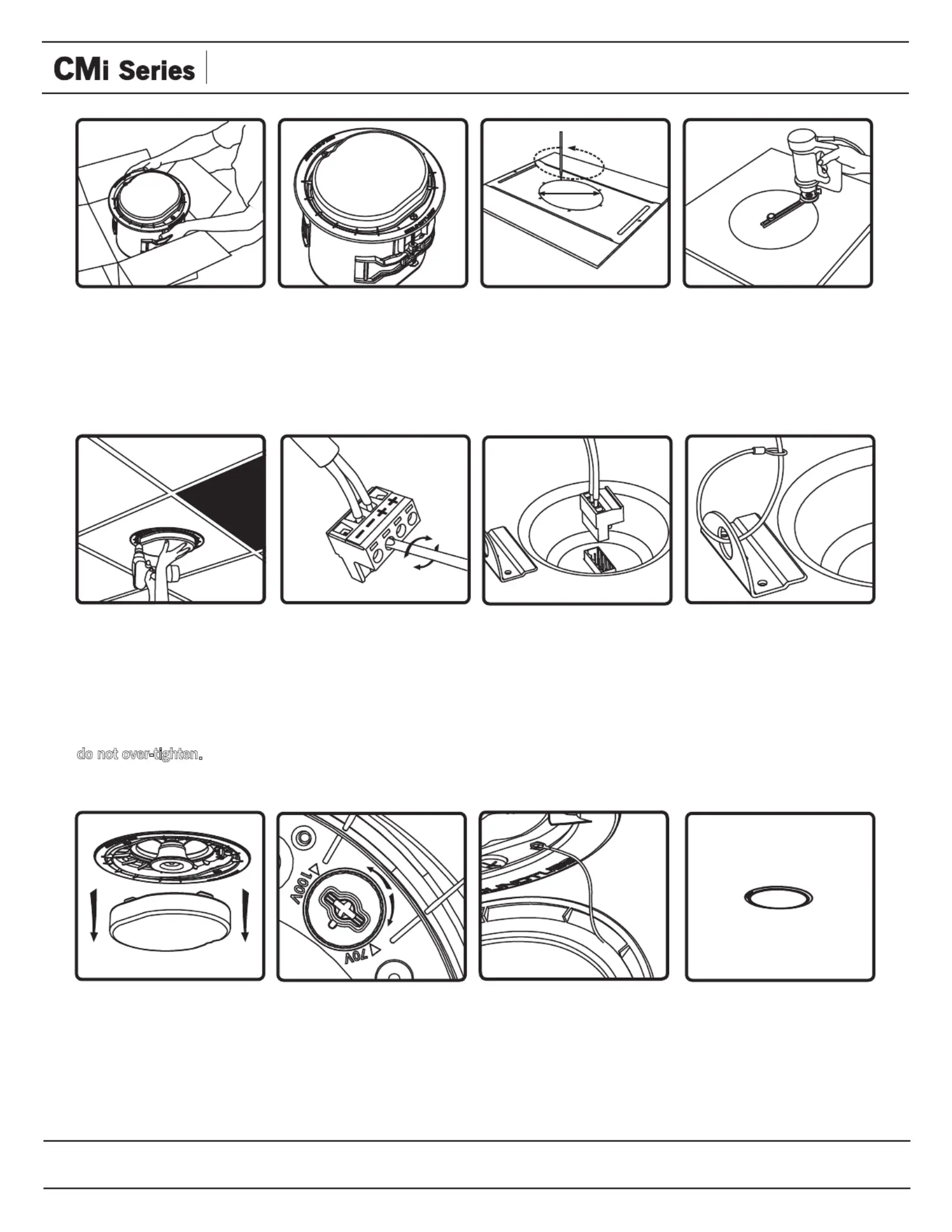

1. Unpack speaker & set

aside grille assembly.

3. Use included tile bridge

to mark cutout in tile.

4. Use Rotozip or other tool

to cut hole.

11. Select the tap position

by adjusting rotary switch

to desired high impedance

value or voice coil bypass

mode. Switch is preset to

maximum tap setting in

70.7 V mode (33 W or 66 W).

13. Attach grille – position the

grille over the baffle and allow

magnets to attract grille into

place. Be sure grille is properly

centered over baffle.

12. Attach grille & bezel

seismic restraint to baffle

with provided screw.

5. Insert speaker into

mounting hole on ground

with installation aid in

place. Screw down both

bolts on the baffle face to

actuate the mounting wings.

Firmly secure both bolts –

do not over-tighten.

Put

assembly into tile grid.

. If required, attach the

seismic restraint system to

the sheet-metal tab on the

rear panel of the speaker

(safety cable not included).

6. Thread signal wire through

cover plate. Connect signal

wire to 4-pin Euroblock plug.

Tighten unused terminal

screws. Use inside positive

and negative inputs for either

voice coil or distributed

systems. For daisy chaining,

use outside positive and

negative terminals.

7. Insert the Euroblock plug

into the Euroblock jack on

rear panel of speaker and

replace cover plate.

For UL-compliant installations

strain relief (not supplied) may

be inserted into hole in cover

plate.

1.435.647.9555

| | 800.647.TUBE

www.soundtube.com

SoundTube also provides optional Pre Construction Brackets & Architectural Grilles for the CMi product line.

Installation instructions for these accessories are included with specific accessory packaging.

Droptile Ceiling Install Instructions For:

CM400i, CM500i, CM590i, CM600i, CM690i, CM800i &CM890i speakers

Hole Diameters

CM500i & CM590i

228.6 mm (9.00 in)

CM600i, CM800i & CM801i

325.1 mm (12.80 in)

9. If you are not painting the

ceiling, remove & discard the

paint mask.

10. If you are painting the

ceiling after the speaker is

installed, leave the paint mask

in place until paint is dry.

2. Keep Styrofoam

installation aid/paint

mask attached to

speaker until speaker

installation is complete.

Produkt Specifikationer

Mærke:	SoundTube
Kategori:	Højttaler
Model:	CM800I-BK
Vægt:	5700 g
Antal pr. pakke:	1 stk
Brugervejledning:	Ja
Produktfarve:	Black, Stainless steel
Pakkevægt:	18170 g
Pakkedybde:	812.8 mm
Pakkebredde:	361.95 mm
Pakkehøjde:	482.6 mm
Bluetooth:	Ingen
Udgangseffekt (RMS):	125 W
Husmateriale:	Acrylonitrile butadiene styrene (ABS), Steel
Pakketype:	Kasse
Anbefalet brug:	Universel
Frekvensområde:	97 - 22000 Hz
Impedens:	8 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	- kanaler
Højttaler, placering:	I væggen/i loftet
Certificering:	CE, RoHS, UL1480A, UL2043
Bæredygtighedscertifikater:	CE, RoHS
Diskanthøjttaler:	Ja
Sensitivitet:	90 dB
Delefrekvens:	3000 Hz
Diskant diameter:	1 "
Bashøjttaler:	Ja
Forstærker:	Ingen
Woofer diameter (britisk mål):	8 "
