Box contents

1 Speaker

1 Terminal weather boot

1 Theft resistant u-bracket

1 Safety cable

1 Safety cable anchor screw

1 Euroblock connector

1 Grille-mounted tap switch cover

1 Allen wrench

2 Port plugs

Install Instructions For:

SM400i - UL listed 1480

1.435.647.9555

| | 800.647.TUBE

www.soundtube.com

Euroblock connector

Grille-mounted

tap switch cover

U- bracket

U-bracket clamping knob

Euroblock jack

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

Terminal

weather boot

Safety cable anchor screw

Safety cable

Signal wire

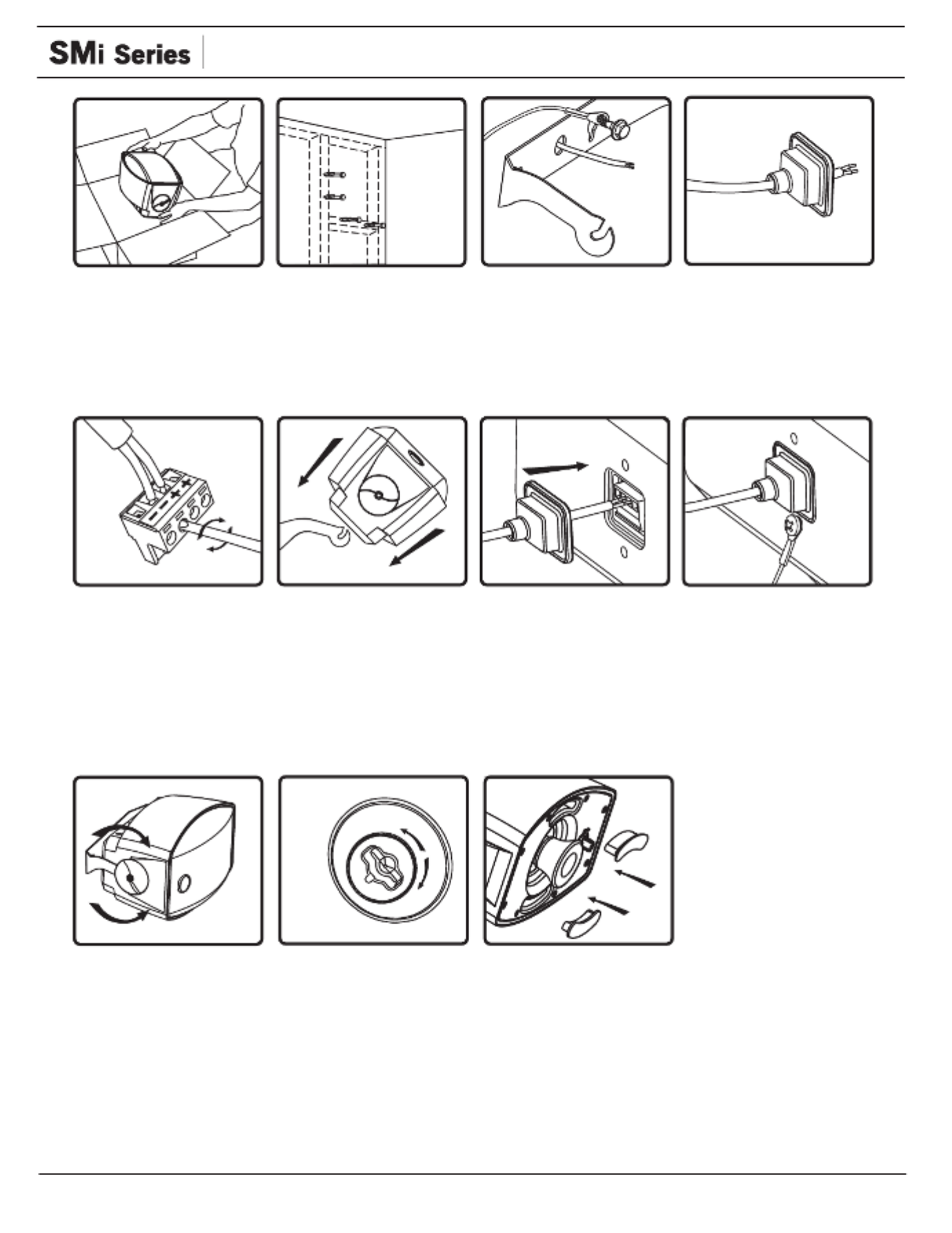

1. Unpack speaker and

mounting hardware.

2. Choose a secure mounting

surface with sufficient

strength to reliably hold

the speaker.

10. Aim speaker and

tighten knobs.

3. Mount u-bracket with

clamping slots pointing

upward. Securely fasten

mounting bracket and

safety cable to surface

(user must supply fasteners).

6. Use provided allen wrench

to loosen knobs on sides of

speaker. Tilt speaker 45º

(grille up) and slide on to

bracket.

11. Select the tap position by

removing the rubber plug on

grille to access rotary switch.

The switch is preset to the

maximum tap setting in

70.7 V mode (20W). Select

desired setting and reinsert

rubber plug. Done!

4. Slip terminal weather

boot over signal wire. For

environmental applications,

put RTV silicone around

nipple and base when

installation is complete.

8. Insert 4-pin Euroblock

plug into Euroblock jack on

rear of speaker. Connectors

are keyed for polarity. Insert

terminal weather boot.

9. Connect safety cable to

rear of speaker.

Install Instructions For:

SM400i - UL listed 1480

1.435.647.9555

| | 800.647.TUBE

www.soundtube.com

5. Connect signal wire to

4-pin Euroblock plug. Tighten

unused terminal screws. Use

inside positive and negative

inputs for either voice coil

or distributed systems. For

daisy chaining, use outside

positive and negative terminals.

To enhance protection of internal

components from humidity and

other potentially corrosive

elements, use provided port

plugs to seal enclosure. Use

RTV silicone around edge of the

port plug for increased protection.

Port protection for SM400i

Produkt Specifikationer

Mærke:	SoundTube
Kategori:	Højttaler
Model:	SM400i
Kode for international beskyttelse (IP):	IP4X
Bredde:	245.9 mm
Højde:	177 mm
Vægt:	3310 g
Antal pr. pakke:	1 stk
Produktfarve:	Hvid
Pakkedybde:	234.95 mm
Pakkebredde:	298.45 mm
Pakkehøjde:	241.3 mm
Udgangseffekt (RMS):	20 W
Husmateriale:	Acrylonitrilbutadienstyren
Pakketype:	Kasse
Anbefalet brug:	Hjem
Frekvensområde:	76 - 22000 Hz
Impedens:	4 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	- kanaler
Højttaler, placering:	Kan monteres på overfladen
Certificering:	CE, RoHS, UL1480A
Strømkilde type:	Vekselstrøm
Diskanthøjttaler:	Ja
Antal drivere til diskant:	1
Sensitivitet:	82.5 dB
Delefrekvens:	2300 Hz
Diskant diameter:	1 "
Bashøjttaler:	Ja
Antal bashøjttalerdrev:	1
Woofer diameter:	101.6 mm
Højttaler kabinet:	Porteret
Woofer diameter (britisk mål):	4 "
Højttalergrill materiale:	Aluminium
