Side 1/6

Box contents

1 Speaker

1 Terminal weather boot

1 Mounting bracket

1 Safety cable

1 Safety cable anchor screws

1 Euroblock connector

1 Grille-mounted tap switch cover

Install Instructions For:

SM500i-II, SM500i-II-WX, SM590i-II, SM590i-II-WX speaker

1.435.647.9555

800.647.TUBE

www.soundtube.com

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

gninraWgninraW

SoundTube s a rs must be ins d by a pr essional au o in aller/contractor. For sa ty and for pe ke talle of di st fe

optimum audio performa e, ins ller must ow l dire ons issued by SoundTube E er inment.nc ta foll al cti nt ta

SM5 Series

SM500i- , II S XM500 -Wi-II , S i-M590 II, S AM590i-II-WX UL1480 (UE Y) planned

1 Allen hex key

Terminal

weather boot

Clamp knob

Euroblock conn toec r

Grill moe- unted

tap switch cover

Mounting bracket

Tap switch

M3x4mm security screw

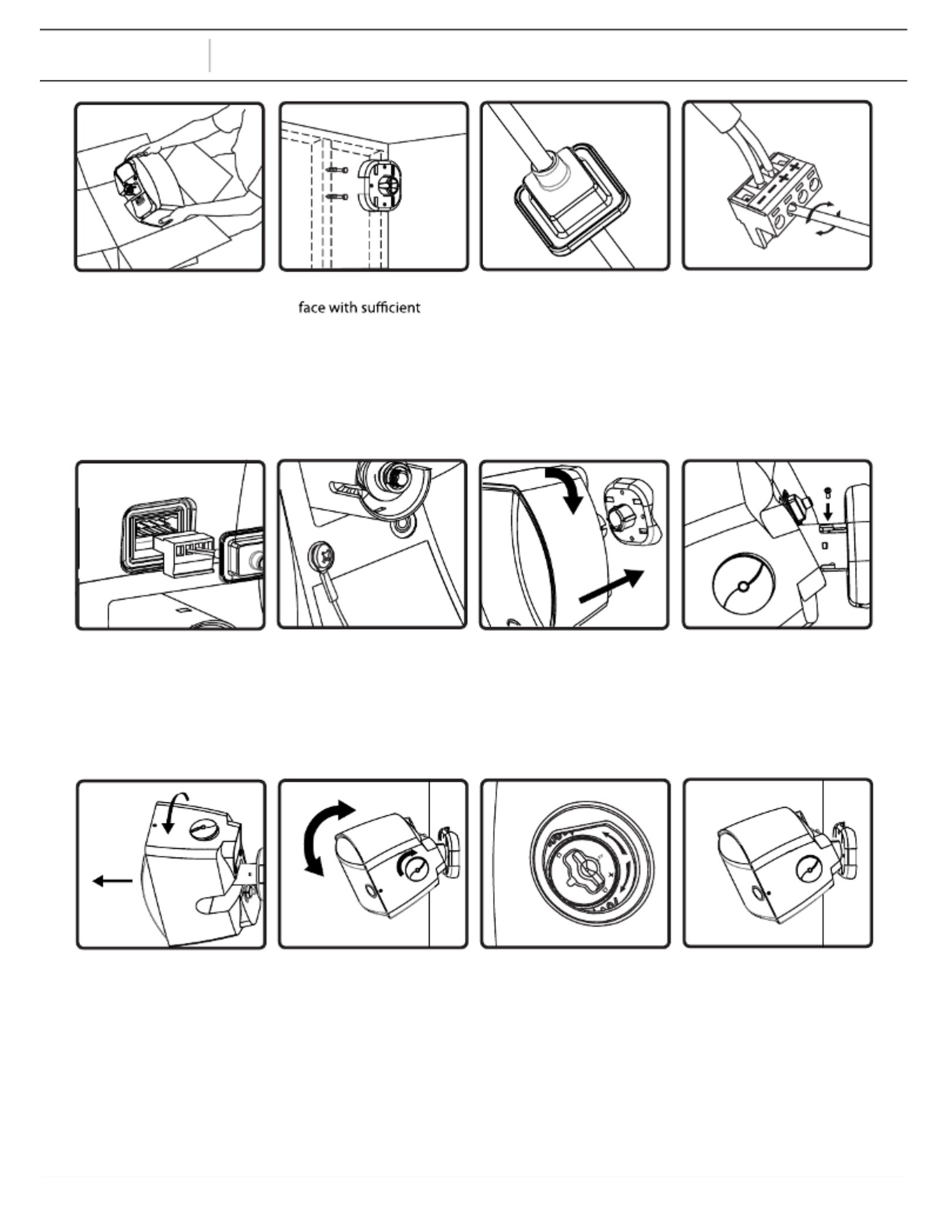

1. Unpack speaker and

mounting hardware.

2. Choose a secure mounting

sur

strength to reliably hold the

speaker. Note: Bracket

6. Use supplied screw to

connect the safety cable to

one of the inserts on the

rear panel of the speaker.

7. 8.

4. Connect signal wire to

4-pin Euroblock plug. Tighten

unused terminal screws. Use

inside positive and negative

inputs for either voice coil or

distributed systems. For

daisy chaining, use outside

positive and negative

terminals.

3. Slip terminal weather

boot over signal wire. For

environmental applications,

put RTV silicone around

nipple and base when

installation is complete.

11. Select the tap position by

removing the rubber plug on

g lle to access ary switch. ri rot

Switch is preset to maximum

tap setting in 70.7 V mode.

Select desired se ing andtt

reinsert rubber plug.

5. Insert -pin Euroblock 4

plug into Euroblock jack on

rear of speaker. Connectors

are keyed for polarity.

Install Instructions For:

SM500i-II, SM500i-II-WX, SM590i-II, SM590i-II-WX speaker

1.435.647.9555

800.647.TUBE

www.soundtube.com

SM5 Series

orientation does not matter

for installation of the

mounting bracket.

Terminal eath w er boot

will seal the encl ure on os

rear of speaker.

Line up bracket ribs with

mounting tube slots and

press speaker onto bracket.

Twist clockwise until speaker

clicks. Speaker is now locked

in place.

If speaker is within reach

of the public, or extra security

is desired, install the included

M3x4mm security screw.

10. Make sure knob is loose,

and aim speaker in desired

direction (0 to 90). Tighten

the knob to lock the speaker

in place. FINGER TIGHT IS

SUFFICIENT- DO NOT OVER

TIGHTEN.

To loosen, use included hex

key.

12. Done.

9. Firmly grip speaker and

pull it away from the wall to

rotate to to desired mounting

angle about the mounting

shaft axis. Simply release

speaker back toward the wall

to lock into place.

Connect other end of the

safety cable to a secure

mounting point.
