Side 1/7

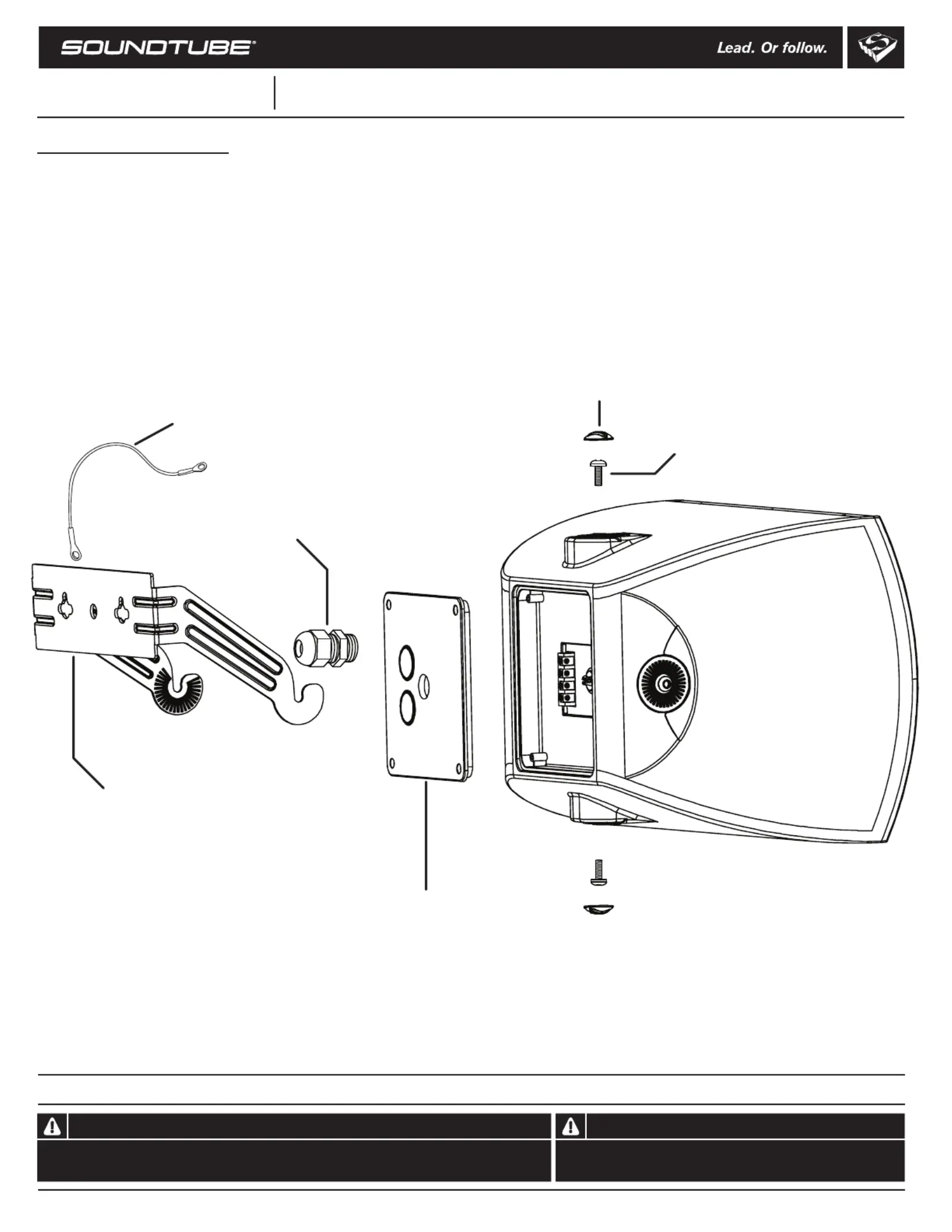

Box contents

Install Instr tiouc ns For:

SM52-EZ-BK, SM52-EZ-WH, SM52-EZ-WX-BK, SM52-EZ-WX-WH,

SM82-EZ-BK, SM82-EZ-WH, SM82-EZ-WX-BK & SM82-EZ-WX-WH

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

U- b et rack

Back plate

SM-EZ

Series

1.435.647.9555

800.647.TUBE

www.soundtube.com

Safety cable

U-bracket screw

Screw cap

Warning

1 Speaker

1 U-bracket

2 U-bracket screws

2 Screw caps

1 Allen wrench

1 Back plate

1 Port plug

1 Safety cable

1 Strain relief bushing

Strain relief bushing

Port prot tionec for SM-EZ

SM-EZ Series

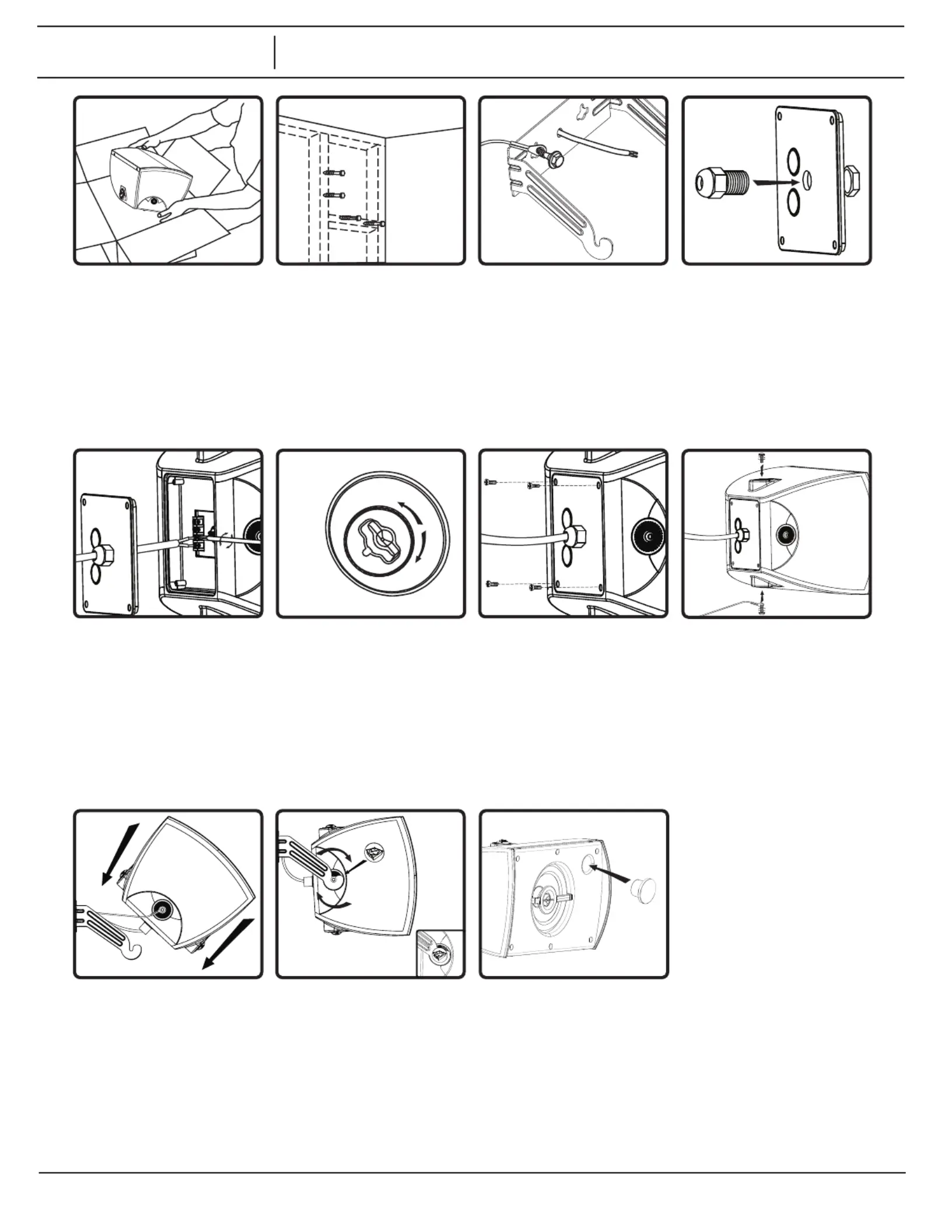

1. Unpack speaker and

mounting hardware.

2. Choose a secure mounting

surface with sufcient strength

to reliably hold the speaker.

The speaker may be mounted

in either the vertical or the

horizontal position with the

same U-bracket.

4. If being installed per

EN54-24 regulations or in

instances where a water tight

strain relief bushing is neces-

sary, attach the included strain

relief bushing to the back

plate. If it is not required, skip

this step.

10. Aim speaker and tighten

u-bracket screws. Once

tightened down, place the

screw caps on the screws.

Done!

To enhance protection of

internal components from

humidity and other potentially

corrosive elements, use

provided port plug to seal

enclosure. Use RTV silicone

around edge of the port plug

for increased protection. Note:

WX versions will come with the

port plug pre-installed.

Install Instr tiouc ns For:

SM52-EZ-BK, SM52-EZ-WH, SM52-EZ-WX-BK, SM52-EZ-WX-WH,

SM82-EZ-BK, SM82-EZ-WH, SM82-EZ-WX-BK & SM82-EZ-WX-WH

9. Tilt speaker 45º (grille up)

and slide on to bracket.

5. Run signal wires through

cstrain relief bushing then

connect to ceramic terminal

strip. Two + (plus) and two -

(negative) connectors are

provided for daisy chaining.

7. Install back plate and

secure with included fasteners.

8. Select desired location for

safety cable and remove the

U-bracket screw from that

side. Attach safety cable to the

clamping screw and reinstall

loosely.

6. Select the tap position by

rotating the rotary switch

located on the back of the

speaker to desired setting. The

switch is preset to the

maximum tap setting in 70.7 V

mode (32W for the

SM52-EZ[-WX] and 64W for

the SM-82-EZ-II[-WX]).

3. Mount u-bracket with

clamping slots pointing

upward. Securely fasten

mounting bracket and safety

cable to surface (user must

supply fasteners).

Note: The safety cable will

attach to the U-bracket

clamping screw on one side of

the cabinet.
