SS30 | OWNER’S MANUAL

Please read the following instructions carefully before installing your SoundTube

speaker. If you have any questions regarding

installation that are not answered in the following directions, please contact your local sound contractor or the SoundTube

MSE Audio

technical support team. Contact information can be found on the back of the manual.

Secret Sound Components

Secret Sound speakers come ready to install, and include the following components:

1 Speaker Housing

2 Rubber Washers

1 Steel Washer

1 Black Steel Coupling with a Brass Reducer

1 Parabolic Reector

2 Wire Nuts

Assembly

The recommended method of assembling the speaker is to rst slip one black rubber washer onto the threaded nipple at the

top of the speaker stem. Next, insert the threaded nipple and speaker wire through the hole in the parabolic reector and slip

the remaining rubber and steel washers onto the end of the nipple protruding through the parabola. Now thread the brass

reducer and coupling onto the nipple and hand tighten rmly. The speaker can now be handled as a unit.

Installation

The Secret Sound installation is similar to that of a ceiling-mounted electrical lamp. The black steel coupling has 1/2” inside

threads which can be attached to standard rigid electrical conduit with 1/2” outside threads. This conduit is generally mounted

directly to the ceiling using a standard electrical junction box. Once you have mounted your rigid conduit from the ceiling, bring

the speaker wires from the sound source through the conduit so approximately two inches of wire are protruding from the

threaded bottom end. Before connecting the speaker, position it on a steady ladder or scaffold near the end of the ceiling-

mounted conduit. Now connect the wire ends from the coupling to the ends of your wire coming from the sound source.

Once the wires are connected, “pre-rotate” the speaker 6 or 8 times counter-clockwise. This will prevent the speaker wire

connection from becoming too twisted when threaded onto the coupling. Thread the coupling onto the end of the conduit and

hand-tighten rmly. The speaker is now ready to operate. The speaker can be mounted at any height off the oor, with minimal

affect on the diameter or quality of the beam of focused sound. The parabolic reector can be painted without affecting the

speaker performance, although it is recommended that the underside be painted with a gloss nish to ensure optimum sound

reection.

SoundTube

by MSE Audio

| 10661 Rene St. | Lenexa, KS 66215

913-663-5600 or 855-663-5600 | www.mseaudio.com

WARNING

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for optimum audio

performance, installer must follow all directions issued by SoundTube Entertainment.

Do not spec or install speaker near support beam, ventilation duct or other structure that may interfere with speaker

function or dispersion.

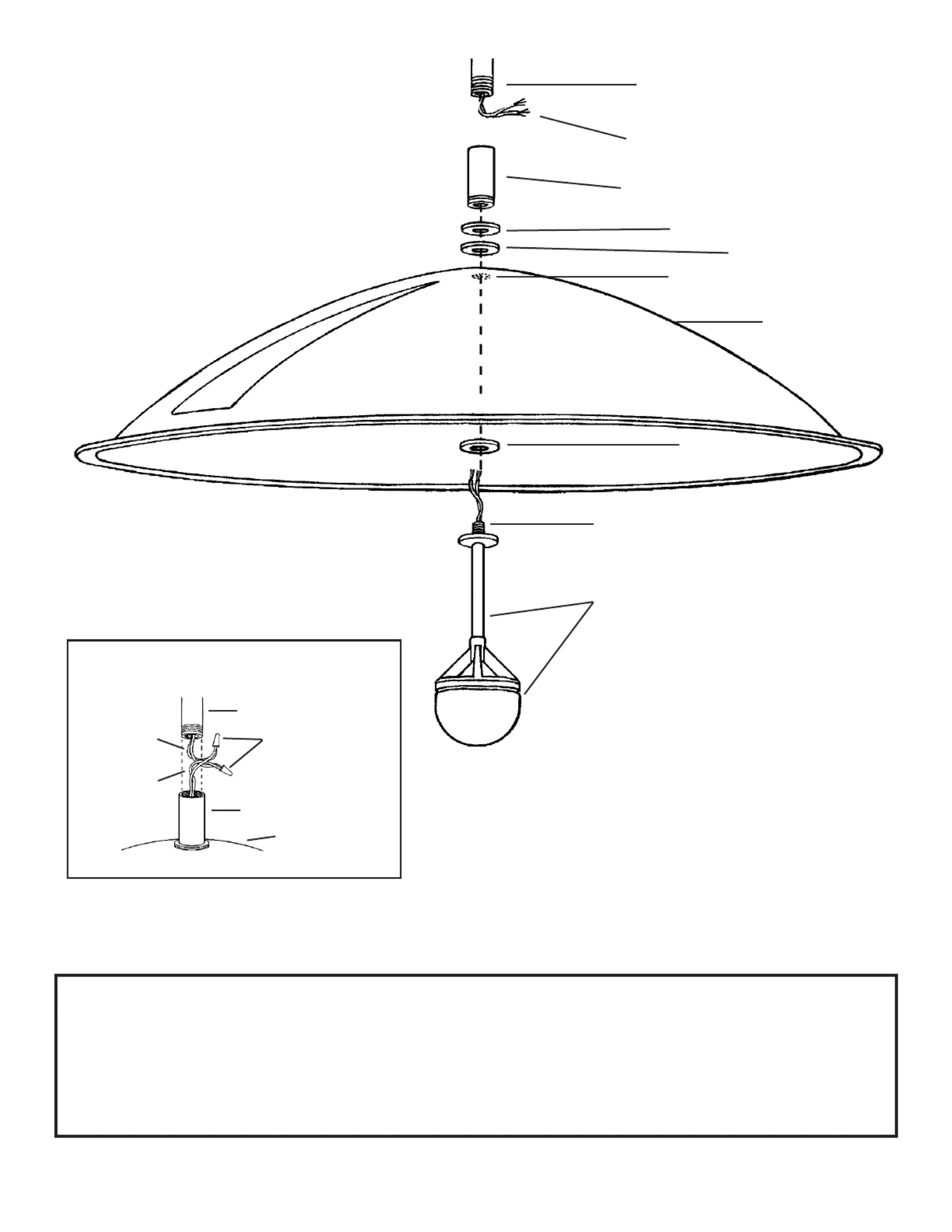

Ceiling-Mounted Rigid Conduit

(Not Included)

Speaker Wire from Sound Source

(Not Included)

Coupling with Brass Reducer

Black Steel Washer

Rubber Washer

Hole in Center of Parabola

Parabola

Rubber Washer

Threaded Nipple

Speaker

Connection Details

Ceiling-Mounted Conduit

Wire Nuts

Speaker Wire from

Sound Source

Speaker Wire

from Speaker

Coupling

Parabola
