[TEATRO

TFS1.0 & TCE1.5 FEATURES]

• Wall Mount or Table Top Options Available

• Brushed Black Aluminum Cabinet

• Pressure-Fitted Powder-Coated Aluminum Grille

• 1.5” Deep; Modeled Afer the TSB3.0

INCLUDED IN THE BOX 2

SAFETY INSTRUCTIONS 3

WALL MOUNTING INSTRUCTIONS 4

HOOK UP DIAGRAM FOR THE TCE1.5 SPEAKER 6

CARING FOR YOUR SPEAKERS 6

MAINTENANCE AND SERVICE 7

TROUBLESHOOTING 7

WARRANTY 7

SPECIFICATIONS 8

TEATRO

ULTRA-THIN

OWNER’S MANUAL: TFS1.0 • TCE1.5

Thank you for purchasing the Phase Technology TEATRO

Ultra-Thin

Speakers. These high-denition slim line speakers are the perfect

complement to today’s thin prole at panel TVs. These speakers

incorporate unique technologies to provide you with outstanding

dialogue clarity along with wide open sound stage imaging for a great

home theater experience.

The TEATRO

TSF1.0 or TCE1.5 speaker designs are made to t

seamlessly next to a at panel TV. Both tabletop and wall mounting

options are included with the product. For on-wall applications, the

mounting brackets are adjustable for lining up and vertically leveling

the speaker with the TV. The speaker cabinets also have threaded

inserts for mounting the TEATRO

speakers to a display wall bracket

mechanism.

The TEATRO

TCE1.5 speakers are designed to be the main front

sound stage in a home theater system by providing 3 channels

from 2 speaker systems. The center channel acoustic information is

created by independent speaker elements located in each speaker

enclosure. This eliminates the need for a center speaker that needs

to be located either under or over the display monitor. The TCE1.5 is

made from an extruded aluminum enclosure that provides several

mounting options. There are threaded brass inserts in the rear of

the cabinet for use with the included wall hanging bracket or smoked

Plexiglass table top stand.

The Teatro TFS1.0 speaker system offers the same audio performance

and utilizes the same extruded aluminum construction as the TCE1.5

speaker system. It is designed to complement the TCE1.5 LCR or

the TSB3.0 Sound Bar speakers as rear channel surround speakers.

In addition the TFS1.0 may be used as main separate front and

surround speakers for a complete 5.1 to 7.2 surround home theater

system. The TFS1.0 may either be hung on the wall with the provided

brackets or placed horizontally on a shelf with the provided feet. The

speaker can also use the optional TPB-1 Plexiglas display stand for

vertical table top placement.

Regardless of application, serious audiophile listening or home

theater, we recommend that you take the time to read this manual

thoroughly before connecting speakers to your amplier or receiver.

In the highly unlikely event that you should experience a problem with

set-up or operation, please contact one of our authorized dealers for

assistance, or contact us directly.

Phase Technology Corporation

8005 W. 110th St., Suite 208

Overland Park, KS 66210

855.663.5600 (Domestic)

+1.913.663.5600 (International)

Fax: 913.663.3200

1. TEATRO TFS1.0 OR TCE1.5

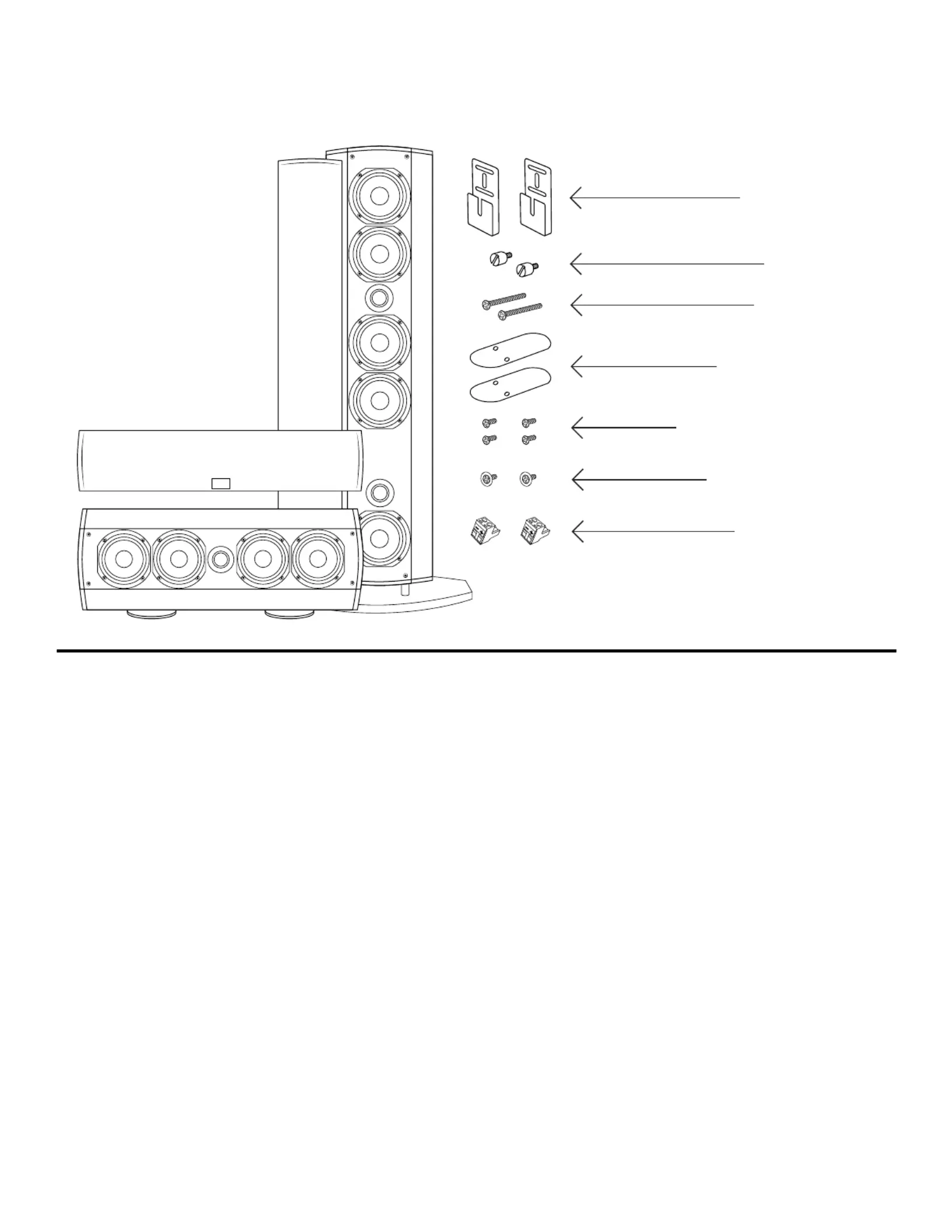

[INCLUDED IN THE BOX:]

THE TCE1.5 IS SUPPLIED WITH A TABLE TOP PLEXIGLASS

STAND; THIS STAND IS OPTIONAL FOR THE TFS1.0.

2. Mounting Bracket x2

3. Mounting Pin x2

4. Leveling Screw x2

5. Table Top Mounting Feet

(x2 TFS1.0 ONLY)

6. Table Top Mounting Feet Screws

(x4 TFS1.0 ONLY)

7. Table Top Mounting Screws

(x2 TFS.0 ONLY)

8. Euroblock Connectors

(TFS1.0 x1)

(TCE1.5 x2)

Produkt Specifikationer

Mærke:	SoundTube
Kategori:	Soundbar
Model:	Teatro TFS1.0
Bredde:	469.9 mm
Dybde:	38.1 mm
Højde:	171.4 mm
Produktfarve:	Sort
Pakkedybde:	139.7 mm
Pakkebredde:	514.35 mm
Pakkehøjde:	241.3 mm
Udgangseffekt (RMS):	- W
Pakketype:	Kasse
Frekvensområde:	80 - 20000 Hz
Impedens:	8 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	- kanaler
Højttaler, placering:	Kan monteres på overfladen
Certificering:	CCC, CE, RoHS
Kan monteres på væggen:	Ja
Antal drivere til diskant:	1
Delefrekvens:	3500 Hz
Antal produkter inkluderet:	1 stk
Diskant diameter:	0.75 "
Antal bashøjttalerdrev:	2
Woofer diameter:	76.2 mm
Soundbar-højttaler RMS-effekt:	100 W
Soundbar vægt:	3860 g
Woofer diameter (britisk mål):	3 "
Subwoofer dybde:	38.1 mm
Subwoofer bredde:	469.9 mm
Subwoofer vægt:	3860 g
Fronthøjttaler, sensitivitet:	90 dB
Subwoofer højde:	171.4 mm
