Side 1/2

Install Guides

SXU24V

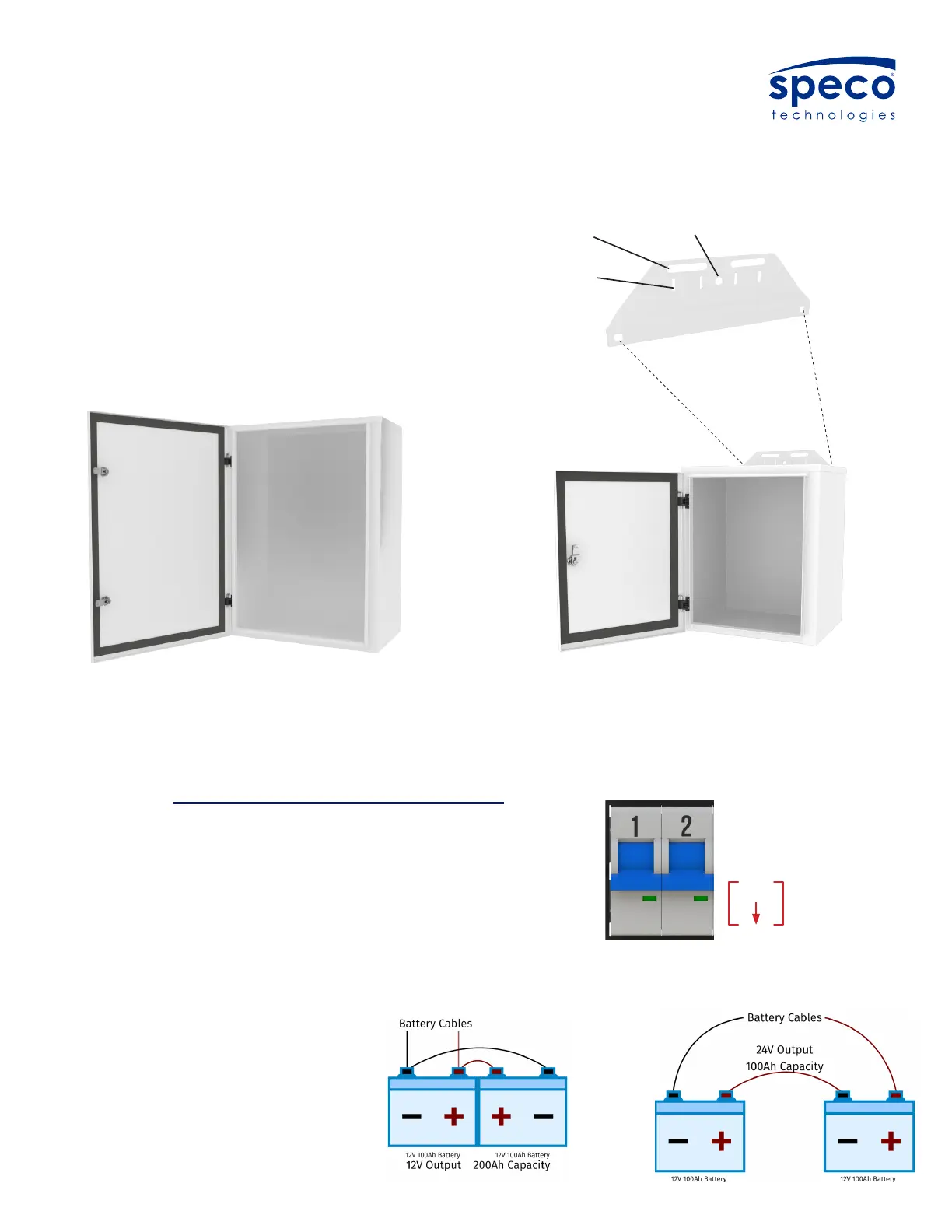

STEP 1

1. Check to ensure that all breakers are in the “OFF” position

before connecting any wires to the terminal blocks.

Mounting

the Enclosure

The SXU and SXA enclosures are designed

to be mounted to a wall or pole. The

enclosure utilizes an integrated mounting

plate on the back.

U-bolt

Hose Clamp

Lag Bolt

Install Guide

Mounting the enclosure

UPS Backup Kits

The AL2 and AL5 enclosures are designed to be mounted

to a wall or pole. The AL2 utilizes an integrated mounting

plate on the back of the enclosure.

The AL5 Enclosure comes integrated with Unistrut attached

to the back of the enclosure, and can be mounted usin

any applicable unistrut mountin hardware found at

most hardware stores.

AL2 Enclosure

AL5 Enclosure

Phone : + (208) 904-04244774 South Hwy 191, Rexburg, ID 83440 E-Mail : support@vorpenergy.com

Unistrut

Rear of AL5 Enclosure

WIRING

Wiring the UPS backup Kit

Check to ensure that all breakers are in the “OFF” position

before connecting any wires to the terminal blocks.

Step 1

Step 2

Phone : + (208) 904-0424

4774 South Hwy 191, Rexburg, ID 83440

E-Mail : support@vorpenergy.com

Cable Gland

- If your part # ends with -12, connect your two 12 Volt Batteries in parallel to keep the battery voltage at 12VDC.

- If your part # ends with -24, connect your two 12 Volt Batteries in series to create a 24VDC Battery Bank.

Step 3

Ensure that the Voltage Selector Switch is set to the appropriate

Voltage. (Located to the Left of AC Input on Battery Charger)

- 115 VAC (90 to 132 VAC) *Slide Switch Towards Faceplate

- 230 VAC (180 to 264 VAC) *Slide Switch Away From Faceplate

Step 4

Passing through the provided cable gland, connect the AC power to

the AC Battery Charger using the provided butt connectors.

Step 5

Connect 12/24 VDC Equipment to the green phoenix terminal on the

faceplate. Connect any IP Equipment to the provided PoE Injectors

mounted on the DIN rail

Step 6

Power up the system by ﬁrst powering the Battery Charger with the

ON/OFF switch located behind the AC Input. Then ﬂip Breaker 1

followed by Breaker 2.

Parallel Connection Series Connection

Voltage Selector Switch

ON/OFF Switch

AC Input

Phoenix Terminal

*In cold climates SLA batteries require insulation

Wiring the UPS backup Kit

Check to ensure that all breakers are in the “OFF” position

before connecting any wires to the terminal blocks.

Step 1

Step 2

Phone : + (208) 904-0424

4774 South Hwy 191, Rexburg, ID 83440

E-Mail : support@vorpenergy.com

Cable Gland

- If your part # ends with -12, connect your two 12 Volt Batteries in parallel to keep the battery voltage at 12VDC.

- If your part # ends with -24, connect your two 12 Volt Batteries in series to create a 24VDC Battery Bank.

Step 3

Ensure that the Voltage Selector Switch is set to the appropriate

Voltage. (Located to the Left of AC Input on Battery Charger)

- 115 VAC (90 to 132 VAC) *Slide Switch Towards Faceplate

- 230 VAC (180 to 264 VAC) *Slide Switch Away From Faceplate

Step 4

Passing through the provided cable gland, connect the AC power to

the AC Battery Charger using the provided butt connectors.

Step 5

Connect 12/24 VDC Equipment to the green phoenix terminal on the

faceplate. Connect any IP Equipment to the provided PoE Injectors

mounted on the DIN rail

Step 6

Power up the system by ﬁrst powering the Battery Charger with the

ON/OFF switch located behind the AC Input. Then ﬂip Breaker 1

followed by Breaker 2.

Parallel Connection Series Connection

Voltage Selector Switch

ON/OFF Switch

AC Input

Phoenix Terminal

*In cold climates SLA batteries require insulation

STEP 2

1. If your part # ends with -12V,

connect your two 12 Volt

Batteries in parallel to keep

the battery voltage at 12VDC.

2. If your part # ends with -24V,

connect your two 12 Volt Bat-

teries in series to create

a 24VDC Battery Bank.

U-bolt

Hose Clamp

Lag Bolt

Install Guide

Mounting the enclosure

UPS Backup Kits

The AL2 and AL5 enclosures are designed to be mounted

to a wall or pole. The AL2 utilizes an integrated mounting

plate on the back of the enclosure.

The AL5 Enclosure comes integrated with Unistrut attached

to the back of the enclosure, and can be mounted usin

any applicable unistrut mountin hardware found at

most hardware stores.

AL2 Enclosure

AL5 Enclosure

Phone : + (208) 904-04244774 South Hwy 191, Rexburg, ID 83440 E-Mail : support@vorpenergy.com

Unistrut

Rear of AL5 Enclosure

OFF
