Professional Fidelity
Performer s – Manual
Stereo Power Amplifier
More information:
www.spl.audio
Version .
EN
DE

Performer s900 – Manual

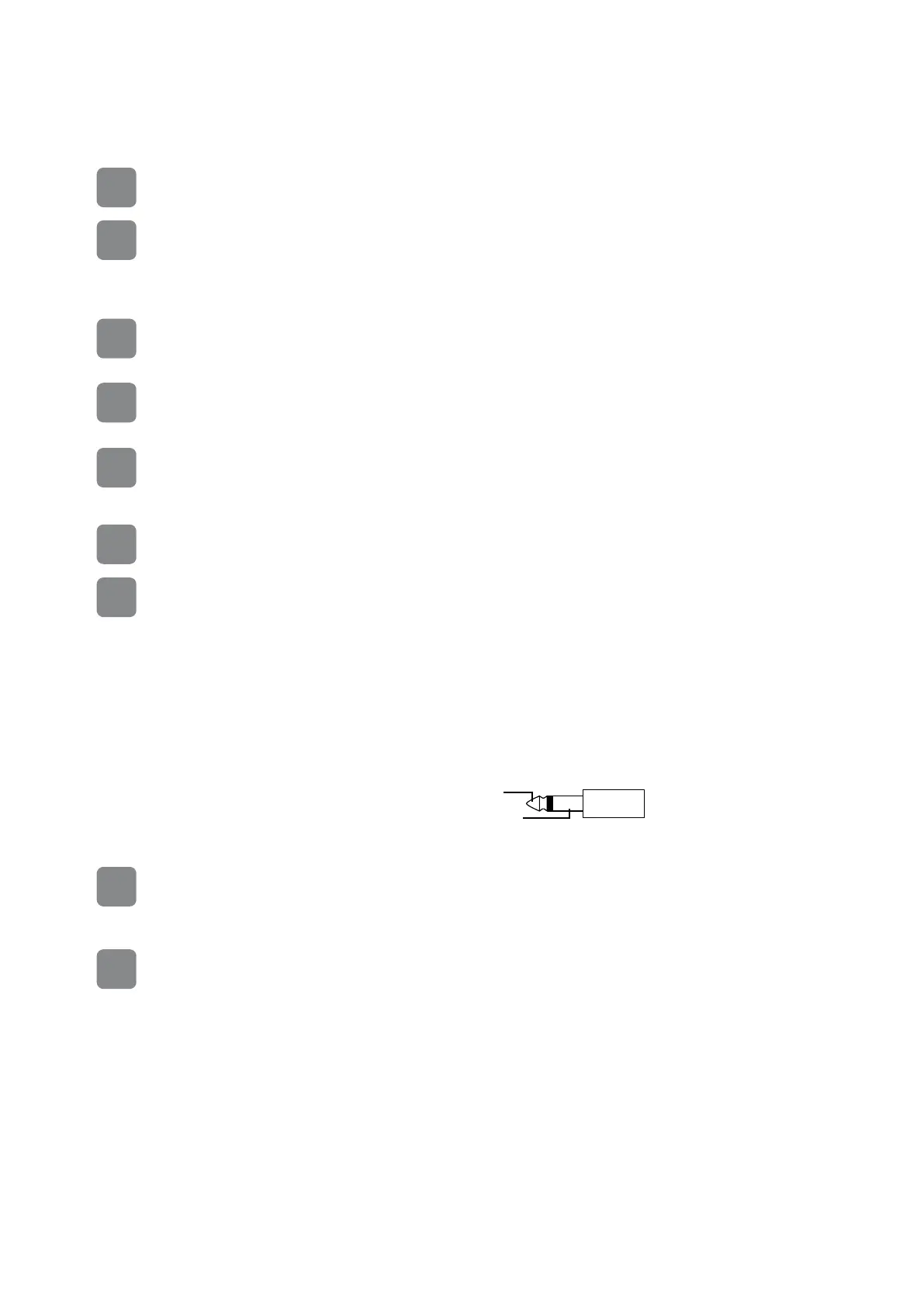

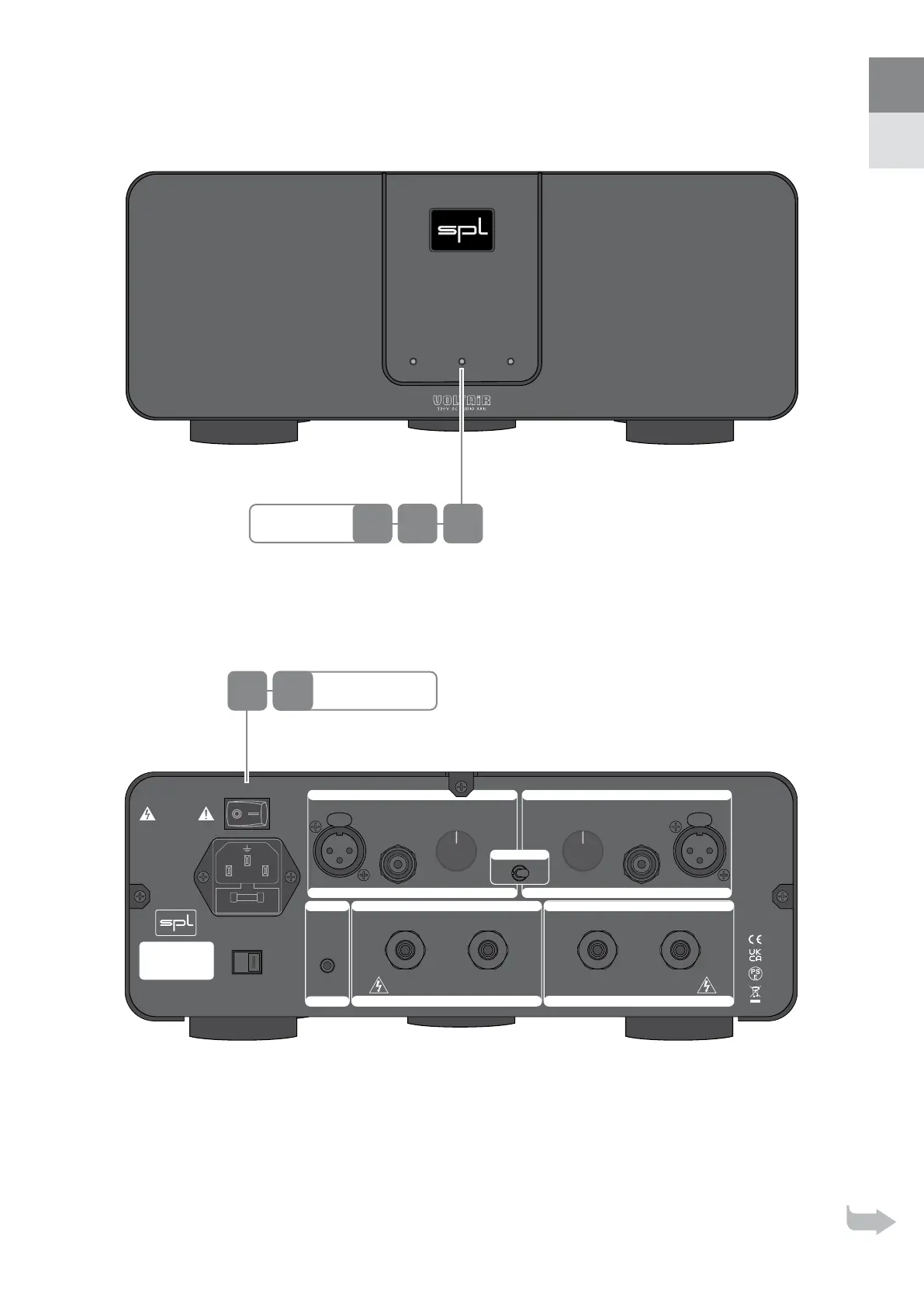

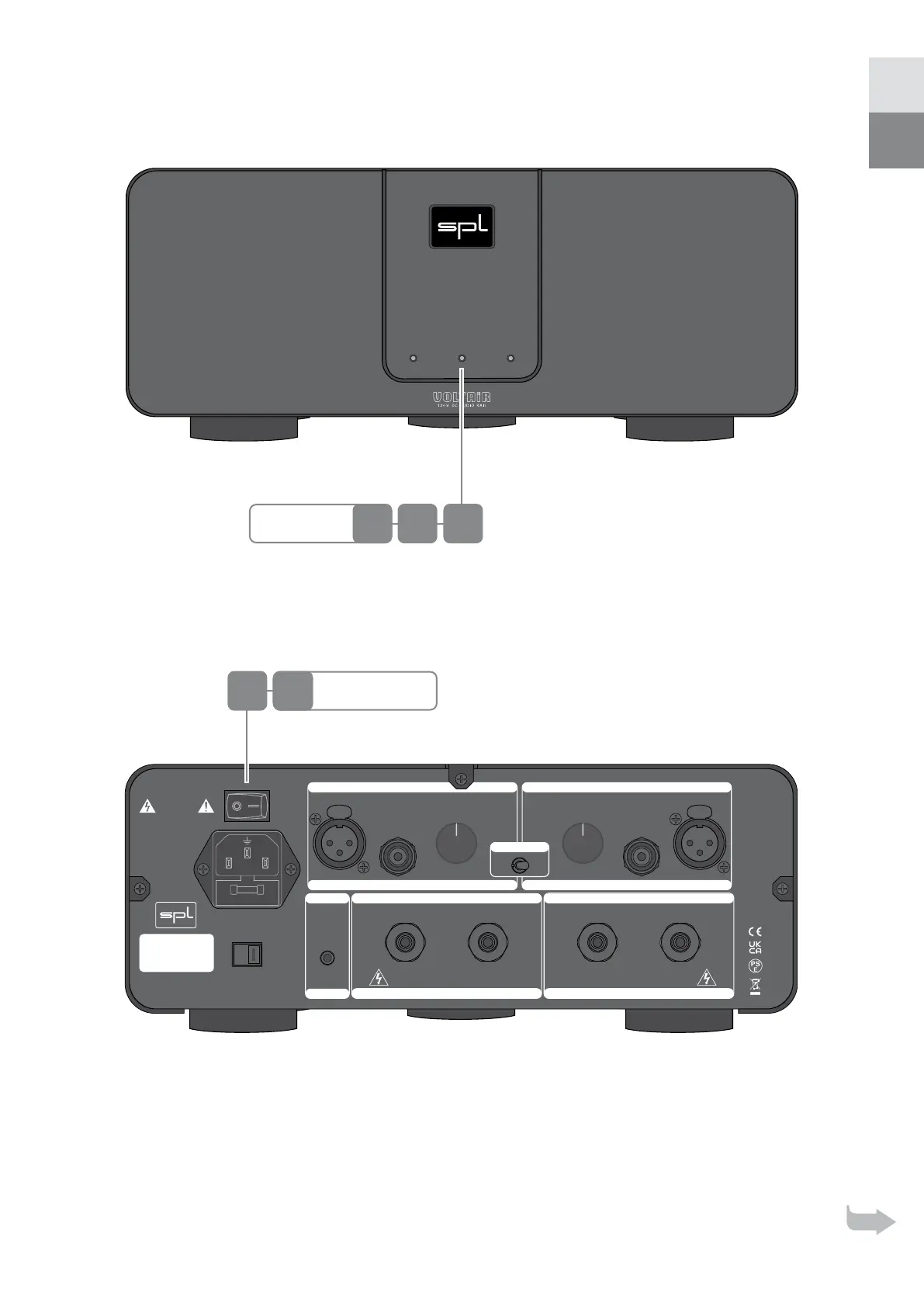

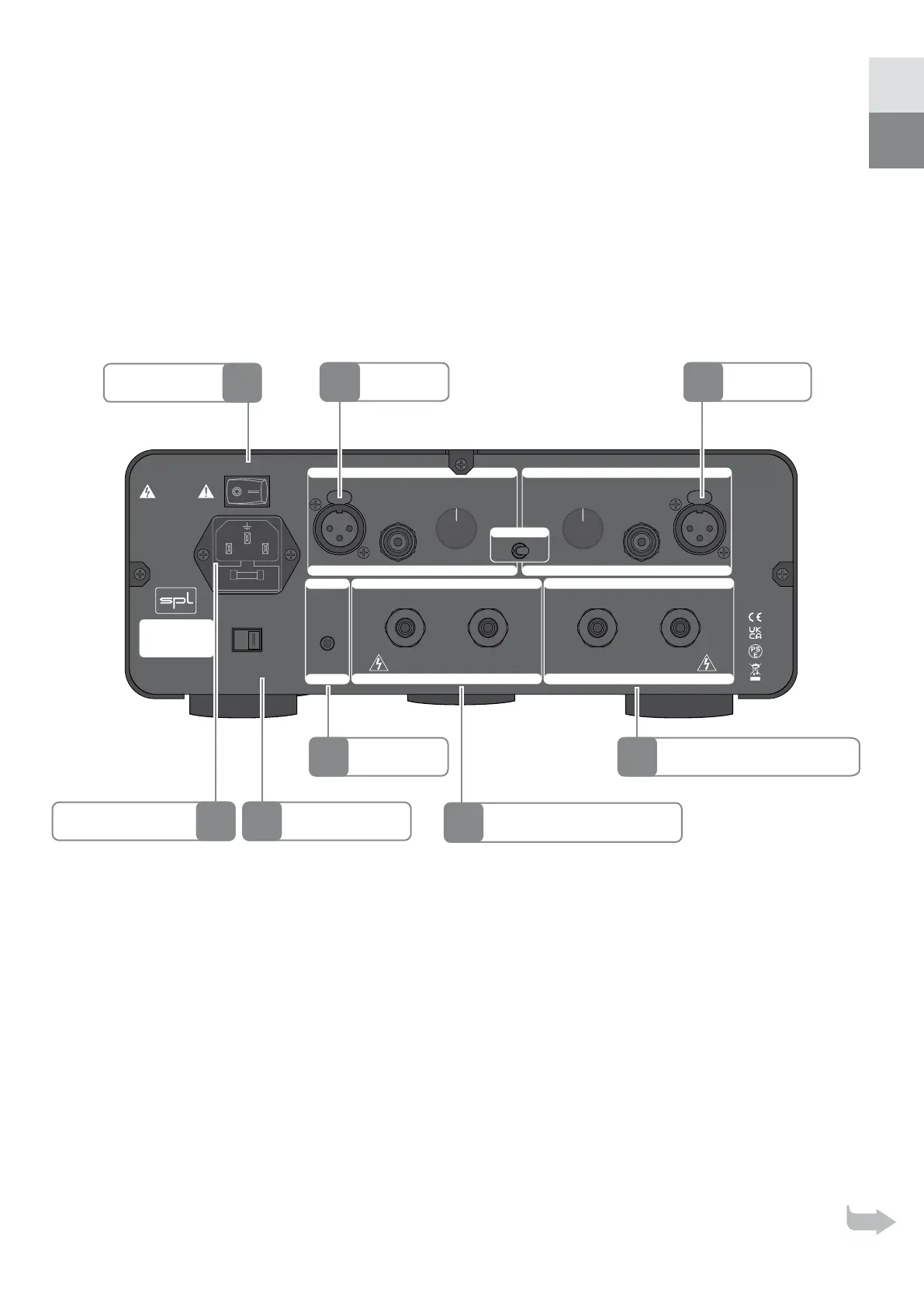

Start up
Read the security advices on page !
Remove the two transport locking screws at the bottom of the Performer s.
Keep the transport locking screws safe. For transport screw the transport locking screws back in.
Make sure that the selected mains voltage of the Performer s is according to the mains-
voltage of your region.
Make sure that the mains switch on the rear of the Performer s is set to O (O=O/On = I).
Connect the supplied power cord to the Performer s and to an appropriate mains socket
outlet. Be sure to connect the device to a main socket outlet with a protective grounding
connection!
If the supplied power cord does not match your mains socket outlet, please contact your dealer.
Turn o all devices you wish to connect to the Performer s.
If you own an SPL device supporting AMP CTL output(s) you can trigger standby and operation.
Therefore connect the AMP CTL output of the SPL device with a mono mini jack cable to the AMP
CTL input of the Performer s.
Mini jack cable is not included in the scope of delivery. You may also use other V trigger controller.
The Performer s is in operation mode when a switching voltage of Volt DC is applied to
the AMP CTL input. As soon as the Volt DC is removed, the Performer s switches back to
standby mode.
Use a mini jack cable where the tip is plus and the sleeve is minus.
Connect the outputs of your preamplier to the inputs (INPUT) of the Performer s.
Please use appropriate audio cables (XLR or RCA).
Audio cables are not included in the scope of delivery.
Connect the Performer s with speaker cables to your speakers.
Speaker cables are not included in the scope of delivery.
1
3
4
5
7
8
6
9
2
Tip
Sleeve

Performer s900 – Manual
3
RCA
Pin 2 +
Pin 2 +
XLR
Minimum Load: 2Ω Minimum Load: 2Ω
Performer
s900
Serial
Number
R
R
+
L
L
+––
Mono
3,5mm Jack
Connect to
12V trigger
output
for remote
power on/o
AMP CTL
INPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT L
SPEAKER OUTPUT L
INPUT L
INPUT L INPUT R
AMP CTL
I
N
P
U
T
T
R
I
M
SPL electronics GmbH, Sohlweg 80, 41372 Niederkrüchten, Germany
POWER
VOLTAGE
SELECTOR
100-120V AC [115V]/
200-240V AC [230V];
50/60 Hz, 900 W
Fuses:
[115V ] T 8A L 250V
[230V] T 4A L 250V
Made in Germany
RISK OF ELECTRIC SHOCK
DO NOT OPE N
CAUTION
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
INPUT SELECTOR
L N
USE ONLY WITH 250V FUSE.
I
N
P
U
T
T
R
I
M
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
230V

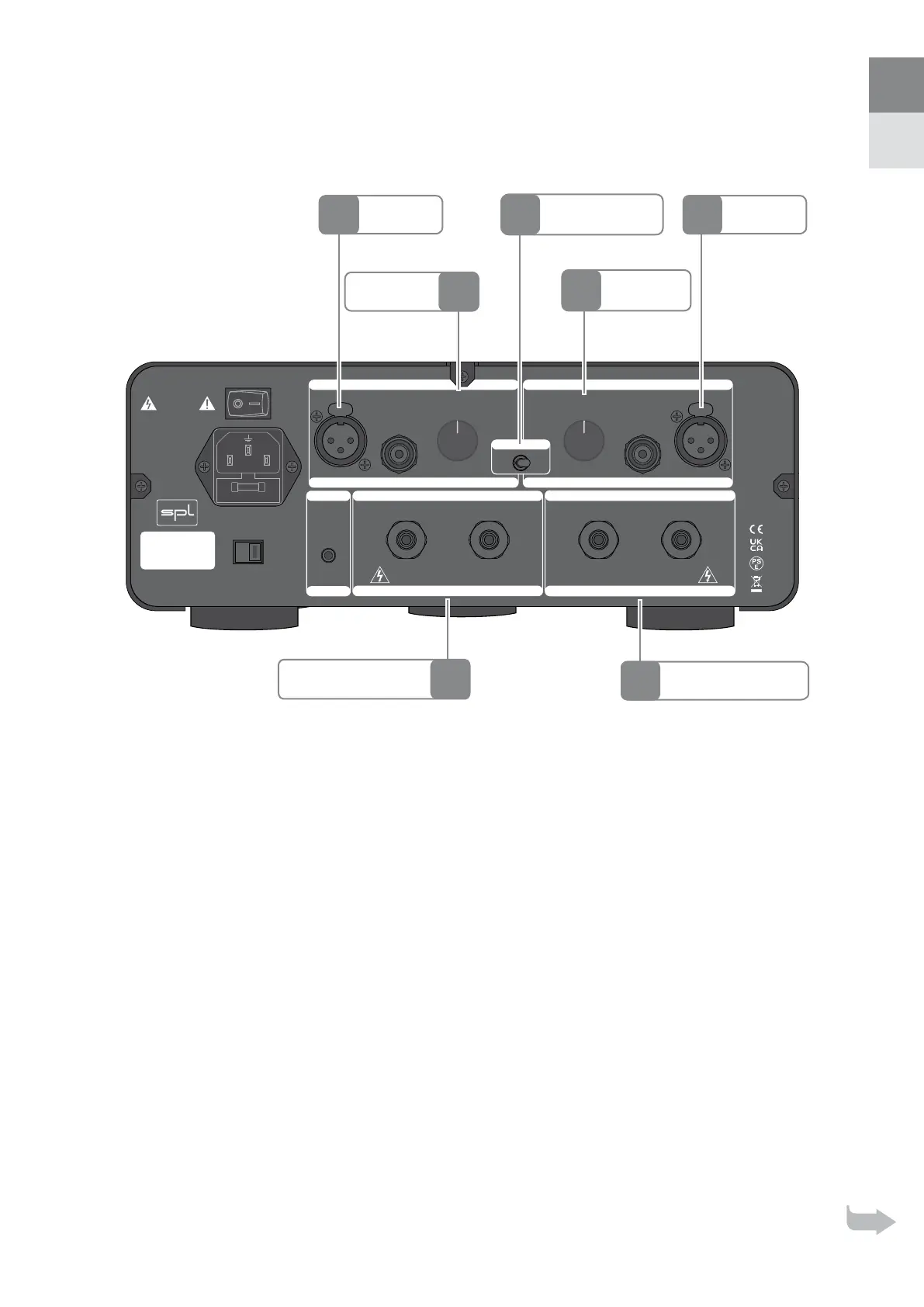

Speaker Output R
AMP CTL
Input R Input L
Mains Voltage
Mains Switch
Speaker Output L
Mains Connector
9
97
8 8
3
4
5
EN
DE

Performer s900 – Manual
5

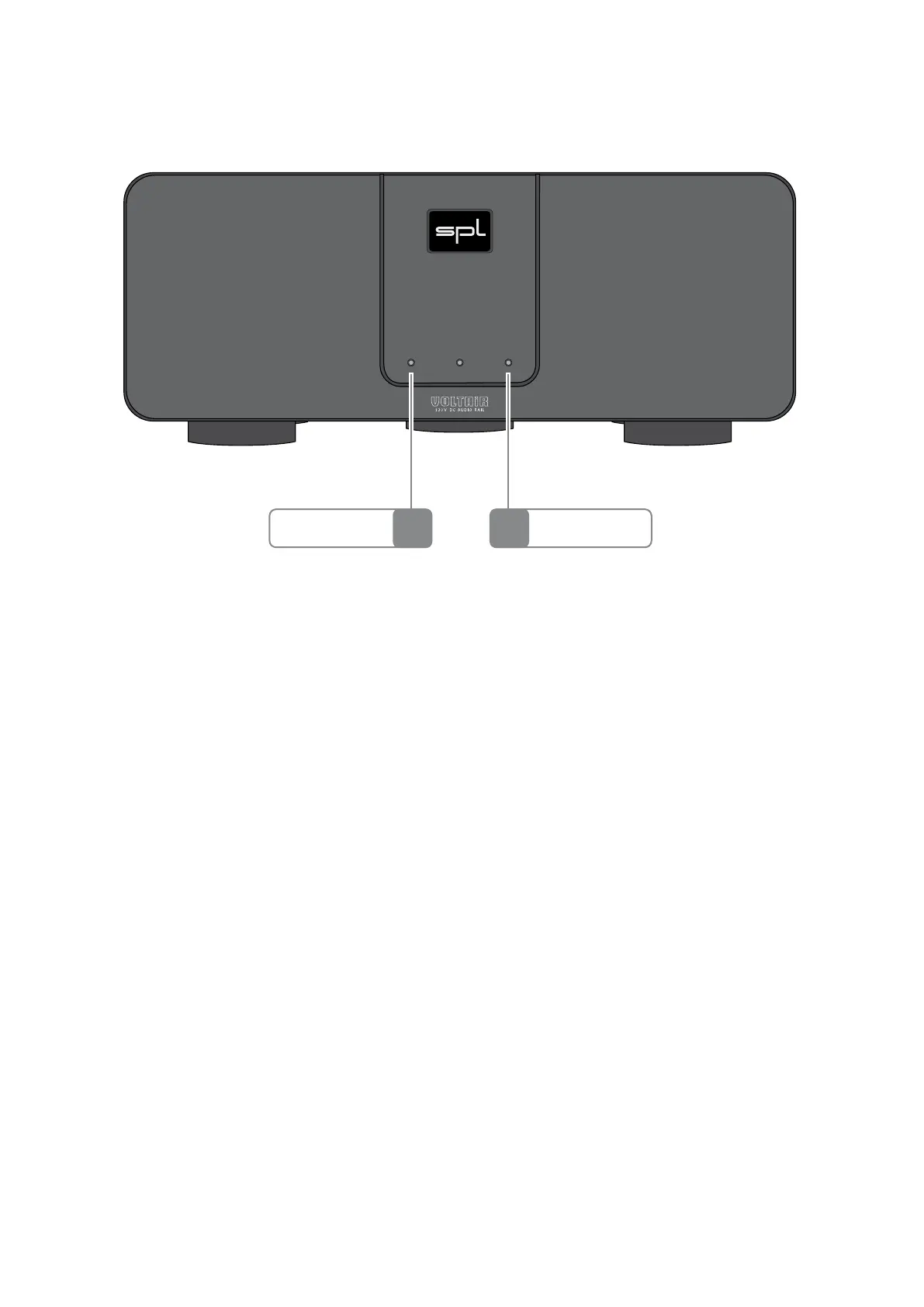

PWRPROTECT TEMP
Performer s900
Stereo Power Amplier
RCA
Pin 2 +
Pin 2 +
XLR
Minimum Load: 2Ω Minimum Load: 2Ω
Performer
s900
Serial
Number
R
R
+
L
L
+––
Mono
3,5mm Jack
Connect to
12V trigger
output
for remote
power on/o
AMP CTL
INPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT L
SPEAKER OUTPUT L
INPUT L
INPUT L INPUT R
AMP CTL
I
N
P
U
T
T
R
I
M
SPL electronics GmbH, Sohlweg 80, 41372 Niederkrüchten, Germany
POWER
VOLTAGE
SELECTOR
100-120V AC [115V]/
200-240V AC [230V];
50/60 Hz, 900 W
Fuses:
[115V ] T 8A L 250V
[230V] T 4A L 250V
Made in Germany
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
INPUT SELECTOR
L N
USE ONLY WITH 250V FUSE.
I
N
P
U
T
T
R
I
M
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
230V

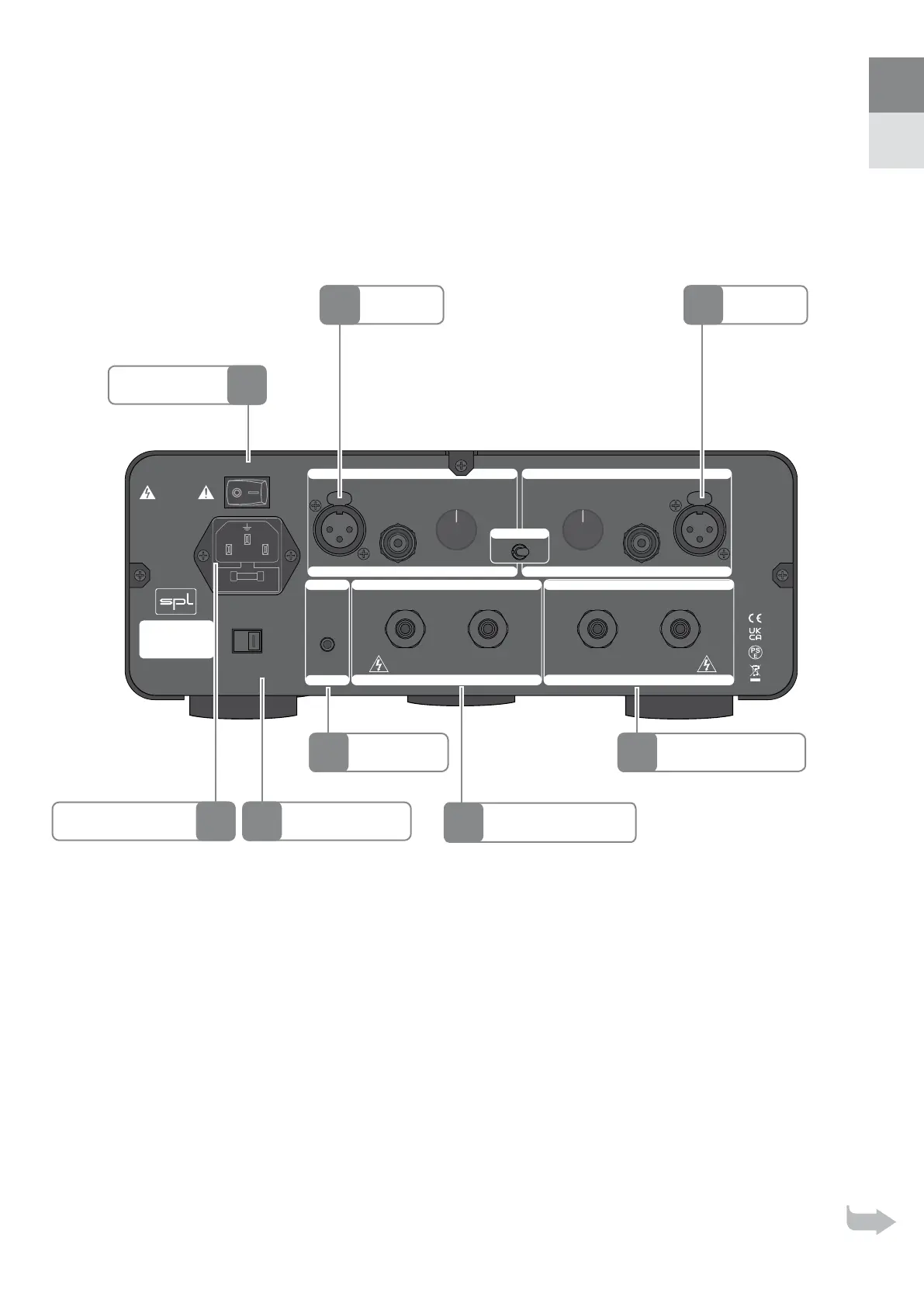

Mains Switch
1411
Power LED
12 1411
EN
DE

Performer s900 – Manual
6
Gain trim
The inputs can be lowered with the Gain TRIM switch from 0 dB to -5.5 dB in 0.5 dB steps. This
is helpful if you want to use multi speaker sets or speakers in a bi-wiring application.
It allows to level speakers with dierent eciency to equal loudness.
Inputs
The Performer s900 is equipped with XLR inputs for balanced connection as well as RCA
connectors for unbalanced connection to a preamp. Full output power (2 x 420 W RMS into
2 ohms, 2 x 370 W RMS into 4 ohms or 2 x 200 W into 8 ohms) is performed at +6 dBu at the
input.
Input select
With the Input Select switch you can switch the input source between XLR or RCA.
You can not use both at the same time.

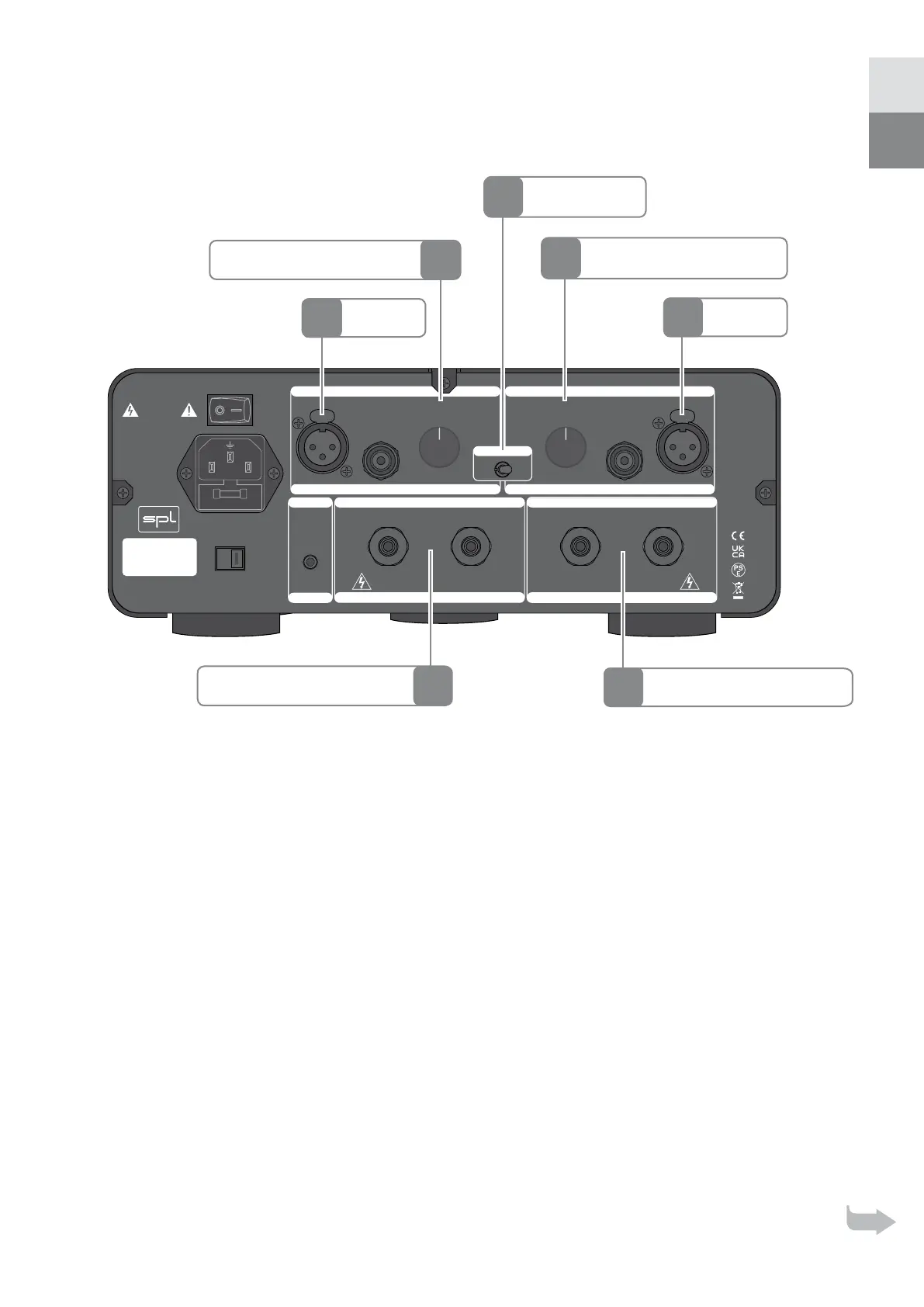

Speaker outputs
You can connect 2, 4 or 8 ohms loudspeakers to the Speaker outputs. You can either use the
ø 4 mm cable hole (screwable) or the banana plugs of the gold-plated loudspeaker binding
posts. Make sure that you do not mix up the polarity of the speaker connections and that the
power amplier is switched o when you connect speaker cables.
15
16
17
18

Performer s900 – Manual
7
RCA
Pin 2 +
Pin 2 +
XLR
Minimum Load: 2Ω Minimum Load: 2Ω
Performer
s900
Serial
Number
R
R
+
L
L
+––
Mono
3,5mm Jack
Connect to
12V trigger
output
for remote
power on/o
AMP CTL
INPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT L
SPEAKER OUTPUT L
INPUT L
INPUT L INPUT R
AMP CTL
I
N
P
U
T
T
R
I
M
SPL electronics GmbH, Sohlweg 80, 41372 Niederkrüchten, Germany
POWER
VOLTAGE
SELECTOR
100-120V AC [115V]/
200-240V AC [230V];
50/60 Hz, 900 W
Fuses:
[115V ] T 8A L 250V
[230V] T 4A L 250V
Made in Germany
RISK OF ELECTRIC SHOCK
DO NOT OPE N
CAUTION
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
INPUT SELECTOR
L N
USE ONLY WITH 250V FUSE.
I
N
P
U
T
T
R
I
M
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
230V
Gain Trim R
Gain Trim L
15
15
Speaker Output R
Input R Input L
Speaker Output L
18
18
16 16
Input select
17
EN
DE

Performer s900 – Manual
Protection circuits
The Performer s has protection circuits against DC (direct current) voltage at the output
and against overheating.
DC Protection
If DC is detected at one of the outputs, the Performer s automatically switches o.
DC voltage can be an indication for a defective power stage. The ProtectLED on the front indi-
cates that the protection circuit is activated and the power stage has been switched o.
Overheating protection circuit
At about ° C at the heat sink, the Performer s will switch o. Aer the temperature has
fallen below ° C, the amplier automatically switches on again. The TEMP LED on the front
indicates the overheating.
20
19

Performer s900 – Manual
10
© 2024 SPL electronics GmbH | www.spl.audio
Mains Power Supply
Mains voltage
(selectable, voltage selection switch)
200–240 V AC / 50–60 Hz; 100–120 V AC / 50–60 Hz
Fuse 200–240 V AC [230 V] T 4 A
Fuse 100–120 V AC [115 V] T 8 A
Power consumption max. 900 VA
Idle power consumption 20 W
Stand-by power consumption < 0,3 W
2407 – 1.0
Specications
Internal Linear Power Supply with Shielded Toroidal Transformer
Toroidal transformer 866 VA
Operating voltage (Input stage) +/- 60 V
Operating voltage (power stage) +/- 64 V
Operating voltage for relays, LEDs, AMP CTL + 12 V
Analog Inputs: XLR (balanced), RCA (unbalanced)
Input impedance 20 kΩ
Input trimming 0 dB to -5.5 dB in 0.5 dB steps
Input sensitivity 8 dBu
Loudspeaker Outputs: Binding posts with 4 mm ø cable hole (screwable) and banana plug
Output power (RMS, 2 Ω) 2 x 420 W
Harmonic distortion (1 kHz, 2 Ω) < 0.07 %
Output power (RMS, 4 Ω) 2 x 370 W
Harmonic distortion (1 kHz, 4 Ω) < 0.06 %
Output power (RMS, 8 Ω) 2 x 200 W
Harmonic distortion (1 kHz, 8 Ω) < 0.04 %
Output voltage (Peak-to-Peak) 112 V
Output voltage (RMS) 40.2 V
Output impedance (20 Hz – 20 kHz) < 0.035 Ω
Frequency range (-3 dB) 10 Hz – 80 kHz
Amplication gain 26 dB
Damping factor (1 kHz, 8 Ω) > 280
Noise (A-weighted) -123 dB

Performer s900 – Manual
11
Maße & Gewicht
W x H x D (width x height incl. feet x depth) 278 x 114 x 345 mm
11 x 4.5 x 13.6 inch
Unit weight 14.6 kg
32.2 lbs
Shipping weight 15.8 kg
34.4 lbs
EN
DE

Performer s900 – Manual
12
Security Advices
Before starting up the device:
• Read thoroughly and follow the security advices.
• Read thoroughly and follow the Manual.
• Observe all warning instructions on the device.
• Please keep the user manual as well as the security
advices in a safe place for future reference.
Warning
Always follow the security advices listed below to avoid
serious injuries or even deadly accidents due to electric
shocks, short circuit, re or other dangers. The following
are examples of such risks and do not represent an
exhaustive list:
Power supply/Power cord
Do not place the power cord near heat sources such
as heaters or radiators and do not excessively bend or
otherwise damage the cord, do not place heavy objects
on it, or place it in a position where anyone could walk
on, trip over, or roll anything over it.
Only use the voltage indicated on the device.
Only use the supplied power cord/plug.
If you intend to use the device in an area other than in
the one you purchased it, the included power cord may
not be compatible. In this case please contact your
dealer.
Be sure to connect the device to an appropriate mains
socket outlet with a protective grounding connection.
Improper grounding can cause electrical shock.
When removing the electric plug from the device or an
mains socket outlet, always pull on the plug itself and
not the cord. Pulling the cord may damage it.
Unplug the device from the mains socket outlet when
the device is not used for a while.
Replacing fuses and voltage selection
The replacement of fuses and the switching of mains
voltages must only be performed by qualied
technicians. Fuses must only be replaced with fuses of
the same type and specications.
Do not open
This device contains no user-serviceable parts. Do not
open the device or attempt to disassemble the internal
parts or modify them in any way. If it should appear to be
malfunctioning, turn o the power immediately, unplug
the power cord from the mains socket outlet and have it
inspected by a qualied professional.
Water warning
Do not expose the device to rain, or use it near water
or in damp or wet conditions, or place anything on it
(such as vases, bottles or glasses) containing liquids
which might spill into any openings. If any liquid such as
water seeps into the device, turn o the power immedi-
ately and unplug the power cord from the mains socket
outlet. Then have the device inspected by a qualied
professional.
Never insert or remove an electric plug with wet hands.
Fire warning
Do not put burning items, such as candles, on the unit.
A burning item may fall over and cause a re.
Lightning
Before thunderstorms or other severe weather, discon-
nect the device from the mains socket outlet; do not
do this during a storm in order to avoid life threatening
lightning strikes. Similarly, disconnect all the power
connections of other devices, antenna and phone/
network cables which may be interconnected so that no
damage results from such secondary connections.
If you notice any abnormality
When one of the following problems occur, immediately
turn o the power switch and disconnect the electric
plug from the mains socket outlet. Then have the device
inspected by a qualied professional.
• The power cord or plug gets frayed or damaged.
• The device emits unusual smells or smoke.
• An object has fallen into the unit.
• There is a sudden loss of sound during the use of the
the device.
Caution
Always follow the basic precautions listed below to
avoid the possibility of physical injury to you or others,
or damage to the device or other property. These
precautions include, but are not limited to, the following:
XLR output connector
Touching the open pins of the XLR output connector may
result in an uncomfortable feeling.
Location
Do not place the device in an unstable position where it
might accidentally fall over.
Do not block the vents. This device has ventilation holes
to prevent the internal temperature from rising too high.
In particular, do not place the device on its side or upside
down. Inadequate ventilation can result in overheating,
possibly causing damage to the device or even re.
Do not place the device in a location where it may come
into contact with corrosive gases or salty air. This may
result in malfunction.
Before moving the device, remove all connected cables.
When setting up the device, make sure that the mains
socket outlet you are using is easily accessible. If some
trouble or malfunction occurs, immediately turn o the
power switch and disconnect the plug from the mains
socket outlet. Even when the power switch is turned o,
electricity is still flowing to the product at a minimum
rate. When you are not using the device for a long time,
make sure to unplug the power cord from the wall mains
socket outlet.

Performer s900 – Manual
Connections
Before connecting the device to other devices, power
down all devices. Before power on or o the devices, set
all volume levels to minimum.
Only use appropriate cables to connect the device with
other devices. Make sure that the cables you use are
intact and comply with the electrical specications of
the connection. Other connections can lead to health
risks and damage the equipment.
Handling
Operate the controls and switches only as described in
the manual. Incorrect adjustments outside safe para-
meters can lead to damage. Never use excessive force
on the switches or controls.
Do not insert your ngers or hands in any gaps or open-
ings of the device.
Avoid inserting or dropping foreign objects (paper,
plastic, metal, etc.) into any gaps or openings of the
device. If this happens, power down immediately and
unplug the power cord from the mains socket outlet.
Then have the device inspected by a qualied profes-
sional.
Do not expose the device to excessive dust or vibrations
or extreme cold or heat (such as direct sunlight, near a
heater or in a car during the day) to prevent the possi-
bility of causing damage to the housing, the internal
components or unstable operation.
If the ambient temperature of the device suddenly
changes, condensation can occur (if for example the
device is relocated or is aected by a heater or air condi-
tioning).
Using the device while condensation is present may
result in malfunction. Do not power on the device for a
few hours until the condensation is gone. Only then it is
safe to power on.
Cleaning
Disconnect the device from your mains socket outlet
before cleaning.
Do not use any solvents, as these can damage the
chassis nish. Use a dry cloth, if necessary, with an
acid-free cleaning oil.
Disclaimer
The company names and product names in this manual
are the trademarks or registered trademarks of their
respective companies.
SPL and the SPL Logo are registered trademarks of SPL
electronics GmbH.
SPL cannot be held responsible for damage caused by
improper use or modication of the device or data that
is lost or destroyed.
Notes on Environmental Protection
At the end of its operating life, this product
must not be disposed with regular household
waste but must be returned to a collection point
for the recycling of electrical and electronic
equipment.
The wheelie bin symbol on the product, user manual
and packaging indicates that.
For proper treatment, recovery and recycling of old
products, please take them to applicable collection
points in accordance with your national legislation and
the Directives 2012/19/EU.
The materials can be reused in accordance with their
markings. Through reuse, recycling of raw materials, or
other forms of recycling of old products, you are making
an important contribution to the protection of our envi-
ronment.
Your local administrative oce can advise you of the
responsible waste disposal point.
This directive only applies to countries inside the EU.
If you wish to discard devices outside the EU, please
contact your local authorities or dealer and ask for the
correct method of disposal.
WEEE-Reg-No.:
This manual includes a description of the product but
no guarantee as for specic characteristics or successful
results. Unless stated otherwise, everything herein
corresponds to the technical status at the time of
delivery of the product by SPL electronics GmbH. The
design and circuitry are under continuous development
and improve- ment. Technical specications are subject
to change.
Declaration of CE Conformity
The construction of this unit is in compliance with
the standards and regulations of the European Commu-
nity.
EN
DE

Performer s900 – Manual
14
© 2024 SPL electronics GmbH | www.spl.audio

Professional Fidelity
Weitere Informationen:
www.spl.audio
Version .
EN
DE
Performer s – Bedienungsanleitung
Stereo-Endstufe

Performer s900 – Bedienungsanleitung
Inbetriebnahme
Lesen Sie die Sicherheitshinweise auf Seite .
Entfernen Sie die beiden Transportsicherungs-Schrauben auf der Unterseite des
Performers.
Bewahren Sie die Transportsicherungs-Schrauben auf. Für einen Transport drehen Sie die Transportsicherungs-
Schrauben wieder ein.
Stellen Sie sicher, dass die eingestellte Netzspannung des Performers mit der Spannung
in Ihrer Region übereinstimmt.
Achten Sie darauf, dass sich der Netzschalter auf der Rückseite des Performers in der
Aus-Stellung bendet (Aus = O / Ein = I).
Schließen Sie das mitgelieferte Netzkabel am Performers und an eine Steckdose an.
Das Gerät darf nur an eine Steckdose mit Schutzleiter angeschlossen werden!
Wenn das mitgelieferte Netzkabel nicht in Ihre Steckdose passt, wenden Sie sich bitte an Ihren Händler.
Schalten Sie alle Geräte aus, die Sie am Performers anschließen wollen.
Wenn Sie ein SPL Gerät mit AMP CTL-Ausgängen besitzen, können Sie beide Geräte
gemeinsam zwischen Betrieb- und Stand-by-Zusstand schalten. Verbinden Sie dazu die AMP
CTL-Anschlüsse des Performer s und des SPL Gerätes mit einem Miniklinken-Kabel.
Miniklinken-Kabel nicht im Lieferumfang enthalten.
Sie können auch eine andere V-Steuerung nutzen. Wenn eine Schaltspannung von Volt
DC am AMP CTL-Anschluss anliegt, ist der Performer s in Betrieb. Sobald die Schaltspan-
nung von Volt DC abgeschaltet wird, schaltet der Performer s in Stand-by.
Benutzen Sie ein Miniklinken-Kabel mit der Belegung Tip = Plus und Sleeve = Minus.
Stellen Sie eine Verbindung von den Ausgängen Ihres Vorverstärkers zu den Eingängen
(INPUT) des Performer s mit geeigneten Audiokabeln (XLR oder Cinch) her.
Audiokabel nicht im Lieferumfang enthalten.
Schließen Sie Lautsprecherkabel zwischen dem Performer s und Ihren Lautsprecherboxen
an.
Lautsprecherkabel nicht im Lieferumfang enthalten.
1
2
3
5
6
9
4
7
8
Tip
Sleeve

Performer s900 – Bedienungsanleitung
17
RCA
Pin 2 +
Pin 2 +
XLR
Minimum Load: 2Ω Minimum Load: 2Ω
Performer
s900
Serial
Number
R
R
+
L
L
+––
Mono
3,5mm Jack
Connect to
12V trigger
output
for remote
power on/o
AMP CTL
INPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT L
SPEAKER OUTPUT L
INPUT L
INPUT L INPUT R
AMP CTL
I
N
P
U
T
T
R
I
M
SPL electronics GmbH, Sohlweg 80, 41372 Niederkrüchten, Germany
POWER
VOLTAGE
SELECTOR
100-120V AC [115V]/
200-240V AC [230V];
50/60 Hz, 900 W
Fuses:
[115V ] T 8A L 250V
[230V] T 4A L 250V
Made in Germany
RISK OF ELECTRIC SHOCK
DO NOT OPE N
CAUTION
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
INPUT SELECTOR
L N
USE ONLY WITH 250V FUSE.
I
N
P
U
T
T
R
I
M
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
230V
Lautsprecheranschluss R
AMP CTL
Eingang R Eingang L
Netzspannung
Netzschalter
Lautsprecheranschluss L
Netzanschlusss
9
97
8 8
3
4
5
EN
DE

Performer s900 – Bedienungsanleitung
Einschalten
Regeln Sie die Lautstärke des angeschlossenen Vorverstärkers herunter.
Schalten Sie den Netzschalter auf der Rückseite des Performers ein (Ein = I).
Die Power-LED leuchtet nun.
Stand-by
Die Standby-Funktion erfordert eine AMP-CTL-Verbindung zu einem SPL-Gerät, das einen
AMP-CTL-Ausgang unterstützt, oder eine andere V-Steuerung.
Im Stand-by-Modus leuchtet die Power-LED schwach.
Ausschalten
Regeln Sie die Lautstärke des angeschlossenen Vorverstärkers herunter.
Schalten Sie den Netzschalter auf der Rückseite des Performers aus (Aus = O).
Die Power-LED leuchtet nun nicht mehr.
10
11
12
13
14

Performer s900 – Bedienungsanleitung
19
RCA
Pin 2 +
Pin 2 +
XLR
Minimum Load: 2Ω Minimum Load: 2Ω
Performer
s900
Serial
Number
R
R
+
L
L
+––
Mono
3,5mm Jack
Connect to
12V trigger
output
for remote
power on/o
AMP CTL
INPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT L
SPEAKER OUTPUT L
INPUT L
INPUT L INPUT R
AMP CTL
I
N
P
U
T
T
R
I
M
SPL electronics GmbH, Sohlweg 80, 41372 Niederkrüchten, Germany
POWER
VOLTAGE
SELECTOR
100-120V AC [115V]/
200-240V AC [230V];
50/60 Hz, 900 W
Fuses:
[115V ] T 8A L 250V
[230V] T 4A L 250V
Made in Germany
RISK OF ELECTRIC SHOCK
DO NOT OPE N
CAUTION
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
INPUT SELECTOR
L N
USE ONLY WITH 250V FUSE.
I
N
P
U
T
T
R
I
M
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
230V
PWRPROTECT TEMP
Performer s900
Stereo Power Amplier
Power LED
Netzschalter
12 1411
1411
EN
DE

Performer s900 – Bedienungsanleitung
Verstärkungs-Trim
Über den TRIM-Schalter kann das Eingangssignal in , dB-Schritten um bis zu , dB
abgesenkt werden. Dies ist zum einen bei Verwendung mehrerer Lautsprecher hilfreich, um
die Wiedergabelautstärke abzugleichen. Zum anderen erlaubt es eine präzise Anpassung im
Bi-wiring-Betrieb.
Eingänge
Der Performer s ist mit XLR-Eingängen für die symmetrische Verbindung sowie
Cinch-Anschlüssen für die unsymmetrische Verbindung zur Vorstufe ausgestattet.
Die volle Ausgangsleistung ( x W an Ohm, x W an Ohm oder x W
an Ohm) wird bei + dBu am Eingang erreicht.
Auswahl Eingangsquelle
Über den Kippschalter wählen Sie eine Eingangsquelle, XLR oder RCA.
Es ist nicht möglich beide Quellen gleichzeitig zu verwenden.
Lautsprecherausgänge
An den Lautsprecher-Anschlüssen können -, - oder -Ohm-Lautsprecher angeschlossen
werden. Es können die vergoldeten Anschlussklemmen mit mm Kabeldurchführung
(schraubbar) oder Bananenstecker genutzt werden.
Achten Sie darauf, dass Sie die Polarität der Lautsprecher-Anschlüsse nicht vertauschen und das die Endstufe
ausgeschaltet ist, wenn Sie Lautsprecherkabel anschließen.
15
16
17
18

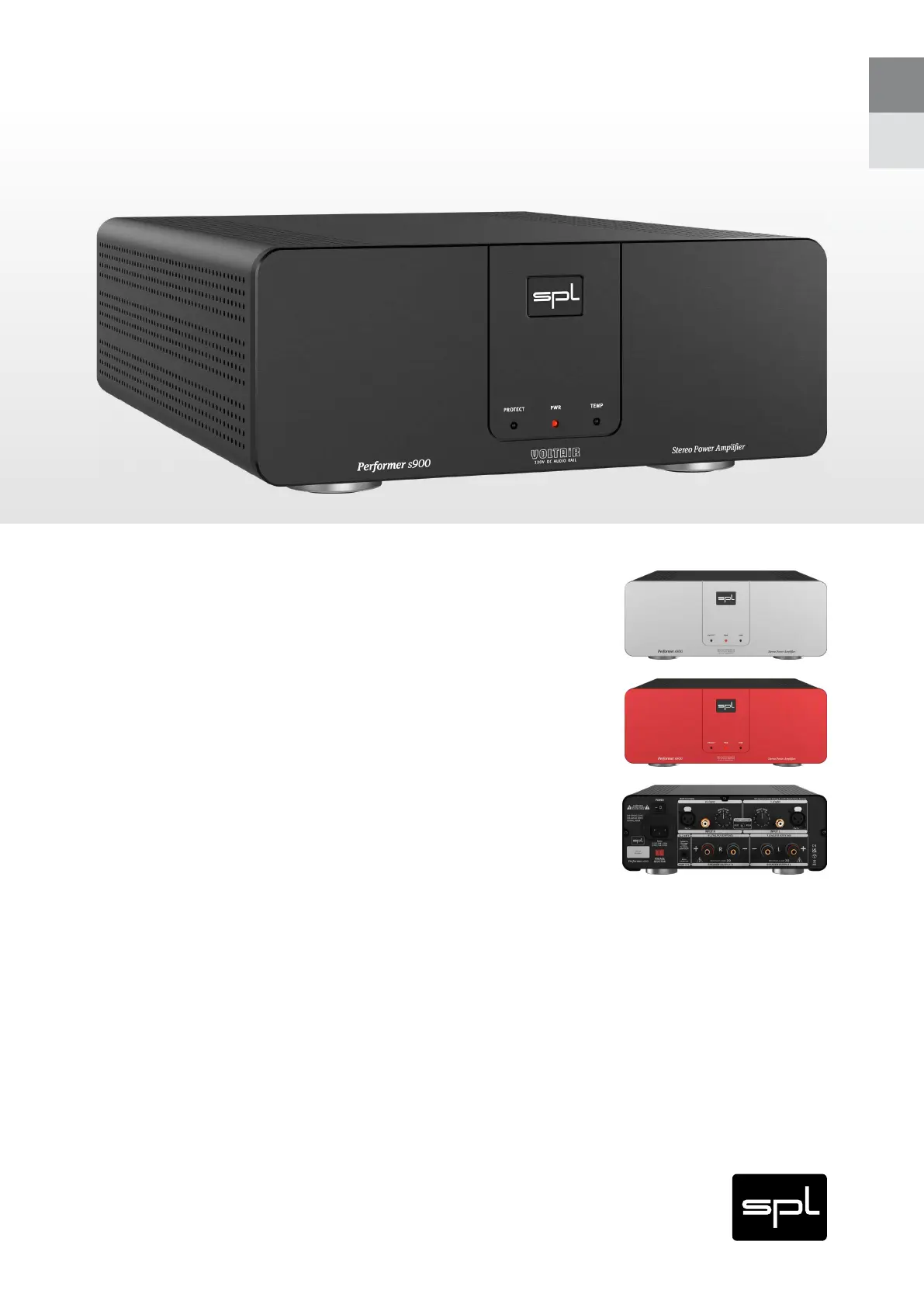

Performer s900 – Bedienungsanleitung
21
RCA
Pin 2 +
Pin 2 +
XLR
Minimum Load: 2Ω Minimum Load: 2Ω
Performer
s900
Serial
Number
R
R
+
L
L
+––
Mono
3,5mm Jack
Connect to
12V trigger
output
for remote
power on/o
AMP CTL
INPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT R
SPEAKER OUTPUT L
SPEAKER OUTPUT L
INPUT L
INPUT L INPUT R
AMP CTL
I
N
P
U
T
T
R
I
M
SPL electronics GmbH, Sohlweg 80, 41372 Niederkrüchten, Germany
POWER
VOLTAGE
SELECTOR
100-120V AC [115V]/
200-240V AC [230V];
50/60 Hz, 900 W
Fuses:
[115V ] T 8A L 250V
[230V] T 4A L 250V
Made in Germany
RISK OF ELECTRIC SHOCK
DO NOT OPE N
CAUTION
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
INPUT SELECTOR
L N
USE ONLY WITH 250V FUSE.
I
N
P
U
T
T
R
I
M
0
-
5
.
5
-
5
-
4
.
5
-
4
-
3
.
5
-
3
-
2
.
5
-
2
-
1
.
5
-
1
-
0
.
5
230V
Eingangsempndlichkeit R
Eingangsempndlichkeit L
15
15
Lautsprecher Anschluss R
Eingang R
Eingang L
Lautsprecher-Anschluss L
18
18
16
16
Eingangsquelle
17
EN
DE

Performer s900 – Bedienungsanleitung
23
PWRPROTECT TEMP
Performer s900
Stereo Power Amplier
PROTECT LED TEMP LED
19 20

Performer s900 – Bedienungsanleitung
24
Netzteil
Netzspannung
(wählbar, Voltage-Selection-Schalter)
200–240 V AC / 50–60 Hz; 100–120 V AC / 50–60 Hz
Sicherung für 200–240 V AC [230 V] T 4 A
Sicherung für 100–120 V AC [115 V] T 8 A
Leistungsaufnahme max. 900 VA
Stromverbrauch im Leerlauf 20 W
Stand-by Stromaufnahme < 0,3 W
Technische Daten
Interne Stromversorgung; Linear-Netzteil mit geschirmtem Ringkerntransformator
Ringkerntransformator 866 VA
Betriebsspannung (Eingang) +/- 60 V
Betriebsspannung (Endstufe) +/- 64 V
Betriebsspannung für Relais und LEDs + 12 V
Analoge Ein- und Ausgänge: XLR (symmetrisch), Cinch
Eingangsimpedanz (Cinch) 20 kΩ
Eingangs-Trimming 0 dB bis -5.5 dB in 0.5 dB Schritten
Eingangsempndlichkeit 8 dBu
Analoge Ein- und Ausgänge: XLR (symmetrisch), Cinch
Ausgangsleistung (RMS, 2 Ω) 2 x 420 W
Harmonische Verzerrung (1 kHz, 2 Ω) < 0.07 %
Ausgangsleistung (RMS, 4 Ω) 2 x 370 W
Harmonische Verzerrung (1 kHz, 4 Ω) < 0.06 %
Ausgangsleistung (RMS, 8 Ω) 2 x 200 W
Harmonische Verzerrung (1 kHz, 8 Ω) < 0.04 %
Ausgangsspannung (Peak-to-Peak) 112 V
Ausgangsspannung (RMS) 40.2 V
Ausgangsimpedanz (20 Hz – 20 kHz) < 0.035 Ω
Frequenzgang (-3dB) 10 Hz – 80 kHz
Verstärkung 26 dB
Dämpfungsfaktor (1 kHz, 8 Ω) > 280
Rauschen (A-bewertet) -123 dB

Performer s900 – Bedienungsanleitung
25
Maße & Gewicht
W x H x T (Weite x Höhe inkl. Füße x Tiefe) 278 x 114 x 345 mm
11 x 4,5 x 13,6 inch
Gewicht des Geräts 14,6 kg
32.2 lbs
Versandgewicht (inkl. Verpackung) 15,8 kg
34.4 lbs
EN
DE

Performer s900 – Bedienungsanleitung
26
Sicherheitshinweise
Vor der Inbetriebnahme des Gerätes:
• Lesen und befolgen Sie diese Sicherheitshinweise.
• Lesen und befolgen Sie die Bedienungsanleitung.
• Beachten Sie alle Warnhinweise auf dem Gerät.
• Bewahren Sie die Bedienungsanleitung mit den
Sicherheitshinweisen auf, damit Sie später darin
nachschlagen können.
Warnung
Befolgen Sie immer die nachfolgenden Sicherheitsmaß-
nahmen, um schwere Verletzungen oder sogar tödliche
Unfälle durch elektrischen Schlag, Kurzschluss, Feuer
oder andere Gefahren zu vermeiden. Zu diesen Sicher-
heitsmaßnahmen gehören folgende Punkte, die jedoch
keine abschließende Aufzählung darstellen:
Netzanschluss/Netzkabel
Verlegen Sie das Netzkabel niemals in der Nähe von
Wärmequellen, etwa Heizkörpern oder Heizstrahlern,
biegen Sie es nicht übermäßig und beschädigen Sie es
nicht auf sonstige Weise, stellen Sie keine schweren
Gegenstände darauf und verlegen Sie es nicht an einer
Stelle, wo jemand darauf treten, darüber stolpern oder
etwas darüber rollen könnte. Betreiben Sie das Gerät nur
mit der Spannung, die auf dem Gerät angegeben ist.
Verwenden Sie ausschließlich das mitgelieferte Netz-
kabel bzw. Netzstecker. Wenn Sie das Gerät in einer
anderen Region als der, in der Sie es gekau haben,
verwenden möchten, kann es sein, dass das mitgelie-
ferte Netzkabel nicht kompatibel ist. Wenden Sie sich
bitte an Ihren Händler, bei dem Sie das Gerät gekau
haben. Achten Sie darauf, eine geeignete Steckdose
mit Sicherheitserdung zu verwenden. Durch falsche
Erdung können elektrische Schläge verursacht werden.
Fassen Sie den Netzstecker nur am Stecker selbst und
niemals am Kabel an, wenn Sie ihn vom Gerät oder von
der Steckdose abziehen. Wenn Sie am Kabel ziehen,
kann dieses beschädigt werden. Ziehen Sie bei Nichtbe-
nutzung des Gerätes über einen längeren Zeitraum den
Netzstecker aus der Steckdose.
Sicherungswechsel und Spannungswahl
Das Auswechseln der Sicherungen und das Umstellen
der Netzspannungen ist nur durch qualiziertes Fach-
personal auszuführen. Sicherungen dürfen nur durch
Sicherungen des gleiches Typs, mit gleichen Spezikati-
onen ersetzt werden.
Das Gerät darf nicht geönet werden
Dieses Gerät enthält keine vom Anwender zu wartenden
Teile. Versuchen Sie nicht, das Gerät zu önen oder die
inneren Komponenten zu entfernen oder auf irgendeine
Weise zu ändern. Sollte einmal eine Fehlfunktion aureten,
schalten Sie das Gerät sofort aus und ziehen Sie das Netz-
kabel aus der Steckdose. Lassen Sie das Gerät anschlie-
ßend von einer qualizierten Fachkra überprüfen.
Vorsicht mit Wasser
Achten Sie darauf, dass das Gerät nicht durch Regen
nass wird, verwenden Sie es nicht in der Nähe von
Wasser oder unter feuchten oder nassen Umgebungsbe-
dingungen und stellen Sie auch keine Behälter (wie z.B.
Vasen, Flaschen oder Gläser) mit Flüssigkeiten darauf,
die herausschwappen und in Önungen hineinfließen
könnten. Wenn eine Flüssigkeit wie z.B. Wasser in das
Gerät gelangt, schalten Sie das Gerät sofort aus und
ziehen Sie das Netzkabel aus der Steckdose. Lassen Sie
das Gerät anschließend von einer qualizierten Fach-
kra überprüfen. Schließen Sie den Netzstecker niemals
mit nassen Händen an oder ziehen Sie ihn heraus.
Brandschutz
Stellen Sie keine brennenden Gegenstände (z.B. Kerzen)
auf dem Gerät ab. Ein brennender Gegenstand könnte
umfallen und einen Brand verursachen.
Blitz
Ziehen Sie vor einem Gewitter den Netzstecker aus der
Steckdose (jedoch niemals während eines Gewitters).
Verfahren Sie ebenso mit verbundenen Geräten und
ziehen Sie auch ggf. über eine Gerätekette verbundene
Antennen-, Telefon- oder Computernetzkabel aus den
Anschlussdosen, um das Gerät vor Blitz oder Überspan-
nungsschäden zu schützen.
Falls Sie etwas ungewöhnliches bemerken
Wenn eines der folgenden Probleme auritt, schalten
Sie das Gerät sofort aus und ziehen Sie den Netzstecker
aus der Steckdose. Lassen Sie das Gerät anschließend
von einer qualizierten Fachkra überprüfen.
• Netzkabel oder Netzstecker sind beschädigt.
• Das Gerät sondert ungewöhnliche Gerüche oder
Rauch ab.
• Ein Gegenstand ist in das Gerät gefallen.
• Während der Verwendung des Geräts kommt es zu
einem plötzlichen Tonausfall.
Vorsicht
Beachten Sie immer die nachstehend aufgelisteten
grundsätzlichen Vorsichtsmaßnahmen, um mögliche
Verletzungen bei Ihnen oder anderen Personen oder
Schäden am Gerät oder an anderen Gegenständen zu
vermeiden. Zu diesen Vorsichtsmaßnahmen gehören
die folgenden Punkte, die jedoch keine abschließende
Aufzählung darstellen:
XLR-Ausgangsstecker
Das Berühren der oenen Pins des XLR-Ausgangsste-
ckers kann ein unangenehmes Gefühl zur Folge haben.
Aufstellort
Achten Sie auf einen sicheren Stand des Geräts, um ein
unabsichtliches Umstürzen zu vermeiden. Blockieren
Sie nicht die Lüungsönungen. Dieses Gerät besitzt
Lüungsönungen, die eine Überhitzung des Gerätein-
neren vermeiden sollen. Legen Sie das Gerät insbeson-
Produkt Specifikationer
Mærke: | SPL |
Kategori: | Modtager |
Model: | Performer S900 |
Har du brug for hjælp?
Hvis du har brug for hjælp til SPL Performer S900 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Modtager SPL Manualer
19 Juni 2025
17 November 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
Modtager Manualer
- Boss
- JETI
- Manhattan
- Kogan
- Avalon
- Optoma
- Rega
- Wireless Solution
- Elektrobock
- Jolida
- Reely
- RetroSound
- Naxa
- JBL
- Hartke
Nyeste Modtager Manualer
10 August 2025
10 August 2025
9 August 2025
9 August 2025
9 August 2025
9 August 2025
9 August 2025
9 August 2025
9 August 2025
9 August 2025
