Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 30, 2023 10:12 AM

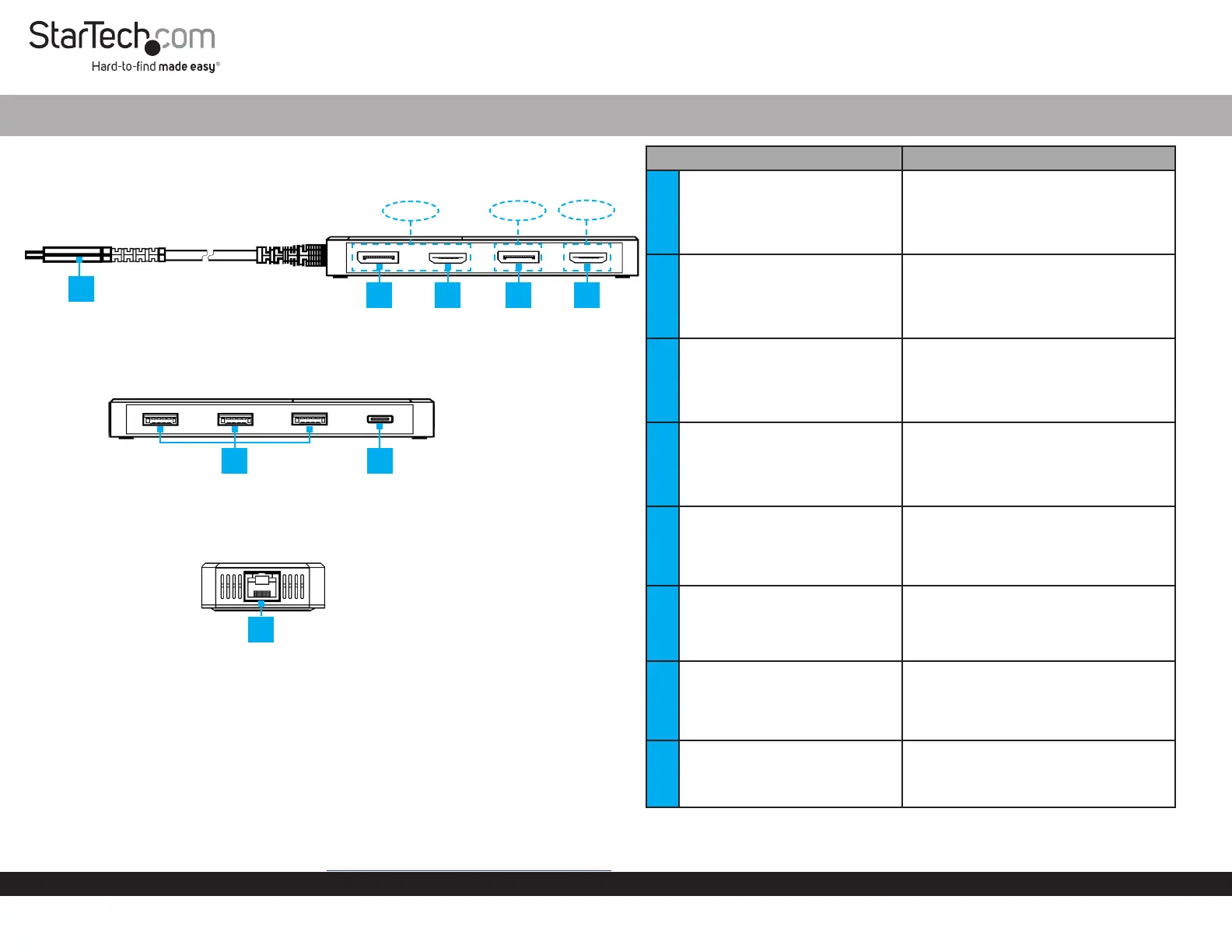

Product Diagram (Side A)

(Side B)

(Side C)

Package Contents

• Multiport Adapter

• Quick-Start Guide

Requirements

• Host Computer

• With Available DP Alt Mode Enabled USB-C Port Supporting MST

For the latest drivers, manuals, product information, technical specications, and

declarations of conformance, please visit: www.StarTech.com/117B-USBC-MULTIPORT

Product ID

117B-USBC-MULTIPORT

USB-C Multi-Monitor Multiport Adapter, 2x HDMI/2x DP - 3x USB-A/GbE/100W PD

Component Function

1HDMI Video Output Port

(Video Output 1)

• Connect an HDMI Display Device

• HDMI 2.0b

• Up to 4K (4096x2160) 60 Hz

• Via DisplayPort 1.4 DP Alt Mode

2DisplayPort Video Output Port

(Video Output 2)

• Connect a DisplayPort Display Device

• DisplayPort 1.4

• Up to 4K (4096x2160) 60 Hz

• Via DisplayPort 1.4 DP Alt Mode

3HDMI Video Output Port

(Video Output 3)

• Connect an HDMI Display Device

• HDMI 2.0b

• Up to 4K (4096x2160) 30 Hz

• Via DisplayPort 1.4 DP Alt Mode

4DisplayPort Video Output Port

(Video Output 3)

• Connect a DisplayPort Display Device

• DisplayPort 1.4

• Up to 4K (4096x2160) 30 Hz

• Via DisplayPort 1.4 DP Alt Mode

5Built-in USB-C Host Cable

• Connect to a USB-C Port on a Host

Computer

• USB 3.2 Gen 2 (10Gbps)

• DisplayPort 1.4 Alt Mode

6USB-C 100W Power Delivery

Pass-Through Port

• Connect a USB-C power adapter

• USB Power Delivery 3.0 (up to

100W, with up to 85W available for

charging)

73x USB-A Data Ports

• Connect USB-A Peripherals

• USB 3.2 Gen 2 (10 Gbps)

• Supports Up to 5 V/0.9 A (4.5 W) of

Power

8Gigabit Ethernet Port

• Connect a CAT 5e/CAT 6 cable to

establish a network connection

• 10/100/1000 Mbps

54 3

7 6

2 1

Video Output 2 Video Output 1

Video Output 3

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a 3-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com

Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Installation

1. Connect the , located on the , to Built-In USB-C Host Cable Multiport Adapter

a , located on the . The DP Alt Mode Enabled USB-C Port Host Computer Host

Computer Multiport Adapter will automatically detect and install the .

2. Video Output 1

Connect an HDMI enabled display device to the HDMI Output Port (Video

Output 1) Multiport Adapter located on the , using an HDMI cable (sold

separately).

3. Video Output 2

Connect a DisplayPort enabled display device to the DisplayPort Output Port

(Video Output 2) Multiport Adapterlocated on the , using a DisplayPort cable

(sold separately).

4. Video Ouput 3

Connect a DisplayPort or HDMI enabled display device to the DisplayPort

Output Port (Video Output 3) HDMI Output Port (Video Output 3) or the ,

using the required cabling (sold separately).

Notes:

• Only a single display can be connected to either of the Video Output #3 output

options.

• The computer’s USB-C port must support DP Alt Mode in order to output video

to an external display.

• The computer’s USB-C port must support MST in order to output video to more

than one external display.

• Video performance, such as resolution and refresh rate depends upon the

host computer’s video controller. Please verify the specications of the host

computer.

5. Connect USB peripherals to the , located on the USB-A Data Ports Multiport

Adapter.

6. Connect a USB-C power adapter (up to 100W) from an AC outlet to the USB-C

100W Power Delivery Pass-Through Port Multiport Adapter on the , to charge

the that’s connected to the .Host Computer Built-in USB-C Host Cable

Note: The computer must support USB-C Power Delivery on the port the

multiport adapter is connected to, in order to charge the computer via USB-C.

7. Connect an RJ-45 terminated network cable (CAT 5e or better) from your

local area network (e.g. Router, Switch, Modem, etc.) to the Gigabit Ethernet

Port, located on the Multiport Adapter, to access a network via a wired LAN

connection.
