Introduction

Thank you for purchasing a StarTech.com HDMI

to DVI-D Converter with Digital Audio. This inno-

vative product allows users to connect HDMI

sources to DVI digital displays, as well as to a

digital audio receiver.

Features

• Compliant with DVI 1.0 and HDMI 1.1

• Input format auto detects digital RGB or YPbPr

• Easy Plug and Play installation

System Requirements

• An HDMI capable audio and video source

• A DVI capable display

Package Contents

• 1 x HDMI to DVI D Converter

• 1 x Power Adapter

• 1 x Instruction Manual

HDMI2DVI

HDMI to DVI-D Converter with Digital Audio

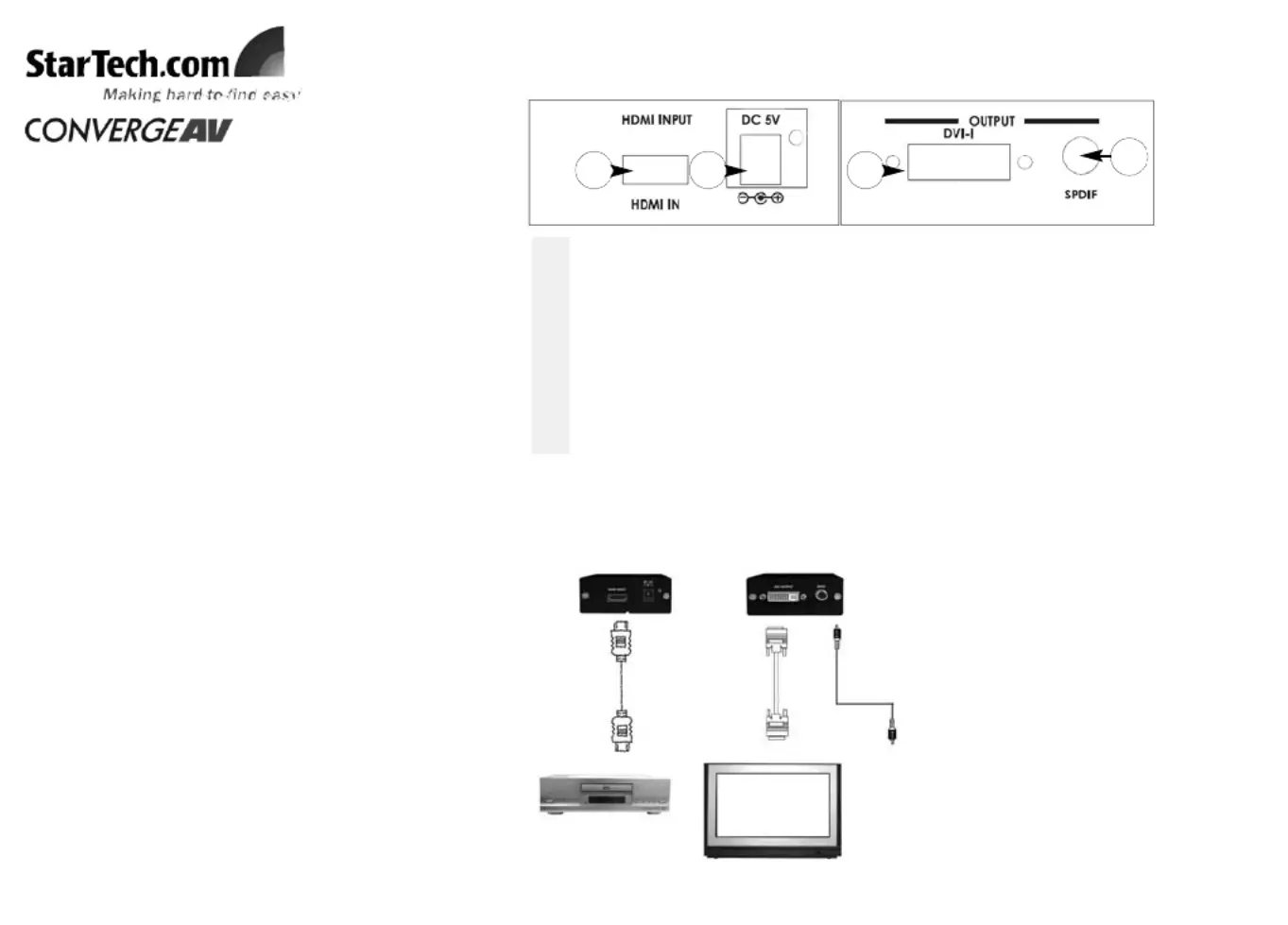

Operation Controls and Functions

1 2 3 4

Rear ViewFront View

1HDMI Input Connects to the HDMI output connector of the source

equipment

2Power Input

Connect the supplied 5V DC power supply to this port.

The Corresponding LED will illuminate when HDMI2DVI

is powered

3DVI Output Connects to the DVI input connector of the DVI display,

providing a DVI-D only signal via a DVI-I connector

4Digital Audio

(SPDIF) Output

Connects to the audio input of a connected digital audio

receiver.

Installation

HDMI Cable DVI Cable DVI Cable

Front View Rear View

Monitor,

Projector, HDTV

HDMI Audio/Video

Source

Specifications

HDMI Input HDMI 1.1

Output Signal(s) RGB or YPbPr pass through, Coaxial

(S/PDIF)

Operating

Frequency 165MHz

Input/Output

resolutions

PC:

VGA @60, 72, 75, 85Hz

SVGA@60, 72, 75, 85Hz

XGA @60, 70, 75, 85Hz

SXGA @60, 75, 85Hz

UXGA @60Hz

1152@70, 75, 85Hz

HD:

480i@60Hz, 576i@50Hz, 480p@60Hz,

576p@50Hz, 720p@60, 50Hz,

1080i@ 50, 60Hz,

1080p@24, 25, 30, 50, 60Hz

Supported Data

Transfer Rate Up to 115.2Kbps

Support , Warrant y In f ormat ion , and Regulat ory Compliance Stat ement

If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

This product is backed by a lifetime warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, follow-

ing the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty cov-

ers parts and labor costs only. StarTech.com does not warrant its products from

defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability: In no event shall the liability of StarTech.com Ltd. and

StarTech.com USA LLP (or their officers, directors, employees or agents) for any

damages (whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or

related to the use of the product exceed the actual price paid for the product. Some

states do not allow the exclusion or limitation of incidental or consequential damages.

If such laws apply, the limitations or exclusions contained in this statement may not

apply to you.

FCC Compliance Statement: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Rev: November 5, 2007

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

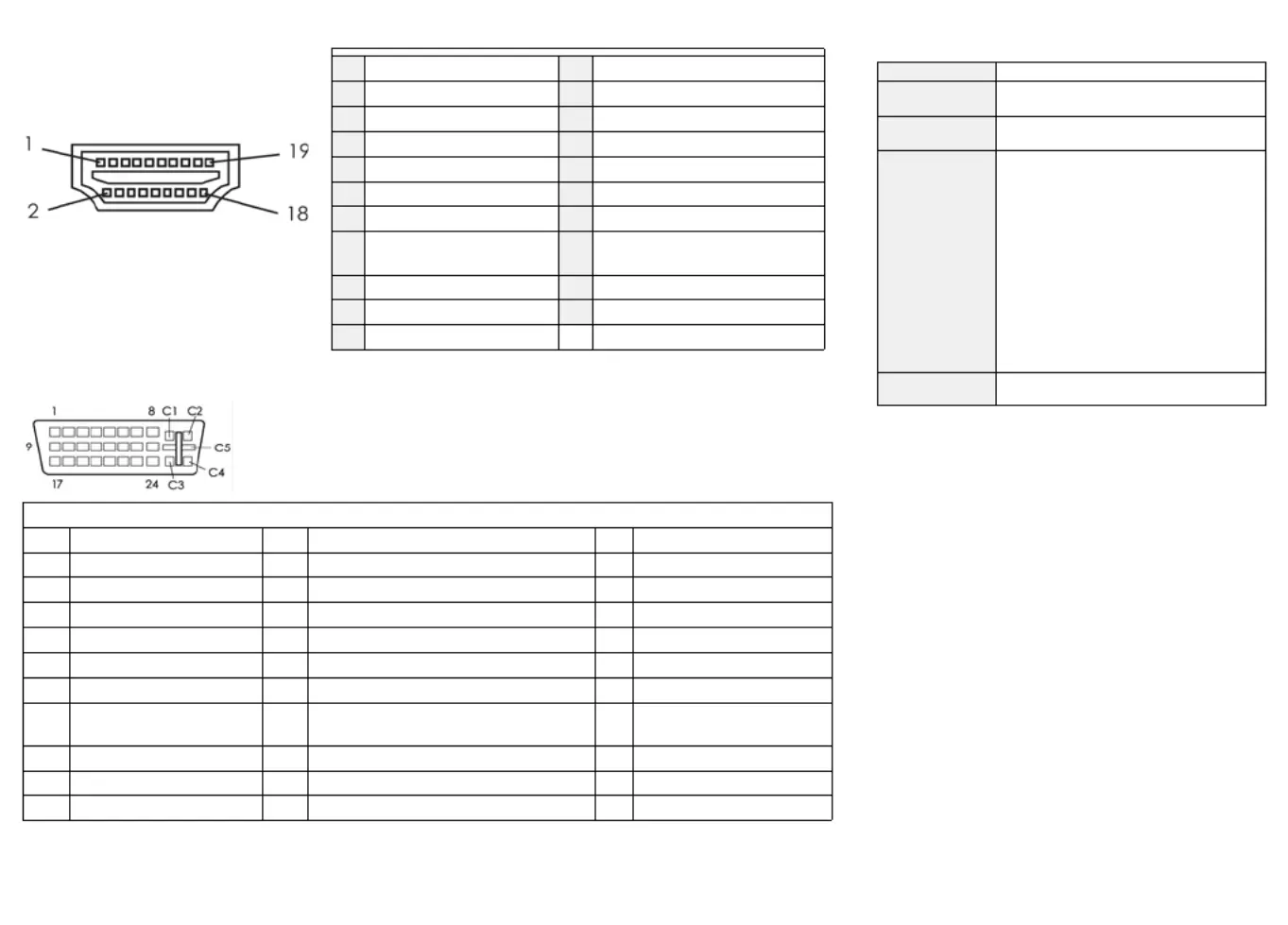

HDMI Input Pin Assignment

Pin PinFunction Assignment Function Assignment

1 T.M.D.S Data2+ T.M.D.S Data2 Shield2

3 T.M.D.S Data2- 4 T.M.D.S Data1+

5 T.M.D.S Data1 Shield 6 T.M.D.S Data1-

7 T.M.D.S Data0+ T.M.D.S Data0 Shield8

9 T.M.D.S Data0- 10 T.M.D.S Clock+

11 T.M.D.S Clock Shield T.M.D.S Clock-12

13 14CEC Reserved (N.C. on device)

15 16SCL SDA

17 18DDC/CEC Ground +5V Power

19 Hot Plug Detect

DVI-D Output Pin Assignment

Digital Only Connector Pin Assignments

Pin Pin PinSignal Assignment Signal Assignment Signal Assignment

1 T.M.D.S Data 2- T.M.D.S Data 1- T.M.D.S Data 0-9 17

2 T.M.D.S Data 2+ T.M.D.S Data 1+ T.M.D.S Data 0+10 18

3 T.M.D.S Data 2/4 Shield T.M.D.S Data 1/3 Shield T.M.D.S Data 0/5 Shield11 19

4 T.M.D.S Data 4- T.M.D.S Data 3- T.M.D.S Data 5-12 20

5 T.M.D.S Data 4+ T.M.D.S Data 3+ T.M.D.S Data 5+13 21

6 DDC Clock 14 +5V Power T.M.D.S Clock Shield22

7 DDC Data 15 Ground

(Return for +5V, HSync and VSync) 23 T.M.D.S Clock +

8 Analog Vertical Sync 16 Hot Plug Detect 24 T.M.D.S Clock -

C1 N.C. C2 N.C. C3 N.C.

C4 N.C. C5 N.C.
