SATDOCKU3SEF / SATDOCKU3FGB / SATDOCKU3FEU

USB 3.0 eSATA to SATA Hard Drive Docking Station

with Fan

*actual product may vary from photo

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual i

Table of Contents

Introduction ............................................................................................1

Packaging Contents 1 .................................................................................................................................

System Requirements 1 ..............................................................................................................................

Front View ....................................................................................................................................................2

Rear View ......................................................................................................................................................2

Installation ..............................................................................................3

Hardware Installation 3 ..............................................................................................................................

Driver Installation 4 ......................................................................................................................................

Using the Storage Device ......................................................................5

Specications ..........................................................................................7

Technical Support ..................................................................................8

Warranty Information ............................................................................8

Instruction Manual 2

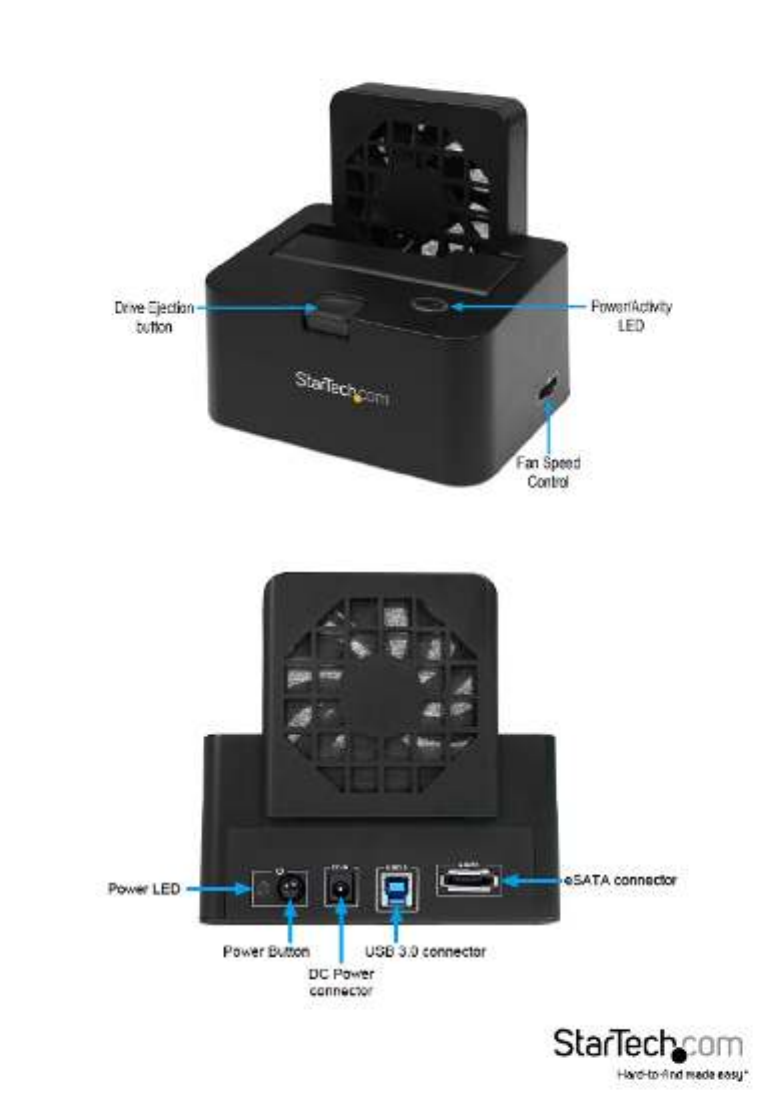

Front View

Rear View

Instruction Manual 3

Installation

WARNING! Hard drives and storage enclosures require careful handling, especially

when being transported. If you are not careful with your hard disk, lost data may

result. Always handle your hard drive and storage device with caution. Be sure that

you are properly grounded by wearing an anti-static strap when handling computer

components or discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

Hardware Installation

1. Connect the external power adapter from the hard drive dock to an electrical outlet.

2. Insert a 2.5” or 3.5” hard drive into the top loading slot. Make sure that the

connectors on the hard drive are facing the same corner of the slot that has a cutout

in the door. The label on the hard drive should face the front of the hard drive dock.

3. Connect the included USB 3.0 cable from the hard drive dock to an available USB 3.0

or 2.0 port on the computer system. The computer can be on or o.

NOTE: A USB 2.0 A-B cable could be used as a substitute on the hard drive dock but

will be restricted to USB 2.0 speeds.

Connect the included eSATA cable from the hard drive dock to an available eSATA port

on the computer system. The computer can be on or o.

NOTE: It is not recommended that both USB and eSATA be connected at the same

time, however eSATA will be the default connection if both are connected.

4. Press the power button on the rear of the hard drive dock. The Power LED next to

the power button as well as the LED on the top of the dock will light up.

NOTE: If no host connection is detected (USB cable unplugged or computer turned

o), the dock will automatically go into Suspend Mode and power down the SATA

drive until an active host connection is detected. The LED on the top of the dock will

turn o however the LED on the rear of the dock will stay lit.

5. The operating system will automatically detect and install the SATA drive. Once

complete, the drive should be ready for use.

6. Adjust the fan speed control dial on the side of the docking station, to the desired

speed or turn it o completely.

Instruction Manual 4

NOTE: When connected via USB, the Dock will automatically go into Suspend Mode

if the connection is left idle for more than 5 minutes. The SATA drive will be powered

down and the fan stopped still visible to the operating system (the LED on the top

of the dock will also turn o however the LED on the rear of the dock will stay lit).

Accessing the SATA drive will automatically cancel Suspend Mode and power the drive

back up. This does not apply to eSATA connections, which are always active.

7. To remove the hard drive, make sure it is currently not being accessed by the

computer then unmount or uninstall the disk drive from the operating system (see

documentation for your operating system).

8. Press the power button to turn o the hard drive dock and wait for the drive to

power down.

9. Press the drive ejection button on the top of the hard drive dock to release the drive

then pull the drive from the slot.

Driver Installation

No driver installation is required for the compatible operating systems, as this

enclosure is natively supported, so the drivers are already installed.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Vugge/dockingstation
Model:	SATDOCKU3FGB
Vægt:	505 g
Produktfarve:	Sort
Pakkevægt:	930 g
Opbevaringstemperatur (T-T):	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	1
Driftstemperatur (T-T):	5 - 80 °C
Dimensioner (BxDxH):	92 x 130 x 127 mm
Udgangsspænding:	15 V
Udgangsstrøm:	2 A
Effektkrav:	110 - 240 VAC
Kompatible operativsystemer:	Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2, Mac OS X, Linux
Grænseflade:	USB/eSATA
Maksimal dataoverførselshastighed:	5000 Mbit/s
Antal understøttede HHD'er:	1
Understøttede HDD-størrelser:	2.5, 3.5 "
Antal eSATA-porte:	1
Understøttede HDD-grænseflader:	SATA
